Throttle/ kickdown linkage

1966-1967 Dodge Charger Forum

  1. Rooster27

    Rooster27 Well-Known Member

    Messages:
    66
    Likes Received:
    32
    Joined:
    May 15, 2020
    Location:
    Maine
    Local Time:
    10:17 AM

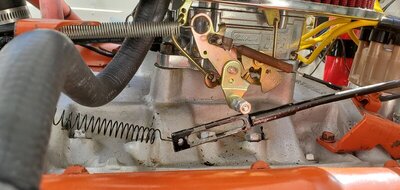

    Hey guys and gals hope all is well and you have been soaking up the sunshine! Have a quick question on mostly the kickdown linkage. I have it disconnected right now as you can see in the photo. The carb is a 4bbl edelbrock 600 that sits on top of a weiand intake. Any help would be great!


  2. 493 Mike

    493 Mike FBBO Gold Member FBBO Gold Member

    Messages:
    3,351
    Likes Received:
    3698
    Joined:
    Dec 25, 2011
    Location:
    White Cloud, MI
    Local Time:
    10:17 AM
    I hope you are NOT driving with the linkage inoperable? That will burn up your transmission quickly! I'm not familiar with the E-brock carbs (except that they are AFB/AVS copies) but, if they're like Holley's you need the adapter for Mopar.
    Mike

    • Like Like x 2
    • Agree Agree x 1
    • R/T Boy 67

      R/T Boy 67 Well-Known Member

      Messages:
      931
      Likes Received:
      866
      Joined:
      Apr 23, 2018
      Location:
      Nanaimo B.C. Canada
      Local Time:
      7:17 AM

      • Like Like x 1
      • Thanks! Thanks! x 1
      • Rooster27

        Rooster27 Well-Known Member

        Messages:
        66
        Likes Received:
        32
        Joined:
        May 15, 2020
        Location:
        Maine
        Local Time:
        10:17 AM
      • Geff McCarthy

        Geff McCarthy FBBO Gold Member FBBO Gold Member

        Messages:
        159
        Likes Received:
        58
        Joined:
        Aug 5, 2019
        Location:
        Portland OR
        Local Time:
        7:17 AM
        My new 63 Sport Fury has a replacement 400 with Edelbrock 1407 4bbl. I now realize that the transmission rod is the original Plymouth. I struggled to obtain enough length to direct the 727 properly; it would shift into 3rd by 20mph and no kick down. I was about to bend the entire rod to lengthen, then noted on the Edelbrock site, a MOPAR adapter: really just a lenght of rod and a hexagonal turnbuckle that, when twisted, shortened or lengthened. Not bad price, but I went to my local hardware store, purchased the correct 1/4" x 28tpi turnbuckle, and since no rod was available, bought a bolt and cut off the head. Bingo: adjustable shift points and kick-down. On the original cars, there s a"V" bracket that prevents sideways movement of the control rod. I need one of those, now too. Can send photo if you need.

        • Like Like x 1
        • Rooster27

          Rooster27 Well-Known Member

          Messages:
          66
          Likes Received:
          32
          Joined:
          May 15, 2020
          Location:
          Maine
          Local Time:
          10:17 AM

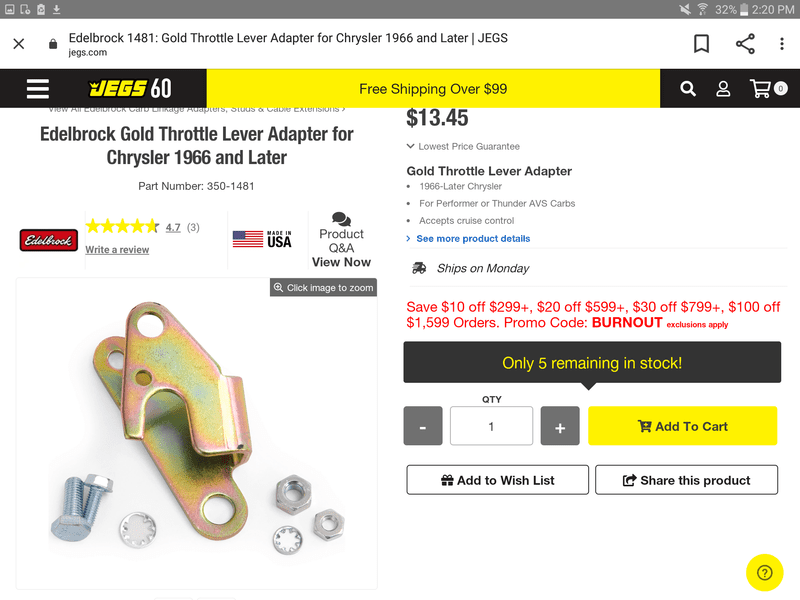

          That would be awesome if you could send a photo im actually having the same issue shifting into 3rd too soon. I dont drive it very often and only had about 300 miles on it since the engine has been rebuilt. I just bought the adapter before I saw this message but a picture would be awesome just so I can compare!

        • Nate S

          Nate S Well-Known Member

          Messages:
          946
          Likes Received:
          898
          Joined:
          Apr 24, 2020
          Location:
          Connecticut
          Local Time:
          10:17 AM
          A common problem, even when the bracket is “correct” is the the distance from the centerline of the throttle shaft to the attachment point is different on the new carbs than the factory carbs. The old radius was 1.125”, typical Holley replacements are 1.5, not unlikely the Edelbrock is too. That means you have too much throw and when set to bottom out at WOT it leaves it far too lax for the whole early part of the motion. Best to measure that distance and drill a new hole in the right place. I have done this and it works soooo much better.

          • Like Like x 2
          • Rooster27

            Rooster27 Well-Known Member

            Messages:
            66
            Likes Received:
            32
            Joined:
            May 15, 2020
            Location:
            Maine
            Local Time:
            10:17 AM
            Could you show me what this would look like? What is WOT? Sorry for the questions, my wife inherited the 66 charger from her dad and im not super savvy when it comes to mechanical stuff on these old girls, but I can detail the shit out of them.

          • Billccm

            Billccm FBBO Gold Member FBBO Gold Member

            Messages:
            2,572
            Likes Received:
            2177
            Joined:
            Aug 3, 2016
            Location:
            Tucson
            Local Time:
            7:17 AM
            Wide Open Throttle

          • Rooster27

            Rooster27 Well-Known Member

            Messages:
            66
            Likes Received:
            32
            Joined:
            May 15, 2020
            Location:
            Maine
            Local Time:
            10:17 AM
            Luckily I have a 65 fury here with a 318 poly and I think i know what you are saying now, with the edelbrok it seems where the throttle cable hooks to on the carb would be the place you would want it. I just looked at the fury 318 which is stock, and the kickdown and throttle cable are parallel to one another. I feel with the edelbrock if you were to do that, it would almost be too high of a "pivot" to attach it there.

          • Nate S

            Nate S Well-Known Member

            Messages:
            946
            Likes Received:
            898
            Joined:
            Apr 24, 2020
            Location:
            Connecticut
            Local Time:
            10:17 AM

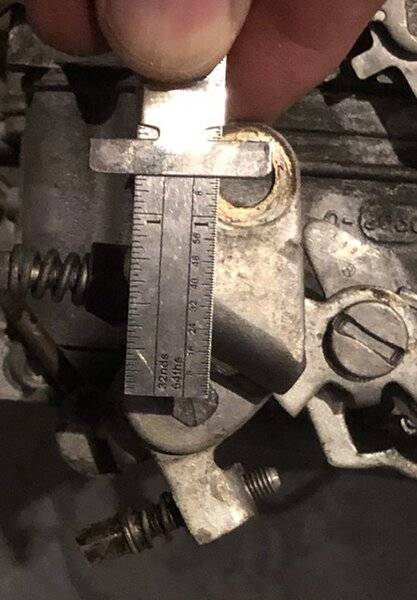

            In this first picture I’m showing a 1971 carter AVS and the distance from the throttle shaft to the Cable and linkage attachment point. FE2722FB-3289-4E0D-98D9-C9E52AA6D650.jpeg

            figuring that the distance required to go from idle to WOT is related to the circumference of the circle it goes on, that 1.2” radius is proportional to that distance. Inside the transmission the shift points move based on the compression of a spring between the kickdown valve and the throttle valve. It’s designed to work with that throttle cable movement distance, ending with the kickdown linkage almost bottomed out. 9352D496-9902-4179-B7AD-0182074A37E5.jpeg

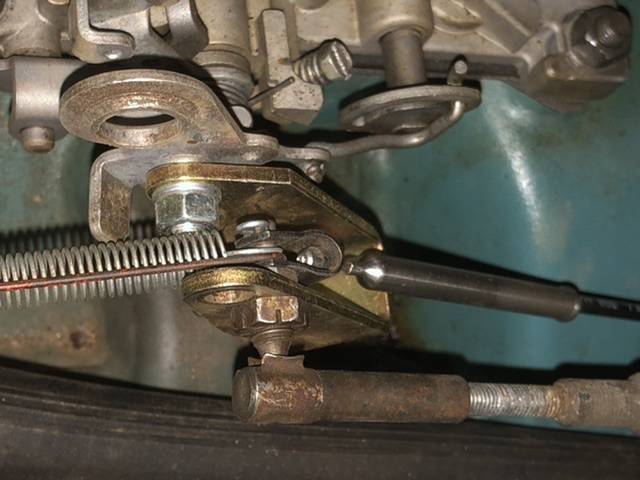

            Here’s a typical Holley with the correct bracket they sell for Chrysler products. See that hole above where the throttle is actually hooked up? That’s the hole they give you. It’s 1.5” from the shaft centerline. If you set the kickdown linkage to almost bottom out at WOT it’s pulled MUCH farther forward when at idle, this is because of that larger radius.

            Part throttle acceleration isn’t much different than idle so the kickdown linkage with that outer hole position hasn’t moved to even where it would be at idle with the correct radius. The solution is to drill a new hole in the aftermarket arm that’s the same distance as the factory hole (like was done in the second photo). This allows the kickdown linkage to be compressed the right amount and the shifts to happen at higher points.

            • Like Like x 1
            • Rooster27

              Rooster27 Well-Known Member

              Messages:
              66
              Likes Received:
              32
              Joined:
              May 15, 2020
              Location:
              Maine
              Local Time:
              10:17 AM
              Thank you for this, ill be getting that bracket hopefully by Wednesday and doing some tinkering!

            • Rooster27

              Rooster27 Well-Known Member

              Messages:
              66
              Likes Received:
              32
              Joined:
              May 15, 2020
              Location:
              Maine
              Local Time:
              10:17 AM

              I just posted a video on you tube not sure if you are able to help me out a bit and seeing if I adjusted it right. I know you had suggested drilling a hole.


            • Nate S

              Nate S Well-Known Member

              Messages:
              946
              Likes Received:
              898
              Joined:
              Apr 24, 2020
              Location:
              Connecticut
              Local Time:
              10:17 AM

            • Rooster27

              Rooster27 Well-Known Member

              Messages:
              66
              Likes Received:
              32
              Joined:
              May 15, 2020
              Location:
              Maine
              Local Time:
              10:17 AM
              So inwas tinkering tonight and had to do an oil change after the engine break-in. While I was under there I figured I woulf take a look at the kickdown linkage. What I discovered was that the end of the linkage that attaches to the shaft that goes into the trans was loose and not fully connected. That was one of the problems of it not shifting right and going into 3rd at 20 Mohandas also having a slight runaway. Got that all hooked up properly and shifts wayyy better. Kickdown still doesn't want to kickdown so I just need to fine tune the linkage I believe and all should be good. I may take a look at the kickdown adjust band as well and do that first or should I adjust the linkage first? Any advice is greatly appreciated! Thanks guys and gals!

              Roost

            • Nate S

              Nate S Well-Known Member

              Messages:
              946
              Likes Received:
              898
              Joined:
              Apr 24, 2020
              Location:
              Connecticut
              Local Time:
              10:17 AM
              I would do both but the linkage first. Get it so it’s nearly bottomed out at WOT. Then jam the pedal to the floor (engine off) with a 2x4 or whatever you’ve got around and visually confirm the carb is wide open and linkage is nearly bottomed out.

              Next. With it all adjusted nicely, pop the socket off with the throttle in idle position and move the kickdown rod. You should be able to feel the spring in the tranny and where it just initially touches as you push it rearward. Hopefully that’s just a tiny bit past idle, maybe 1/8-1/4”. If it’s not, look at the attachment position like I’d described. Compare it to your original AFB.

              • Like Like x 1
              • 493 Mike

                493 Mike FBBO Gold Member FBBO Gold Member

                Messages:
                3,351
                Likes Received:
                3698
                Joined:
                Dec 25, 2011
                Location:
                White Cloud, MI
                Local Time:
                10:17 AM
                The KD band first.
                Mike

                • Like Like x 1
                • Nate S

                  Nate S Well-Known Member

                  Messages:
                  946
                  Likes Received:
                  898
                  Joined:
                  Apr 24, 2020
                  Location:
                  Connecticut
                  Local Time:
                  10:17 AM
                  Both need to be right to get very far so I can’t disagree with this. Do you know what to do with it?

                  • Like Like x 1
                  • Rooster27

                    Rooster27 Well-Known Member

                    Messages:
                    66
                    Likes Received:
                    32
                    Joined:
                    May 15, 2020
                    Location:
                    Maine
                    Local Time:
                    10:17 AM
                    Inhave the service manual, it says to loosen the lock nut 4 or 5 turns and checknto see if the adjustment screw turns freely, then torque down to 72 inch pounds if you don't have the adapter from Chrysler. Thats what it says in the manual anyway. Not sure after you check to see if the adjustment screw turns freely if you tighten the lock nut and then torque the adjustment screw? Its not specific in that regard, im guessing not or it would say so.

                  • Nate S

                    Nate S Well-Known Member

                    Messages:
                    946
                    Likes Received:
                    898
                    Joined:
                    Apr 24, 2020
                    Location:
                    Connecticut
                    Local Time:
                    10:17 AM
                    Just get the locknut free and loose enough to be out of the way. Then tighten the adjuster to 72 in-lb. I wouldn’t fuss about this very much, snug with the 1/4 or 5/16 open end you’ll use will be fine. Then back it out 2 turns. (Other trannys have slightly different number of turns but a ‘64 - big block with a 3.8 kd lever should get 2). Now keep the wrench on that little post so it doesn’t turn and wind in the locknut and tighten the locknut up. That’s it.

                    • Like Like x 2
                    • Agree Agree x 1
