Z bar spring thingy?

General Mopar Tech Discussions

  1. Mike in Boston

    Mike in Boston Well-Known Member

    Messages:
    143
    Likes Received:
    61
    Joined:
    Dec 23, 2016
    Location:
    Boston, Ma.USA
    Local Time:
    3:43 PM
    Any pics of the Zbar with that spring seal holder thingy, that wraps around the bar, in its position? I can't figure out its purpose.

  2. Beekeeper

    Beekeeper FBBO Gold Member FBBO Gold Member

    Messages:
    2,253
    Likes Received:
    1558
    Joined:
    Jul 4, 2012
    Location:
    Rogersville,TN.
    Local Time:
    2:43 PM
    Don't have a pic handy but it's purpose is to retain the nylon bushing halves in the tube.

    • Like Like x 2
    • Stanton

      Stanton Well-Known Member

      Messages:
      2,146
      Likes Received:
      1913
      Joined:
      Aug 8, 2012
      Location:
      ON
      Local Time:
      3:43 PM
      The bushing halves are grooved. The "spring thingy" ends go in the grooves. Does it hold the bushing in? Not really, once they're in and around the ball they can't go anywhere ... it holds the z bar from moving from side to side out of alignment.

      • Agree Agree x 3
      • Like Like x 1
      • Dennis H

        Dennis H FBBO Gold Member FBBO Gold Member

        Messages:
        13,843
        Likes Received:
        16592
        Joined:
        Jul 11, 2010
        Location:
        San Jose
        Local Time:
        2:43 PM
        This is a precision piece. Make sure it's right or have a pro work on it. Had one fail, tow truck.

      • texas69bee

        texas69bee Well-Known Member

        Messages:
        1,646
        Likes Received:
        1077
        Joined:
        Dec 3, 2013
        Location:
        texas
        Local Time:
        2:43 PM

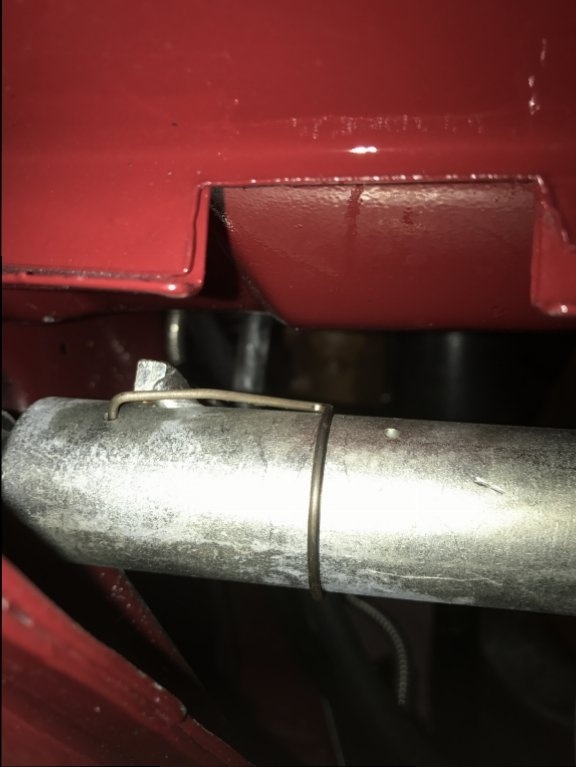

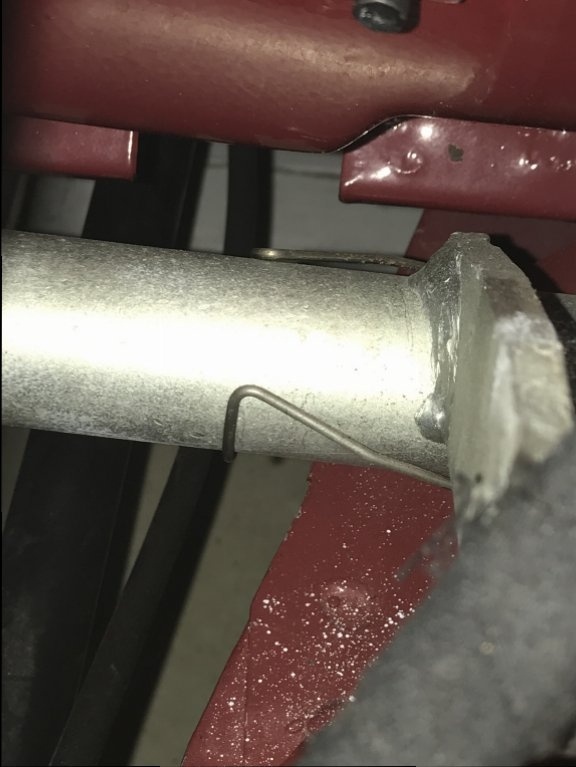

        IMG_3770.JPG IMG_3774.JPG

        • Thanks! Thanks! x 2
        • Stanton

          Stanton Well-Known Member

          Messages:
          2,146
          Likes Received:
          1913
          Joined:
          Aug 8, 2012
          Location:
          ON
          Local Time:
          3:43 PM
          Seriously !?!?

          1) place bushing halves over outer ball stud and insert in z bar
          2) place bushing halves over inner ball stud (on bellhousing)
          3) push z bar over inner ball/bushing halves until groove aligns with holes - install clip
          4) position outer ball stud on frame bracket and tighten nut.

          Now did that really need a "pro" ??

          • Like Like x 1
          • Agree Agree x 1
          • Dennis H

            Dennis H FBBO Gold Member FBBO Gold Member

            Messages:
            13,843
            Likes Received:
            16592
            Joined:
            Jul 11, 2010
            Location:
            San Jose
            Local Time:
            2:43 PM
            Mine was shoved in by who knows who. It was a bad install. Almost anything can be a crap job I guess. Lots of jobs on this site are described as simple. Simple for those who have done them before.

            Last edited: Apr 14, 2017
            • Like Like x 2
            • Agree Agree x 2
            • moparedtn

              moparedtn Ed on the Ridge FBBO Gold Member

              Messages:
              5,825
              Likes Received:
              8353
              Joined:
              May 14, 2011
              Location:
              On the Ridge, TN
              Local Time:
              3:43 PM
              This is a very timely post for me, thanks. :)
              I'm about to put mine back together this weekend with replacement parts from Brewer's, in fact.
              There's a pic of this in the factory service manual also, but actual pics help so much more.
              Unfortunately, my z-bar was sort of cobbled out of a later one or something and only has one tiny hole for the end of the spring clip. Heck, it didn't even have a spring clip when I took it all apart.
              I also need to figure out how the z-bar goes back on the end of the clutch rod coming from the pedal, too. Can I beg a pic of that as well?
              Thanks!

              • Like Like x 2
              • texas69bee

                texas69bee Well-Known Member

                Messages:
                1,646
                Likes Received:
                1077
                Joined:
                Dec 3, 2013
                Location:
                texas
                Local Time:
                2:43 PM

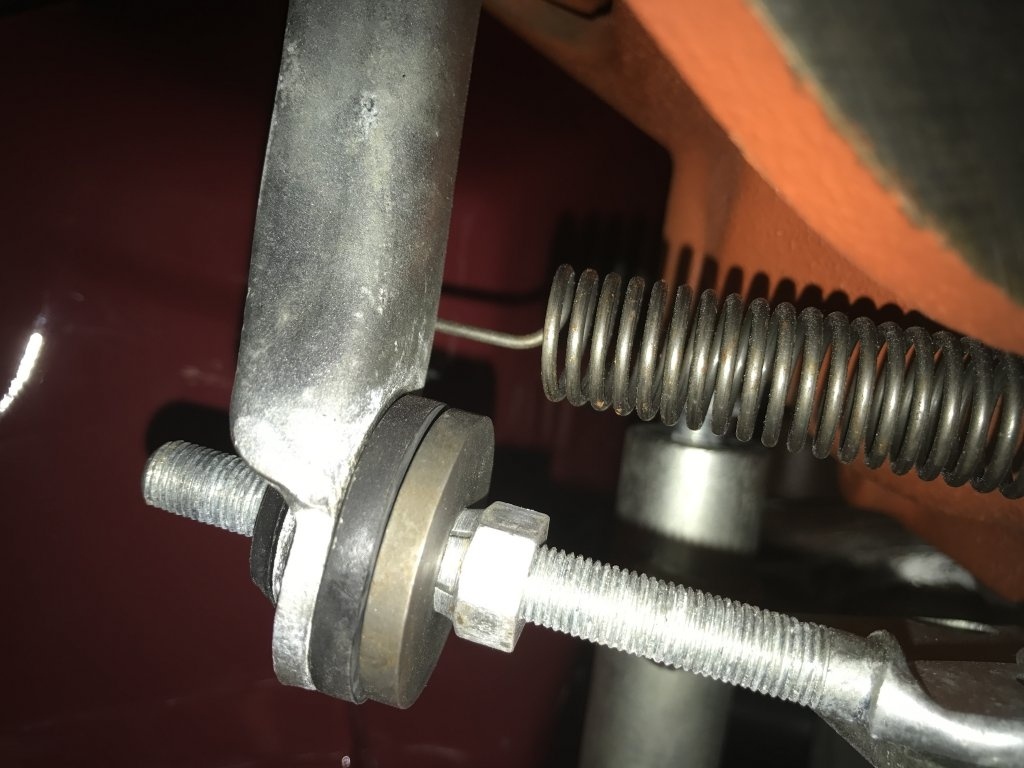

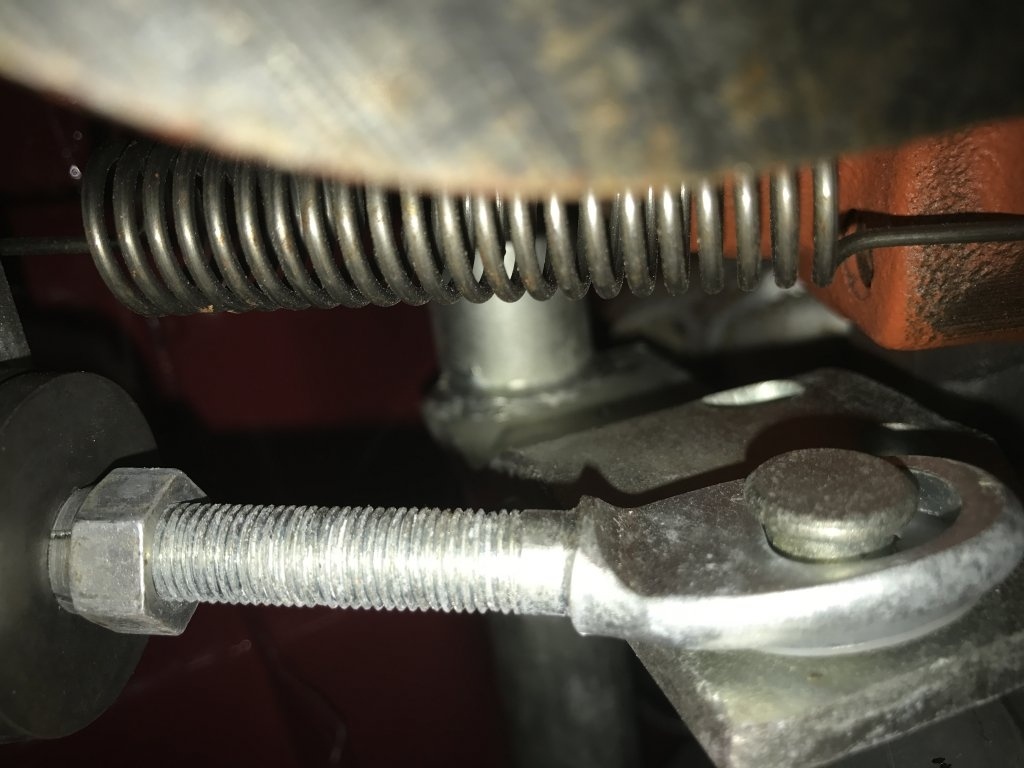

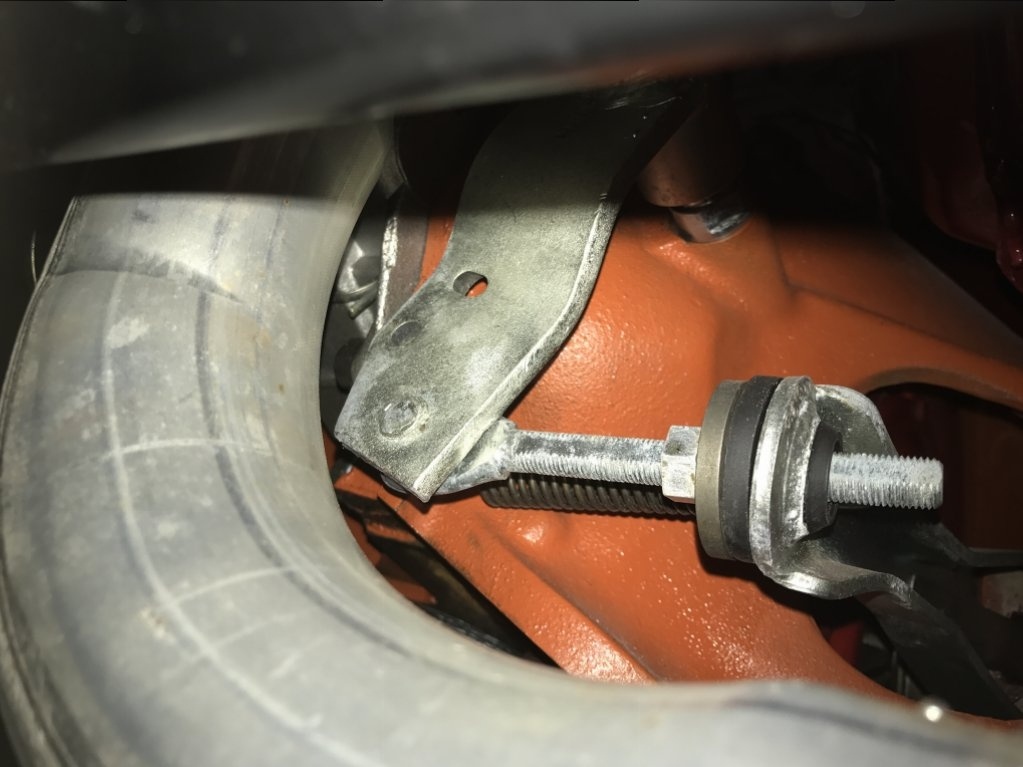

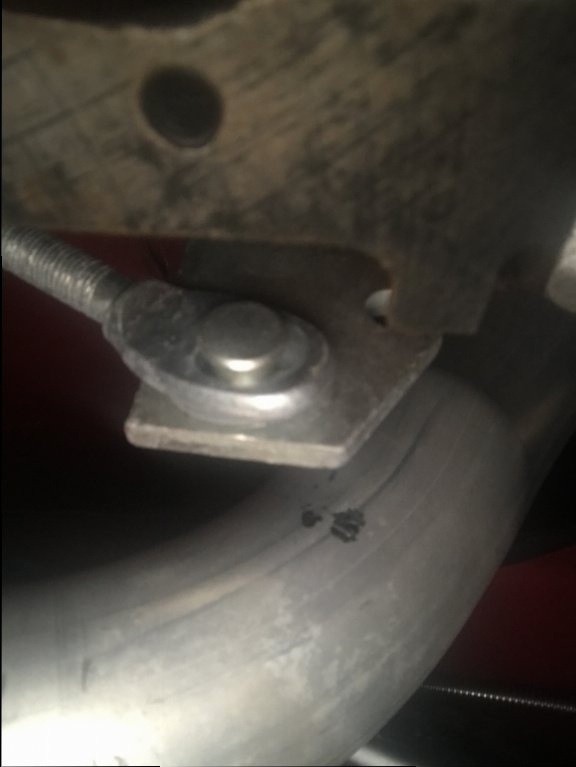

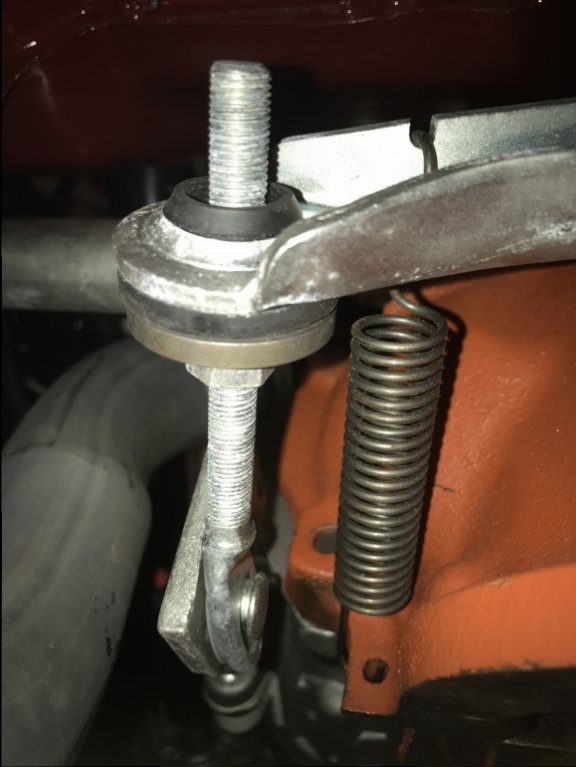

                IMG_3780.JPG IMG_3783.JPG IMG_3788.JPG IMG_3789.JPG IMG_3790.JPG
                There is a clip that hasn't been installed over the pin yet.

                • Like Like x 2
                • Thanks! Thanks! x 2
                • moparnation74

                  moparnation74 FBBO Gold Member FBBO Gold Member

                  Messages:
                  10,507
                  Likes Received:
                  17945
                  Joined:
                  Mar 27, 2014
                  Location:
                  OHIO
                  Local Time:
                  2:43 PM
                • texas69bee

                  texas69bee Well-Known Member

                  Messages:
                  1,646
                  Likes Received:
                  1077
                  Joined:
                  Dec 3, 2013
                  Location:
                  texas
                  Local Time:
                  2:43 PM
                  Wow, someone has a good eye for detail. I do have the boot. I left it off during a dry fit and test runs. Plenty of work to do yet.

                  • Like Like x 1
                  • moparnation74

                    moparnation74 FBBO Gold Member FBBO Gold Member

                    Messages:
                    10,507
                    Likes Received:
                    17945
                    Joined:
                    Mar 27, 2014
                    Location:
                    OHIO
                    Local Time:
                    2:43 PM
                    Thanks! I also like how you have everything set up and detailed...Looks great!

                    • Thanks! Thanks! x 1
                    • Agree Agree x 1
                    • moparedtn

                      moparedtn Ed on the Ridge FBBO Gold Member

                      Messages:
                      5,825
                      Likes Received:
                      8353
                      Joined:
                      May 14, 2011
                      Location:
                      On the Ridge, TN
                      Local Time:
                      3:43 PM
                      Wow, very nice work. I have all new stuff from Brewer's for the bottom end of things, but my old homebrew z-bar isn't nearly as pretty, for example. :)
                      I think I'd turn the adjuster nut around, so that the flat shoulder butts up against the thick washer instead of the castle locking part of it.
                      I am more concerned with things like which side the pedal rod hits the pivot on the z-bar and such. I always fight to get that dang thing back together.

                    • Stanton

                      Stanton Well-Known Member

                      Messages:
                      2,146
                      Likes Received:
                      1913
                      Joined:
                      Aug 8, 2012
                      Location:
                      ON
                      Local Time:
                      3:43 PM
                      The z bar installs with the clip at the bellhousing end.

                      The clutch rod will only go on one way because its got a couple bends in it. The wrong way and it won't even be close.

                      Don't forget rubber seals go on the ball studs to seal the ends of the z bar.
                      Plastic washers go on each pin before the clutch rods.

                      • Thanks! Thanks! x 1
                      • Stanton

                        Stanton Well-Known Member

                        Messages:
                        2,146
                        Likes Received:
                        1913
                        Joined:
                        Aug 8, 2012
                        Location:
                        ON
                        Local Time:
                        3:43 PM
                        It just so happens that the Z bar is what got me working on my own car.

                        Back in '73 after buying my '69 RR the clutch pedal stopped coming right up. You could pull it with your toe and it would pop all the way up. I looked at every part for days wondering what it could be and at some point we (wrongly) determined that the spring clip was a spring and was broken. The next week a friend told me about "the best mechanic in the world". Henry was his name and he was the biggest black guy I've ever seen - with the stub of a cigar hanging out the side of his mouth. I explained the problem and the first words out of his mouth were "hundred bucks". Talking to the guy was like talking to a brick wall - he knew everything and didn't want any thoughts or opinions and wasn't about to offer any verbal help or confirmation. So, I left the car for a day and the next day picked it up. A hundred buck and the pedal comes all the way up.

                        A couple weeks later I'm crawling under the car for some reason and spot his "repair" ... a large spring on the clutch fork secured (I can't remember where) with a coat hanger - a COMPLETE coat hanger - not just a piece of one !!!

                        FUCK ME !!

                        A good look at things and it was obvious that whatever was inside the z bar was broken because the bell end wasn't centered on the pivot like the frame end. I took it apart and found worn out bushings. I put it back together and went and bought the new bushings on Monday - my first parts purchase from Chrysler. They cost me 5 cents per half.

                        If there was ever someone I wanted to kill it was that cocksucker Henry. I actually did confront him about it and his reply was "when you picked up your car, did the clutch pedal come all the way up, yes or no". Fuck you! And I spread the word.

                        • Like Like x 1
                        • Thanks! Thanks! x 1
                        • texas69bee

                          texas69bee Well-Known Member

                          Messages:
                          1,646
                          Likes Received:
                          1077
                          Joined:
                          Dec 3, 2013
                          Location:
                          texas
                          Local Time:
                          2:43 PM
                          Then the nut will be on backwards per service manual.

                          • Thanks! Thanks! x 1
                          • Stanton

                            Stanton Well-Known Member

                            Messages:
                            2,146
                            Likes Received:
                            1913
                            Joined:
                            Aug 8, 2012
                            Location:
                            ON
                            Local Time:
                            3:43 PM
                            There is a reason the nut goes on "backwards". The washer presses on the taper and the pressure holds it tight - otherwise it would work itself loose.

                            • Thanks! Thanks! x 1
                            • 5.7 hemi

                              5.7 hemi FBBO Gold Member FBBO Gold Member

                              Messages:
                              12,176
                              Likes Received:
                              8767
                              Joined:
                              Dec 21, 2008
                              Location:
                              ca
                              Local Time:
                              2:43 PM
                              Rip that stuff out and go hydraulic, problem solved.

                              • Agree Agree x 1
                              • moparedtn

                                moparedtn Ed on the Ridge FBBO Gold Member

                                Messages:
                                5,825
                                Likes Received:
                                8353
                                Joined:
                                May 14, 2011
                                Location:
                                On the Ridge, TN
                                Local Time:
                                3:43 PM

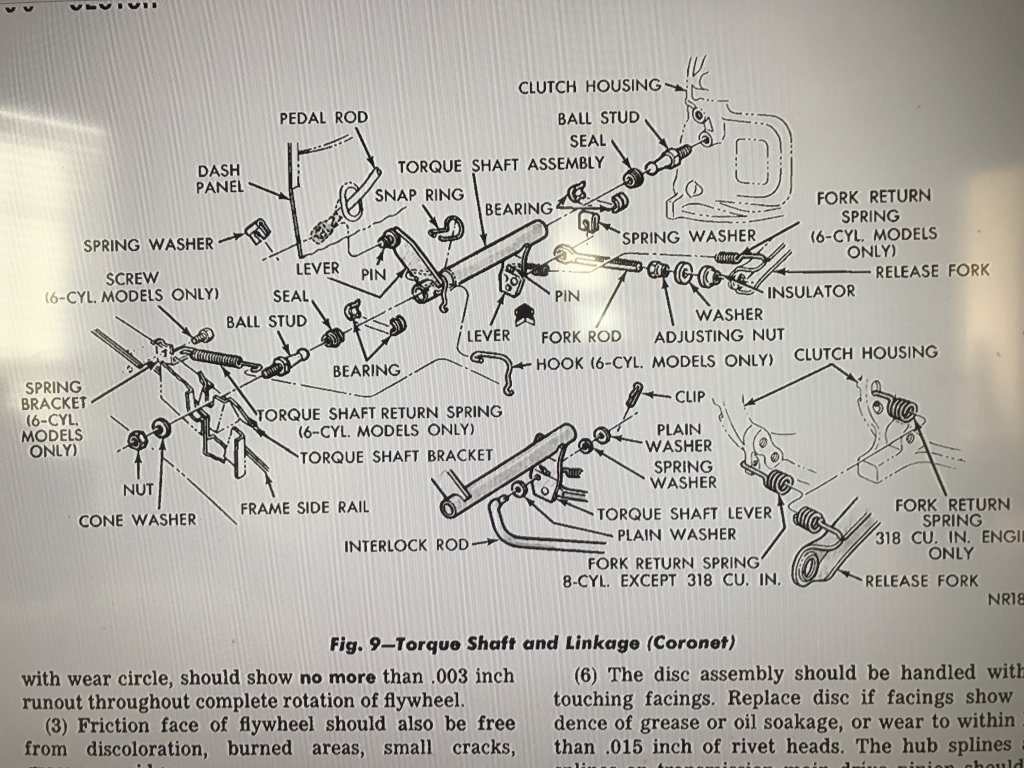

                                Right you are, as the FSM diagram that Texas Bee posted shows.
                                A thousand pardons, sir.

                              • moparedtn

                                moparedtn Ed on the Ridge FBBO Gold Member

                                Messages:
                                5,825
                                Likes Received:
                                8353
                                Joined:
                                May 14, 2011
                                Location:
                                On the Ridge, TN
                                Local Time:
                                3:43 PM
                                You buying?

                                • Like Like x 2
