Z bar spring thingy?

General Mopar Tech Discussions

  1. moparedtn

    moparedtn Ed on the Ridge FBBO Gold Member

    Messages:
    5,769
    Likes Received:
    8283
    Joined:
    May 14, 2011
    Location:
    On the Ridge, TN
    Local Time:
    9:06 PM
    I think I'm going to try and drill the missing hole on my z-bar so I can use the snap ring (the one that straddles it and holds the plastic bearing internally (the one on the frame rail side).
    When I took all this apart, it didn't have one at all (modified z-bar, remember). The clutch worked fine, but I don't want this stuff moving and possibly pulling off a ball stud.
    Thanks!

  2. Fran Blacker

    Fran Blacker FBBO Gold Member FBBO Gold Member

    Messages:
    7,051
    Likes Received:
    6607
    Joined:
    Sep 23, 2016
    Location:
    Connecticut
    Local Time:
    9:06 PM
    You may want to put on car before you drill a hole. pun. If you remember about where nylon bushing are located before you put on the car. You could drill a series of holes then pick the one that works.

    • Like Like x 1
    • Thanks! Thanks! x 1
    • Dennis H

      Dennis H FBBO Gold Member FBBO Gold Member

      Messages:
      13,688
      Likes Received:
      16340
      Joined:
      Jul 11, 2010
      Location:
      San Jose
      Local Time:
      8:06 PM

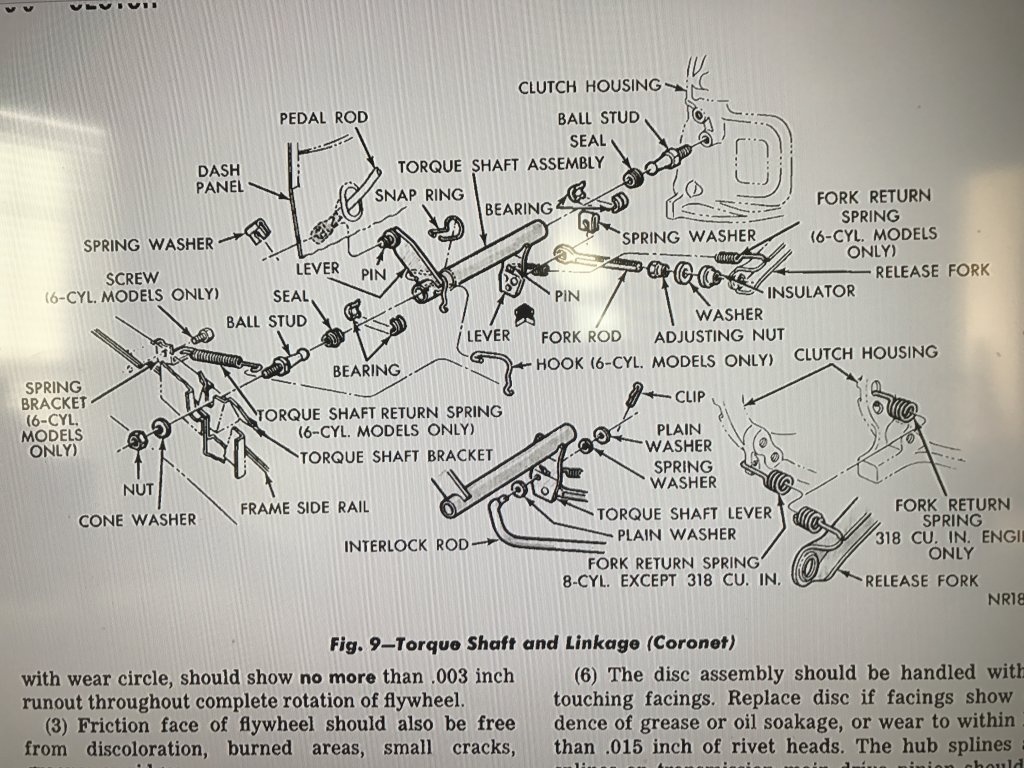

      Hell, there are only 25 or more components to this according to the diagram. Some tiny and waiting to eject to lower earth orbit never to be found. Simply defines simple.

      • Agree Agree x 1
      • Stanton

        Stanton Well-Known Member

        Messages:
        1,974
        Likes Received:
        1723
        Joined:
        Aug 8, 2012
        Location:
        ON
        Local Time:
        9:06 PM
        Those bushings will be a fixed distance apart - determined by the ball studs. The clipped one ensures the arm is properly aligned to the clutch fork. The one on the frame will have movement since it isn't retained by a clip. If there is one hole in the z bar then its possible to assume you could drill straight through from that one. Strange that it only has one hole though - was the arm rewelded in that area?

        • Like Like x 1
        • Thanks! Thanks! x 1
        • moparedtn

          moparedtn Ed on the Ridge FBBO Gold Member

          Messages:
          5,769
          Likes Received:
          8283
          Joined:
          May 14, 2011
          Location:
          On the Ridge, TN
          Local Time:
          9:06 PM
          It's got one of the original holes, so it's a matter of figuring out how far around the opposite hole is. The clip, installed, will tell me that approximately.
          I hope. :)

        • moparedtn

          moparedtn Ed on the Ridge FBBO Gold Member

          Messages:
          5,769
          Likes Received:
          8283
          Joined:
          May 14, 2011
          Location:
          On the Ridge, TN
          Local Time:
          9:06 PM
          Yep. It appears to me someone took a z-bar from another application (in my case, from what I can tell, the z-bar came from a later model) and re-welded the arm for the clutch pedal side. It's crude, but worked quite well before.
          Unfortunately, the welding took out one of the snap ring holes.

        • moparedtn

          moparedtn Ed on the Ridge FBBO Gold Member

          Messages:
          5,769
          Likes Received:
          8283
          Joined:
          May 14, 2011
          Location:
          On the Ridge, TN
          Local Time:
          9:06 PM
          Couldn't stand it, out to the garage I went...

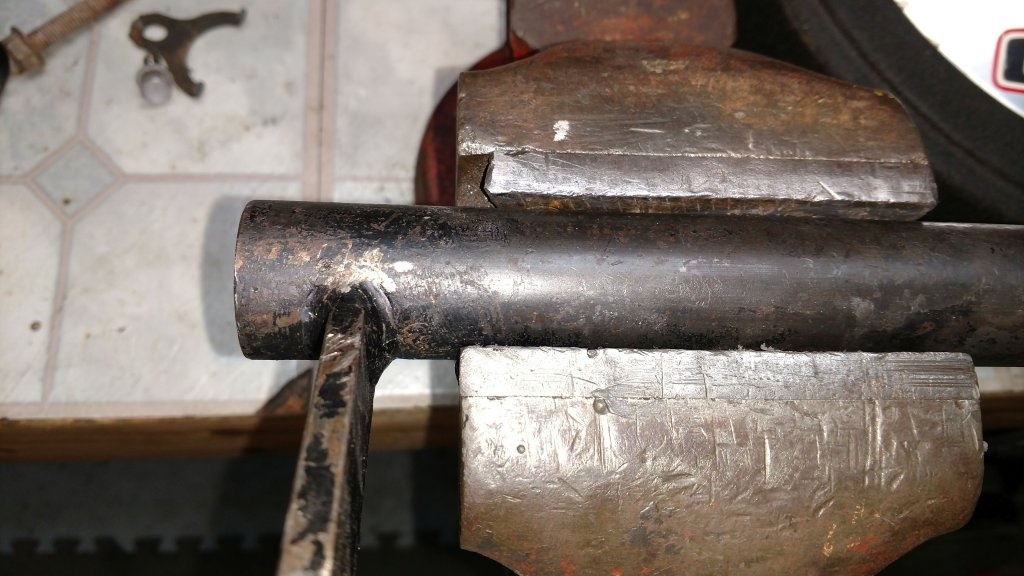

          z-bar no hole.jpg
          The side of the z-bar that should have one of the snap ring holes, but doesn't.

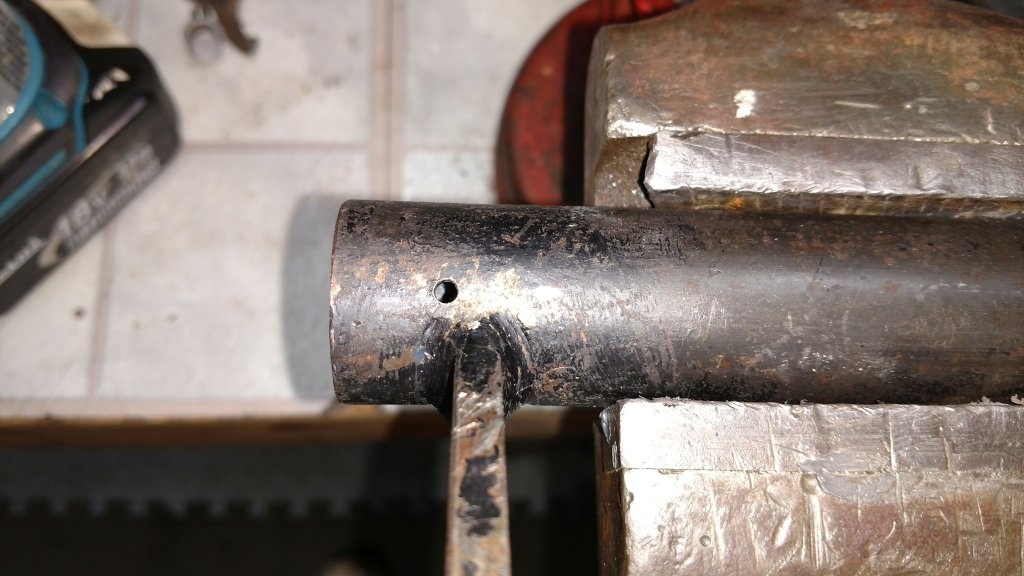

          z-bar existing hole.jpg
          And the side that does have an existing hole.

          A quick rudimentary check with the ball stud and plastic inserts showed that this hole satisfactorily lined up the snap ring with the groove in the inserts, so that the seal was safely inside the z-bar tube.
          Now to get a hole on the other side to match...

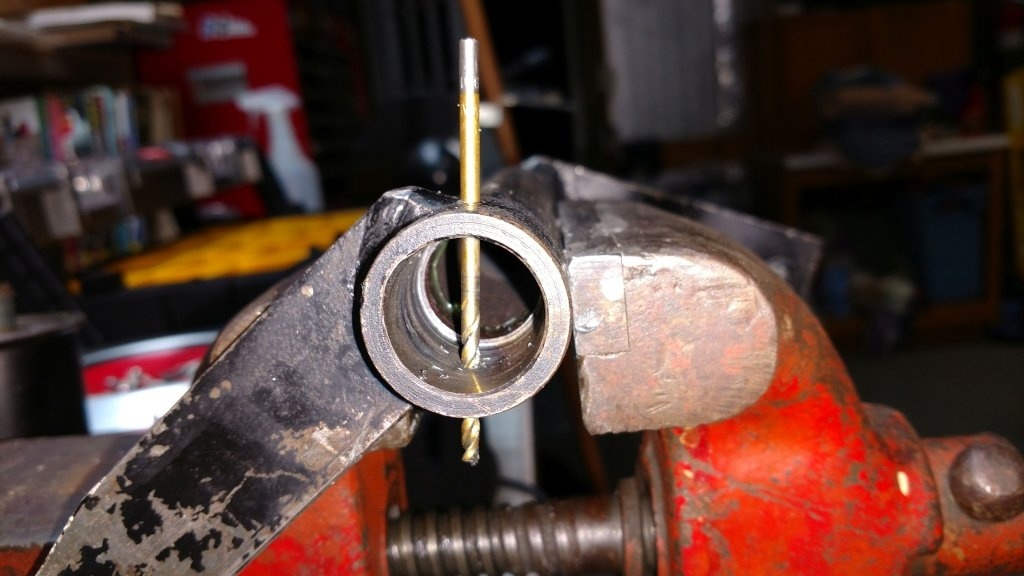

          z-bar drill bit.jpg
          I ran what appeared to be a close size drill bit through the tube to see what it looked like and, wouldn't you know it, I saw what appeared to be the remnants of the old opposite hole inside the tube.
          Drilling commenced and the bit went right through like butter. :)
          Ok, now to deburr the inside and do a rudimentary test fit.

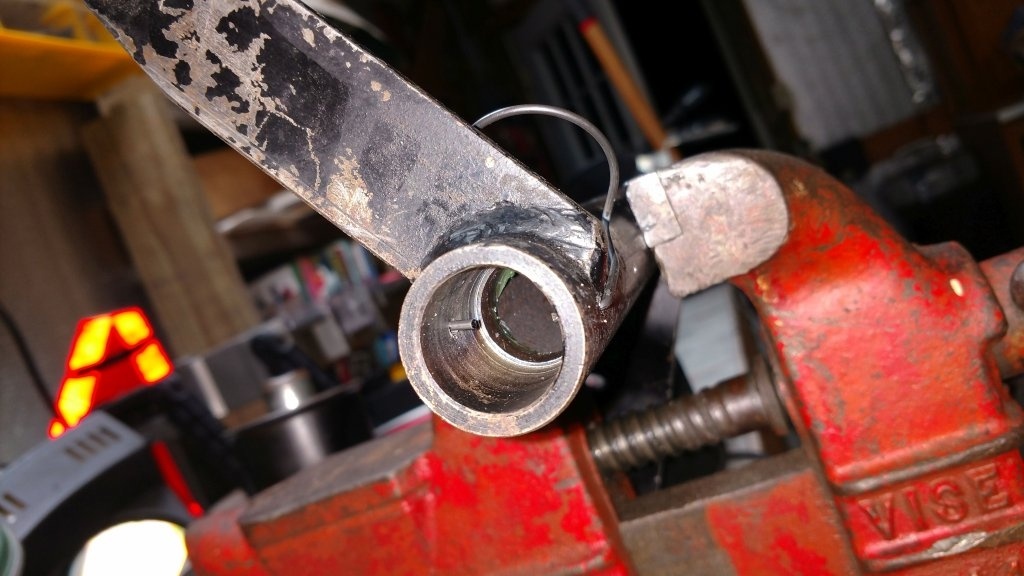

          z-bar snap ring in place.jpg
          Snap ring seemed to like it...

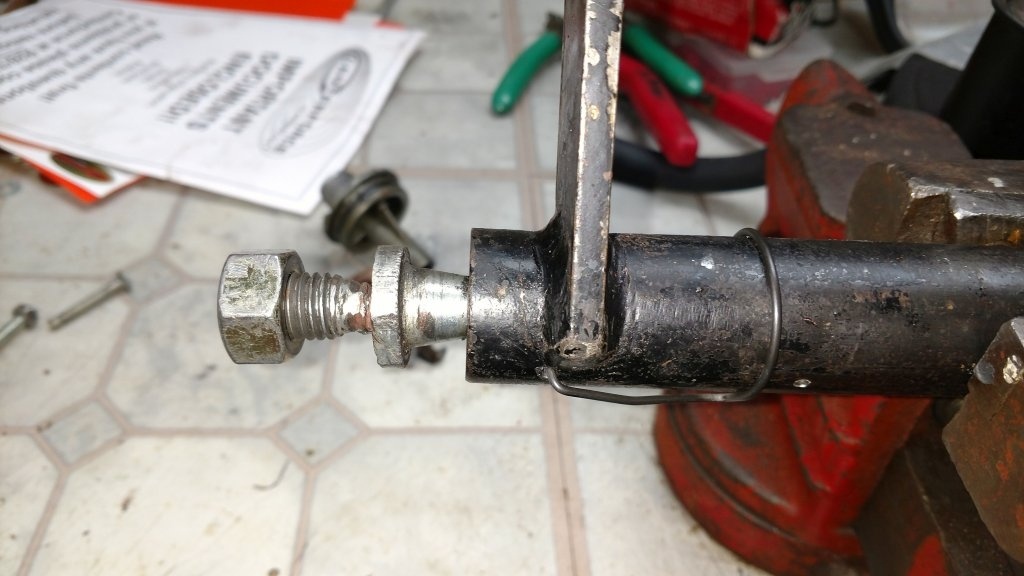

          z-bar ball stud.jpg
          Ball stud, seal, plastic inserts and snap ring in place.
          That'll work. :)

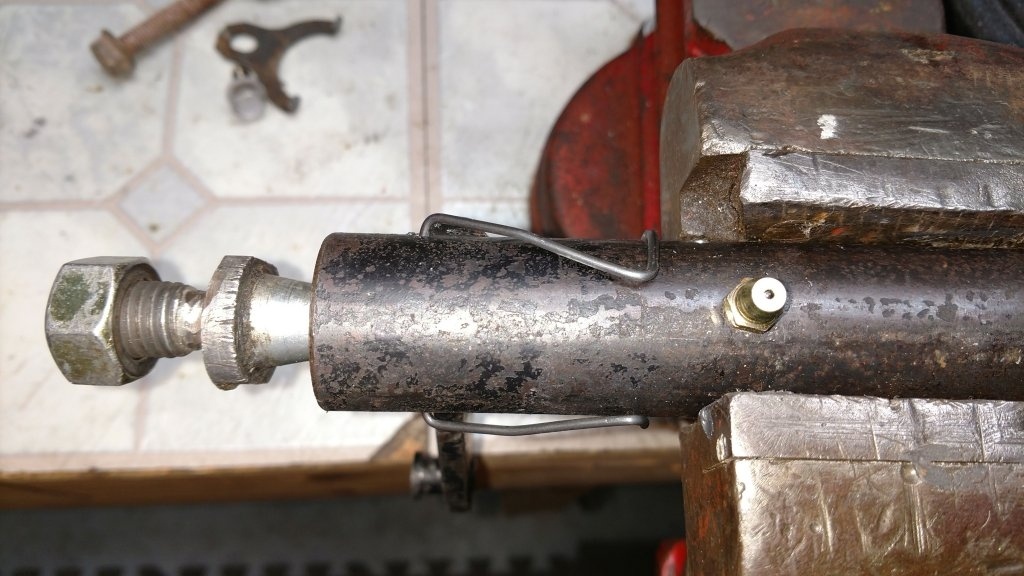

          Lastly, I noticed what appeared to be a threaded hole further down the tube for a zerk fitting. Ok...
          z-bar grease fitting.jpg
          Done deal. I'll give it a coat of satin black. Tomorrow is installation day.

          Thanks for everyones' help! :)

          • Like Like x 3
          • Thanks! Thanks! x 1
          • moparedtn

            moparedtn Ed on the Ridge FBBO Gold Member

            Messages:
            5,769
            Likes Received:
            8283
            Joined:
            May 14, 2011
            Location:
            On the Ridge, TN
            Local Time:
            9:06 PM
            Go towards the end of this thread and you'll see plenty of pics. I just went thru this procedure this evening. :)

            • Like Like x 1
            • Mike in Boston

              Mike in Boston Well-Known Member

              Messages:
              143
              Likes Received:
              61
              Joined:
              Dec 23, 2016
              Location:
              Boston, Ma.USA
              Local Time:
              9:06 PM
              Aha! So there's supposed to be 2 tiny holes drilled in the bar!.
              Perfect, and thank you all

              • Like Like x 1
              • Stephenone

                Stephenone New Member

                Messages:
                1
                Likes Received:
                0
                Joined:
                Sep 26, 2019
                Location:
                Wisconsin
                Local Time:
                8:06 PM

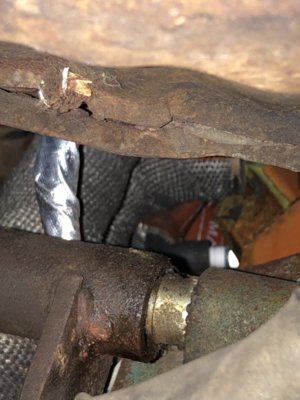

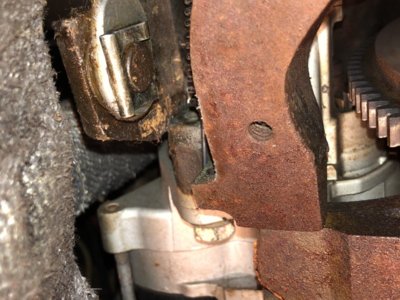

                Hello, I’m very thankful for this thread . In one picture you will see my z-bar the end that mounts to the bell housing and it is sitting very deep on the ball shaft . Now would that be a smoking gun of a problem for why my linkage is binding in the other pic ?

                AFA713F2-3DDC-45EB-A716-28A05DAD8005.jpeg F0D0907D-EDB3-4255-AFC4-B005FFBB9A3A.jpeg

              • Super Rob

                Super Rob Well-Known Member

                Messages:
                199
                Likes Received:
                111
                Joined:
                Jan 23, 2012
                Location:
                Hamburg - Germany
                Local Time:
                8:06 PM
                Sorry for bringing this old but very helpful thread up again.
                Is the Z-Bar completly filled with grease prior install or do only the moving parts get a coat?

              • Cranky

                Cranky Banned Staff Member FBBO Gold Member

                Messages:
                19,594
                Likes Received:
                15490
                Joined:
                Dec 4, 2009
                Location:
                Pasa-getdown-dena Texas
                Local Time:
                8:06 PM
                Out to the garage I went. Man, done that many many times!

              • Stanton

                Stanton Well-Known Member

                Messages:
                1,974
                Likes Received:
                1723
                Joined:
                Aug 8, 2012
                Location:
                ON
                Local Time:
                9:06 PM
                Only the moving parts.
