1970 Plymouth Air Grabber Info questions

1968 -1970 Mopars

  1. moparmarks

    moparmarks I'm just a guy with a screwdriver. FBBO Gold Member

    Messages:
    7,302
    Likes Received:
    3016
    Joined:
    Jul 31, 2011
    Location:
    Western Colorado
    Local Time:
    1:58 AM
    Looking for pictures of hose routing including firewall, vacuum reservoir and location, and switch mounting for a 1970 Plymouth GTX. Getting all kinds of incorrect pics on Google.
    Many thanks.

  2. rick68b5

    rick68b5 Well-Known Member

    Messages:
    836
    Likes Received:
    196
    Joined:
    Nov 14, 2015
    Location:
    Maryland
    Local Time:
    2:58 AM
    I can get u a pic of mine in my 70 gtx

    • Thanks! Thanks! x 1
    • moparmarks

      moparmarks I'm just a guy with a screwdriver. FBBO Gold Member

      Messages:
      7,302
      Likes Received:
      3016
      Joined:
      Jul 31, 2011
      Location:
      Western Colorado
      Local Time:
      1:58 AM
      Thanks

    • moes

      moes Well-Known Member

      Messages:
      1,089
      Likes Received:
      1535
      Joined:
      Dec 18, 2015
      Location:
      CANADA
      Local Time:
      3:58 AM

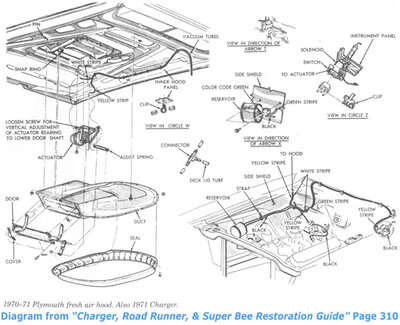

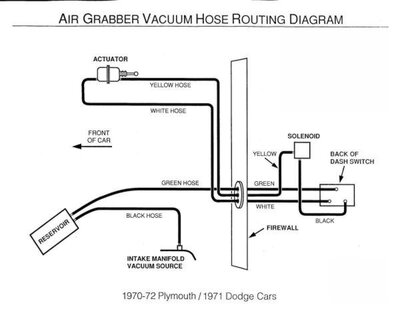

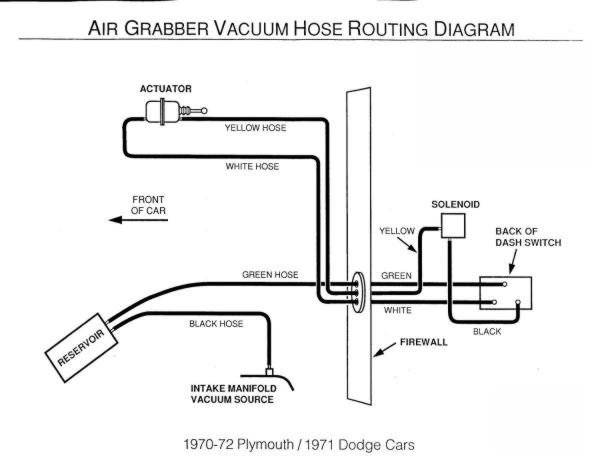

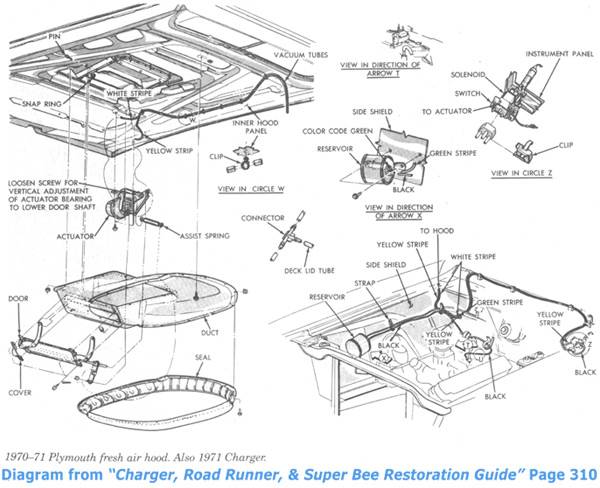

      here is some diagrams I used for a 1970 GTX I sold this years

      6586898-AirGrabberhoseschematic (1).jpg 6588595-FAD7071Bbodyairgrabber.jpg

      • Thanks! Thanks! x 1
      • Disagree Disagree x 1
      • PLMHEMI

        PLMHEMI FBBO Gold Member FBBO Gold Member

        Messages:
        1,282
        Likes Received:
        894
        Joined:
        Oct 31, 2019
        Location:
        Ray Twp, Michigan
        Local Time:
        3:58 AM

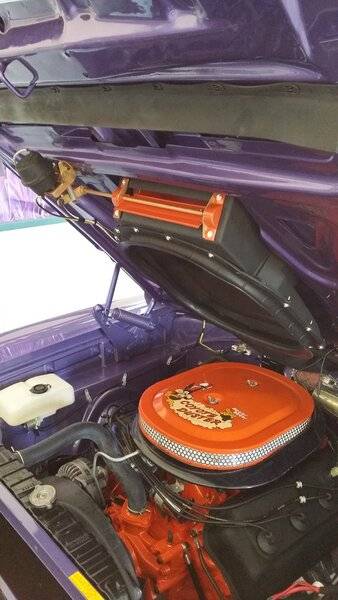

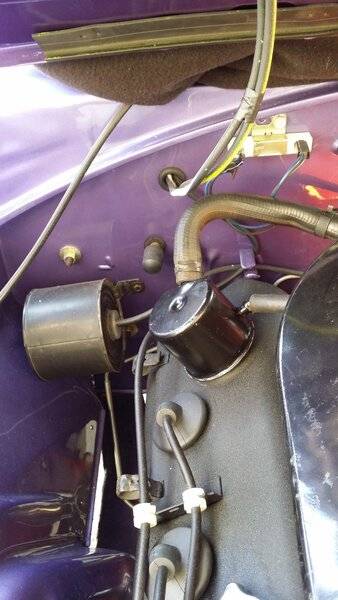

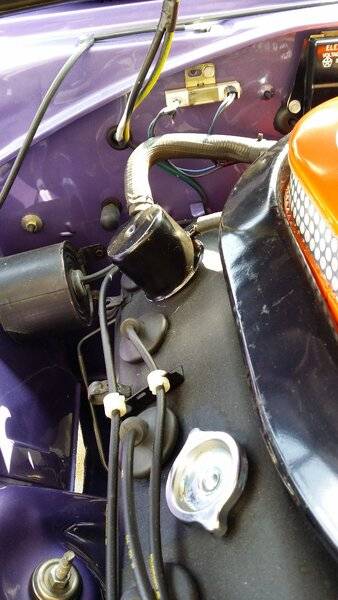

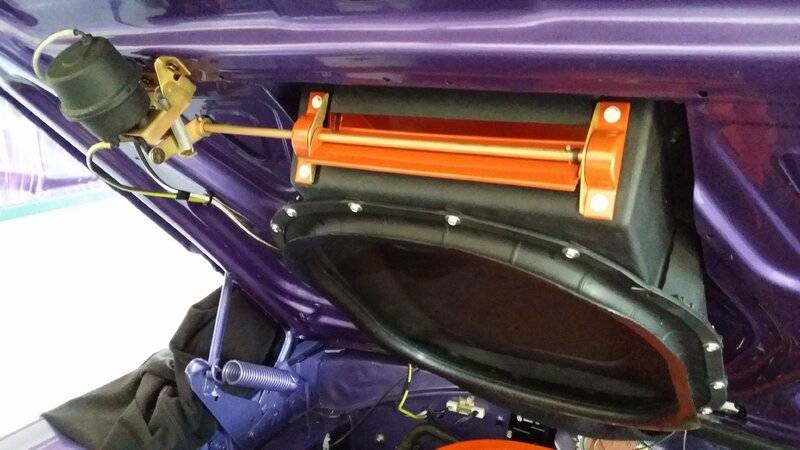

        AG pics

        Car photos, etc 1279.jpg Car photos, etc 1280.jpg Car photos, etc 1298.jpg Car photos, etc 1299.jpg

        • Like Like x 1
        • Thanks! Thanks! x 1
        • 70gtx440dana

          70gtx440dana FBBO Gold Member FBBO Gold Member

          Messages:
          677
          Likes Received:
          140
          Joined:
          Mar 8, 2010
          Location:
          Grand Ledge, MI
          Local Time:
          3:58 AM
          You will want to identify what plant your car is from....there are differences in hose routings & firewall holes between plants.

          • Agree Agree x 2
          • Thanks! Thanks! x 1
          • moparmarks

            moparmarks I'm just a guy with a screwdriver. FBBO Gold Member

            Messages:
            7,302
            Likes Received:
            3016
            Joined:
            Jul 31, 2011
            Location:
            Western Colorado
            Local Time:
            1:58 AM

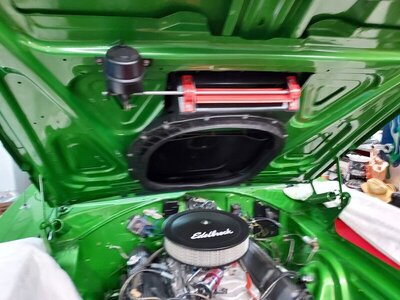

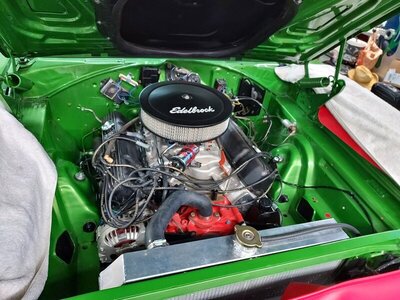

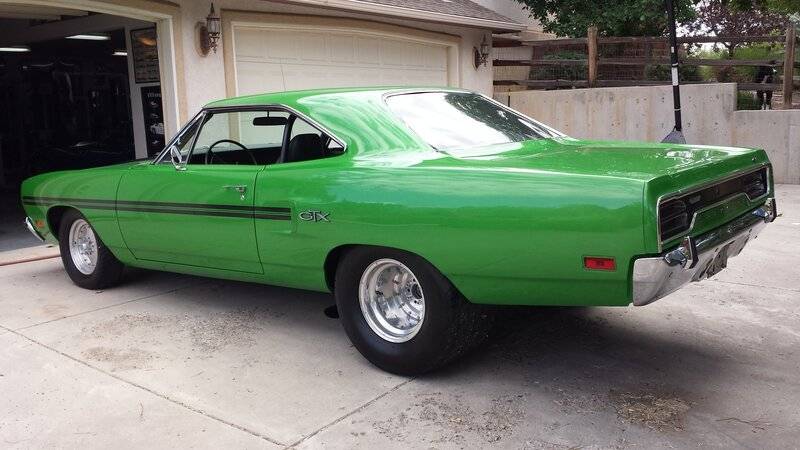

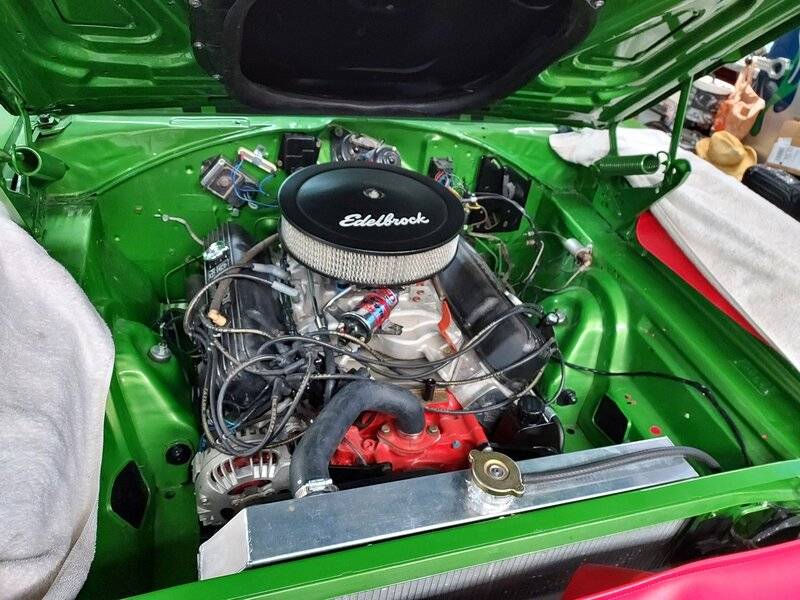

            It is a St Louis car that has an N-96 hood added but has nothing else. It is a GTX but was cut decades ago and has been a drag car ever since so not real concerned about being totally correct but would like it to be close. I don't know where to go through the fire wall, where the reservoir is mounted and what not.

            20210625_105940.jpg 20211102_101926.jpg 20211102_101928.jpg

            • Like Like x 2
            • 70gtx440dana

              70gtx440dana FBBO Gold Member FBBO Gold Member

              Messages:
              677
              Likes Received:
              140
              Joined:
              Mar 8, 2010
              Location:
              Grand Ledge, MI
              Local Time:
              3:58 AM
              There are dimples in your firewall for the vacuum can mounting as well as the hose routing. You can see from photos above the can mounting location. if you have the can you should be able to match it up to the 2 holes required. I believe the phot above is correct for hose routing through firewall for SL plant. I will look tomorrow through my archived photos to see what I have.

              • Thanks! Thanks! x 1
              • moparmarks

                moparmarks I'm just a guy with a screwdriver. FBBO Gold Member

                Messages:
                7,302
                Likes Received:
                3016
                Joined:
                Jul 31, 2011
                Location:
                Western Colorado
                Local Time:
                1:58 AM
                Thanks, this helps a lot. How about the switch? How and where does it mount?
