66 11 inch brake does not have the adjusting lever or the cable guide. Is this a normal setup?

MK-hemi

New Member
Local time
4:39 PM
Joined
Mar 19, 2012
Messages
4
Reaction score
1
Location
Ohio
Total installation by a performance shop included hoses, lines, cylinders, springs, shoe and drums. Did the shop just not replace these parts? Also the braking brake is not engaging and therefore the lever is not releasing. No original pictures available. Previous owner past away and car sat for a while. Car have not been driven very much since the brake job. Have a leaking left rear cylinder that caused the reservoir way empty. Performance shop is out of business. Any help is appreciated!


kiwigtx

Henchman #4
Staff member
FBBO Gold Member
Local time
10:39 AM
Joined
Jun 12, 2012
Messages
28,242
Reaction score
64,142
Location
NZ - just short of the South Pole
Type of car - brakes location - front or rear......more info needed.

Pictures of what you're trying to achieve will help exponentially.


MK-hemi

New Member
Local time
4:39 PM
Joined
Mar 19, 2012
Messages
4
Reaction score
1
Location
Ohio
Type of car - brakes location - front or rear......more info needed.

Pictures of what you're trying to achieve will help exponentially.
66 Dodge Charger Hemi. Both rear drum brakes are missing these items. Manual brakes no power. Single master cylinder. Appears to 11 inch. Am I missing any additional information you need?


1 Wild R/T

FBBO Gold Member
FBBO Gold Member
Local time
1:39 PM
Joined
Jul 9, 2019
Messages
7,001
Reaction score
17,799
Location
California

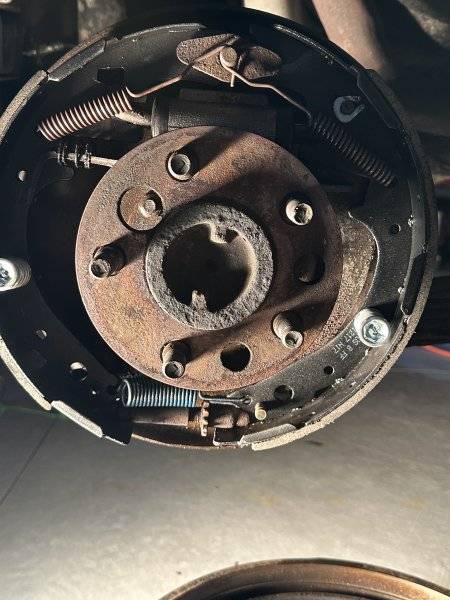

A 66 won't have self adjusting brakes... No cable, cable guide, lever... it should have all the E brake parts, the parking brake strut, parking brake lever & cable...


Screen Shot 2022-09-28 at 6.42.23 PM.png


moparedtn

Ed on the Ridge
FBBO Gold Member
Local time
4:39 PM
Joined
May 14, 2011
Messages
14,503
Reaction score
24,695
Location
On the Ridge, TN
I don't like that bottom traverse spring I think? Seems like that one was heavier gauge/fatter,
as it retains the adjuster wheel adjustment as well as pulling the shoes together.
Further - why is that press-in pin down there near the star wheel?

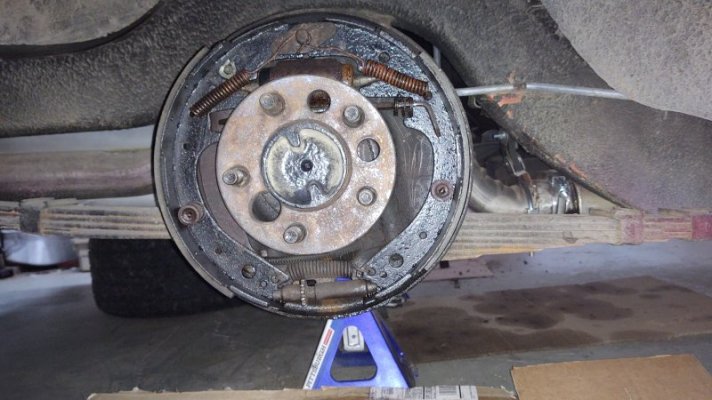

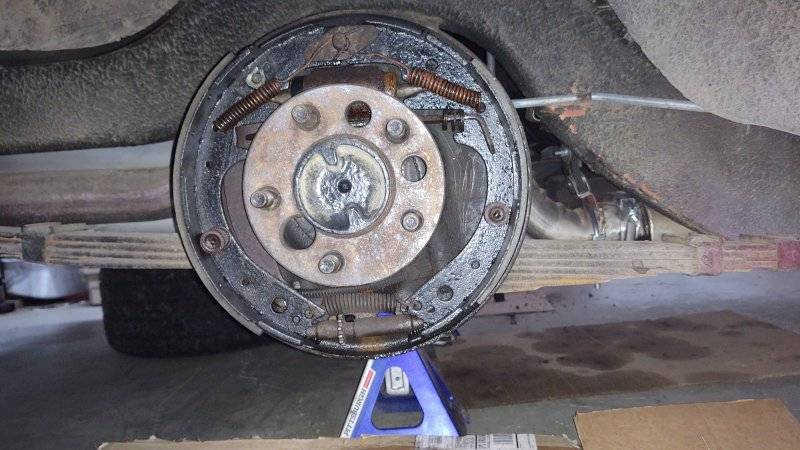

Here's a shot of my originals from back when I rebuilt all mine:
existing rear brakes right.jpg


R413

Well-Known Member
Local time
1:39 PM
Joined
Feb 4, 2019
Messages
3,448
Reaction score
6,866
Location
NW USA

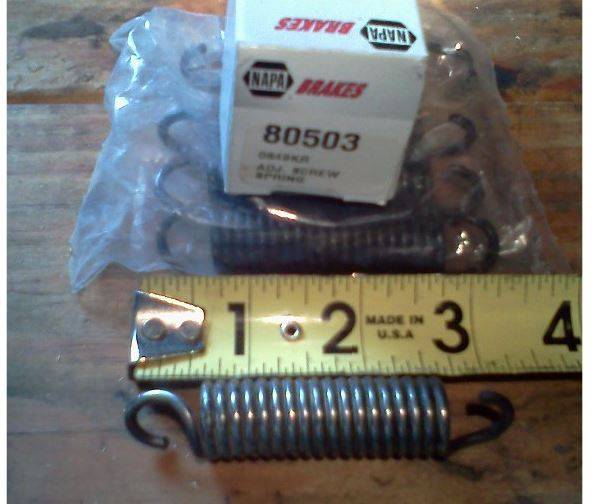

Hard to find the correct spring for manual adjust.
that one will work

that lower pin is for 1970 and up self adjuster
lever. No problem, same shoes.


kiwigtx

Henchman #4
Staff member
FBBO Gold Member
Local time
10:39 AM
Joined
Jun 12, 2012
Messages
28,242
Reaction score
64,142
Location
NZ - just short of the South Pole
Am I missing any additional information you need?
I'm just trying to help you and help everyone out there who may also wish to help you.

So far in the 12 years you've been a member here, you have 3 posts to your name.....and they're all in this thread. Without knowing what type of brake and car you have, everyone is just guessing.


Jerry Hall

FBBO Gold Member
FBBO Gold Member
Local time
3:39 PM
Joined
Mar 26, 2018
Messages
8,310
Reaction score
14,353
Location
Alabama
As @R413 said that lower spring will work, but I suggest you reverse it.


MK-hemi

New Member
Local time
4:39 PM
Joined
Mar 19, 2012
Messages
4
Reaction score
1
Location
Ohio
I'm just trying to help you and help everyone out there who may also wish to help you.

So far in the 12 years you've been a member here, you have 3 posts to your name.....and they're all in this thread. Without knowing what type of brake and car you have, everyone is just guessing.
Thank You.
I don't like that bottom traverse spring I think? Seems like that one was heavier gauge/fatter,
as it retains the adjuster wheel adjustment as well as pulling the shoes together.
Further - why is that press-in pin down there near the star wheel?
Here's a shot of my originals from back when I rebuilt all mine:
View attachment 1349797
Thanks Moparedtn, the spring seemed reversed is what I thought until I saw diagrams with the adjusting lever. I will correct the spring when I replace the leaking cylinder.


kiwigtx

Henchman #4
Staff member
FBBO Gold Member
Local time
10:39 AM
Joined
Jun 12, 2012
Messages
28,242
Reaction score
64,142
Location
NZ - just short of the South Pole
Further - why is that press-in pin down there near the star wheel?

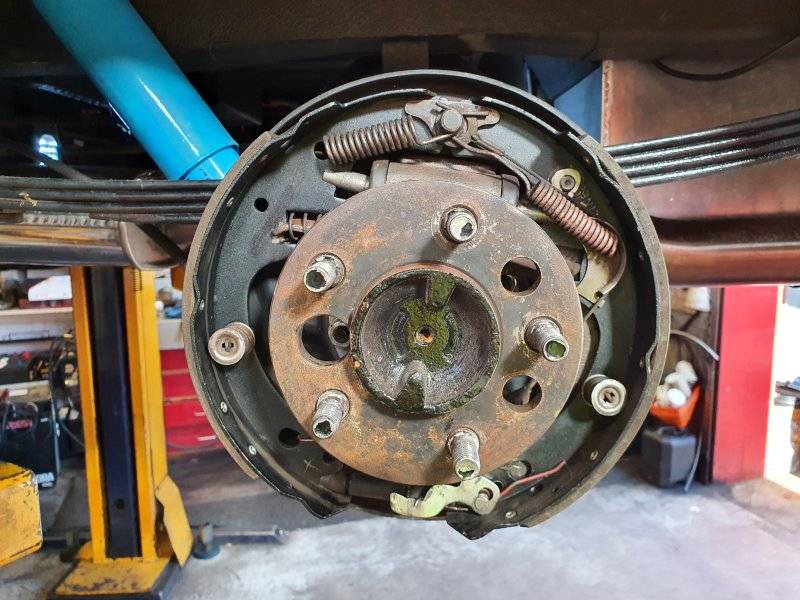

I'm picking that either the early cars didn't have the star wheel 'holding finger' or it is just plain missing from both your cars. Here is a shot of my rear - granted it is a 10 inch brake, but it is still a '68....



The pressed in pin actually locates that star wheel finger plate.


1 Wild R/T

FBBO Gold Member
FBBO Gold Member
Local time
1:39 PM
Joined
Jul 9, 2019
Messages
7,001
Reaction score
17,799
Location
California
I'm picking that either the early cars didn't have the star wheel 'holding finger' or it is just plain missing from both your cars. Here is a shot of my rear - granted it is a 10 inch brake, but it is still a '68....

View attachment 1349840

The pressed in pin actually locates that star wheel finger plate.
Someone added later brakes to your 68....


1 Wild R/T

FBBO Gold Member
FBBO Gold Member
Local time
1:39 PM
Joined
Jul 9, 2019
Messages
7,001
Reaction score
17,799
Location
California
Someone added later brakes to your 68....
After just spending 40 minutes digging through the factory service manual I'm gonna retract that statement.... It appears in 68 some cars got self adjusting brakes & some didn't.. No explanation of what did or did not get them... Currently I own a 68 Coronet R/T that came with four wheel 11" drums & no self adjusters... When I get done building it it will have self adjusters on the rear... And discs up front....

In the past I owned a 68 Charger R/T also with four wheel 11" drums.. No self adjusters...

We all know what is being created in the photo below right? Elephino

Screen Shot 2022-09-28 at 11.21.56 PM.png


moparedtn

Ed on the Ridge
FBBO Gold Member
Local time
4:39 PM
Joined
May 14, 2011
Messages
14,503
Reaction score
24,695
Location
On the Ridge, TN
I'm picking that either the early cars didn't have the star wheel 'holding finger' or it is just plain missing from both your cars. Here is a shot of my rear - granted it is a 10 inch brake, but it is still a '68....

View attachment 1349840

The pressed in pin actually locates that star wheel finger plate.
That's the rascal, yep. From what I understand, that's a tough one to find anymore.


moparedtn

Ed on the Ridge
FBBO Gold Member
Local time
4:39 PM
Joined
May 14, 2011
Messages
14,503
Reaction score
24,695
Location
On the Ridge, TN
After just spending 40 minutes digging through the factory service manual I'm gonna retract that statement.... It appears in 68 some cars got self adjusting brakes & some didn't.. No explanation of what did or did not get them... Currently I own a 68 Coronet R/T that came with four wheel 11" drums & no self adjusters... When I get done building it it will have self adjusters on the rear... And discs up front....

In the past I owned a 68 Charger R/T also with four wheel 11" drums.. No self adjusters...

We all know what is being created in the photo below right? Elephino
OP has a '66, but that doesn't matter I don't think...
The whole self-adjuster vs. none thing is indeed sort of confusing to me, after doing way too much research on it.
My own experiences with b-bodies almost exclusively over the decades is much like yours in this case, as I never
owned one with self-adjusters on it (and some were still outfitted with factory brakes when I bought 'em).
That said...

I checked out the FSM for 1966 (thought I'd had enough of researching Mopar drum brakes the last couple years... :) ).
According to that particular FSM, from what I can tell self-adjusters were in use except for "heavy duty and police".
The FSM shows the typical Bendix self-adjuster setup on all sizes OR the heavy spring passing over the star wheel,
as Fran and others have shown.
*sigh*

I wound up adding self-adjusters to the rears - and leaving them off the fronts, after a lot of trial and error.
The car just works better that way. I won't pretend to understand why.


Big Bad Dad

FBBO Gold Member
FBBO Gold Member
Local time
4:39 PM
Joined
Jun 11, 2011
Messages
3,881
Reaction score
7,693
Location
Fincastle, Va.
Early and mid 1960s. The "heavy duty" bigger 11" brakes like on cop cars and performance models like R/T and GTX had manually adjusted brakes. The smaller 10" brakes like on regular family cars had the self adjusting brakes. Why? Who knows. But that's Ma Mopar for ya....

Top
