70 Roadrunner Fuse Box - Is it missing something?

Electrical & Ignition

  1. vance.dykes

    vance.dykes Well-Known Member

    Messages:
    423
    Likes Received:
    364
    Joined:
    Sep 22, 2017
    Location:
    florida
    Local Time:
    5:47 PM
    let moparnaition74 check that dash and manual that is the way i would do it 74 is very smart on this stuff.

    • Thanks! Thanks! x 1
    • moparnation74

      moparnation74 FBBO Gold Member FBBO Gold Member

      Messages:
      10,507
      Likes Received:
      17945
      Joined:
      Mar 27, 2014
      Location:
      OHIO
      Local Time:
      4:47 PM
      I will take pics of what I have this evening to hopefully clarify this.....

      • Thanks! Thanks! x 1
      • RoadRunner1970

        RoadRunner1970 Well-Known Member

        Messages:
        279
        Likes Received:
        91
        Joined:
        Dec 5, 2012
        Location:
        US
        Local Time:
        5:47 PM
        I found the one flasher, will the local auto parts have this part?


      • moparnation74

        moparnation74 FBBO Gold Member FBBO Gold Member

        Messages:
        10,507
        Likes Received:
        17945
        Joined:
        Mar 27, 2014
        Location:
        OHIO
        Local Time:
        4:47 PM

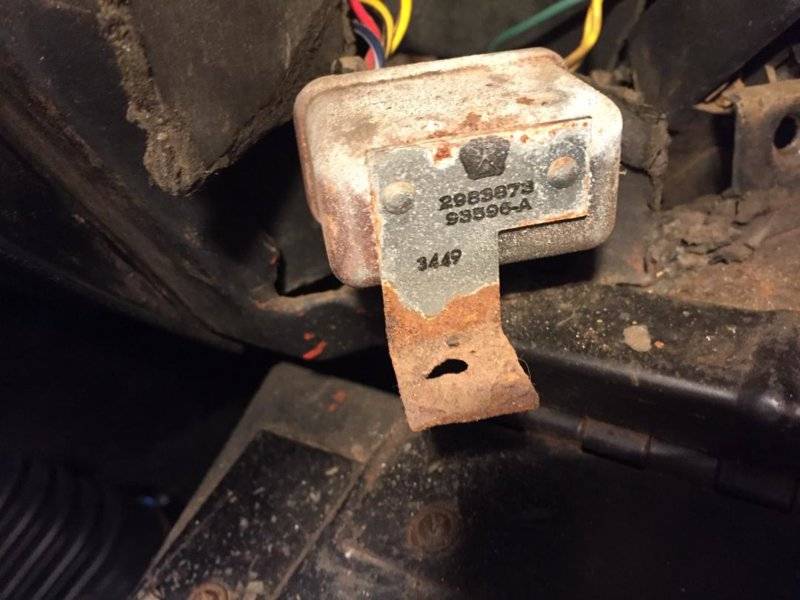

        Looks like the horn relay....what is the pn on the back?

        Hard to see on my phone

      • vance.dykes

        vance.dykes Well-Known Member

        Messages:
        423
        Likes Received:
        364
        Joined:
        Sep 22, 2017
        Location:
        florida
        Local Time:
        5:47 PM
        that isn't a flasher for turn and hazard lights it most likely the door /key in buzzer.

      • vance.dykes

        vance.dykes Well-Known Member

        Messages:
        423
        Likes Received:
        364
        Joined:
        Sep 22, 2017
        Location:
        florida
        Local Time:
        5:47 PM

        site said head light buzzer

        • Agree Agree x 1
        • RoadRunner1970

          RoadRunner1970 Well-Known Member

          Messages:
          279
          Likes Received:
          91
          Joined:
          Dec 5, 2012
          Location:
          US
          Local Time:
          5:47 PM
          I will keep looking for the flashers, thanks
          2983873

        • vance.dykes

          vance.dykes Well-Known Member

          Messages:
          423
          Likes Received:
          364
          Joined:
          Sep 22, 2017
          Location:
          florida
          Local Time:
          5:47 PM
          i used 93596-a to get that one i posted.

        • RoadRunner1970

          RoadRunner1970 Well-Known Member

          Messages:
          279
          Likes Received:
          91
          Joined:
          Dec 5, 2012
          Location:
          US
          Local Time:
          5:47 PM

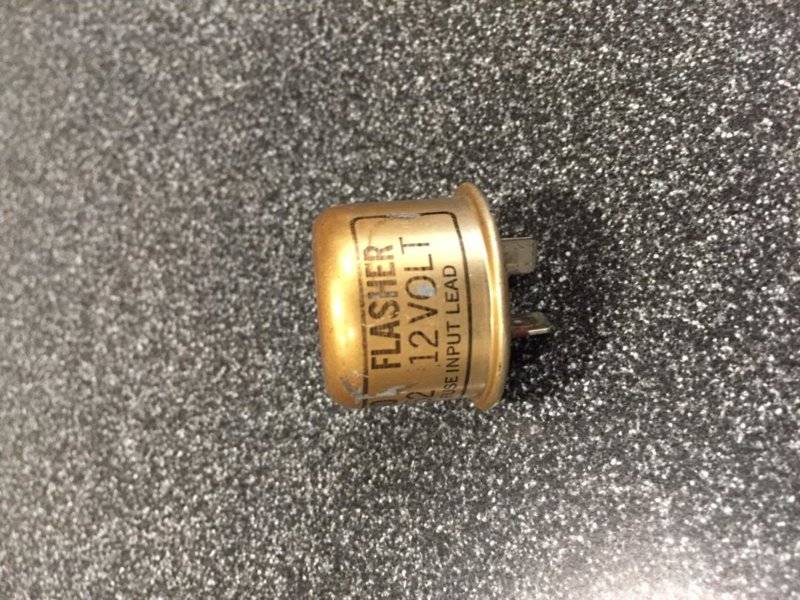

          I found one......


          • Agree Agree x 1
          • vance.dykes

            vance.dykes Well-Known Member

            Messages:
            423
            Likes Received:
            364
            Joined:
            Sep 22, 2017
            Location:
            florida
            Local Time:
            5:47 PM
            yes that is a flasher. isn't this fun..... lol

          • RoadRunner1970

            RoadRunner1970 Well-Known Member

            Messages:
            279
            Likes Received:
            91
            Joined:
            Dec 5, 2012
            Location:
            US
            Local Time:
            5:47 PM

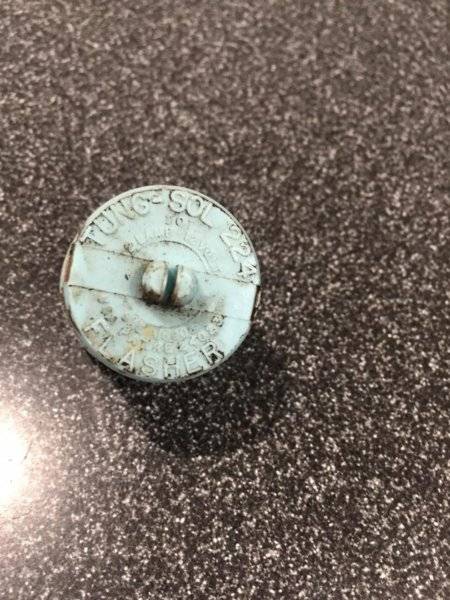

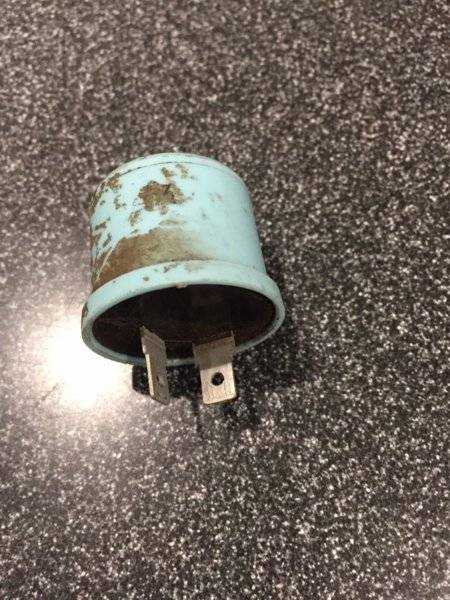

            and the other one.....

            IMG_2489.JPG IMG_2490.JPG

          • moparnation74

            moparnation74 FBBO Gold Member FBBO Gold Member

            Messages:
            10,507
            Likes Received:
            17945
            Joined:
            Mar 27, 2014
            Location:
            OHIO
            Local Time:
            4:47 PM
            Moving you in the right direction!

            Wiring can be chaos

          • vance.dykes

            vance.dykes Well-Known Member

            Messages:
            423
            Likes Received:
            364
            Joined:
            Sep 22, 2017
            Location:
            florida
            Local Time:
            5:47 PM
          • moparnation74

            moparnation74 FBBO Gold Member FBBO Gold Member

            Messages:
            10,507
            Likes Received:
            17945
            Joined:
            Mar 27, 2014
            Location:
            OHIO
            Local Time:
            4:47 PM
            I was correct as I said earlier, lol(just the wrong side).....It is the accessory slot....The only harness I had was for 1969...

            With some research there are differences between 68/69 to the 70....As you see the accessory side is flipped in 70....

            ......The accessories include tach, rear window defogger, speakers(L and R) and air conditioning......

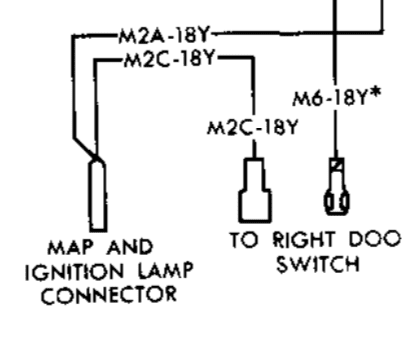

            The yellow female connector with two yellow wires is for one of the door switches and the connection with the male end is for the map light(doesn't mean you have a map light)....

            Download a service manual from my Mopar.....
            http://www.mymopar.com/index.php?pid=109

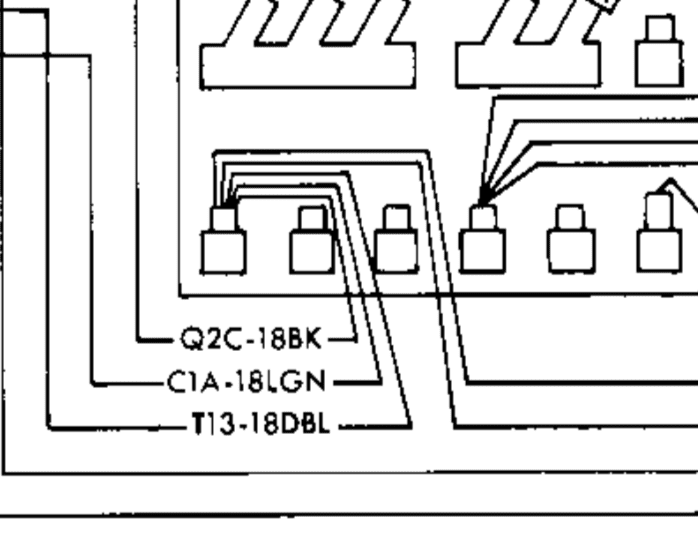

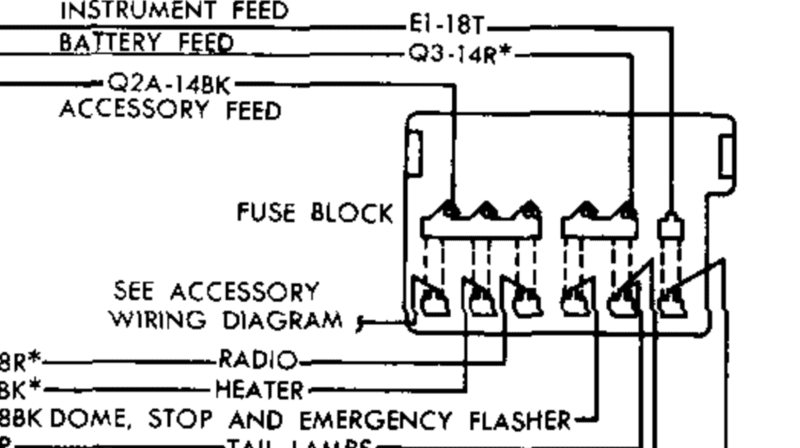

            Here are some screen shots for reference....Hope this helps!

            Screen Shot 2019-08-21 at 7.18.36 PM.png Screen Shot 2019-08-21 at 7.25.03 PM.png Screen Shot 2019-08-21 at 7.37.07 PM.png

            • Thanks! Thanks! x 1
            • PurpleBeeper

              PurpleBeeper Well-Known Member

              Messages:
              4,526
              Likes Received:
              3279
              Joined:
              Mar 20, 2011
              Location:
              Chicago
              Local Time:
              4:47 PM
              Did you find that piece just to the left of the fuse panel?

            • RoadRunner1970

              RoadRunner1970 Well-Known Member

              Messages:
              279
              Likes Received:
              91
              Joined:
              Dec 5, 2012
              Location:
              US
              Local Time:
              5:47 PM
              Thanks man I really appreciate all your help

            • RoadRunner1970

              RoadRunner1970 Well-Known Member

              Messages:
              279
              Likes Received:
              91
              Joined:
              Dec 5, 2012
              Location:
              US
              Local Time:
              5:47 PM
              Yes

            • biomedtechguy

              biomedtechguy Accelerati Rapidus Maximus FBBO Gold Member

              Messages:
              19,097
              Likes Received:
              25996
              Joined:
              Mar 28, 2014
              Location:
              South Louisiana
              Local Time:
              4:47 PM
              I have a question if any of you can help.
              I also have a 70 V-code Roadrunner
              The pigtails of the hood mounted turn signals (on either side of the "440" plate) are not connected, and I would like to know where they connect.
              Also, the 2 yellow lights in the front bumper on either side of the license plate space don't flash when I use my turn signal, but they are on solid when I turn on the parking lights and headlights.
              Should they flash when I use the turn signal?
              Thanks

            • PurpleBeeper

              PurpleBeeper Well-Known Member

              Messages:
              4,526
              Likes Received:
              3279
              Joined:
              Mar 20, 2011
              Location:
              Chicago
              Local Time:
              4:47 PM
              I checked and my tach wire is Orange, not yellow

            • PurpleBeeper

              PurpleBeeper Well-Known Member

              Messages:
              4,526
              Likes Received:
              3279
              Joined:
              Mar 20, 2011
              Location:
              Chicago
              Local Time:
              4:47 PM
              Look at the factory service manual for the hood turn signals. They go directly to two connectors at the bulkhead disconnect. I've had ground problems with mine and have added extra ground wires to the bulb sockets. On your front running lights, yes they should flash with the turn signals & stay on with running lights or headlights.

              • Thanks! Thanks! x 1
