Anti freeze leak and Barrs sealer question

Dave6T4

Well-Known Member
Local time
10:11 PM
Joined
Dec 31, 2020
Messages
3,269
Reaction score
5,998
Location
Ontario, Canada
Years ago, a coolant leak occurred between the timing case and the front of the block in the 318 in our daily driver 5th Ave. I added Barr's. Stop Leak per instructions. I left the engine running and could watch the leak slow down and finally stop. It never leaked again and I never had any heater problems. I eventually sold the car to a friend and he used the power train and front suspension cross member in a 1947 Ford pick-up he built.


F4R/T

Well-Known Member
Local time
9:11 PM
Joined
Jun 17, 2020
Messages
2,514
Reaction score
3,539
Location
Illinois
Ford adds a pellet to the vehicle as it comes off the assembly line, everyone used to get them. I’ll bet they all do it. I can see the purpose , I used Mendtite once and it was a temp situation that had a seep and I was leaving with it and didn’t want to worry.. I followed the directions to the tee and it clogged the heater core. I replaced it soon after and flushed the heck out of everything after never again.


Danny Boy

Secret of life is enjoying the passage of time JT
Local time
8:11 PM
Joined
Mar 13, 2018
Messages
634
Reaction score
885
Location
Land of Enchantment
Have you checked the freeze plugs on the front of your heads, I had a leak there that I fixed.


My question is not meant to hijack....

Anyhow, have any of you ever had to replace the freeze plug on the head for any reason?

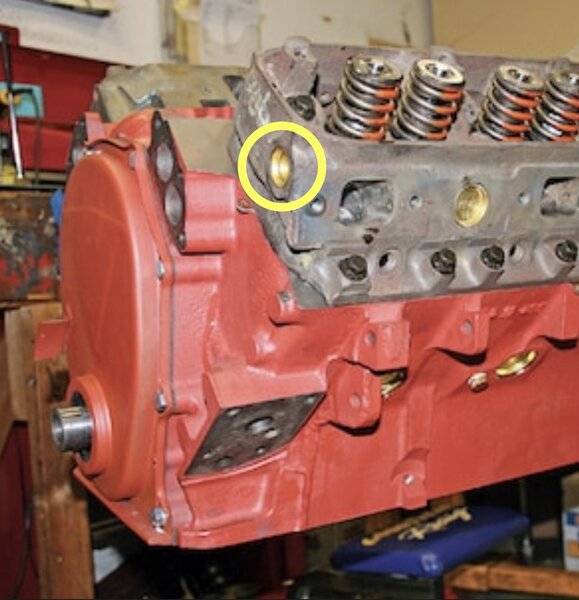

When you are rebuilding heads, do you normally replace freeze plugs on heads as in this picture?

Do you clean passages in heads?

Where do you find these freeze plugs for heads?

Sorry if these questions do not belong here...


Dennis H

FBBO Gold Member
FBBO Gold Member
Local time
9:11 PM
Joined
Jul 11, 2010
Messages
16,444
Reaction score
21,838
Location
San Jose
Fun read. Like the Hellcat forum users have a new guy all shook up and take his whole goddam car apart for a problem instead of trying the easy/inexpensive stuff first.


slepr1

Well-Known Member
Local time
10:11 PM
Joined
Jul 19, 2014
Messages
2,204
Reaction score
2,461
Location
Stoney Creek, Ontario
After reading all the comments I'd personally use the stop leak but adjust the heater temp to cool and leave it there until I flushed the rad after the leak stops.


F4R/T

Well-Known Member
Local time
9:11 PM
Joined
Jun 17, 2020
Messages
2,514
Reaction score
3,539
Location
Illinois
Disconnect heater before use.. loop hoses together.


Mackman

FBBO Gold Member
FBBO Gold Member
Local time
10:11 PM
Joined
Sep 24, 2020
Messages
305
Reaction score
488
Location
Holley, NY
I have used Barrs-leak on a number of head gasket leaks on farm tractors with good result. Also had success with it on a small crack in an engine water jacket. Bypassed the heater core initially when the stuff was dissolving.


RJRENTON

FBBO Gold Member
FBBO Gold Member
Local time
9:11 PM
Joined
Jul 1, 2015
Messages
3,140
Reaction score
3,248
Location
South Shores area of Decatur, Illinois
IMO.....
The pellets in Barr's Pelletized Stop Leak products are said to react, when added to a leaking coolant system, swim around the system and when they find a leak, all the pellets try and crowd into the leak area, plugging the leak...... OR....as related by an old heavy equipment operator (Cat D6 Dozer with a cable blade), who swears the "best" fix is black pepper.....just dump 2 or 3 cans of corse black pepper into the radiator and it circulates and the pepper swells up stopping the lesk......personally, I would not use any stop leak product.....just fix what's leaking......gaskets, hoses, seals etc.....
BOB RENTON


multimopes

FBBO Gold Member
FBBO Gold Member
Local time
10:11 PM
Joined
May 6, 2015
Messages
2,758
Reaction score
3,797
Location
Columbia ,NJ
I also had a neon head gasket problem. This cured it completely. I had meant it as a temporary repair, but it was still doing the job several months later, right up to the day the car got stolen.
In my case, I had bought the Neon new and it was 14 years later that the head gasket went. It didn't leak on the ground, it just blew off into the coolant recovery tank. I kept a small plastic tray in the trunk with a small transfer hand pump in it. I also installed a see through plastic pipe in the upper hose so I could monitor the level of coolant in the motor. For over a year, I checked it every time after it cooled down from a drive. When the upper hose level got low or empty, I would pop the radiator cap and pump the coolant back into the engine from the over flow. I used the K-seal first as it was recommended by a mechanic. Then I switched to Barrs Leaks which seemed to last a little longer. The car was never garaged or undercoated and got hammered pretty much every day. It had hardly ever got waxed or pampered in any way as it was my commuter car. It had 251,000 miles on it and lot's of rust when I drove it to the bone yard. It was a very good car & I would buy one again if they still made them.


kbfallon

Well-Known Member
Local time
10:11 PM
Joined
Jun 5, 2014
Messages
76
Reaction score
47
Location
livingston, ny
So I had a very small antifreeze leak on the passenger side rear lower corner where the head meets the block , I recently changed the anti freeze and really haven’t drove the car all that much being winter . Today I took it out for a short ride , parked and noticed the leak is worse while sitting.
No over heating, no anti freeze in the oil , no oil in the antifreeze. No burning of antifreeze. My question is , has anyone used Barrs or like kind of sealant added to the antifreeze and had good luck for a fix? anyone against using sealants and why. What was your personal experiences if you have . 440 BTY

anyone ever use the tablets also ?

I have used Moroso Ceramic engine sealant in an emergency....it sealed a leaking head gasket on a 14:1 race motor at the track and held up until I had time to pull the heads off and replace the gasket. They make a version to use with anti-freeze and one for no anti-freeze. It was in an 23T Altered and no heater core of course. I saw someone use it to seal an engine block that split between the freeze plugs....it worked but not sure for how long.


MTBRider

Well-Known Member
Local time
9:11 PM
Joined
Dec 16, 2020
Messages
101
Reaction score
128
Location
Kenosha WI

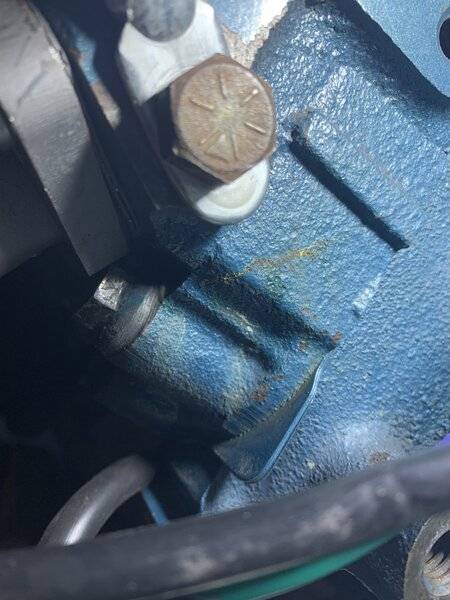

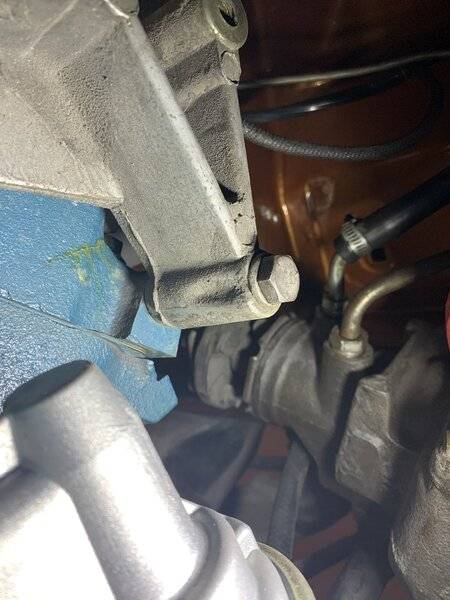

I’ve been working on an AMC Javelin for a friend that turned out had cracked heads (very common for certain years). You can clearly see the cracks and coolant was basically flowing out of them. One can of K-seal and within 1 minute of running, no more leaks. Brand new aluminum radiator with no evidence of clogging. Planning on leaving the product in the system to help keep it sealed up. Not a big fan of stuff like this but changing my opinion after trying K-seal

771B6E22-CC9B-4661-A12B-4E7CA15CCC2B.jpeg D50AD7C2-FFA5-4B89-BCC3-EB4979483AC4.jpeg


YY1

Well-Known Member
Local time
10:11 PM
Joined
Jun 26, 2010
Messages
21,786
Reaction score
15,276
Location
FL
Alumaseal is much less offensive than Barr's.

I've also used black pepper.

Agree about eliminating a head freeze plug *** a possibility.
Clean area real good and maybe pressure test.


Glenn's hc

Active Member
Local time
10:11 PM
Joined
Jul 11, 2015
Messages
41
Reaction score
55
Location
NY
Well I used the Barrs just like it said on the can and it worked !!!!!


YY1

Well-Known Member
Local time
10:11 PM
Joined
Jun 26, 2010
Messages
21,786
Reaction score
15,276
Location
FL
It's not that it doesn't work...

...it's that it can gum up stuff, esp the water pump or thermostat.

I've personally seen that several times.

I've never seen that happen with Alumaseal.


joe smith

Well-Known Member
Local time
10:11 PM
Joined
Jan 4, 2018
Messages
1,574
Reaction score
1,969
Location
Florida
I’ve been working on an AMC Javelin for a friend that turned out had cracked heads (very common for certain years). You can clearly see the cracks and coolant was basically flowing out of them. One can of K-seal and within 1 minute of running, no more leaks. Brand new aluminum radiator with no evidence of clogging. Planning on leaving the product in the system to help keep it sealed up. Not a big fan of stuff like this but changing my opinion after trying K-seal

View attachment 1252974 View attachment 1252975
Curious about AMC heads cracking.. Can you enlighten us more? Thanks


Mr. Cranky

Banned Henchman #27
Staff member
FBBO Gold Member
Local time
9:11 PM
Joined
Dec 4, 2009
Messages
28,454
Reaction score
29,640
Location
Down southeast Taxas
Shortly after I bought my 66 Belvedere the t-stat stuck so went to swap it out and knew right away it had stop leak in it but didn't flush out the system because I thought about another car that had stop leak in it and once it got flushed out, the leak showed up and there was no temp fix for that one again. Anyways, the new t-stat stuck not long after and so did the next one and that's when I gave up on it. At least they were sticking open. Radiator and heater never plugged up. From the smell of the coolant.....pretty sure they both had Bars Leak in them.


MTBRider

Well-Known Member
Local time
9:11 PM
Joined
Dec 16, 2020
Messages
101
Reaction score
128
Location
Kenosha WI
Curious about AMC heads cracking.. Can you enlighten us more? Thanks
According to some of the AMC forums I checked out, certain AMC v8 heads from the 60’s to early 70’s had a design flaw where they had a pretty sharp corner near the forward most lower head bolts which caused a stress point that lead to cracking. Mechanics back then knew to not fully torque those two bolts.
