Followed install instructions including venting options, required pitch, etc. No mention of a filter install..

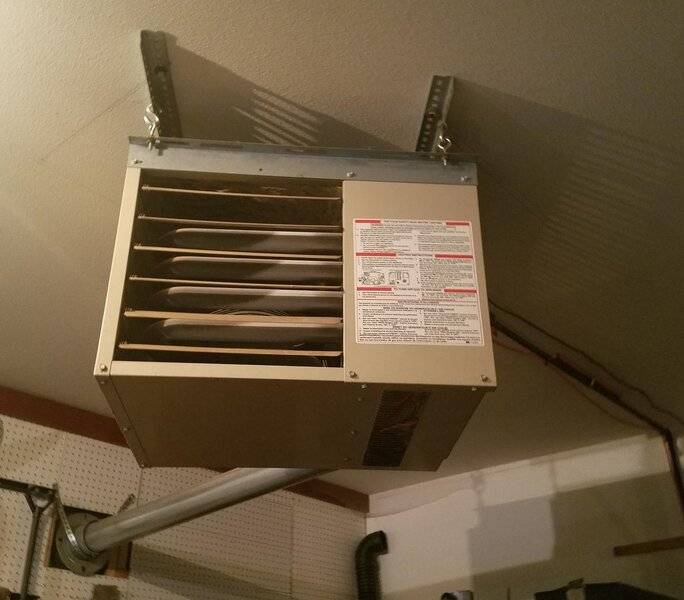

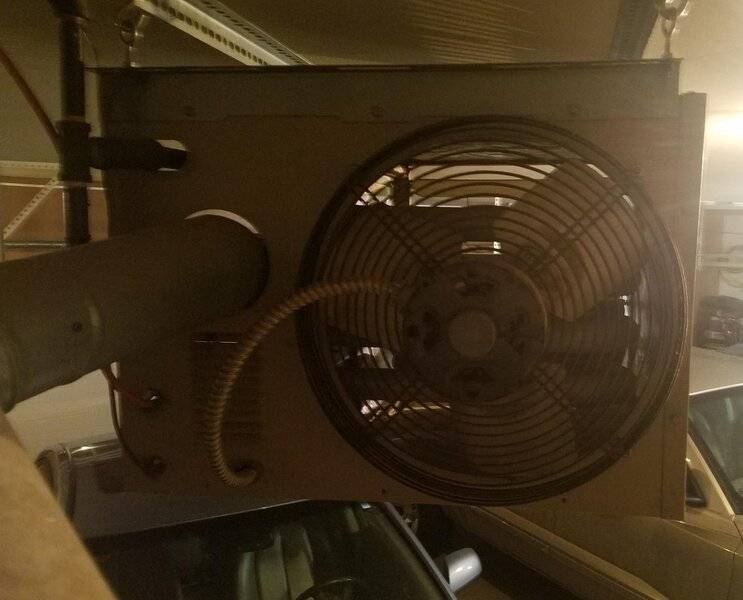

Garage Heater front .jpg Garage Heater rear .jpg


Burnout68

Well-Known Member
Local time
6:14 PM
Joined
Mar 1, 2020
Messages
149
Reaction score
116
Location
New Mexico
Sorry didn’t realize it was a unit heater no filter needed different than a residential furnace which is what I was thinking
So now I’m guessing you have a loose terminal on one of the limits check those may have to crimp down on the terminal a little to make it fit tighter on the spade


Ron H

FBBO Gold Member
FBBO Gold Member
Local time
7:14 PM
Joined
Feb 29, 2016
Messages
7,500
Reaction score
8,323
Location
WI
My apologies gents; I should have included a better description what unit I have that my earlier photos wouldn't have revealed such as a photo showing the entire unit..


Burnout68

Well-Known Member
Local time
6:14 PM
Joined
Mar 1, 2020
Messages
149
Reaction score
116
Location
New Mexico
Different type of fan also than what I was thinking earlier
So should be good they don’t get the build up like the other squirrel cage blowers do
Your type(prop fan) can be wiped easily or blown off like you did


Moms68

Well-Known Member
Local time
8:14 PM
Joined
Jan 14, 2021
Messages
570
Reaction score
962
Location
Central CT
Thanks guys; sail switch or fan inducer I'm unaware of. Does this show up in my top photo of the guts, my OP? Will check for cracks on exchanger - my guess is if this is bad it's time for a new furnace huh? Had one put in the house furnace and was pricy.

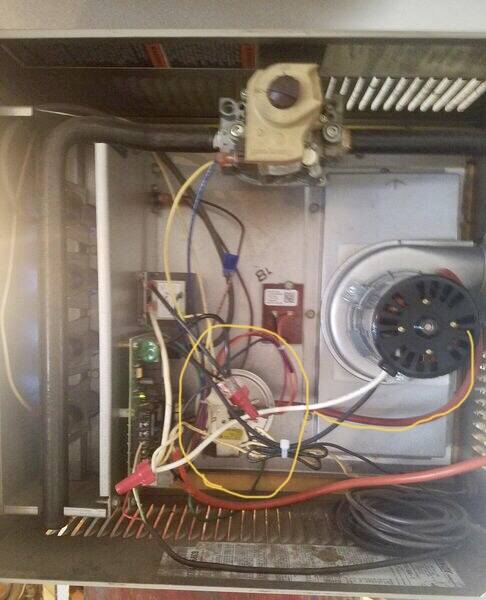

in the photo below, see the proving switch (round silver) and the red hose going to it. There should be 2 wires going to it, which should have low voltage on both terminals when the unit starts. Is that red hose kinked at the top?

(


Ron H

FBBO Gold Member
FBBO Gold Member
Local time
7:14 PM
Joined
Feb 29, 2016
Messages
7,500
Reaction score
8,323
Location
WI
in the photo below, see the proving switch (round silver) and the red hose going to it. There should be 2 wires going to it, which should have low voltage on both terminals when the unit starts. Is that red hose kinked at the top?

View attachment 1218321 (
Still out in garage, checked the hose seeing your post...its good, no kinking or collapse.


Burnout68

Well-Known Member
Local time
6:14 PM
Joined
Mar 1, 2020
Messages
149
Reaction score
116
Location
New Mexico
Check for loose terminals on the limit switches I would follow that whole circuit follow those wires to the board and make sure you have good/tight connections since that seems to be where you getting the error code for the limit switches and the symptoms it’s having
Then when tap it works, either a limit resetting or loose wire/terminal I’m thinking


Demonic

Well-Known Member
Local time
8:14 PM
Joined
Jun 5, 2017
Messages
1,673
Reaction score
1,491
Location
Maryland
Sorry didn’t realize it was a unit heater no filter needed

Yeah, a couple of us missed that. :rolleyes: All these forum guesses aside, mine included - you need to logically troubleshoot with a multimeter.


hunt2elk

FBBO Gold Member
FBBO Gold Member
Local time
7:14 PM
Joined
Jul 15, 2009
Messages
9,117
Reaction score
8,897
Location
WI
Another thing to check is for a poor connection on the molex connector on the circuit board. Pull the plug and check their condition. I sometimes will spread the terminals a bit and after it is back together, take a pick and make sure each terminal is fully seated. Sure sounds like you have a problem in the high limit switch circuit though. When you replaced that switch, did you shine a flashlight in the hole just to be sure there isn't a crack in the exchanger where the switch sets? That would cause it to open up as well. But, it should do it every time if that was the problem.


Moms68

Well-Known Member
Local time
8:14 PM
Joined
Jan 14, 2021
Messages
570
Reaction score
962
Location
Central CT
Try removing this cover. May be able to access the screws holding the flame sensor or be able to clean it.



Ron H

FBBO Gold Member
FBBO Gold Member
Local time
7:14 PM
Joined
Feb 29, 2016
Messages
7,500
Reaction score
8,323
Location
WI
Did you ever figure out the problem?
Well - my next move is still taking out the bracketing to get to the dang flame sensor - but - the furnace still plugs away giving some heat sometimes nicely and then not so much...but some heat...and but it's been friggin cold enough here not wanting to do this if I encounter a hassle that will have me with no heat for a day or longer. Right now far as I can tell, a root cause of the trip outs aim to the sensor. Hope this is what it is. My go-to furnace outfit I've used won't service Lennox so have it on the list to find a place that does. Appreciate you asking and will update hopefully with a success story.


bm02tj

Well-Known Member
Local time
5:14 PM
Joined
Jan 27, 2013
Messages
2,607
Reaction score
5,561
Location
BC Canada
It is not hard to do just do as I said in my earlier post
Yes Lennox did build with some stupid ideas


Burnout68

Well-Known Member
Local time
6:14 PM
Joined
Mar 1, 2020
Messages
149
Reaction score
116
Location
New Mexico
Well - my next move is still taking out the bracketing to get to the dang flame sensor - but - the furnace still plugs away giving some heat sometimes nicely and then not so much...but some heat...and but it's been friggin cold enough here not wanting to do this if I encounter a hassle that will have me with no heat for a day or longer. Right now far as I can tell, a root cause of the trip outs aim to the sensor. Hope this is what it is. My go-to furnace outfit I've used won't service Lennox so have it on the list to find a place that does. Appreciate you asking and will update hopefully with a success story.
Don’t sound like a flame sensor problem if burner stays on longer than 3seconds
But if can’t take apart yourself
If can reach with a wire brush/sand paper and just brush as good as can
It’s just a metal rod so basically just cleaning it
Crazy nobody wants to work on it because it’s Lennox
Every company I’ve worked for worked on anything heating & cooling
