Before the drive... poking thru the scanner I actually found 7 code situations of modules not talking to each other so reset them all.
Drove the 30 minutes to pick up the Granddaughter, with wife staring at scanner screen and all 4 wheel sensors never skipped a beat.
As we went out our gate however, the traction control and tire pressure light came on. No AT light or trans hit this time.
Drive zero issues and while Wife loaded the kid I did a scan hoping there would only be one code to see where the cascade starts.

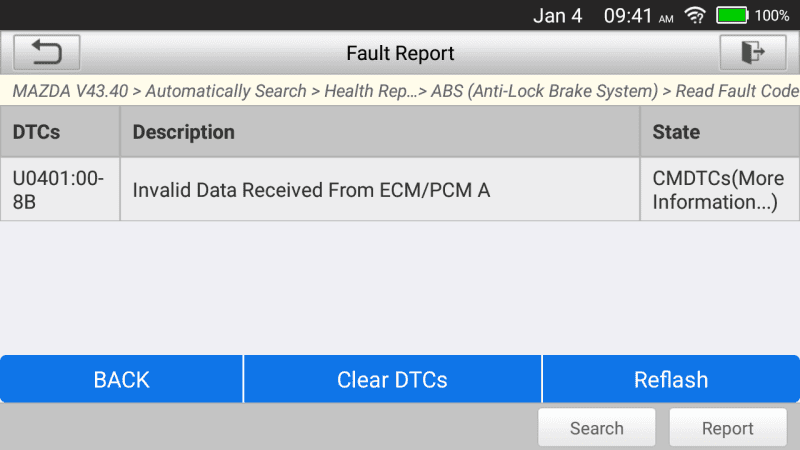

Now we're getting somewhere, took a screen shot and cleared this code. On the way back monitored the abs module voltage and a few other things and nothing caught my or her eye.

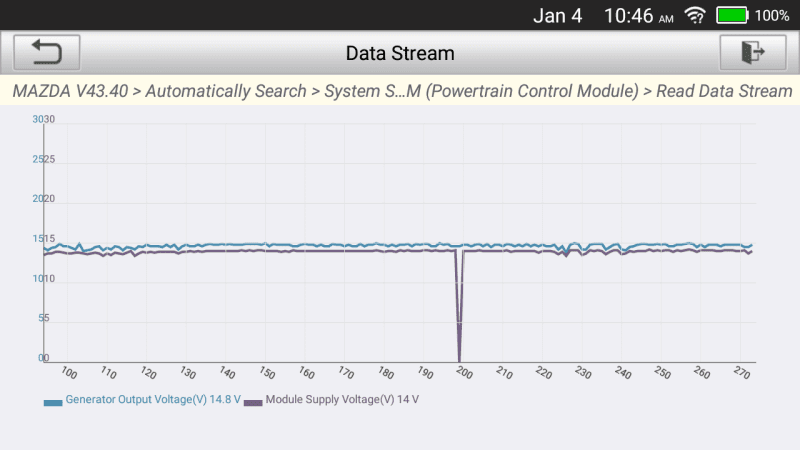

Stopped for some groceries while I kept car running and then put the PCM voltage on graph (bottom) and alternator (top) for the 3 mile drive home. 1/2 way it does this but flashes no lights nor throws any codes. Time to dig the battery, box and the PCM wiring etc out....
Drove the 30 minutes to pick up the Granddaughter, with wife staring at scanner screen and all 4 wheel sensors never skipped a beat.
As we went out our gate however, the traction control and tire pressure light came on. No AT light or trans hit this time.
Drive zero issues and while Wife loaded the kid I did a scan hoping there would only be one code to see where the cascade starts.
Now we're getting somewhere, took a screen shot and cleared this code. On the way back monitored the abs module voltage and a few other things and nothing caught my or her eye.
Stopped for some groceries while I kept car running and then put the PCM voltage on graph (bottom) and alternator (top) for the 3 mile drive home. 1/2 way it does this but flashes no lights nor throws any codes. Time to dig the battery, box and the PCM wiring etc out....
- Local time
- 3:06 AM
- Joined
- Jan 29, 2018
- Messages
- 19,459
- Reaction score
- 63,660
- Location
- Midland Ontario, Canada

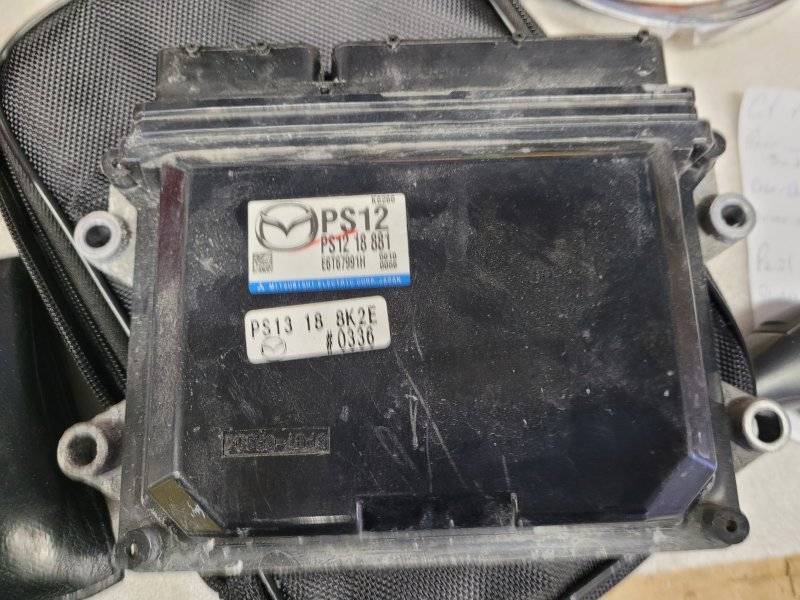

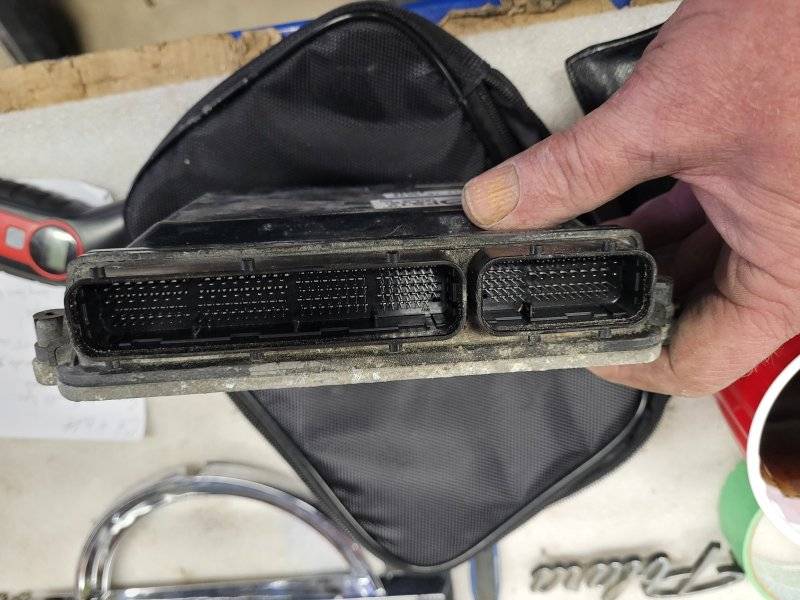

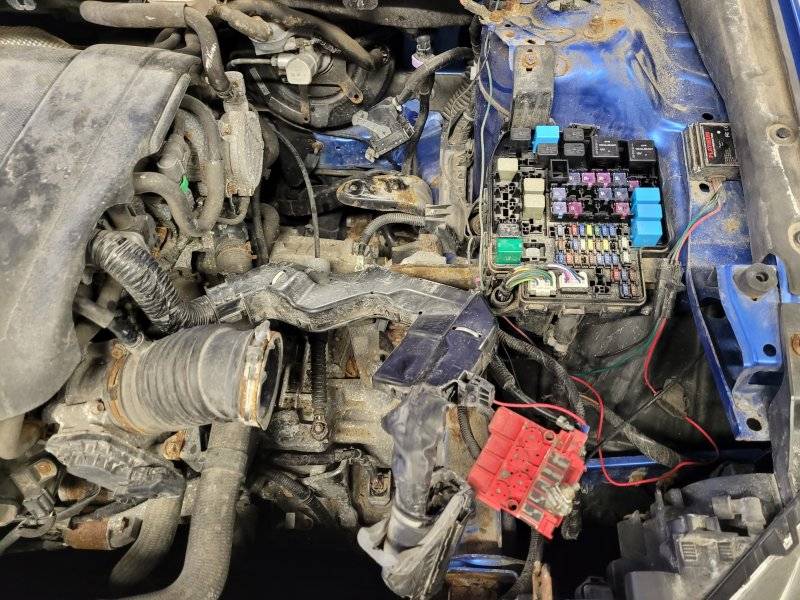

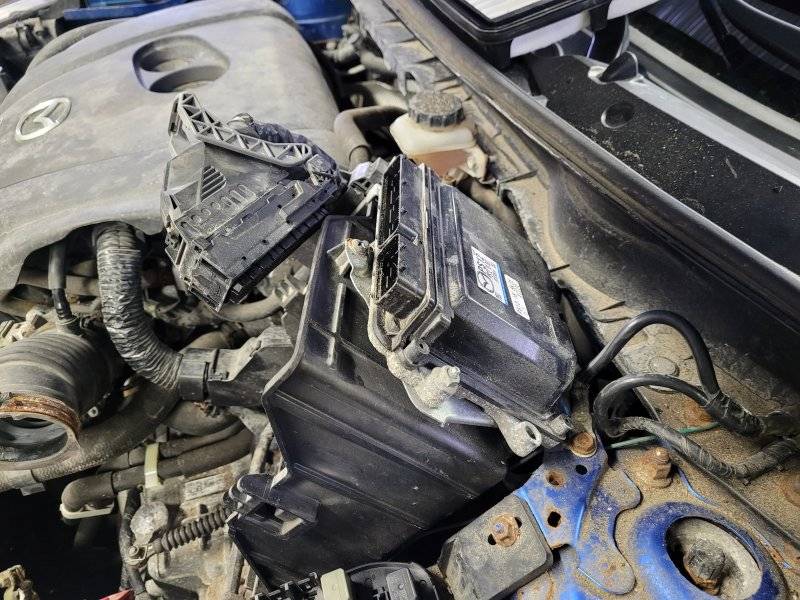

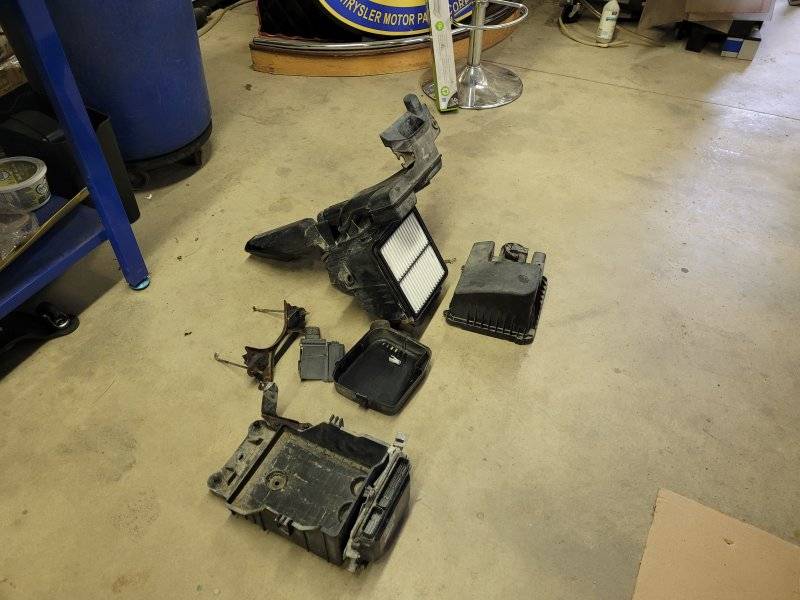

So I tear out the air box, battery, undo the harness plugs from the PCM. Get the battery box with PCM bolted to it removed and now not sure where I'm headed. PCM is bolted to a plastic battery box, thus it's case certainly isn't the ground source. I guess I have to open up the harness plugs, untape all the wires and inspect the connections & wires. Trying to find a wiring diagram so I at least know which wires possibly are power in.. lol

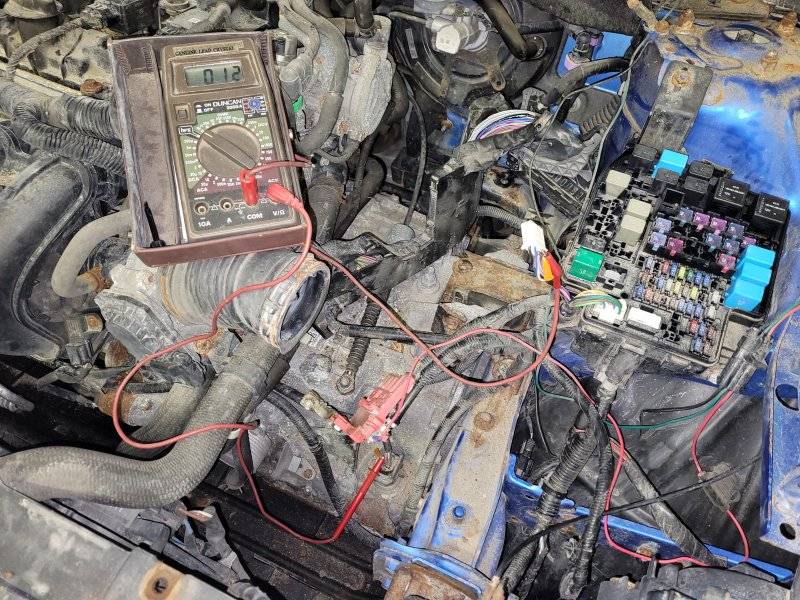

Can you loosely put it together enough to run it while wiggling harnesses and watching live data.
- Local time
- 7:06 PM
- Joined
- Jun 12, 2012
- Messages
- 35,222
- Reaction score
- 94,434
- Location
- NZ - just short of the South Pole
Has the car been driven through Fords (river or stream crossings on roads) ? Looks like a lot of dust build-up in the engine compartment. Wondering if there is some contamination going on with a module.
- Local time
- 3:06 AM
- Joined
- Jan 29, 2018
- Messages
- 19,459
- Reaction score
- 63,660
- Location
- Midland Ontario, Canada
That's just road sand and brine Roger. Looks like **** but it's actually pretty clean everywhere...

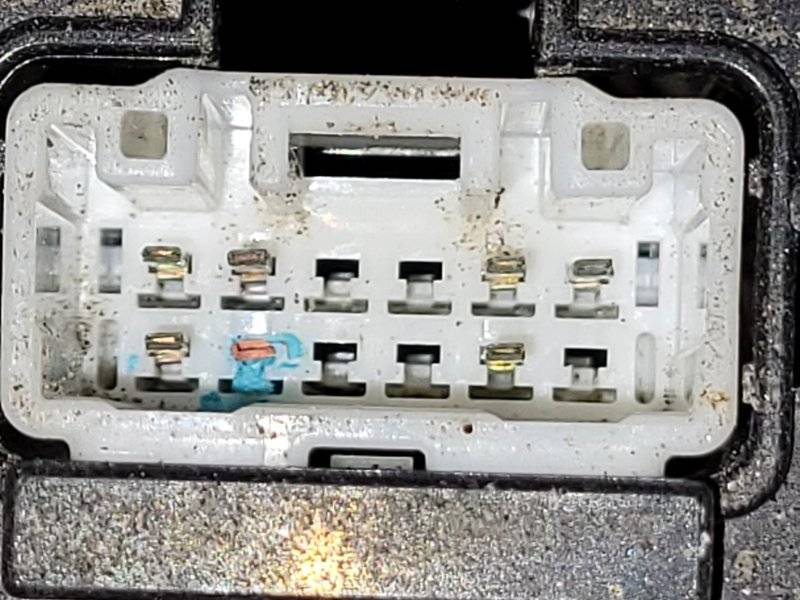

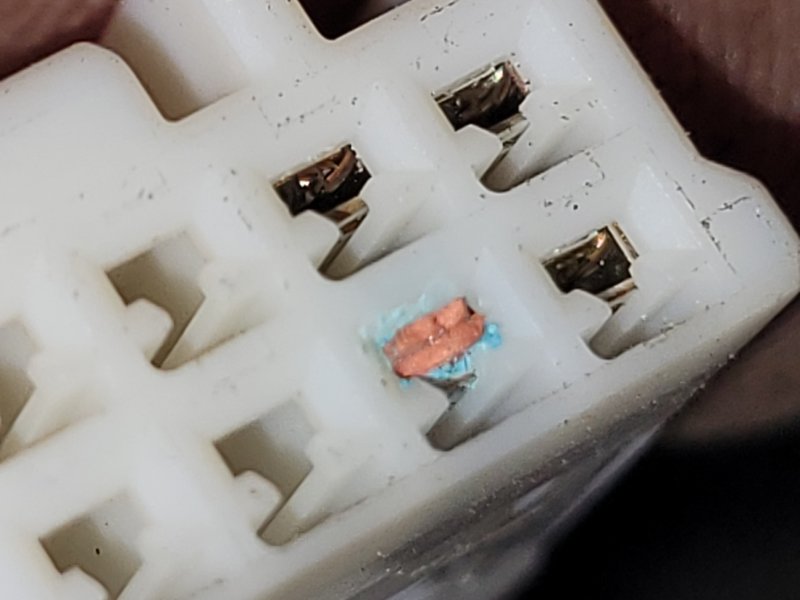

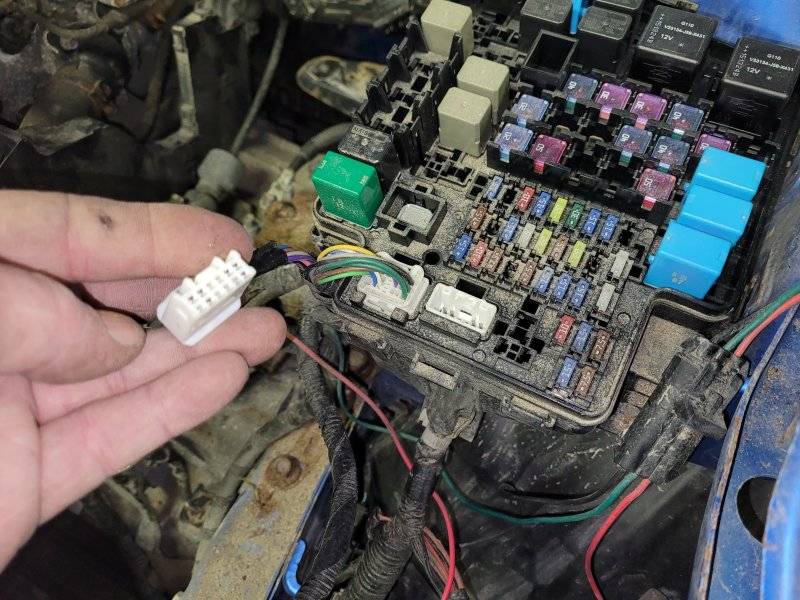

That said... wish I'd maybe started here....one pin down on the fuse box. Could I get this lucky???
That said... wish I'd maybe started here....one pin down on the fuse box. Could I get this lucky???
- Local time
- 7:06 PM
- Joined
- Jun 12, 2012
- Messages
- 35,222
- Reaction score
- 94,434
- Location
- NZ - just short of the South Pole
Nice catch...the pin above it looks like it has had a bit of heat also. Worth checking them all out.
- Local time
- 3:06 AM
- Joined
- Jan 29, 2018
- Messages
- 19,459
- Reaction score
- 63,660
- Location
- Midland Ontario, Canada

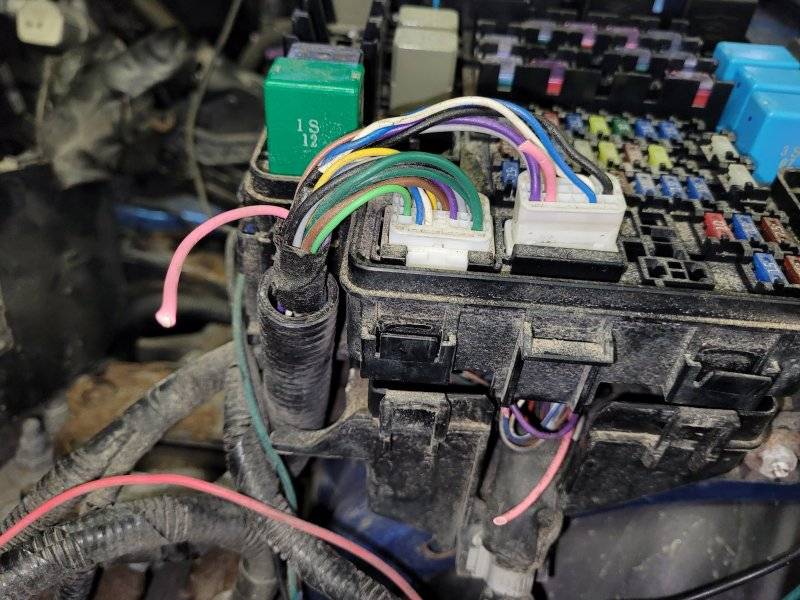

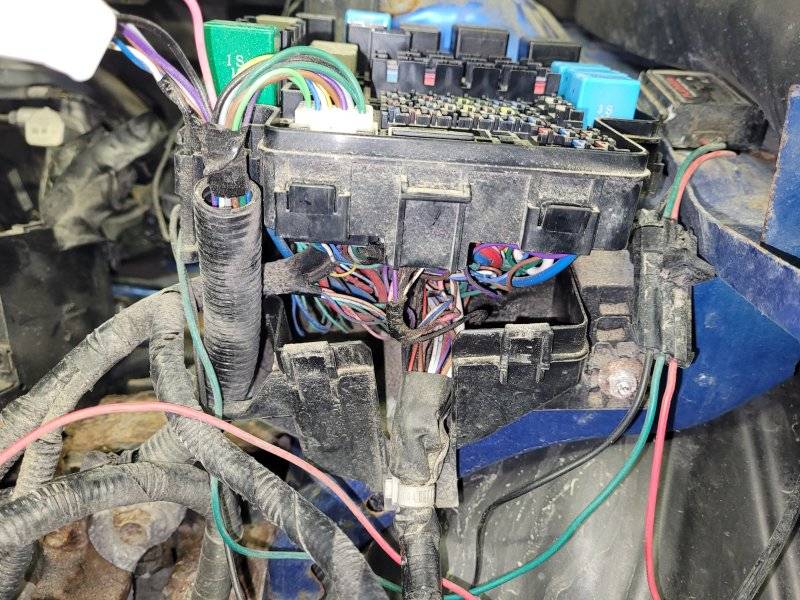

Now to figure out how to get the fuse box to snap apart.. so I can make a jumper wire or steal an empty pin if there is one.Nice catch...the pin above it looks like it has had a bit of heat also. Worth checking them all out.
Looks like you've found a likely culprit.. Hopefully that wire is related and not just the dome light..
- Local time
- 3:06 AM
- Joined
- Jan 29, 2018
- Messages
- 19,459
- Reaction score
- 63,660
- Location
- Midland Ontario, Canada

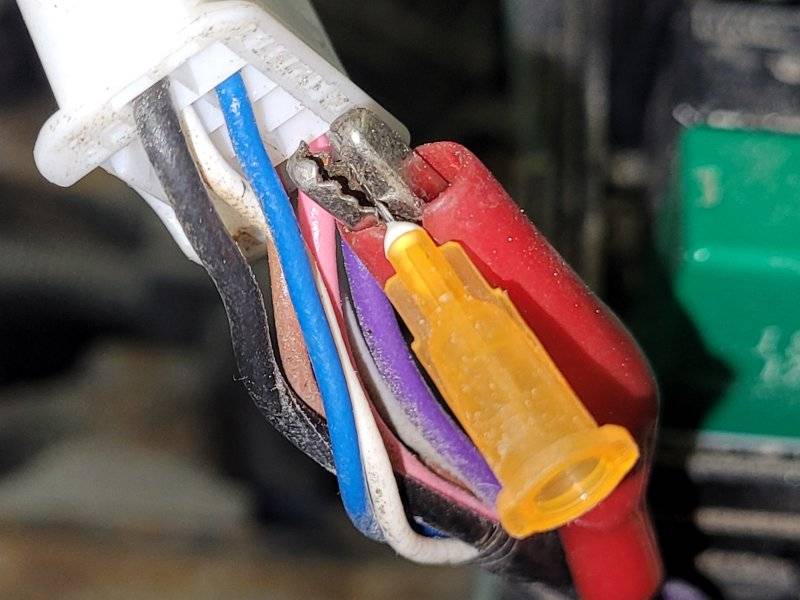

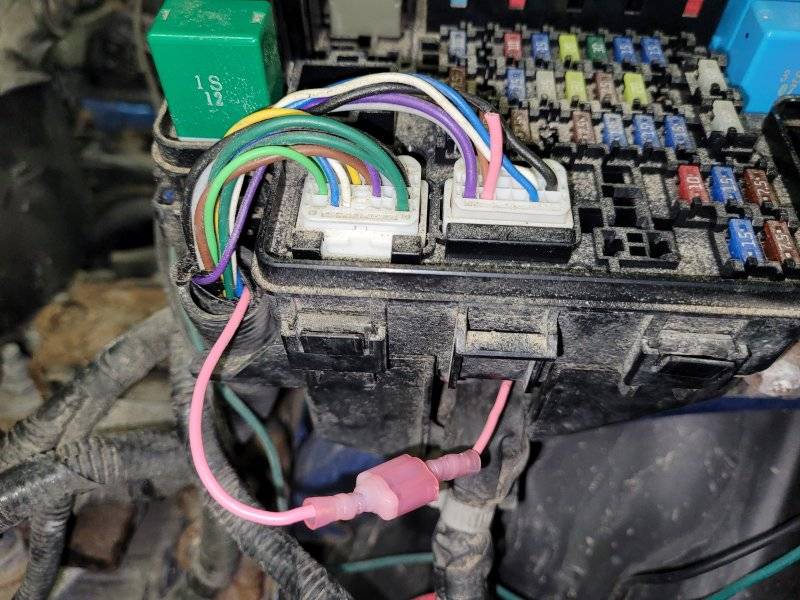

After poking a lot of pink wires it goes to the transmission. Might explain the AT issue. It's not the power feed to the PCM but maybe that was a fluke on the graph. Gonna fix this wire and put it all back together again and see what happens. BTW hypodermic needles have more than one use!
