Conv top frame bow spacing - 70 Satellite/RR/GTX?

[Chris Many]

So stupid me did not measure the convertible top bow spacing before I stripped my convertible top off and dismantled the frames. Now I need to figure out what the bow spacing is. The service manual doesn't provide this information. Does anyone know what the spacing is or can point me to a document that I can pull the info from?

When I did my "non-mopar" convertible a few years ago the service manual provided info on the dimensions for spacer blocks to position the bows before stapling the top pads in place. would be nice to have one for mopar.



[1963JAM]

I have a 66. Do you know if that would be the same as the 70 convertible frame?



[Chris Many]

I have a 66. Do you know if that would be the same as the 70 convertible frame?

no they wouldn't. thanks for offering though.



[MoparVertsrule]

So stupid me did not measure the convertible top bow spacing before I stripped my convertible top off and dismantled the frames. Now I need to figure out what the bow spacing is. The service manual doesn't provide this information. Does anyone know what the spacing is or can point me to a document that I can pull the info from?

When I did my "non-mopar" convertible a few years ago the service manual provided info on the dimensions for spacer blocks to position the bows before stapling the top pads in place. would be nice to have one for mopar.

I have a survivor what measurements do u need



[Chris Many]

I have a survivor what measurements do u need

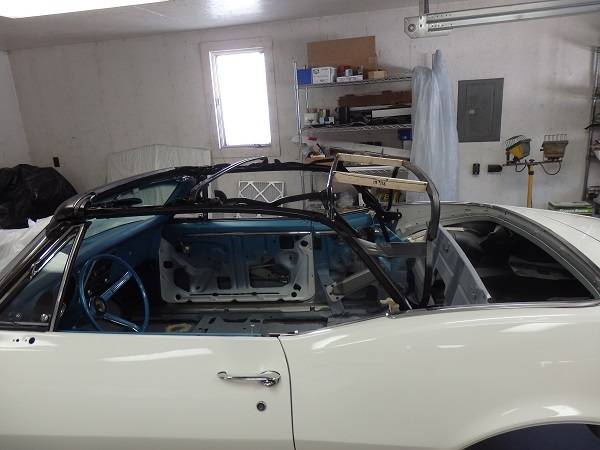

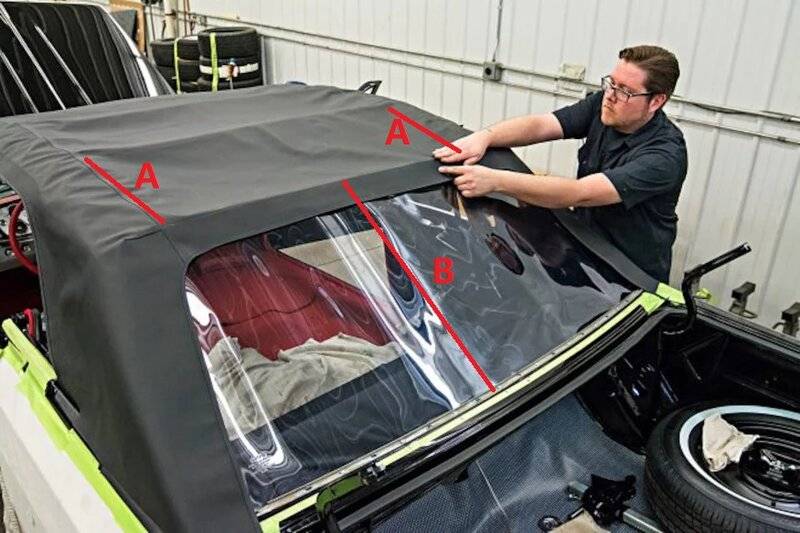

thanks for offering. in the attached picture I need the distance between the rear window bow and the one just in front of it on the inside along the pad (A). just imagine you had to cut a piece of wooed to fit into the gap between the bows as shown in the white Camaro picture. I also need the distance between the center of the rear window measured from the inside edged of the moulding and the rear edge of the cap piece (B).

thanks for your assitance.
-Chris
