Correct Bergman Coupler set screw position on input shaft?

Bergman Auto Craft

  1. MoparGuy68

    MoparGuy68 Well-Known Member

    Messages:
    550
    Likes Received:
    348
    Joined:
    Mar 31, 2019
    Location:
    Phoenix, AZ
    Local Time:
    7:19 AM
    Yes, I have your BAC Coupler PDF instructions. They do NOT specify where the set screw should be positioned on the input shaft.

    I assume that the screw should make contact with the input shaft in the middle of the "valley" between the two splined portions of the shaft. Is this correct?

    If I position the screw in the middle of this valley, the splined part of the shaft closest to the gearbox just barely engages the coupler. On the Stock box input shaft, the Stock coupler engages the splined part closest to box at least halfway (halfway engaging the splined surface). The engagement of the splined part closest to Borgeson box with the Bergman coupler (if set screw is in middle of valley) is significantly less.

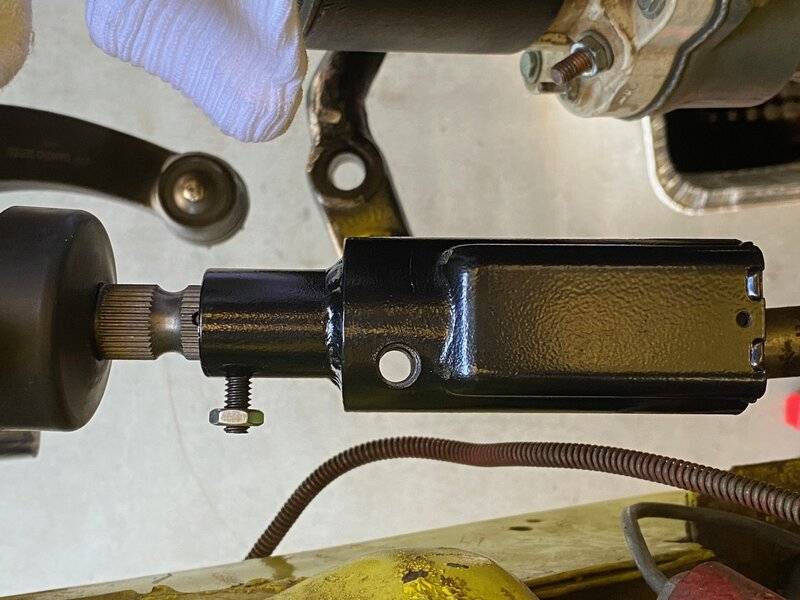

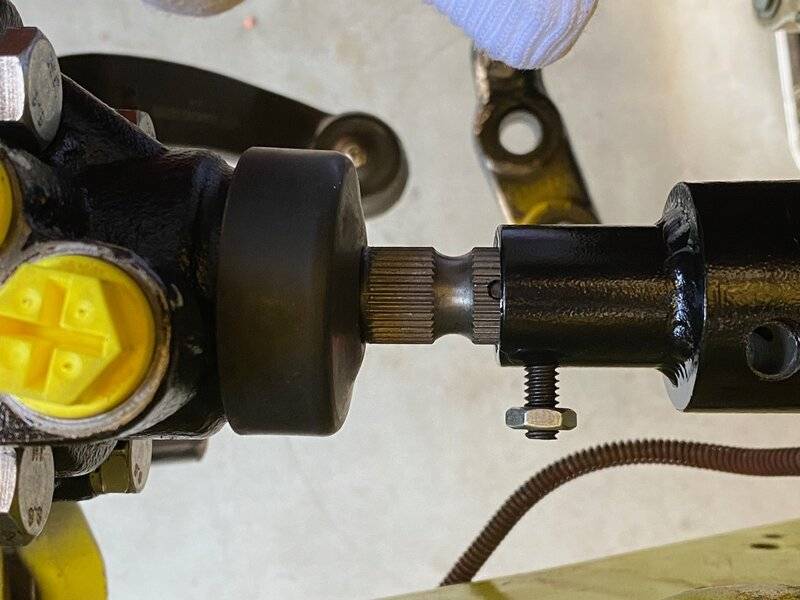

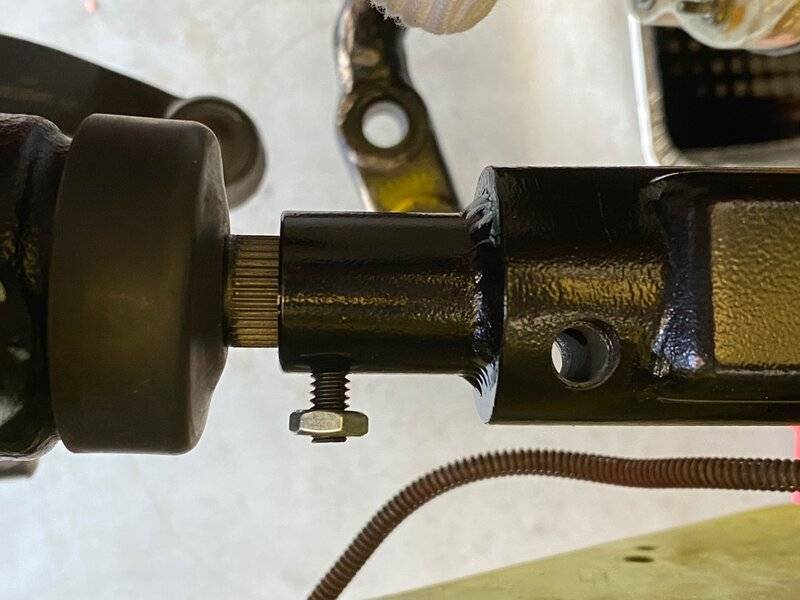

    The last photo shows the coupler position with the set screw right in the middle of the valley between splined portions of input shaft.

    So I'm confirming if I am doing this right or wrong.

    IMG_1986.jpg IMG_1987.jpg IMG_1988.jpg

  2. 505droptop

    505droptop Member

    Messages:
    21
    Likes Received:
    21
    Joined:
    Apr 28, 2018
    Location:
    Michigan
    Local Time:
    10:19 AM
    Not sure if it’s correct or not but that’s where I positioned mine

  3. tonysrt

    tonysrt Well-Known Member

    Messages:
    473
    Likes Received:
    422
    Joined:
    Dec 6, 2017
    Location:
    Northport, NY
    Local Time:
    10:19 AM
    The bottom pic is correct, in between the splines in that groove. You have it correct.

  4. MoparGuy68

    MoparGuy68 Well-Known Member

    Messages:
    550
    Likes Received:
    348
    Joined:
    Mar 31, 2019
    Location:
    Phoenix, AZ
    Local Time:
    7:19 AM
    Thank you. Any place else would allow the set screw to damage the splines when it is tightened down, so it makes sense.
