Crate HEMI Engine Kit factory wiring problem

Resto-Mods & Pro-Touring forum

  1. EvilBeast

    EvilBeast Member

    Messages:
    9
    Likes Received:
    0
    Joined:
    May 17, 2021
    Location:
    tucson, AZ
    Local Time:
    6:00 PM
    This install is for a 2014 392 in a '69 Charger. I have the 'Crate Hemi Engine Kit' - 77072454AB. The engine runs - once it starts. Multiple cranks, sometime several minutes.

    I looked at the header - PDB1 (marked "PDBA on mine) going into the power distribution center. The 'FUEL PUMP FEED' (DB/Orange) is 18 Gauge, not 12G as in the Instruction Sheet (Rev 5.0). Also, that wire does not get 12V at Key-On, and the "FUEL PUMP RELAY CONTROL' wire next to it on same header does not get 12V at Key-On. I wired my fuel pump from another fused source to bypass this problem.

    My problem is that it takes several minutes of cranking to fire the engine. Minutes - try, stop, retry, again. It should fire immediately. I have checked fuel line and there is plenty of fuel coming out of it if I disconnect it.

    Are these problems related? Does the ECM have to see a load on the fuel pump circuit to send spark? Even if that were the case, why does the engine start after several minutes of cranking - it should never start.

    Also, has anyone with this engine kit had a miswired or mislabeled PDB like mine? It's really concerning that the instructions are different from the actual wiring

  2. 70chall440

    70chall440 FBBO Gold Member FBBO Gold Member

    Messages:
    2,765
    Likes Received:
    3978
    Joined:
    Feb 11, 2018
    Location:
    Yelm, Washington
    Local Time:
    6:00 PM
    Do you have a fuel pressure gauge? Sounds to me like its not building enough fuel pressure to work which is why it takes awhile for it to fire. I don't have any experience with the install kit you are using but I do with EFI systems in general and if the ecu isn't seeing enough fuel pressure it won't fire the ignition.

    • Agree Agree x 1
    • EvilBeast

      EvilBeast Member

      Messages:
      9
      Likes Received:
      0
      Joined:
      May 17, 2021
      Location:
      tucson, AZ
      Local Time:
      6:00 PM
      When I disconnected the fuel line from the in-tank pump, there was a steady stream with significant volume coming out with the pump on. But yes, I do have a FP gauge. Can you tell me where the fuel pressure gauge nipple is on the 392? Thanks!

    • 70chall440

      70chall440 FBBO Gold Member FBBO Gold Member

      Messages:
      2,765
      Likes Received:
      3978
      Joined:
      Feb 11, 2018
      Location:
      Yelm, Washington
      Local Time:
      6:00 PM
      Should be on the fuel rails and should have a cap on it.

    • 70chall440

      70chall440 FBBO Gold Member FBBO Gold Member

      Messages:
      2,765
      Likes Received:
      3978
      Joined:
      Feb 11, 2018
      Location:
      Yelm, Washington
      Local Time:
      6:00 PM
      I ran into a similar problem on my Viper, it wouldn't start right away, then would fire up but die right away. It would do this a few times and then finally run. I discovered that the ignition switch had an issue where it wasn't letting the FP run during starting. I discovered this by putting a FP gauge on it and watching it during cranking.

      If you do have fuel pressure then its something in the ECU that is not allowing the engine to fire.

    • Jerry Hall

      Jerry Hall FBBO Gold Member FBBO Gold Member

      Messages:
      5,509
      Likes Received:
      8944
      Joined:
      Mar 26, 2018
      Location:
      Alabama
      Local Time:
      8:00 PM
      Cam sensor is another thing that will not let them start.

      • Agree Agree x 1
      • Jerry Hall

        Jerry Hall FBBO Gold Member FBBO Gold Member

        Messages:
        5,509
        Likes Received:
        8944
        Joined:
        Mar 26, 2018
        Location:
        Alabama
        Local Time:
        8:00 PM
        Are you far enough along to use a code reader in the OBD2 port?

        • Agree Agree x 1
        • 70chall440

          70chall440 FBBO Gold Member FBBO Gold Member

          Messages:
          2,765
          Likes Received:
          3978
          Joined:
          Feb 11, 2018
          Location:
          Yelm, Washington
          Local Time:
          6:00 PM
          Does the ECU have any type of diagnostic capability (ODBII port, laptop connection, etc)? You would think that a new crate engine should have good/working sensors but you never know. Newer EFI engines are pretty power sensitive meaning that if a sensor is not getting the proper voltage signal it will not work or talk to the ECU.

        • EvilBeast

          EvilBeast Member

          Messages:
          9
          Likes Received:
          0
          Joined:
          May 17, 2021
          Location:
          tucson, AZ
          Local Time:
          6:00 PM
          The ignition switch issue could be part of it. I mean, I wired the fuel pump to an accesory position in the fusebox aftermarket wiring harness (American Autowire B body kit) to get around the "FUEL PUMP RELAY CONTROL' line problem I mentioned earlier. If that accessory position loses voltage during cranking, that may be it. I can check that easily with a voltmeter. The fuel pressure check will be done too. Thanks, I'll be sure to report back in case someone looks up this thread in the future.

        • 5.7 hemi

          5.7 hemi FBBO Gold Member FBBO Gold Member

          Messages:
          14,371
          Likes Received:
          12704
          Joined:
          Dec 21, 2008
          Location:
          ca
          Local Time:
          8:00 PM
          If using the factory ignition, IGN. 1 and IGN. 2 should be tied together.

        • Polara426

          Polara426 Well-Known Member

          Messages:
          261
          Likes Received:
          122
          Joined:
          May 3, 2010
          Location:
          norteast ohio
          Local Time:
          8:00 PM
          I agree the factory Ignition switch does not provide power when cranking. What are you using for an Ignition switch.

        • EvilBeast

          EvilBeast Member

          Messages:
          9
          Likes Received:
          0
          Joined:
          May 17, 2021
          Location:
          tucson, AZ
          Local Time:
          6:00 PM

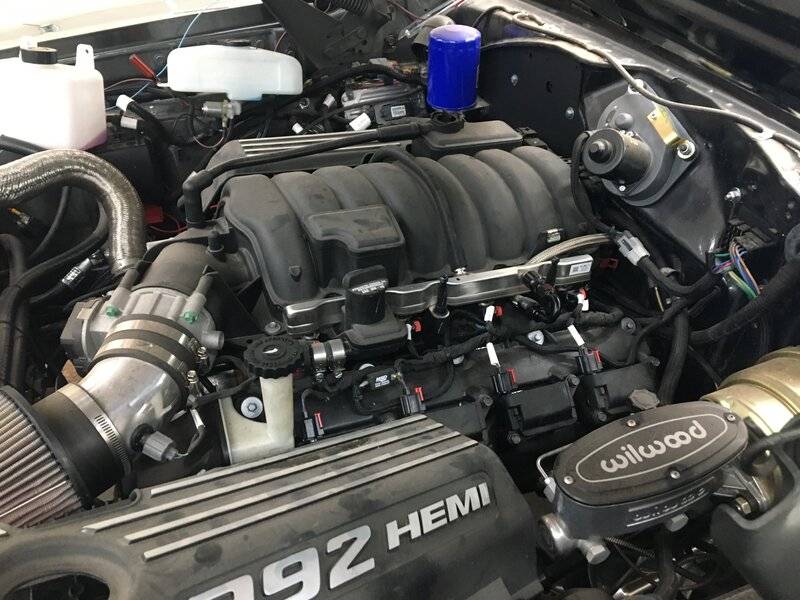

          There is no fuel pressure gauge bung, I ran the fuel lines from the tank to a connection on the driver side fuel rail - see photo. I checked the fuel flow and its excellent. The voltage for the pump in the tank goes to 12V then shuts off after about 3 secs. When cranking there is 0 volts. I checked this right at the Hemi Engine kit's FUEL PUMP FEED line. Is that wrong? You'd think there was enough fuel pressure in the rails to at least give a squirt or two so the engine could fire. And it does fire - only after many cranks and retries. Could the fuel injectors be clogged? Do you recommend a specific fuel injector cleaner or a procedure to clean them in the manifold?


        • 4406bbl

          4406bbl Well-Known Member

          Messages:
          361
          Likes Received:
          347
          Joined:
          Feb 8, 2015
          Location:
          nebraska
          Local Time:
          8:00 PM
          I agree you need to tie ignition 1 and 2 together, or use a relay so the pump is hot during crank. I did my holley setup with a relay because I am running stock ignition and a ballast. Use an automotive grade relay, like something stock from a newer vehicle. I had problems with the holley relay and aftermarket stuff, used junkyard relays are flawless.

        • 4406bbl

          4406bbl Well-Known Member

          Messages:
          361
          Likes Received:
          347
          Joined:
          Feb 8, 2015
          Location:
          nebraska
          Local Time:
          8:00 PM
          I doubt the injectors are clogged, I would bet you need to figure out how to get power to the pump during crank.

        • 4406bbl

          4406bbl Well-Known Member

          Messages:
          361
          Likes Received:
          347
          Joined:
          Feb 8, 2015
          Location:
          nebraska
          Local Time:
          8:00 PM
          On 3 seconds then off is how it should work, everytime you crank the pump will run 3 seconds, then off. Thinking a relay will fix this.

        • EvilBeast

          EvilBeast Member

          Messages:
          9
          Likes Received:
          0
          Joined:
          May 17, 2021
          Location:
          tucson, AZ
          Local Time:
          6:00 PM
          While I agree with your point that the pump SHOULD run while cranking, this is a factory manufactured harness and ECM kit. I'm concerned that doing an addon kind of thing to it will damage something. Has anyone here installed one of these kits and did you have to add on a relay? Please post a circuit diagram for your relay setup. Thanks!

        • 4406bbl

          4406bbl Well-Known Member

          Messages:
          361
          Likes Received:
          347
          Joined:
          Feb 8, 2015
          Location:
          nebraska
          Local Time:
          8:00 PM
          So are you saying the wires marked fuel pump feed, and the fuel pump relay never have power with the ignition in run, or crank? Is it possible these 2 wires switch a ground? That could be used on the coil side of a relay, to power the pump.

        • EvilBeast

          EvilBeast Member

          Messages:
          9
          Likes Received:
          0
          Joined:
          May 17, 2021
          Location:
          tucson, AZ
          Local Time:
          6:00 PM
          Checked the plugs, dirty so cleaned them, reinstalled. Same problem. No start. I put some gas on the air filter, and it started - ran perfect.

          Fuel pump feed has power on it for 3 secs after key-on, then dead, even while cranking, until engine is started. After engine start, full 12V. Stumped.

        • 4406bbl

          4406bbl Well-Known Member

          Messages:
          361
          Likes Received:
          347
          Joined:
          Feb 8, 2015
          Location:
          nebraska
          Local Time:
          8:00 PM
          Does the wire marked fuel pump relay have 12 volts during cranking?

        • EvilBeast

          EvilBeast Member

          Messages:
          9
          Likes Received:
          0
          Joined:
          May 17, 2021
          Location:
          tucson, AZ
          Local Time:
          6:00 PM
          Question: does the ECM want to see some RPM before supplying voltage to the fuel pump during crank? I don't think there's a feed to the ECM from the tach circuit, maybe that's the problem?
