Electrical help please

[Loulang]

BEAUTIFUL BEAST! what all is done to the motor? I have no clue if anything has been done to mine. I do know it’s still a flat tapped cam. I’d like to do something to her but not sure what to do. I don’t want anything crazy.



[Loulang]

Is your car on the Holley website?



[TN Mopar]

BEAUTIFUL BEAST! what all is done to the motor? I have no clue if anything has been done to mine. I do know it’s still a flat tapped cam. I’d like to do something to her but not sure what to do. I don’t want anything crazy.

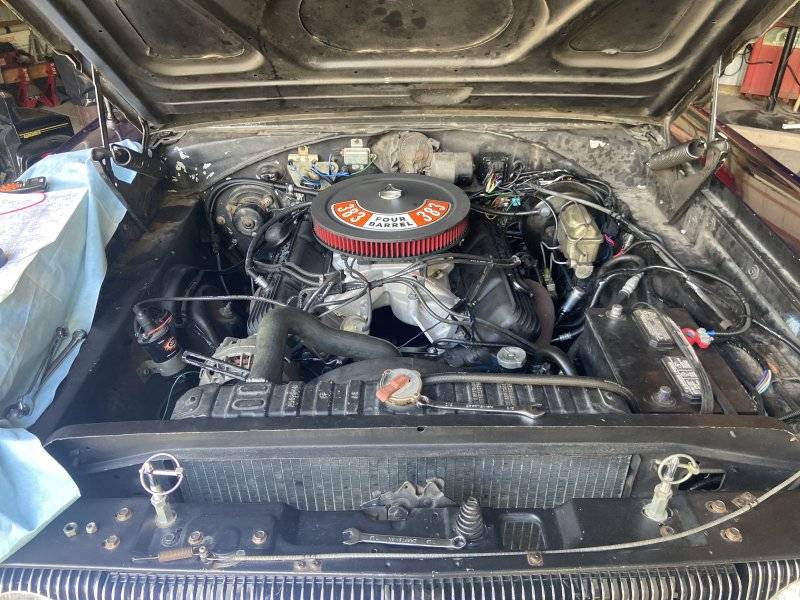

View attachment 1462961

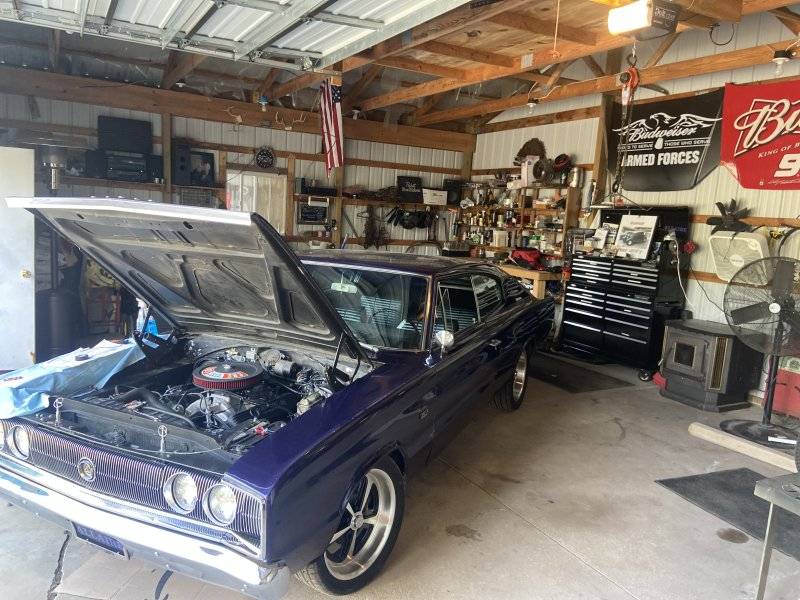

View attachment 1462962

It's a 440 .030 over with 10.7:1 compression. Edelbrock Heads that have had a little work The old .509 purple shaft cam. Torker II intake with a 850 Billet Thumper Carb by Dominick Thumper
The Fuel system is EFI ready using a Tanks Inc EFI tank, in tank fuel pump, 1/2 inch fuel lines with 3/8 inch return line
3.91 Gear 8.75 rear with a 3000 stall Torque Convertor



[TN Mopar]

Is your car on the Holley website?

Yes
but I had to update the photos

John's 1966 Dodge Charger - Holley My Garage



[RemCharger]

Not sure if it's handled but does this help



[Loulang]

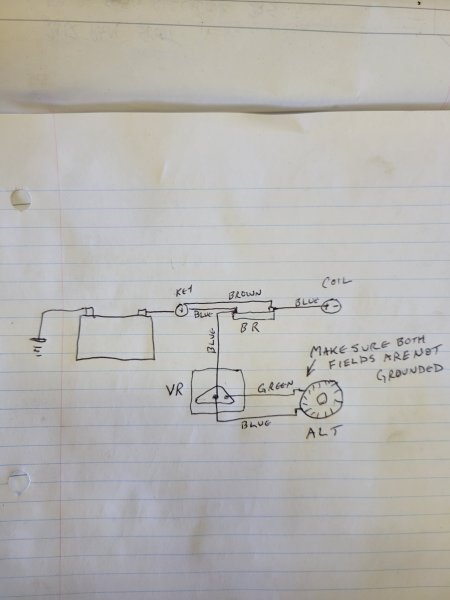

Not sure if it's handled but does this helpView attachment 1463098

Thanks for the drawing it does help it looks like my wiring is correct now, I will be installing these two parts today and will update later.



[Loulang]

My blue wire and blue with white tracer wire connects to the blue wire on the pigtail that goes to my electronic voltage regulator? And run a wire with those to my alternator field?



[Loulang]

Could someone call me? I hate this texting ****



[451Mopar]

If you want a heavy duty adjustable voltage regulator
Transpo C8313:
Transpo Heavy Duty Adjustable Voltage Regulator C8313 - for sale online | eBay

There is an adjustment on the back that allows you to adjust the regulated voltage.
I have one on the '71 Charger regulating a 132 Amp Denso alternator with trunk mounted battery.
I adjusted the regulator for 14.0 Volts at the battery when running.



[Loulang]

I talked to Skatpak and Redbeard last night. I’m sure I’m on the right track



[Loulang]

Hope this works



[RemCharger]

I think what you mean is the brush, and yes the green goes on one, and a blue 12v to the other field.
2 field connections, one green, one blue.



[Loulang]

I think what you mean is the brush, and yes the green goes on one, and a blue 12v to the other field.
2 field connections, one green, one blue.

Thanks



[Loulang]

Both of my field wires have this same set up in the picture



[Loulang]

Got my answer everyone thanks



[RemCharger]

Both of my field wires have this same set up in the picture

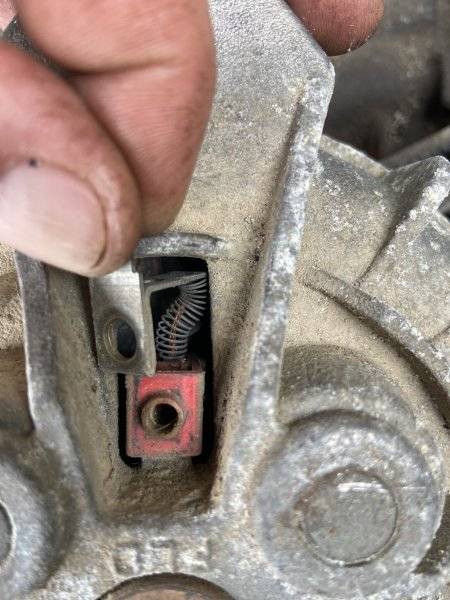

View attachment 1464047

Just be certain they are isolated with a Fibre washer so they aren't grounded to the screw!!!



[Loulang]

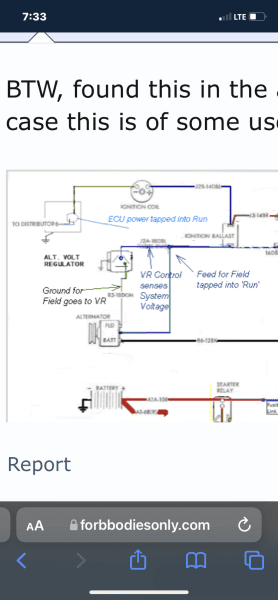

I give up for now It just fried my new fuckin harness. Did it exactly the way the pic shows. FML



[451Mopar]

What happened? If something was shorted, the fusible link should have burnt before the wiring?



[RemCharger]

2 things I'd check, are the brushes shorted to ground, and which wire was the offending burnt one.



[Loulang]

2 things I'd check, are the brushes shorted to ground, and which wire was the offending burnt one.

The blue wires/ blue and white melted
