Fuel cell questions

Racers Hangout

  1. Mike Gaines

    Mike Gaines Well-Known Member

    Messages:
    2,081
    Likes Received:
    4185
    Joined:
    Apr 17, 2014
    Location:
    Ahwahnee, (Fresno) California
    Local Time:
    2:48 AM

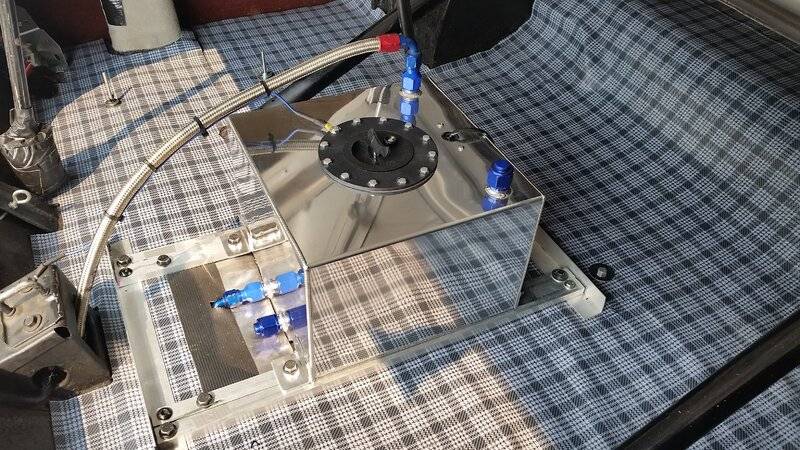

    Here is a pix of the 5 gal aluminum cell when it was in my 66 Coronet. I transfered it to my 64 Hemi Car. Pretty nice piece for about $40. I have had it for about 2 years in 2 separate cars with NO problems at all.


    • Thanks! Thanks! x 1
    • 451Mopar

      451Mopar Well-Known Member

      Messages:
      2,433
      Likes Received:
      1746
      Joined:
      Oct 25, 2011
      Location:
      Aurora, CO
      Local Time:
      3:48 AM
      The '71 Charger has a 20-gallon aluminum fuel cell/tank with foam. It is pretty basic tank/cell, not one of the Fuel safes that are designed to stay intact in a crash (internal bladder, shielded.)
      For racing, there are some rules. Because mounting the cell high above the rear wheels will help weight transfer on lunching the car in drag racing, Per NHRA, the top of the fuel cell must be below the top of the tires. With a high mounted cell, side-to-side cornering / handling will be less stable than if mounted lower in the car.
      In straight line acceleration, fuel slosh (no foam) is not much of a big deal, unless the fuel pickup is uncovered.
      In a car designed for handling/cornering you don't want fuel slosh, and moving the cell closer to the center of the car helps more, but most old cars would need major modification to have the cell located under the passenger compartment. Many newer cars locate the fuel cell below the rear seat area (under the floorboard) for better handling, weight distribution, and protection from rear end crashes.
      Remember that the fuel is moving dynamically from the vehicles acceleration forces. Having a large high mounted, unbaffled, tank/cell behind the rear wheels can cause the rear end to kick out like being hit with a pit maneuver, if all the fuel sloshes to one side quickly.
      Part of the fuel slosh issue is with a full tank, it is heavy, but there is no room for the fuel to move, so not much weight transfer side-to-side, but 1/2 full the fuel can change the side-to side weight going around corners quite a bit depending on the volume and the width of the fuel tank.
      Think long, narrow, short is better than wide, short, and tall for a handling vehicle.

      And, yes, I spun out (and flipped) my 1985 RamCharger going around a corner too fast. 1/2 tank or a bit more fuel in the 35-gallon unbaffled tank located behind rear tires on a short wheelbase 4x4. That is over 100 pounds of fuel sloshing from side to side.
      A bit more dynamics going on in the accident. At first making the left hand turn with too much throttle (OK, I was drifting the truck a bit), and when I went to correct by turning right all the fuel that was at the right side of the tank quickly sloshed over to the left side of the tank, and the back end if the RamCharger kicked out and kept going left to where the truck spun a 180. While on the brakes sliding backwards (almost stopped), the left rear tire caught a curb, and the truck tipped over on its side.

    • 6PKRTSE

      6PKRTSE Well-Known Member

      Messages:
      1,918
      Likes Received:
      2729
      Joined:
      Nov 15, 2010
      Location:
      Motor City
      Local Time:
      4:48 AM
      I would not mount an alum cell by the tabs provided alone. I have have seen where the welded on tabs tear the cell if your car leaves hard enough from the weight of the fuel in the cell. I made a cage to go around mine in addition to the tabs.

      • Like Like x 1
      • LemonWedge

        LemonWedge Well-Known Member

        Messages:
        662
        Likes Received:
        1317
        Joined:
        Dec 27, 2009
        Location:
        Puyallup, WA
        Local Time:
        2:48 AM

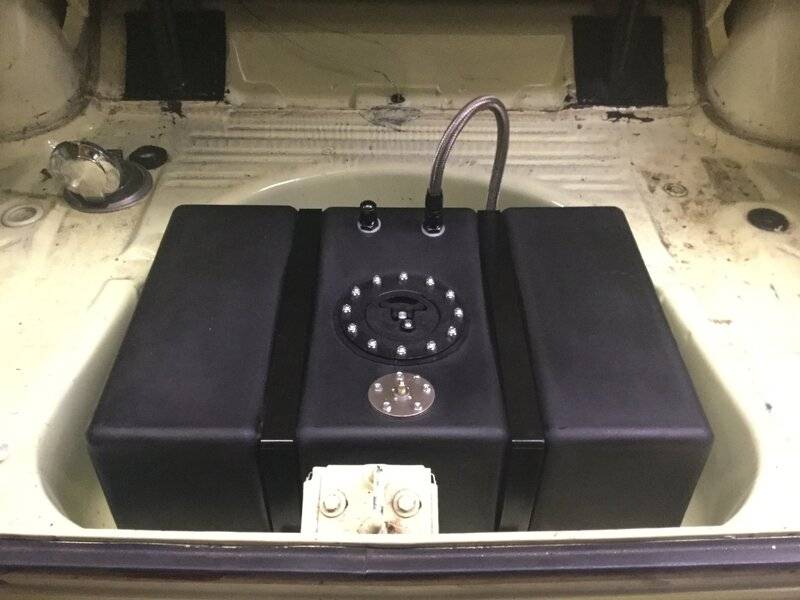

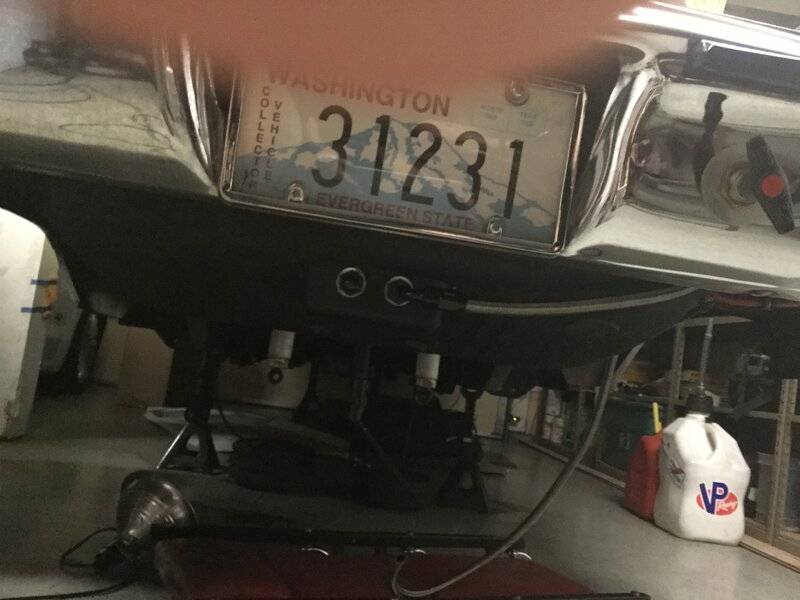

        I ended up going with. 16 gal jegs cell. I opted for one with a sending u it, even though I know I may have to replace it to get it to work with my stock guage. Got the fittings on, now just relocating the fuel pump from up in the axle tunnel to down on the frame rail. Still have to decide how & where I’m going to run the vent tube through the pan. There’s a few rubber plugs in there, I’ll most likely just run it through one of those. I’m leaning towards using one of the ones directly under the cell so it’ll look a little cleaner inside the trunk.

        0FE71C26-EB26-408B-AA53-BFA5496F465B.jpeg 19D278B4-77FE-450D-9BDF-CA83C0CEC592.jpeg

        • Like Like x 1
        • Mike67

          Mike67 FBBO Gold Member FBBO Gold Member

          Messages:
          6,453
          Likes Received:
          10352
          Joined:
          Nov 23, 2014
          Location:
          Woodlands Tx
          Local Time:
          4:48 AM
          I believe you are also required to block off the behind the seat in case of fire.

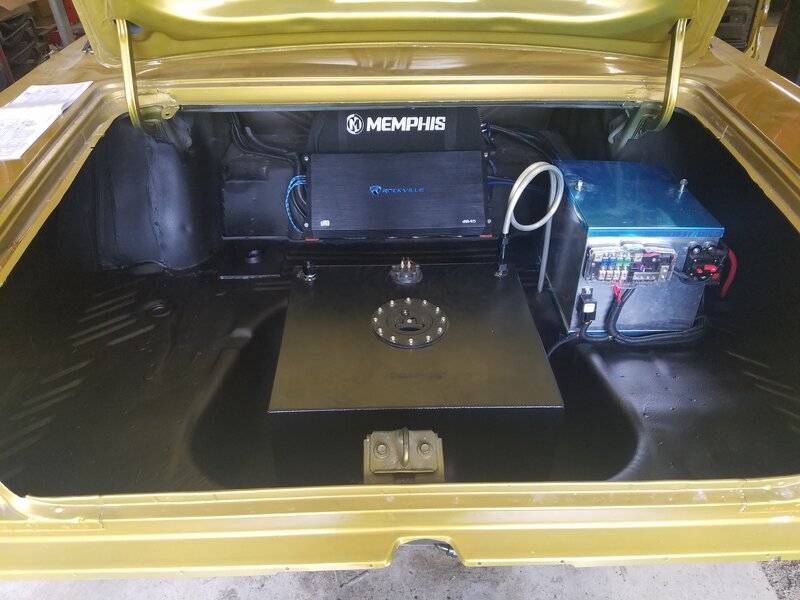

          I ran my vent out the bottom of the pan slightly lower than the bottom of the cell & with a rollover check. Also installed a small filter on the end to prevent anything from crawling up the tube.

          View attachment 1026018


        • malex

          malex FBBO Gold Member FBBO Gold Member

          Messages:
          2,007
          Likes Received:
          2646
          Joined:
          Aug 10, 2013
          Location:
          Canada
          Local Time:
          4:48 AM
          —-
          You’re making good progress LW. Have you thought about a fuel shut off in your line? They’re about 25 bucks and pretty handy when installed prior to the inline filter and pump. Saves draining the fuel prior to filter cleanings or pump mtce.
          Keep up the good work!

          • Like Like x 2
          • LemonWedge

            LemonWedge Well-Known Member

            Messages:
            662
            Likes Received:
            1317
            Joined:
            Dec 27, 2009
            Location:
            Puyallup, WA
            Local Time:
            2:48 AM

            Yes, A rear firewall is on my “to-do” list. I’m minitubbing, so there’s a lot to be addressed in that neighborhood.

            that’s a good call, Malex. I do not have one (yet). Unfortunately, I’ve already blown WAY past by budget, and I still have some big ticket stuff to pay for, so little items like that valve will have to wait.

            am I the only one that just can’t seem to accurately budget a project!?!? I’m taking mouthful of stripe on this deal... the wife’s beginning to question things... LoL

            • Like Like x 2
            • malex

              malex FBBO Gold Member FBBO Gold Member

              Messages:
              2,007
              Likes Received:
              2646
              Joined:
              Aug 10, 2013
              Location:
              Canada
              Local Time:
              4:48 AM
              —-

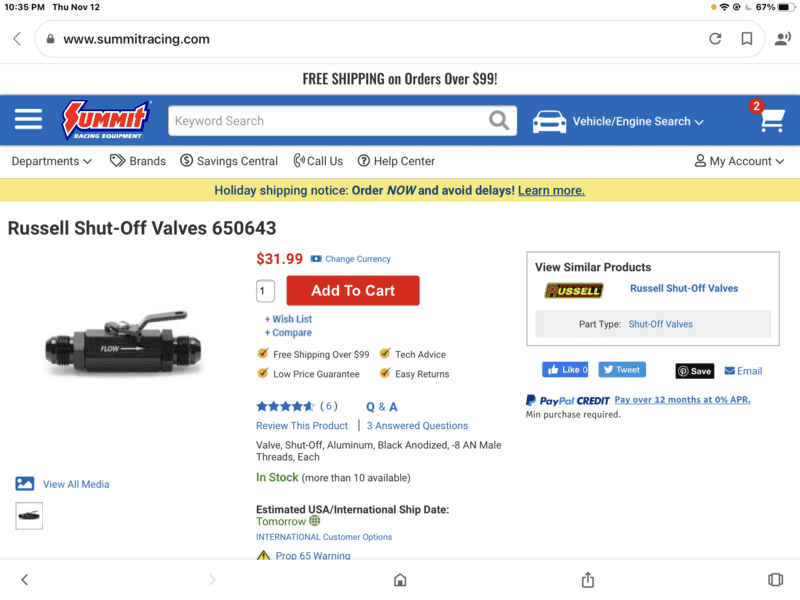

              The banker is doing audit hey, lol. No worries, a shut off can be cut in at any time. And yep, there’s always something extra and that’s why Summit has that thing called wish list. And if the Mrs is wondering what to buy you for Christmas, just say check the wish list Honey!

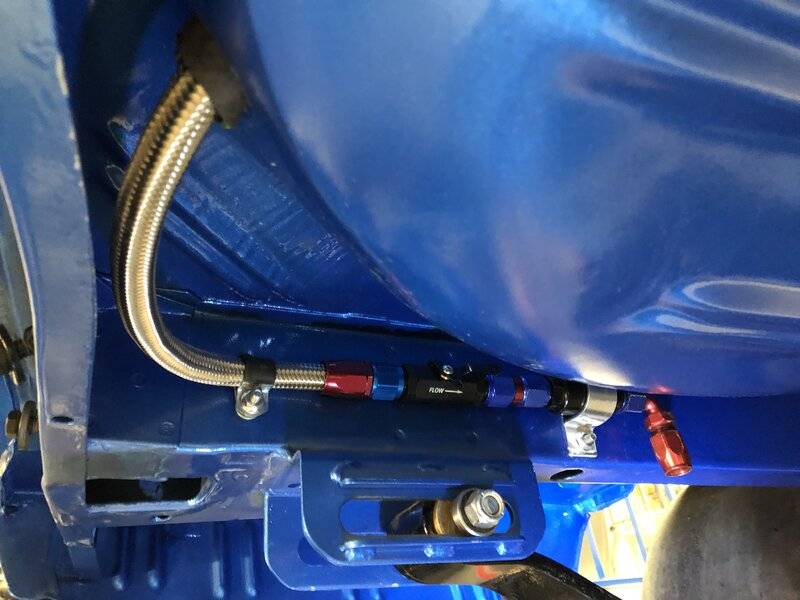

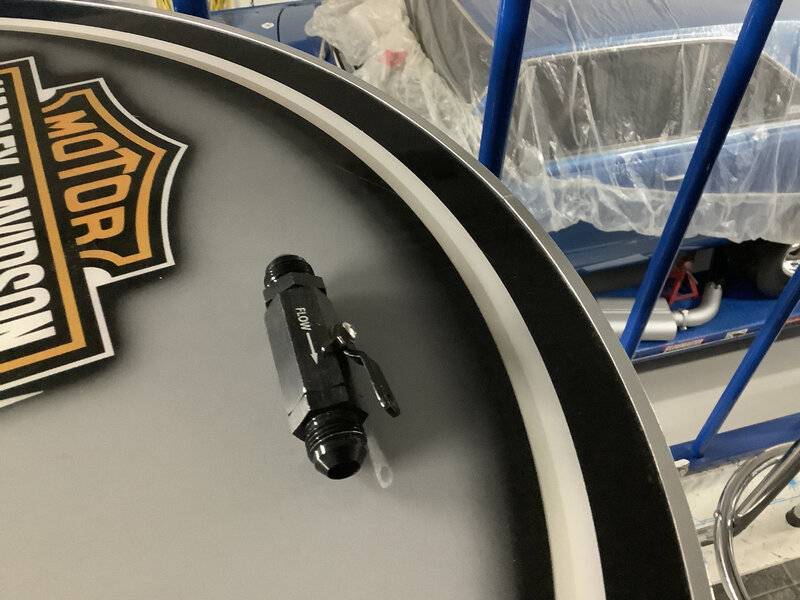

              But this is what I did for a shut off on my Dart. I have my cell sunk into the donut too and it’s an easy reach from behind the car.

              Last edited: Nov 12, 2020
              • Like Like x 2
              • Mike67

                Mike67 FBBO Gold Member FBBO Gold Member

                Messages:
                6,453
                Likes Received:
                10352
                Joined:
                Nov 23, 2014
                Location:
                Woodlands Tx
                Local Time:
                4:48 AM
                Wish I would have thought about that!!!
                One other thing I did do was to mount an inertia switch ahead of my fuel pump relay in case of a wreck.
                I know some people use an oil psi switch but I've seen few collisions/wrecks where the engines stayed running.
                The switch also makes a good theft deterrent, its mounted on the side of my battery box and I can thump it to trip it and viola!!! No pump, no fuel to the efi so no one can start it.

                • Like Like x 1
                • 66Satellite47

                  66Satellite47 FBBO Gold Member FBBO Gold Member

                  Messages:
                  4,698
                  Likes Received:
                  3638
                  Joined:
                  Jan 15, 2015
                  Location:
                  St Paul MN
                  Local Time:
                  3:48 AM
                  NO!
                  In the 70's, my bracket racing buddy's & I developed the "X2 theory". List all items you think of with projected cost, then double it, that's the more accurate budget. It was fairly close then. I bet it's more like 2 1/2 times now. Little things add up so quick. Good luck!

                  • Agree Agree x 2
                  • 493 Mike

                    493 Mike FBBO Gold Member FBBO Gold Member

                    Messages:
                    3,219
                    Likes Received:
                    3536
                    Joined:
                    Dec 25, 2011
                    Location:
                    White Cloud, MI
                    Local Time:
                    5:48 AM
                    While still building my Belvedere I have really taken a hit just by purchasing small fasteners (mainly at my local ACE hardware). I am tracking every penny the project is costing and already have over $80,000.00 invested (I know-piss poor investment). I still need paint, upholstery, custom drive shaft and probably some misc. At my age this is probably my last major build, hell I started this car in 2009.
                    Mike

                    • Agree Agree x 1
                    • 6PKRTSE

                      6PKRTSE Well-Known Member

                      Messages:
                      1,918
                      Likes Received:
                      2729
                      Joined:
                      Nov 15, 2010
                      Location:
                      Motor City
                      Local Time:
                      4:48 AM

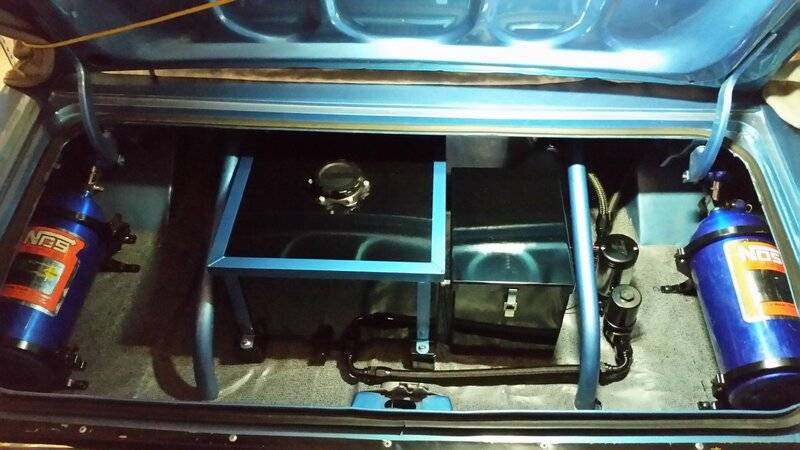

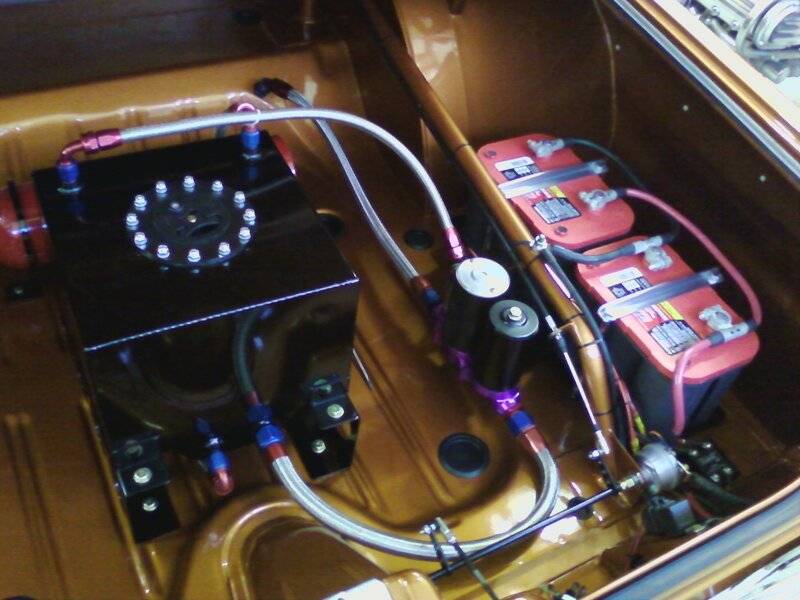

                      Found a picture of mine mounted with the frame I made to box it in and help hold it in place.


                      • Like Like x 1
                      • malex

                        malex FBBO Gold Member FBBO Gold Member

                        Messages:
                        2,007
                        Likes Received:
                        2646
                        Joined:
                        Aug 10, 2013
                        Location:
                        Canada
                        Local Time:
                        4:48 AM
                        —-

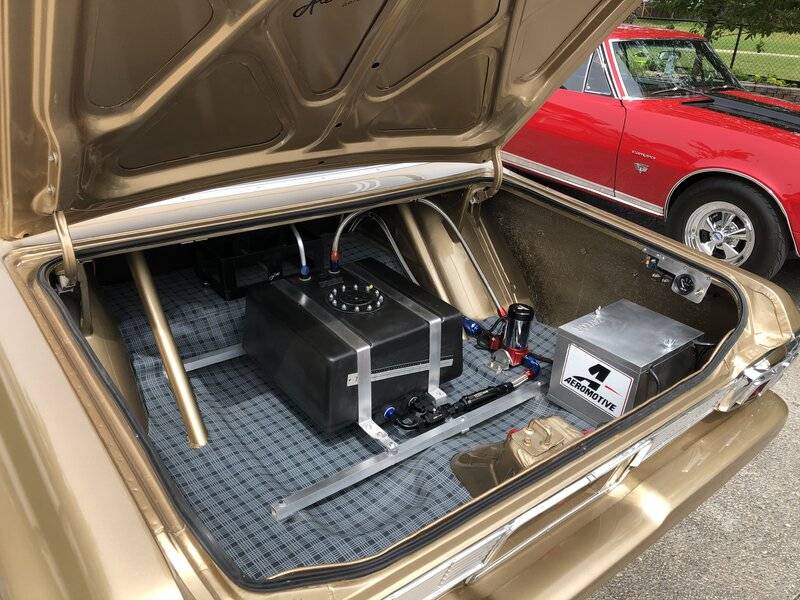

                        Our set ups are somewhat similar 6PK. Except I have a shut off valve and filter before the pump. Could be that I saw a picture of yours a couple years back and went off of it. Who knows.

                      • 6PKRTSE

                        6PKRTSE Well-Known Member

                        Messages:
                        1,918
                        Likes Received:
                        2729
                        Joined:
                        Nov 15, 2010
                        Location:
                        Motor City
                        Local Time:
                        4:48 AM
                        I have never had a need to shut the fuel off. However, it's not a bad idea to have one. I may have to add one to my line before the pump.

                      • dvw

                        dvw Well-Known Member

                        Messages:
                        5,615
                        Likes Received:
                        8086
                        Joined:
                        Feb 16, 2010
                        Location:
                        waterford mi
                        Local Time:
                        5:48 AM
                        Mine is mounted with tabs. I thought about straps over the top. Total weight with a full tank is less than 40lbs for my cell. I seemed the tabs of sufficient strength. As always going the extra mile is never a bad thing.
                        Doug
