Headlight prints first gen Charger

[Speedbird]

View attachment 433905

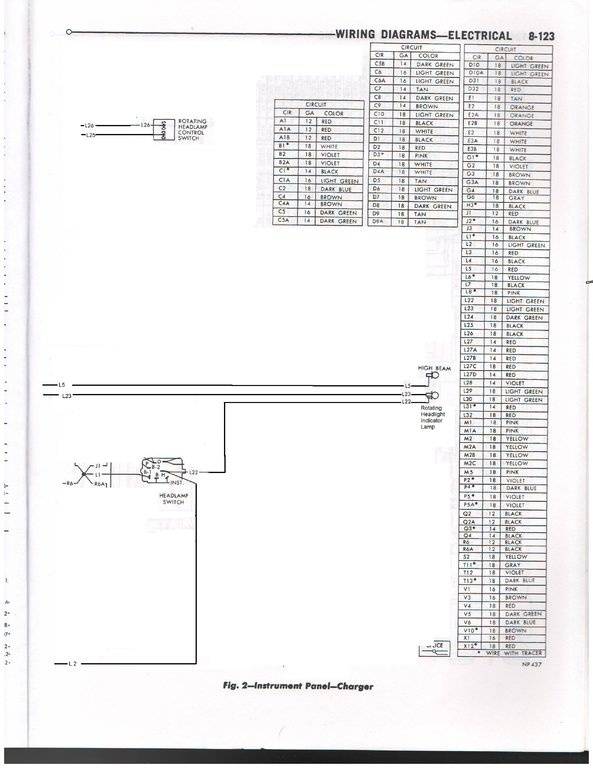

I thought that cleaning up and pulling the headlight wiring out of the factory prints would be helpful. Rotating headlights and dual lamps.

I could use a fresh set of eyes.

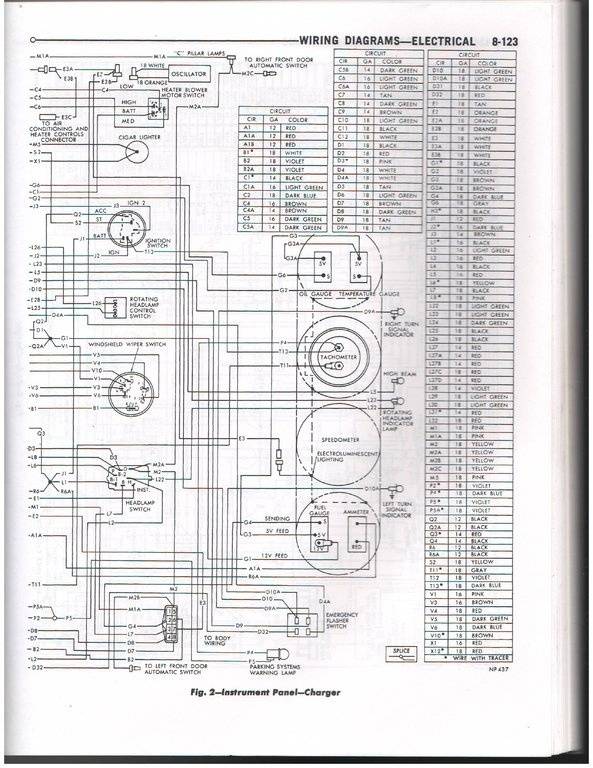

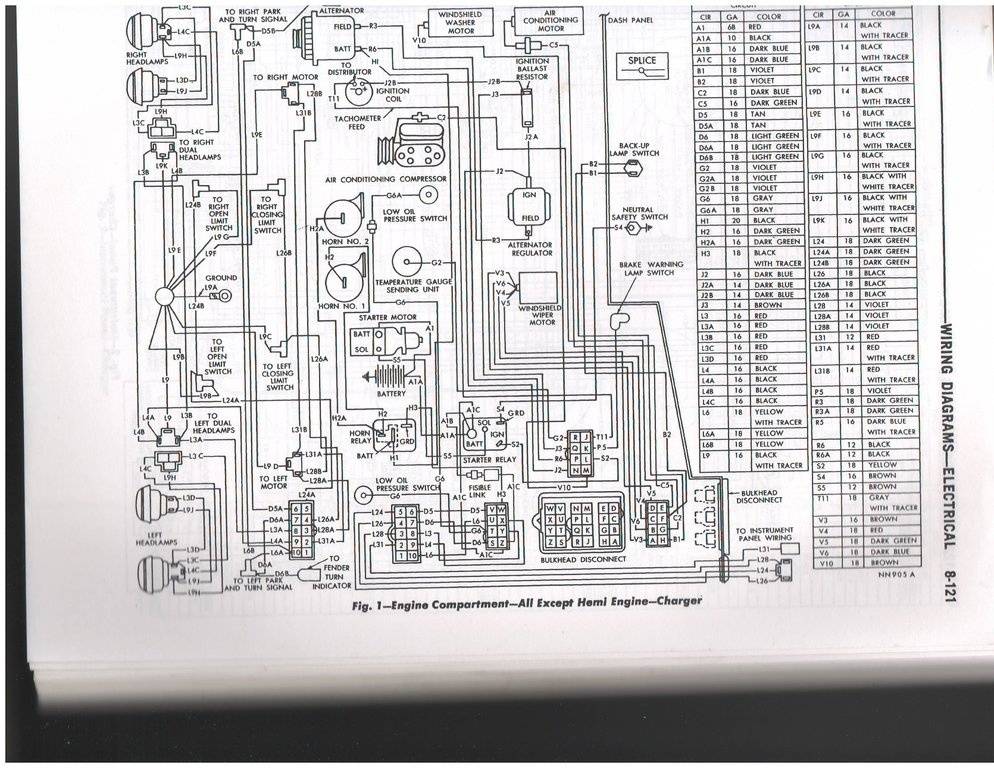

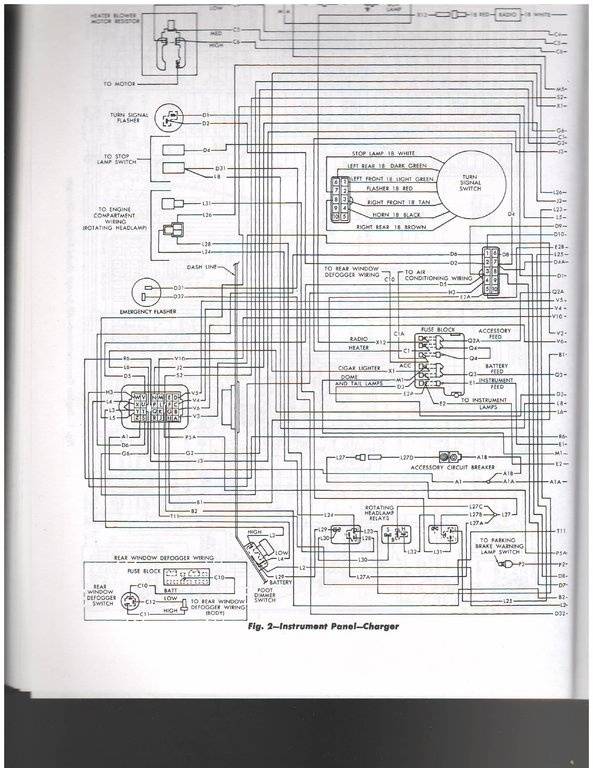

Maybe print them out and compare them to the originals.......and if I've made any errors point them out. I'm using 67 prints. Same for 66?
I will then post corrected headlight prints if I've missed something.

I'm thinking of doing the Bosch headlight relay modification and this might help.
I only wanted what happens to the headlights when turn them on and off with the prints.
And if anyone has already figured out what each wire does, that would be great.



[Speedbird]

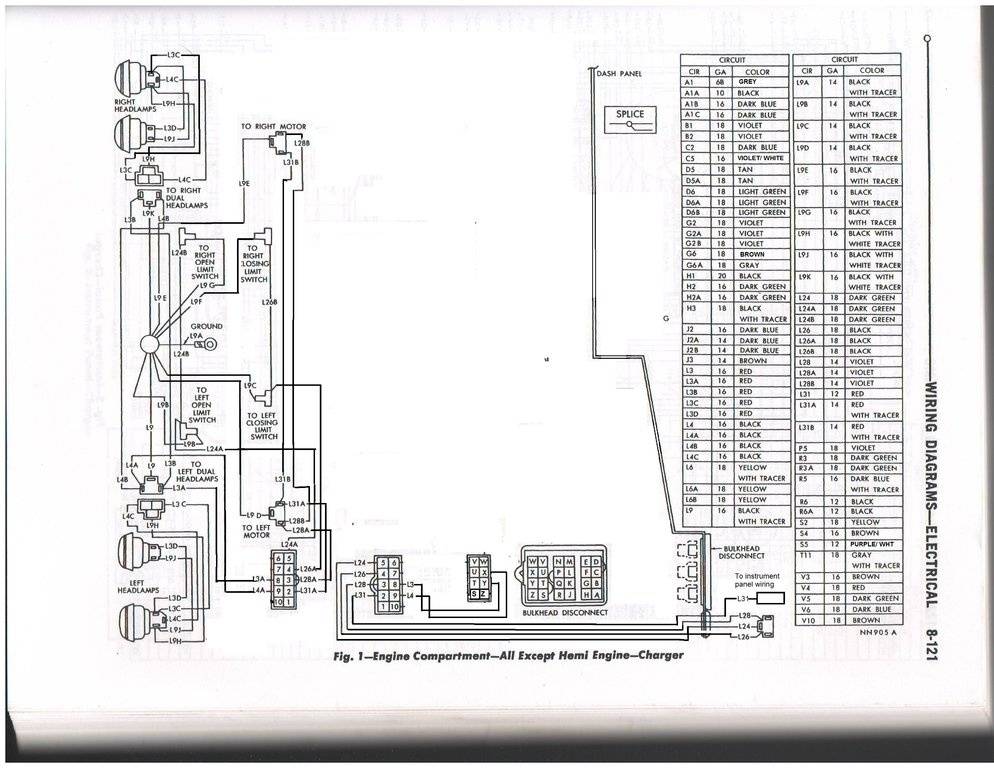

Corrected engine prints to show wire "L3" going to "Y" instead of incorrect "Z".
Started trying to make sense of this.
It would really help if they would put things like "NC" and "NO" on relays.
Sigh.
