    Good Day All,

    So I have few questions regarding the correct heater hose set up for my 68 Charger 440.

    It is a non A/C car. The short/low bracket on the passenger side valve cover. I have the correct numbered hoses....1300 523 and 2435 961.

    My outstanding questions are...

    1. Confirm that the hose labeled 1300 523 goes from the firewall nipple closet to the engine then crossed over to the outside water pump nipple?

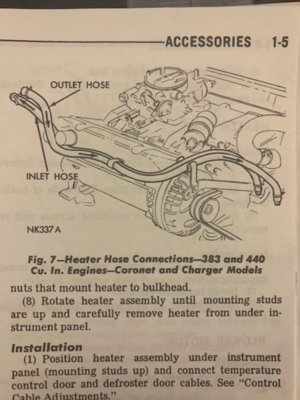

    2. The crossover in the hoses occurs between the firewall and the bracket on the valve cover? See attached photo from FSM.

    3. Reading the numbers on the hoses after installed...should the numbers be "upright" as reading from "standing outside the engine" or as if you were "sitting on the engine"? I have seen both arrangements in photos from experienced builders.

    4. Are there any aluminum straps that would go on the hoses as per factory and what are their placement?

    Thanks to all who can help

    Macdon221


  2. 4mulas

    4mulas Well-Known Member

    Messages:
    590
    Likes Received:
    460
    Joined:
    Mar 16, 2017
    Location:
    Just North of Montana
    Local Time:
    2:11 PM
    It would be my opinion that the assembly line worker installing the heater hose on your 68 charger didn’t give two shits as to whether or not the numbers were visible from any angle. They would have reached to the bulk roll, cut off a predetermined length and slapped it on as fast as they could.
    So, if you really want yo have it look authentic, get your wife, or local librarian to do as I’m sure they wouldn’t care either..

    • Agree Agree x 8
    • Like Like x 3
    • 1 Wild R/T

      1 Wild R/T Well-Known Member

      Messages:
      1,342
      Likes Received:
      2121
      Joined:
      Jul 9, 2019
      Location:
      California
      Local Time:
      1:11 PM
      100% Correct.... LOL...

      • Agree Agree x 1
      • moparnation74

        moparnation74 FBBO Gold Member FBBO Gold Member

        Messages:
        10,508
        Likes Received:
        17932
        Joined:
        Mar 27, 2014
        Location:
        OHIO
        Local Time:
        3:11 PM
        I got the "beat down" from a few friends for not having my hoses crossed per the service manual on the X.....I had to succumb because the judges would pick that error out.....I fought hard on this fact and I had proof showing survivors without the hoses crossed...

        The straps were "plant" dependent.....this is also a well debated issue amongst the OE crowd....My survivor 69 charger had them but the GTX the hoses were changed. LR supposedly didn't use them based on a highly credible source.....

        Things is on the line they didn't give a rats azz which hose went where and if a strap or two was placed....

        • Agree Agree x 4
        • dadsbee

          dadsbee FBBO Gold Member FBBO Gold Member

          Messages:
          4,374
          Likes Received:
          9367
          Joined:
          Jan 29, 2018
          Location:
          Ontario, Canada
          Local Time:
          4:11 PM
          I'm still baffled as to the two different part numbers, since it was the same sized hose! Can't help you with correct #'s for '68, could for '69.

          BTW.. installed mine like the line worker that originally installed them. A "hip mickey" and a good joint first, no cross. :fool::D

          Last edited: Dec 9, 2019
          • Like Like x 1
          • Macdon221

            Macdon221 Well-Known Member

            Messages:
            190
            Likes Received:
            71
            Joined:
            Jun 3, 2019
            Location:
            Winnipeg, MB
            Local Time:
            3:11 PM
            Thx for the replies from all. Every piece of information helps.

          • Jerry Hall

            Jerry Hall Well-Known Member

            Messages:
            1,931
            Likes Received:
            2687
            Joined:
            Mar 26, 2018
            Location:
            Alabama
            Local Time:
            3:11 PM
            I'm with most everyone, it doesn't matter because it will heat either way. Also I kinda like the neatness of keeping them in line.

            • Agree Agree x 2
            • dadsbee

              dadsbee FBBO Gold Member FBBO Gold Member

              Messages:
              4,374
              Likes Received:
              9367
              Joined:
              Jan 29, 2018
              Location:
              Ontario, Canada
              Local Time:
              4:11 PM
              Yep.. '69 looks so much cleaner in parallel, but on the '68 with rocker cover bracket (vs the '69/70 fender bracket) I'd do it per the FSM as it looks right that way.

            • Demonic

              Demonic Well-Known Member

              Messages:
              576
              Likes Received:
              487
              Joined:
              Jun 5, 2017
              Location:
              Over the hills, far away
              Local Time:
              4:11 PM
              Watch out for the crap reproduction hoses that have a very thick wall. You'll break the heater core putting them on.

            • Dreamcatcher

              Dreamcatcher Will fish for food

              Messages:
              1,325
              Likes Received:
              1397
              Joined:
              Feb 19, 2010
              Location:
              Keystone,S.D.
              Local Time:
              2:11 PM
              Anyone have a better picture of the bracket on the valve cover. I wondered why there was now place on the inner fender for the hose bracket on my 68. I have a bracket but it must be for 69-70.

            • moparnation74

              moparnation74 FBBO Gold Member FBBO Gold Member

              Messages:
              10,508
              Likes Received:
              17932
              Joined:
              Mar 27, 2014
              Location:
              OHIO
              Local Time:
              3:11 PM
              I agree and I bet on the line it was quicker to install that way.....which is why some made it out that way...

            • 1 Wild R/T

              1 Wild R/T Well-Known Member

              Messages:
              1,342
              Likes Received:
              2121
              Joined:
              Jul 9, 2019
              Location:
              California
              Local Time:
              1:11 PM
              One more comment, this is actually for a different car but in the late eighties the manufacturer I was working for came out with the TSB about heater hose routing and noise concerns.. It seems that by connecting the hoses backwards air could get trapped in the heater core & you would get a customer complaint of gurgling noises behind the dash...

              • Agree Agree x 1
              • dadsbee

                dadsbee FBBO Gold Member FBBO Gold Member

                Messages:
                4,374
                Likes Received:
                9367
                Joined:
                Jan 29, 2018
                Location:
                Ontario, Canada
                Local Time:
                4:11 PM
                Agreed.. have that in my '98 plow truck right now because I didn't bleed the air out after a water pump change. .. won't happen on a '69 heater core.

              • 440 4 speed

                440 4 speed Well-Known Member

                Messages:
                244
                Likes Received:
                85
                Joined:
                Oct 20, 2019
                Location:
                Saskatoon Saskatchewan Canada
                Local Time:
                3:11 PM
                When I had air in the line, I had to bleed the air out, because it over heated.

              • turbine68rt

                turbine68rt FBBO Gold Member FBBO Gold Member

                Messages:
                82
                Likes Received:
                59
                Joined:
                Dec 1, 2019
                Location:
                PA
                Local Time:
                4:11 PM

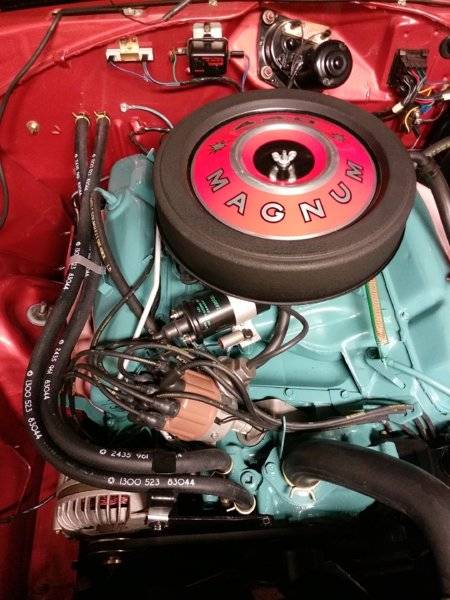

                Recently put new hoses on mine and just made sure there was enough of a curve to avoid interference with the 2-4-6 plug wire loom. After that basically a straight connection to the firewall.


              • Macdon221

                Macdon221 Well-Known Member

                Messages:
                190
                Likes Received:
                71
                Joined:
                Jun 3, 2019
                Location:
                Winnipeg, MB
                Local Time:
                3:11 PM
                That hose set up looks exactly like the FSM.

                Very Cool. Thx for posting.

                • Thanks! Thanks! x 1
                • turbine68rt

                  turbine68rt FBBO Gold Member FBBO Gold Member

                  Messages:
                  82
                  Likes Received:
                  59
                  Joined:
                  Dec 1, 2019
                  Location:
                  PA
                  Local Time:
                  4:11 PM
                  If you need to see any pics of particular areas, just let me know.
