ignition/key switch question

Electrical & Ignition

  1. 70chall440

    70chall440 FBBO Gold Member FBBO Gold Member

    Messages:
    2,542
    Likes Received:
    3621
    Joined:
    Feb 11, 2018
    Location:
    Yelm, Washington
    Local Time:
    3:19 AM
    Very welcome, you will be happy to have it.

  2. daytona kid

    daytona kid Well-Known Member

    Messages:
    2,086
    Likes Received:
    1856
    Joined:
    Dec 10, 2012
    Location:
    midsouth
    Local Time:
    5:19 AM

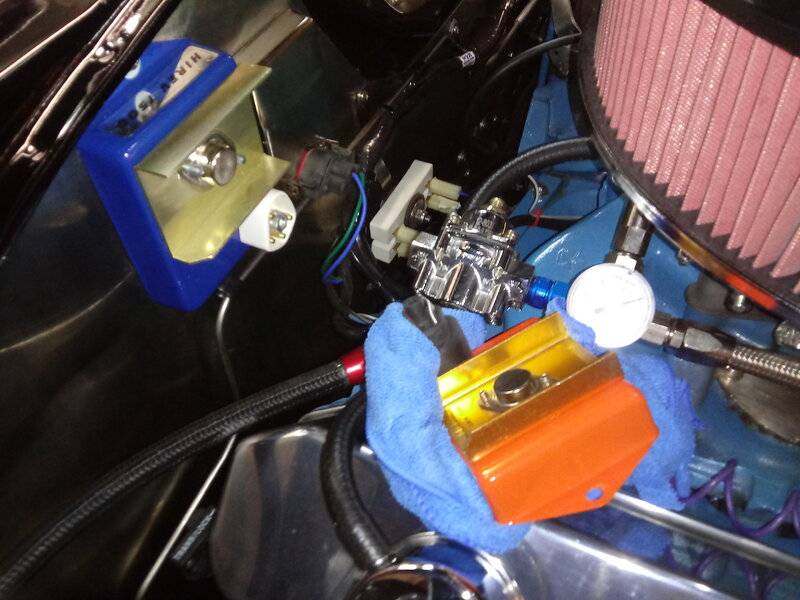

    Problem solved!!! It was the blue ecu module that I put on a few weeks ago. I didn't notice the starting problem till later, or it may not have started till a while after I swapped it out. Cranks and runs great now with the old orange ecu.. FINALLY!!!!! All the bugs are out.. The only problem left with the car is a little oil leaking, which I try to fix this winter...


    • Like Like x 2
    • John E Johnson

      John E Johnson Member

      Messages:
      24
      Likes Received:
      20
      Joined:
      Jan 14, 2021
      Location:
      Florida
      Local Time:
      6:19 AM
      I know this is an old post, and I don't mean to hijack it( carjack?) I installed all new wiring harnesses, for the dash, engine; console, rear body harness etc. I will also mention they are a stock reproduction harnesses. I used dielectric grease on every connection, and went down to bare metal on the grounds. I did not cut any wire, or patchwork anything together. I know Murphy's law is at work here. I had the new battery checked, and it's 100 percent charged.

    • 70chall440

      70chall440 FBBO Gold Member FBBO Gold Member

      Messages:
      2,542
      Likes Received:
      3621
      Joined:
      Feb 11, 2018
      Location:
      Yelm, Washington
      Local Time:
      3:19 AM
      So do you have a question or are you just making a statement?

    • John E Johnson

      John E Johnson Member

      Messages:
      24
      Likes Received:
      20
      Joined:
      Jan 14, 2021
      Location:
      Florida
      Local Time:
      6:19 AM
      Roger that. Yes, the question is that I do not have any electrical activity. No lights,cranking nothing. Like I said in my earlier statement I was pointing out on what I did replacing the wiring. The battery checks out fine. I thought I did everything the right way. I should have communicated that better than what I did.

    • 70chall440

      70chall440 FBBO Gold Member FBBO Gold Member

      Messages:
      2,542
      Likes Received:
      3621
      Joined:
      Feb 11, 2018
      Location:
      Yelm, Washington
      Local Time:
      3:19 AM
      So you have everything connected and no power anywhere? Sounds to me like you don't have the fusible link connected to the system so there is no power coming in.

    • John E Johnson

      John E Johnson Member

      Messages:
      24
      Likes Received:
      20
      Joined:
      Jan 14, 2021
      Location:
      Florida
      Local Time:
      6:19 AM
      That is a possibility that I will investigate tomorrow. Thanks for the heads up I appreciate it.

    • 70chall440

      70chall440 FBBO Gold Member FBBO Gold Member

      Messages:
      2,542
      Likes Received:
      3621
      Joined:
      Feb 11, 2018
      Location:
      Yelm, Washington
      Local Time:
      3:19 AM
      Basically the fusible link brings all the power into the system for ignition, lights, etc.

    • John E Johnson

      John E Johnson Member

      Messages:
      24
      Likes Received:
      20
      Joined:
      Jan 14, 2021
      Location:
      Florida
      Local Time:
      6:19 AM
      I looked last night, and as sure as the sun rises in the east, the fusible link was in the wrong slot on the bulkhead connector. Just when I thought I was right....boom!

      • Agree Agree x 1
      • 70chall440

        70chall440 FBBO Gold Member FBBO Gold Member

        Messages:
        2,542
        Likes Received:
        3621
        Joined:
        Feb 11, 2018
        Location:
        Yelm, Washington
        Local Time:
        3:19 AM
        Hope that works out for you
