Long lugs for front drums--Weld Wheels

[DereII]

Does anybody have a part number for suitable press-in studs to use on my original 10" front drum-equipped '67 Belvedere? I'm wanting to use Weld wheels up front and require longer lugs. Already run 3" studs on the rear axles, haven't found anything more specific for factory drum hub use than Moroso part number 46180 stating "Fits: Most late model Ford front and rear disc brake, 2005-Up Mustang rear and Chrysler front" along with their dimensions.

How about it, any practical experience with those studs or another part number?



[Fran Blacker]

You need the knurl size of your studs. Have you removed front studs before? You can damage front hubs if not done right.



[MIKESPOLARA]

Does anybody have a part number for suitable press-in studs to use on my original 10" front drum-equipped '67 Belvedere? I'm wanting to use Weld wheels up front and require longer lugs. Already run 3" studs on the rear axles, haven't found anything more specific for factory drum hub use than Moroso part number 46180 stating "Fits: Most late model Ford front and rear disc brake, 2005-Up Mustang rear and Chrysler front" along with their dimensions.

How about it, any practical experience with those studs or another part number?

According to the catalogue your knurl size is .625" BUT I would take one out and measure. Sometimes you get lucky and find a replacement with a knurl size that can be pressed in but usually you have to drill/ream the hole to fit a larger replacement stud



[MIKESPOLARA]

While there are a lot advertised with .625" knurl on Summit, be careful often they are a loose fit. Try 1 before you spend for a full set



[33 IMP]

I have a set in my 62 drum front, but I put them in so long ago I don't remember the brand or part number. But I wouldn't be a bit surprised if they were the moroso's you mentioned.
Knock a stud out and measure it, is good advice.



[DereII]

I have a set in my 62 drum front, but I put them in so long ago I don't remember the brand or part number. But I wouldn't be a bit surprised if they were the moroso's you mentioned.
Knock a stud out and measure it, is good advice.

That's the problem with me, too, I don't write down part numbers like I should! Ain't no knocking out these studs, gotta find someone with a swedge cutter to get 'em out and I'll measure then. Short chance, but hoping someone's done this and recorded the part numbers so I could order them now.



[Fran Blacker]

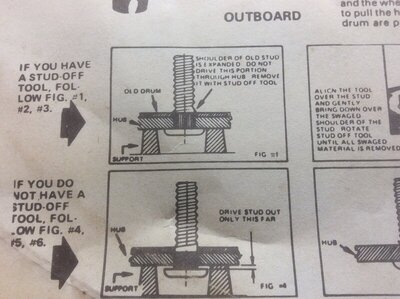

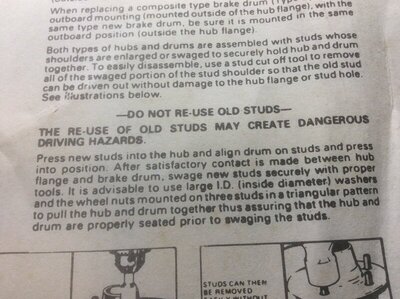

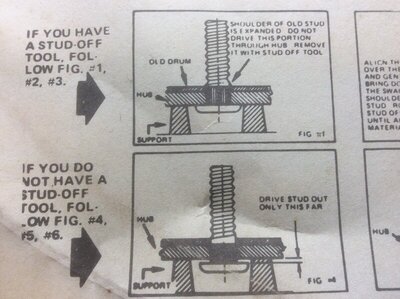

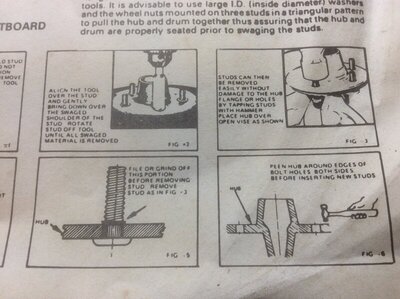

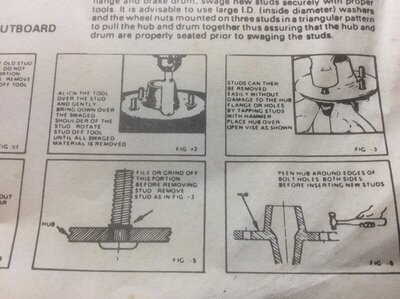

Here are directions for changing drums maybe they'll help? They aren't order. Maybe one duplicate.



[Sam69sat]

That's the problem with me, too, I don't write down part numbers like I should! Ain't no knocking out these studs, gotta find someone with a swedge cutter to get 'em out and I'll measure then. Short chance, but hoping someone's done this and recorded the part numbers so I could order them now.

You can grind off the swedges with a small angle grinder or die grinder and knock them out. Might nick the drums a little but it'll work.
