missing electrical harness

Electrical & Ignition

  1. All4rocks

    All4rocks Well-Known Member

    My Photo Garage
    Messages:
    70
    Likes Received:
    31
    Joined:
    Jan 29, 2016
    Location:
    Grass valley
    Local Time:
    6:13 PM

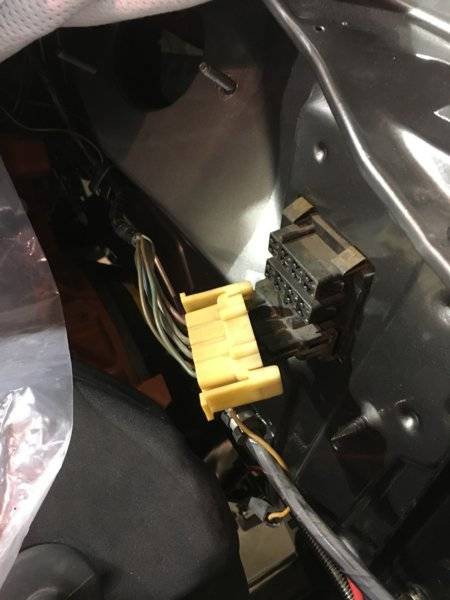

    There are 3 harneses that connect at the firewall. Top one goes to engine/regulator. Bottom one goes to Headlights. I am missing the middle one. What does it go to?

  2. streetwedg

    streetwedg Well-Known Member

    Messages:
    266
    Likes Received:
    285
    Joined:
    Nov 2, 2011
    Location:
    ohio
    Local Time:
    9:13 PM
    Wipers and transmission

  3. The Rebel

    The Rebel Well-Known Member

    Messages:
    1,631
    Likes Received:
    1789
    Joined:
    Jul 19, 2016
    Location:
    SW CT
    Local Time:
    9:13 PM
    Not sure what you have but on my 68 charger top is wipers, middle is engine, bottom is headlights.

    Refer to the FSM to be sure.

    • Agree Agree x 1
    • JimKueneman

      JimKueneman FBBO Gold Member FBBO Gold Member

      My Photo Garage
      Messages:
      2,518
      Likes Received:
      2356
      Joined:
      Mar 25, 2016
      Location:
      Sonoita, Az
      Local Time:
      6:13 PM
      68 Coronet is the same

    • PurpleBeeper

      PurpleBeeper FBBO Gold Member FBBO Gold Member

      Messages:
      4,050
      Likes Received:
      2847
      Joined:
      Mar 20, 2011
      Location:
      Chicago
      Local Time:
      8:13 PM
      What Rebel said....you're missing the top plug which is the wipers. The engine harness goes in the middle

    • Shorthorse

      Shorthorse Well-Known Member

      My Photo Garage
      Messages:
      867
      Likes Received:
      705
      Joined:
      Oct 6, 2012
      Location:
      Ohio
      Local Time:
      9:13 PM
    • All4rocks

      All4rocks Well-Known Member

      My Photo Garage
      Messages:
      70
      Likes Received:
      31
      Joined:
      Jan 29, 2016
      Location:
      Grass valley
      Local Time:
      6:13 PM
      My engine plug Will not go onto the middle one maybe I have the wrong one. I have two of these harnesses that came with the car and they both look the same. they will fit the top or the bottom one


    • All4rocks

      All4rocks Well-Known Member

      My Photo Garage
      Messages:
      70
      Likes Received:
      31
      Joined:
      Jan 29, 2016
      Location:
      Grass valley
      Local Time:
      6:13 PM
      Which harness has the starter wire? Wire color?

    • Ranger16

      Ranger16 Well-Known Member

      Messages:
      2,849
      Likes Received:
      3266
      Joined:
      Jun 27, 2016
      Location:
      Woodstock Ill.
      Local Time:
      8:13 PM
      I suspect you do. Each one of those plugs has a different locating slot so they cannot be plugged into the wrong connector. At least that's how it is on my '69. I'd suspect they are all that way.

      • Agree Agree x 2
      • All4rocks

        All4rocks Well-Known Member

        My Photo Garage
        Messages:
        70
        Likes Received:
        31
        Joined:
        Jan 29, 2016
        Location:
        Grass valley
        Local Time:
        6:13 PM
        Ok i found out from previous owner that the engine harness was from a 70 cuda. So what is the correct harness i need? I also have the upgraded electronic ignition.
