    Hardest thing, most stressful thing. Working around fresh paint.

    • Agree Agree x 3
    • keepat

      keepat Well-Known Member

      Messages:
      528
      Likes Received:
      1342
      Joined:
      Jul 26, 2014
      Location:
      edgewater MD
      Local Time:
      1:20 AM

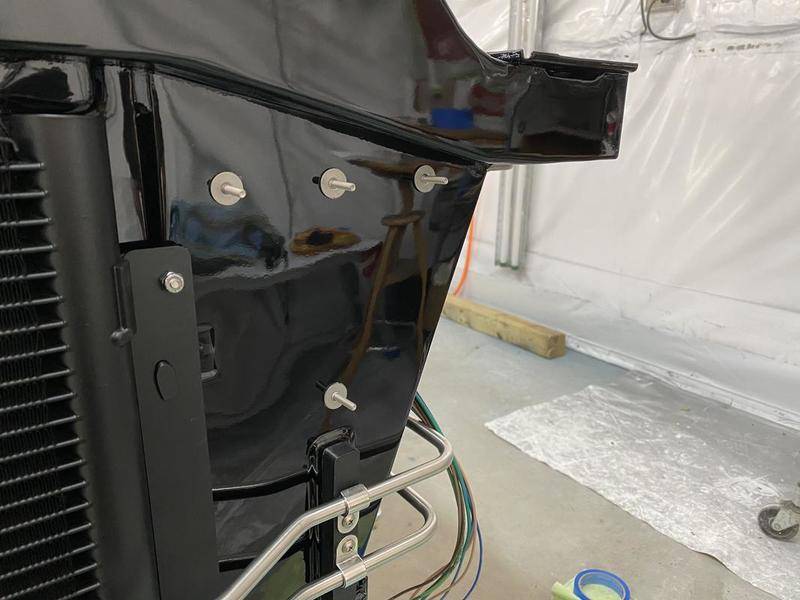

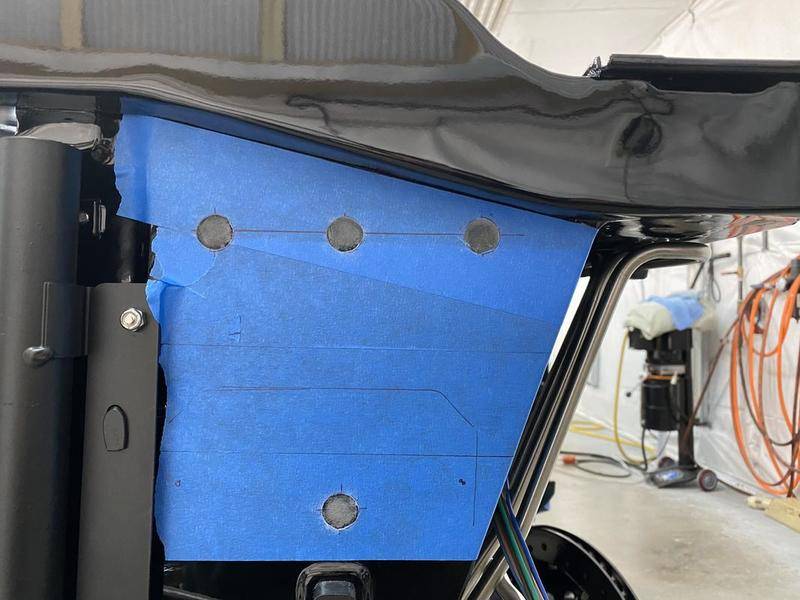

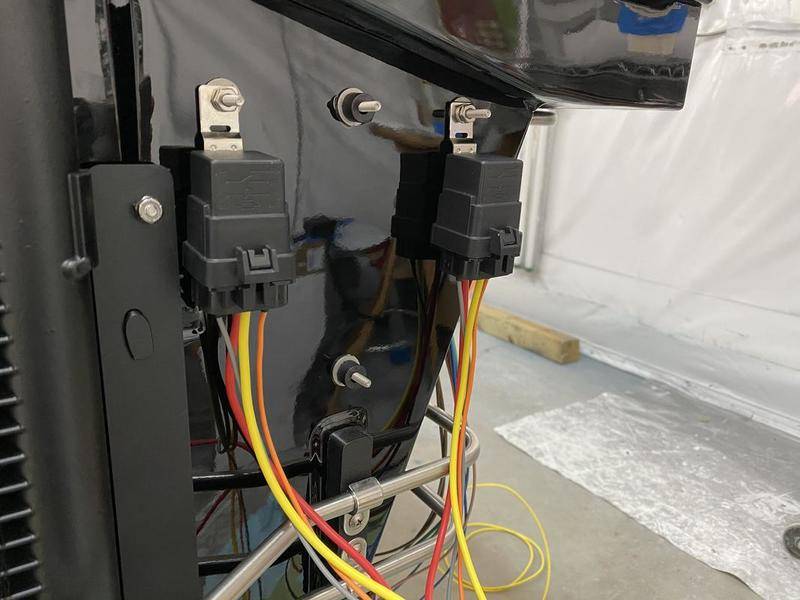

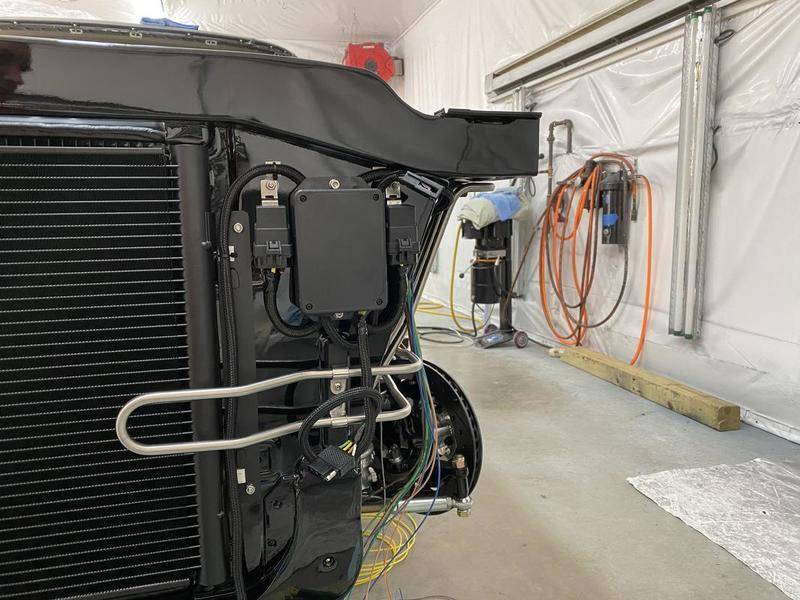

      Weld Mount is in acrylic adhesive mounting system with a wide variety of very cool fasteners. We use it on the boats when we cannot drill into a bulkhead, fuel tank, or hull sides to mount or fasten equipment and wires. I used it to mount a few fan relays and headlight door operator To keep the engine bay clean of fasteners. Very cool stuff, easy to use an extremely strong!
      Thanks
      Pat

      http://weldmountsystems.com/





      459-A8264-E6-CA-4918-8-DFD-198606-E49131.jpg free image url

      611-D8-F17-F48-A-4-EAD-8-DC8-37-ECA612-DF6-E.jpg image sharing



      common american girl first names

      • Like Like x 8
      • hsorman

        hsorman FBBO Gold Member FBBO Gold Member

        Messages:
        3,482
        Likes Received:
        3802
        Joined:
        Aug 8, 2011
        Location:
        Lansdale, PA
        Local Time:
        1:20 AM
        That's a cool fastener I'm sure a few of us can find use for - thanks for sharing!

        Hawk

        • Agree Agree x 2
        • Like Like x 1
        • whayden2003

          whayden2003 Well-Known Member

          Messages:
          606
          Likes Received:
          585
          Joined:
          Mar 13, 2017
          Location:
          Baton Rouge,LA
          Local Time:
          12:20 AM
          Sir. Thanks for sharing that. That is the bees knees right there.

          • Like Like x 1
          • funknut

            funknut Well-Known Member

            Messages:
            960
            Likes Received:
            1099
            Joined:
            Jul 29, 2015
            Location:
            Cincinnati, OH
            Local Time:
            12:20 AM
            Amazing work as always, Pat! Apologies if I missed it but could you show how you routed your forward wiring loom under the fender?

          • DanielG

            DanielG Member

            Messages:
            5
            Likes Received:
            0
            Joined:
            Oct 31, 2019
            Location:
            Houston, TX
            Local Time:
            12:20 AM
            I apologize if you already stated, but what are those black mounting clamps/blocks used for the stainless lines? Particularly the one below the relays and the ones in the most recent pic.

          • keepat

            keepat Well-Known Member

            Messages:
            528
            Likes Received:
            1342
            Joined:
            Jul 26, 2014
            Location:
            edgewater MD
            Local Time:
            1:20 AM

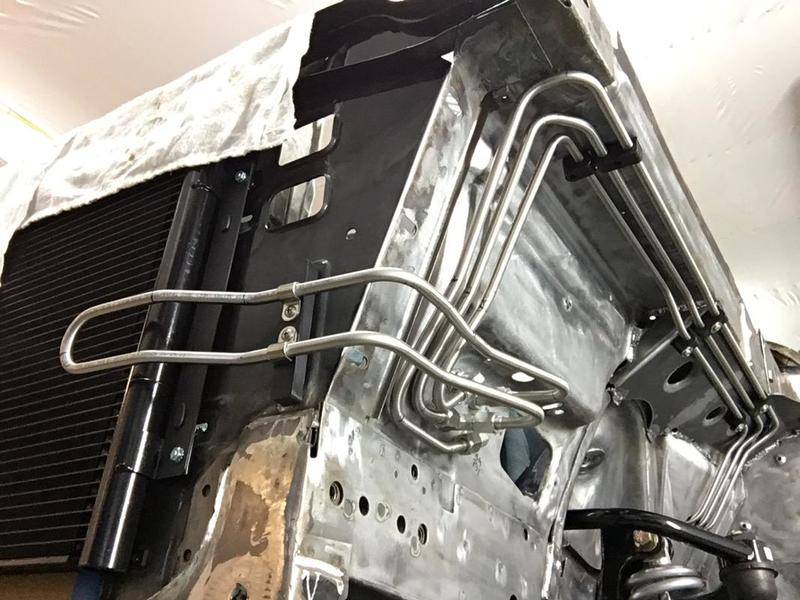

            The black plastic line mounts are from Stauff they have a lot of cool line mounts and clamps, see link below.

            The stainless steel line clamps I found on Amazon. I have used both singles and doubles clamps for brake, fuel, A/C, and power steering lines

            I hope this helps!

            Thanks

            Pat


            https://shop.stauffusa.com/index.php?route=product/product&path=2062_2066&product_id=267759


            https://www.amazon.com/Helix-11101-...eywords=3/8+line+clamps&qid=1578430960&sr=8-5

          • keepat

            keepat Well-Known Member

            Messages:
            528
            Likes Received:
            1342
            Joined:
            Jul 26, 2014
            Location:
            edgewater MD
            Local Time:
            1:20 AM
            I will post a few pic tonight!
            Thanks
            Pat

            • Thanks! Thanks! x 1
            • DanielG

              DanielG Member

              Messages:
              5
              Likes Received:
              0
              Joined:
              Oct 31, 2019
              Location:
              Houston, TX
              Local Time:
              12:20 AM
              Thanks Pat. What about that mounting block that the stainless line clamps are fastened to?

            • keepat

              keepat Well-Known Member

              Messages:
              528
              Likes Received:
              1342
              Joined:
              Jul 26, 2014
              Location:
              edgewater MD
              Local Time:
              1:20 AM
              Daniel,
              That is a piece of 1/2” black (starboard) plastic that I cut to fit the factory indent in the core support. I think that indent is where one of the battery support bracket sits.
              Thanks
              Pat

            • keepat

              keepat Well-Known Member

              Messages:
              528
              Likes Received:
              1342
              Joined:
              Jul 26, 2014
              Location:
              edgewater MD
              Local Time:
              1:20 AM

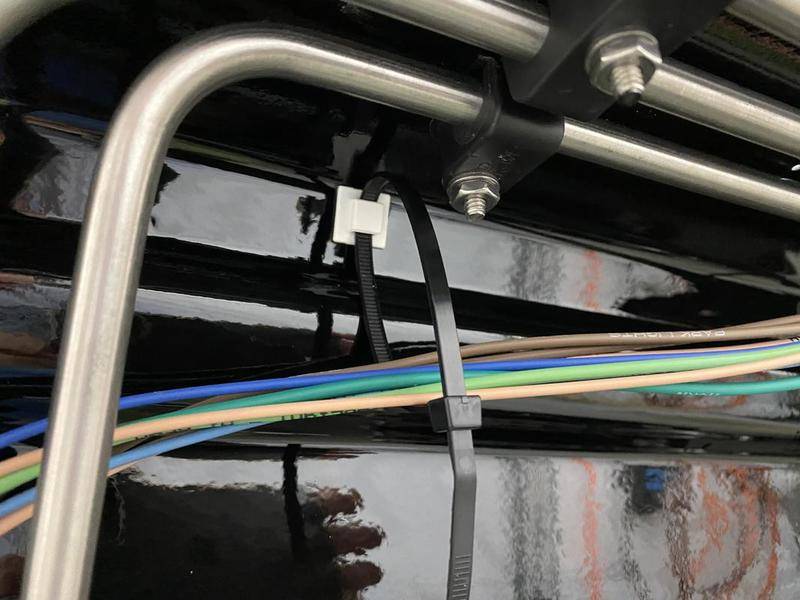

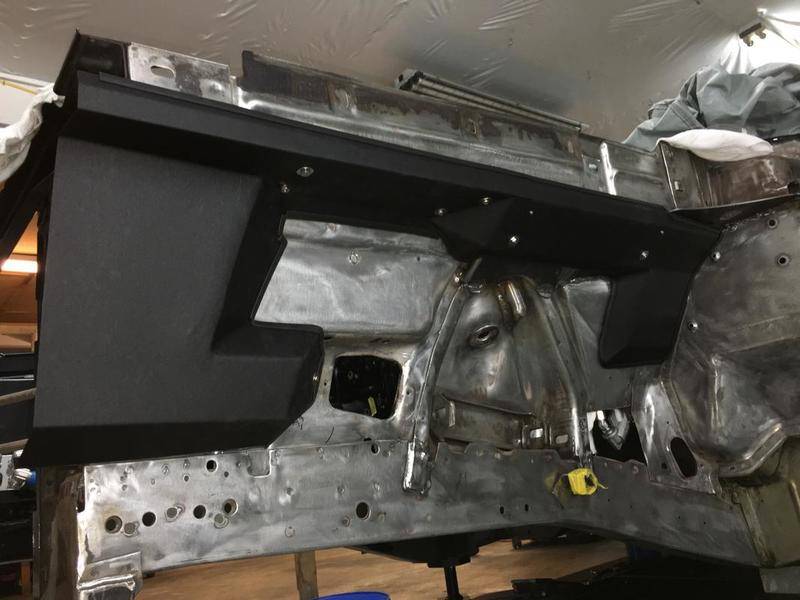

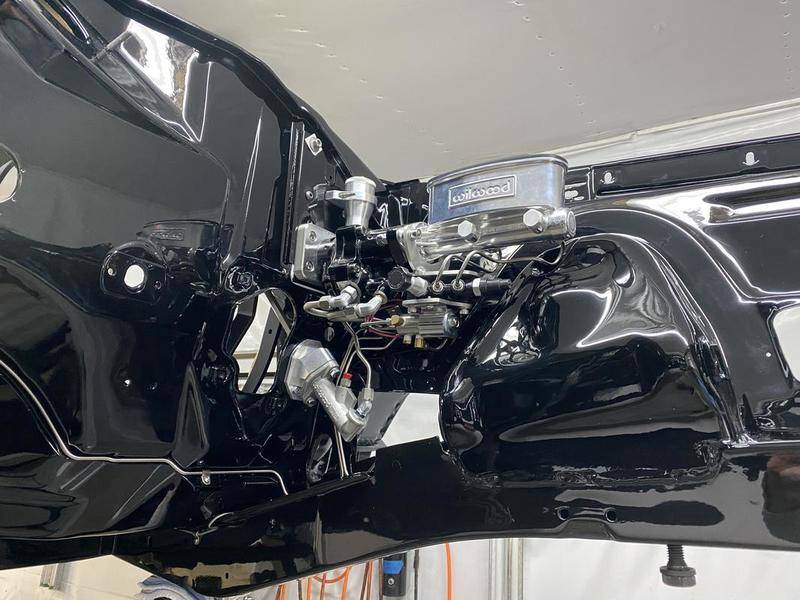

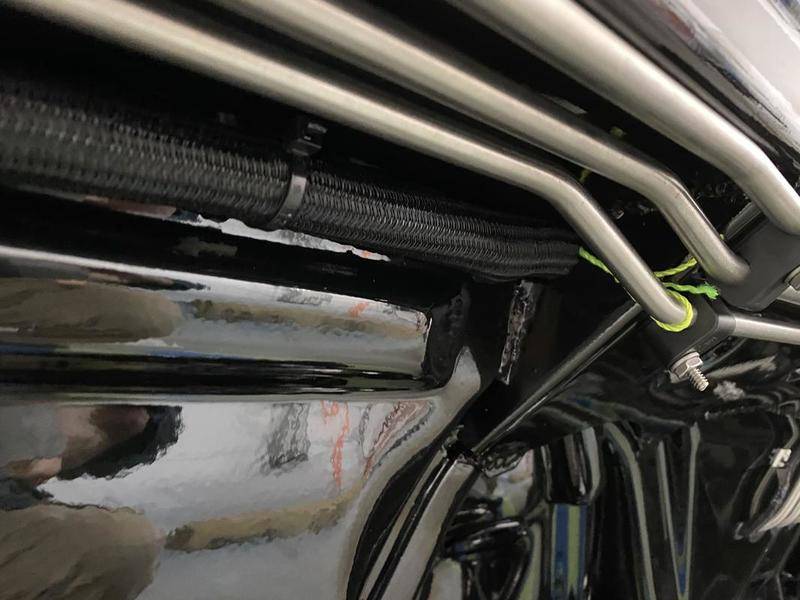

              I drilled a 7/8” hole in the firewall just outboard of the pedals which is in the corner of the inner fender well that is partially hidden by the US car tool support. Not pictured is a small radius that I cut into the part of the fender that meets the core support. The last picture shows the covers I made to protect all the hydraulic lines as well as the wires.
              Thanks
              Pat




              5-C8-DC090-0-A7-B-4-B02-BB07-B8-C1800-F09-A1.jpg betta tank kit




              • Like Like x 6
              • Thanks! Thanks! x 1
              • Don selleck

                Don selleck FBBO Gold Member FBBO Gold Member

                Messages:
                1,495
                Likes Received:
                1918
                Joined:
                Aug 6, 2014
                Location:
                michigan
                Local Time:
                1:20 AM
                I was wondering how you were gonna cover up all that up nice!!

              • funknut

                funknut Well-Known Member

                Messages:
                960
                Likes Received:
                1099
                Joined:
                Jul 29, 2015
                Location:
                Cincinnati, OH
                Local Time:
                12:20 AM
                Pat, you are kinda blowing my mind here. :lol:

                I went back through the thread and forgot you filled in the hole for the electrical bulkhead connector.


                When you have a chance would you mind grabbing a pic of where you have the bulkhead connector mounted?

                Thanks!

              • keepat

                keepat Well-Known Member

                Messages:
                528
                Likes Received:
                1342
                Joined:
                Jul 26, 2014
                Location:
                edgewater MD
                Local Time:
                1:20 AM
                I have it mounted just inside the car right where it would have gone through the firewall. The engine side of the harness is going through a split grommet just above the transmission centered on the firewall. And the headlight harness is outside of the fender well. I’ll post a picture of the mount as well as the center firewall grommet when I get back in town next week.
                Thank you
                Pat

                • Like Like x 1
                • Thanks! Thanks! x 1
                • keepat

                  keepat Well-Known Member

                  Messages:
                  528
                  Likes Received:
                  1342
                  Joined:
                  Jul 26, 2014
                  Location:
                  edgewater MD
                  Local Time:
                  1:20 AM

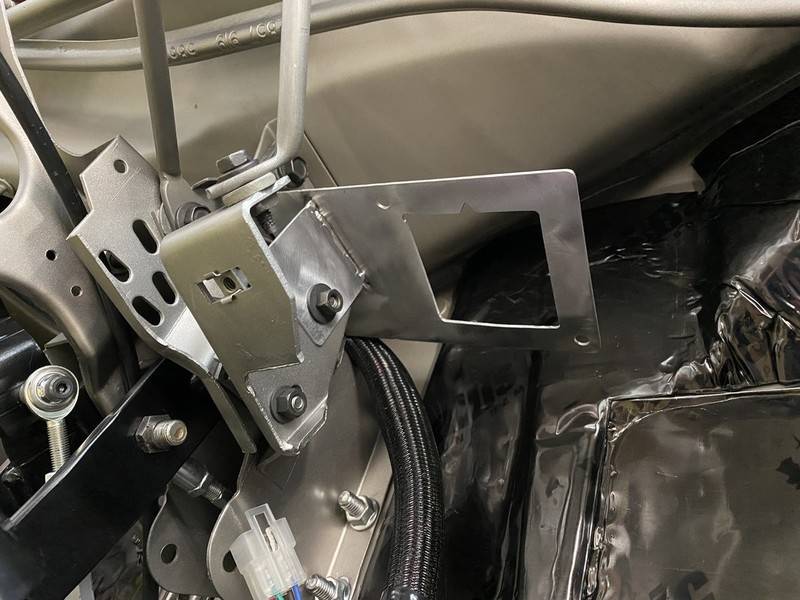

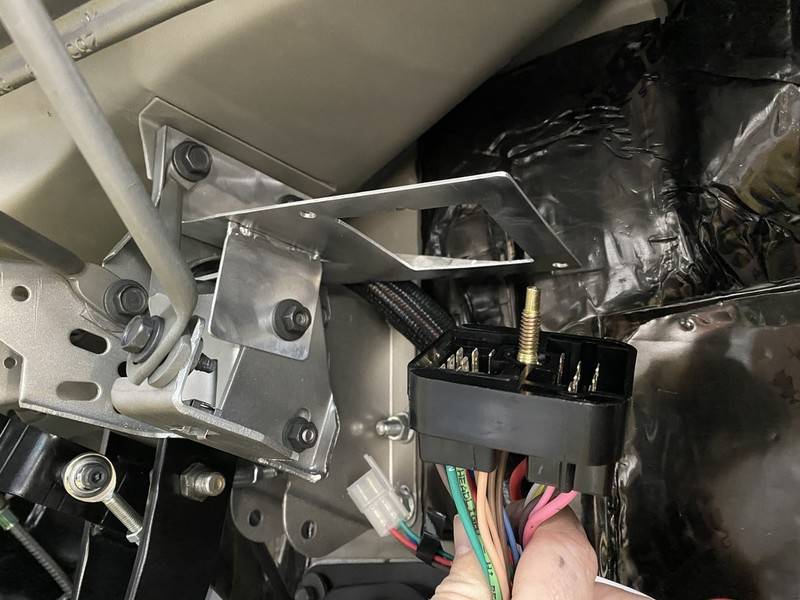

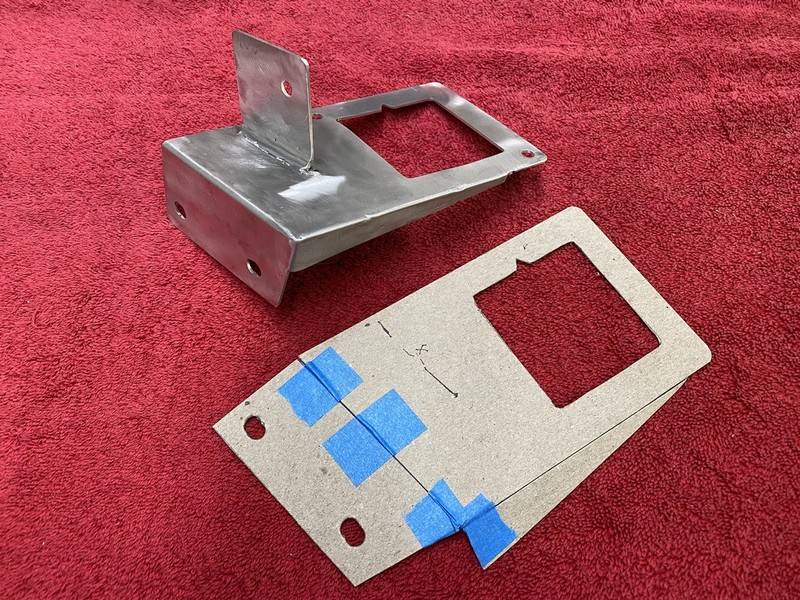

                  Here are some pictures of the bracket I made to hold the bulkhead wiring harness. The bracket is only a few inches away from where it would have passed through the firewall. The other half of the harness is connected to the dash and I have yet to install it. Hope that helps.
                  Thanks
                  Pat




                  A0385647-9049-435-C-8474-344-AEC1524-BC.jpg what button am i pressing




                  F161-AEBC-C21-F-46-A6-8320-B9-EDFDD30882.jpg multiple pic upload[/

                  • Like Like x 6
                  • Thanks! Thanks! x 1
                  • funknut

                    funknut Well-Known Member

                    Messages:
                    960
                    Likes Received:
                    1099
                    Joined:
                    Jul 29, 2015
                    Location:
                    Cincinnati, OH
                    Local Time:
                    12:20 AM
                    This is awesome, I may just give it a shot myself. Thanks again!

                  • showard

                    showard FBBO Gold Member FBBO Gold Member

                    Messages:
                    1,089
                    Likes Received:
                    1454
                    Joined:
                    Aug 14, 2014
                    Location:
                    Southern Utah
                    Local Time:
                    11:20 PM
                    Wow Pat!
                    I haven't checked in for a few weeks. You'r moving right along and doing a great job (as always).

                    • Thanks! Thanks! x 1
                    • keepat

                      keepat Well-Known Member

                      Messages:
                      528
                      Likes Received:
                      1342
                      Joined:
                      Jul 26, 2014
                      Location:
                      edgewater MD
                      Local Time:
                      1:20 AM

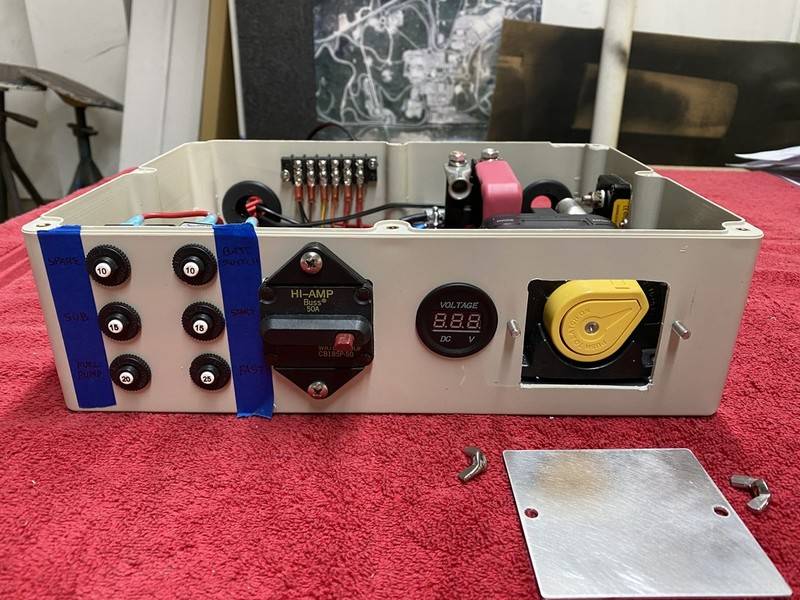

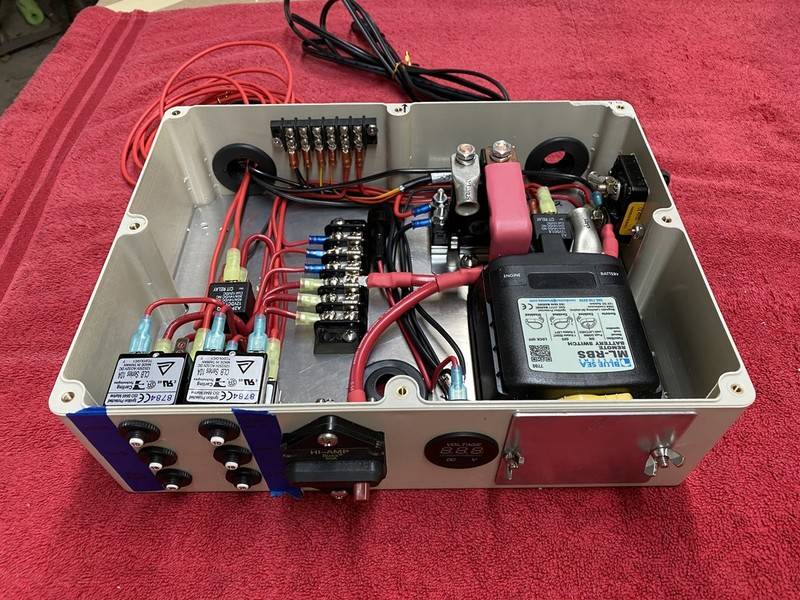

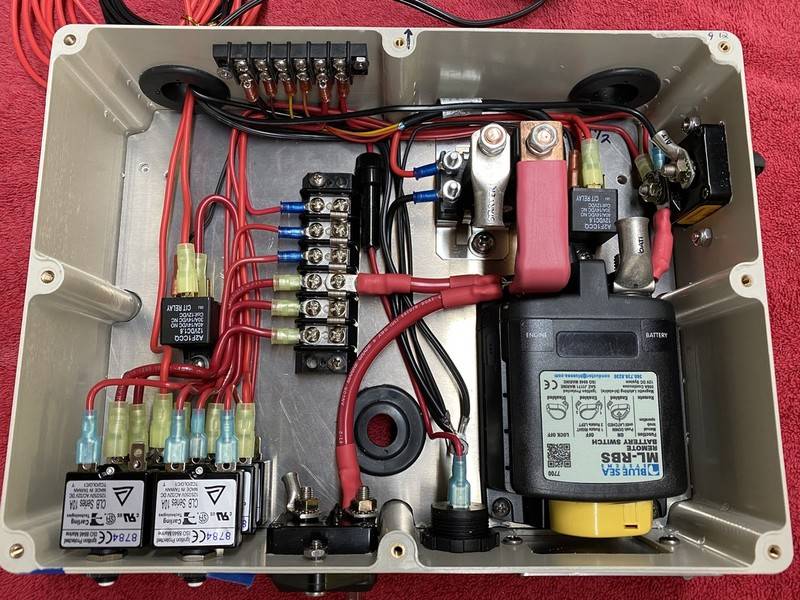

                      With the battery being relocated to the trunk and needing a few direct to battery power connections I made a breaker/switchbox to be located in the trunk. The 12”x 9” box holds a remote battery disconnect and starter solenoid. It also has a series of breakers for the alternator line, dash power, subwoofer, fuel pump, fuel injection, and a few other low amperage items. I still have a few details to work out, then disassemble the box and paint it black along with labels for the breakers before I install it.
                      Thanks
                      Pat

                      4-A6-ED752-F700-4-C91-BFFB-BB8309269137.jpg multi photo hosting



                      • Like Like x 11
                      • bm02tj

                        bm02tj Well-Known Member

                        Messages:
                        1,862
                        Likes Received:
                        2322
                        Joined:
                        Jan 27, 2013
                        Location:
                        BC Canada
                        Local Time:
                        10:20 PM
                        Nice set up with the battery switch good for 1450Amps for 30seconds
                        and by the looks wiring will be heavy enough so very little voltage drop

                      • skidoojim

                        skidoojim New Member

                        Messages:
                        3
                        Likes Received:
                        1
                        Joined:
                        Nov 30, 2015
                        Location:
                        Layton Ut.
                        Local Time:
                        11:20 PM
                        Pat What a Awesome Charger Your Work is the Best! I have never written anything on a forum before so I'm not sure if I'm doing this right! I have a 69 Charger RT and I'm doing the mini tubs and RMS suspension I'm going to stay wit 15 inch wheels and I was wondering if you could tell me the specs of your wheels width, offset and so on Would really appreciate it! Thank You and a again Awesome Charger one of a Kind!

                        • Thanks! Thanks! x 1
