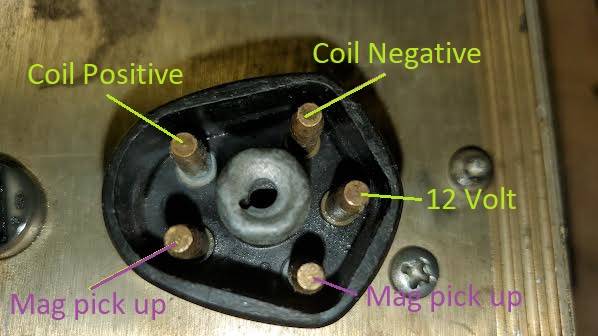

Pic of how to connect a MSD-7C to Mopar 5-pin connector.
MSD-7C connection
- Thread starter a70duster
- Start date
Lefty71
Well-Known Member
Just found this; looks like an awesome resource.
https://www.mpsracing.com/instructions/msd/wiringmanual.pdf

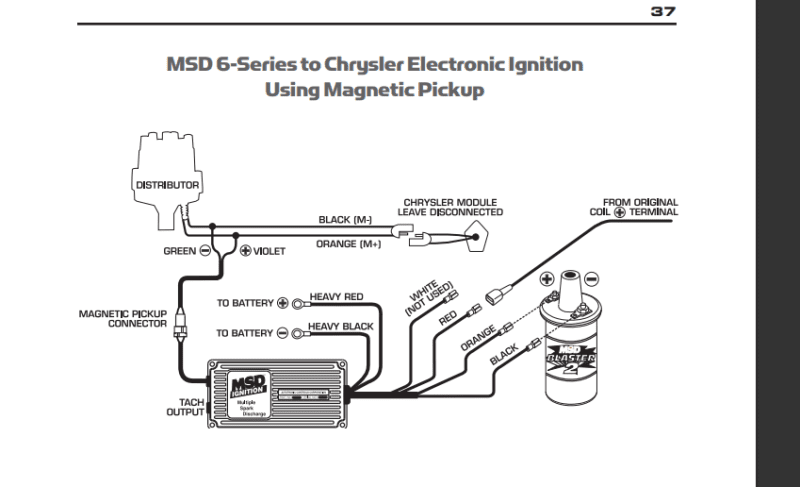

Look at page 37 top half.
Anyway, MDS wiring diagrams are pretty easy to find.... I think Holley has them up for posterity too.

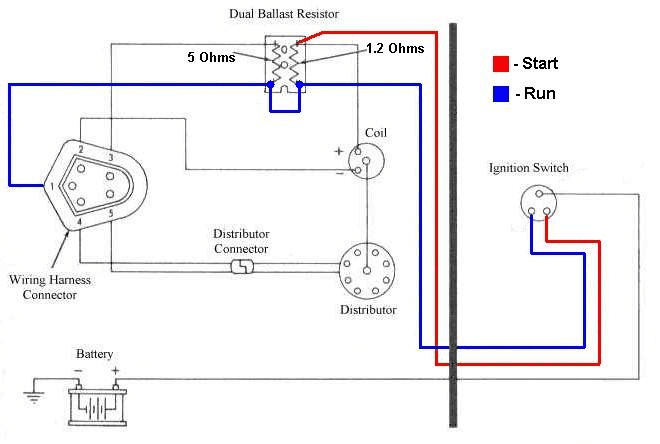

Original diagram for reference;
https://www.mpsracing.com/instructions/msd/wiringmanual.pdf
Look at page 37 top half.
Anyway, MDS wiring diagrams are pretty easy to find.... I think Holley has them up for posterity too.
Original diagram for reference;
- Local time
- 12:01 AM
- Joined
- Sep 6, 2009
- Messages
- 1,336
- Reaction score
- 1,072
- Location
- Boulder City, NV.
As I recall from 30 years ago with the 7C, that it was not plug and play!
It did not use the same wiring as the Mopar ignition even thou it was
a Mopar plug. I could not find a schematic for it back then.
It was a pain and finally I had the MSD techs at a National race
wire it for me.
It did not use the same wiring as the Mopar ignition even thou it was
a Mopar plug. I could not find a schematic for it back then.
It was a pain and finally I had the MSD techs at a National race
wire it for me.
