Need picture of Heater Connection

[66plysat]

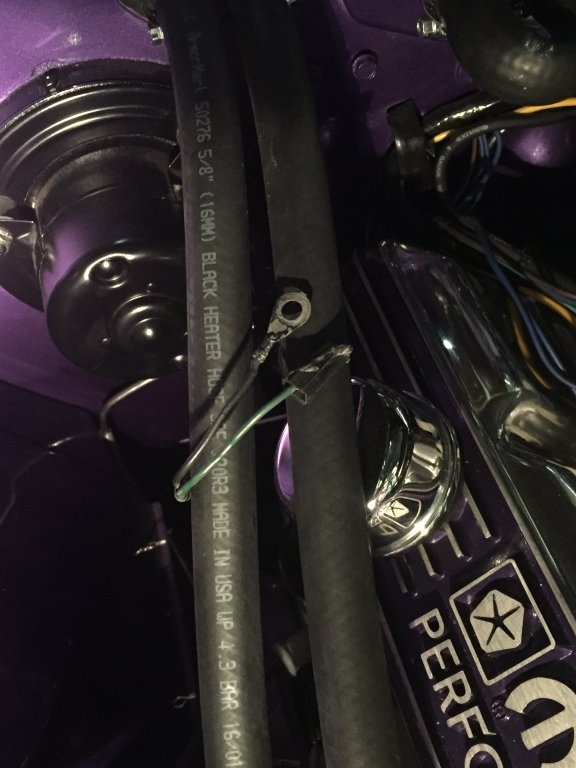

I'm looking for a picture of the engine compartment firewall connections of the heater wiring for a 1966 Satellite/Belvedere. I took pictures of my engine bay before replacing the engine, but I failed to take a picture of the heater wiring. There are two wires coming out of the heater motor housing, one black and one green. The green one has a bayonet style plug and the black one has a connector that looks like it would be held down with a screw. The car now has electronic ignition. Thanks for the help.



[oldbee]

Blk is ground to htr.motor shell. Green is power from interior.



[66plysat]

Blk is ground to htr.motor shell. Green is power from interior.

I thought the black was probably a ground, are you saying the green wire is routed through the firewall to a connection under the dash near the heater box?



[oldbee]

No, you have a '66; mine is a '68. Should be a lead following firewall towards blower motor. Mine's all internal but remembering from years ago. Hope it helps.



[mopar 3 B]

Black is ground and green hot. Motor will run either way if the squirrel cage turns the correct direction you've got it.
