    Pointed out . . . that the tub faucet was not centered in the new cast iron tub. Guess what that meant . . . Reworking the plumbing.

    So my dad had bought me a re-circulating pump, to allow for instant hot water at the taps, but that required a full loop of plumbing to allow re-circulation. Since this was also plumbing - got two birds done with one stone . . . Yup, yet another side project . . .

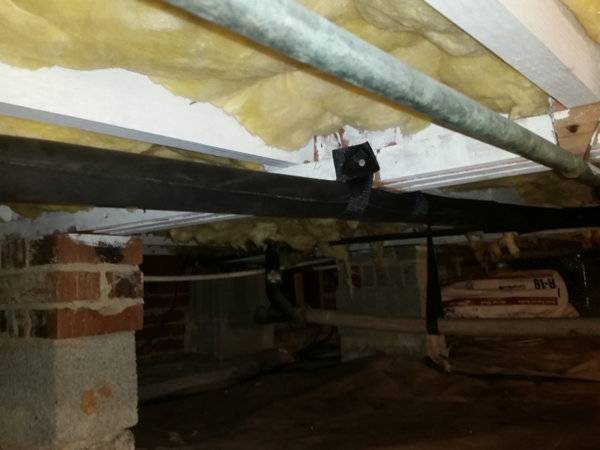

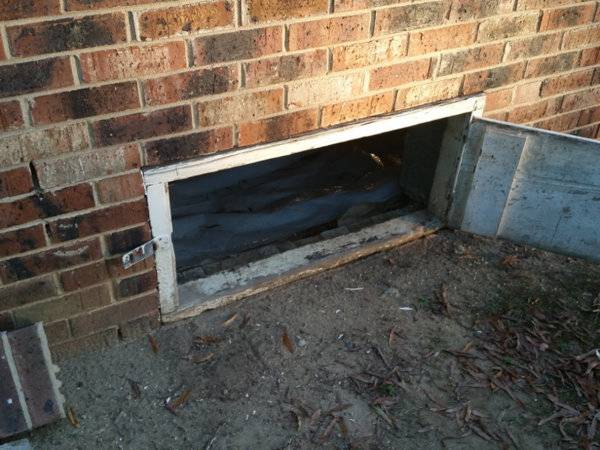

    This is my access to the crawl space . . .

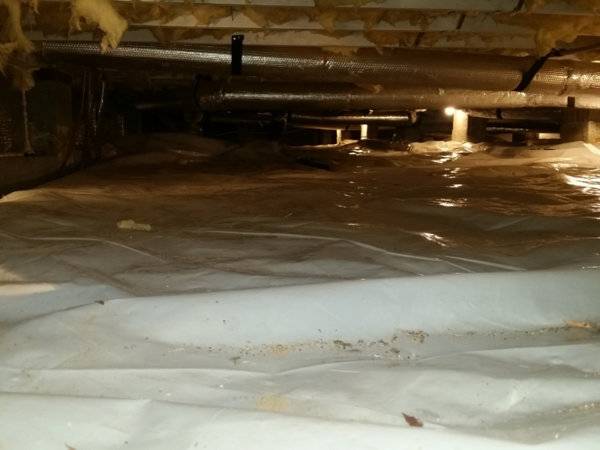

    Spent a lot of time under there cleaning it up after I bought the house . . . don't really like going in there to do work . . .


    But I have added lighting, and multiple vapor barriers - which makes it a bit "nicer" than crawling in the dirt . . .


    Finished up all the plumbing work . . .
    Notice the painted floor joists - had mold down there, so the joists were all wiped down with clorox/water mixture and then painted with primer . . .
    All of the Hot water pipes were covered with rubber insulation ( not the cheap foam stuff )


    On to some of the more "interesting" details of this project - hooking up the pump and testing . . .

    Before we could hook it up we needed to drain the tank ( holy crap was that an endeavor . . . )
    Here's only part of what we got out of the tank . . .


    Then we fitted up all the parts and got this - through the floor up to the pump - then back down and into the original tank drain location . . .

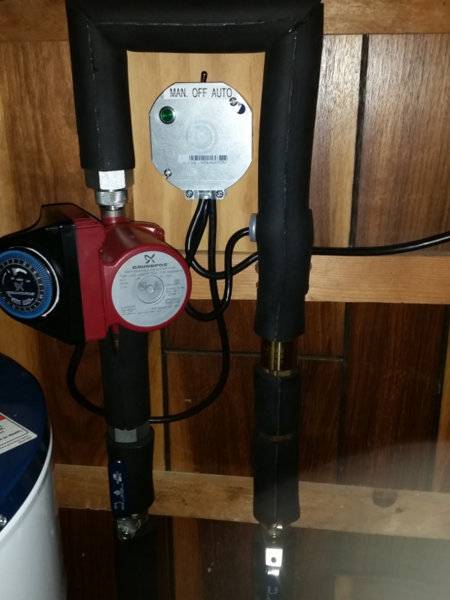

    Here's the pump hook up - originally it stopped at the left cutoff - which allowed us to get to the pump as time permitted and still use the hot water.
    - - added a check valve on the water inlet ( far left tube ) to not feed water back to my well house
    - - (2) dielectric unions on either side of the pump to prevent a short running through the pipes
    - - (2) ball valves to allow the pump to be replaced from the system ( fairly easily )
    - - thought the pump would act as a check valve for the hot water ( guessed wrong - had to add one more check valve in the system )


    Part of the "fun" that we had was that the tank was not heating the water - so drain the tank and find this . . . one fried heating element . . .



    And the final look of this amateur plumbing installation . . .

    The brass area on the right is the new check valve that was needed and a union was added below that too.
    - - added a aqua-stat to allow it to control the pump with pipe water temps
    - - also have the manual mode for running with the timer that came on the pump
    - - and added an OFF position in case the house will be empty if going on vacation ( just in case )
    - - all the electrical was done in a junction box
    - - and the pipes were all insulated as they were done under the house too


    With about 80 feet of pipe the pump runs less than 3 minutes to get the water hot and then shuts off.

    Love it - works great . . .

    • Like Like x 1
    • conv67bdere

      conv67bdere Super Moderator Staff Member FBBO Gold Member

      Messages:
      6,604
      Likes Received:
      10078
      Joined:
      Aug 18, 2013
      Location:
      Concord, NC
      Local Time:
      2:32 AM
      Next . . . the old linen closet . . . and plans for it . . .

      I think you'll like this result - split it into twos section . . . top section for storage . . .

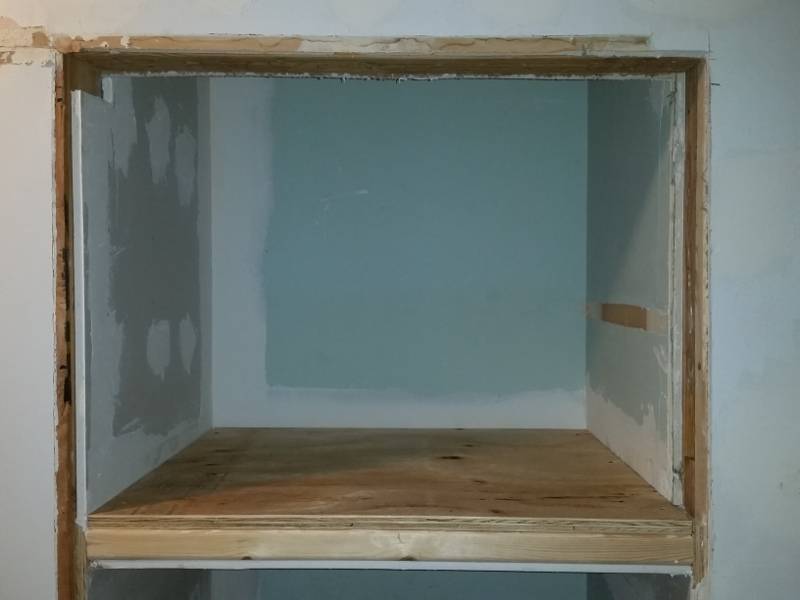

      Bottom section . . .


      Finished work . . .


      For storage of the all important gun safe . . .


      Like the way that this turned out ! ! !

      • Like Like x 6
      • Ghostrider 67

        Ghostrider 67 FBBO Gold Member FBBO Gold Member

        Messages:
        17,012
        Likes Received:
        28625
        Joined:
        Oct 16, 2014
        Location:
        Salisbury, Vermont
        Local Time:
        2:32 AM
        Looks great Larry! If you need any tips about tile work, hit me up. I used to own a tile and marble flooring company back in the day.

        • Like Like x 2
        • Thanks! Thanks! x 1
        • kiwigtx

          kiwigtx International Mod Staff Member FBBO Gold Member

          Messages:
          18,053
          Likes Received:
          30990
          Joined:
          Jun 12, 2012
          Location:
          Tomorrow, NZ
          Local Time:
          8:32 PM
          Nice work Larry....try to limit the number of projects running concurrently :lol:

          • Agree Agree x 1
          • conv67bdere

            conv67bdere Super Moderator Staff Member FBBO Gold Member

            Messages:
            6,604
            Likes Received:
            10078
            Joined:
            Aug 18, 2013
            Location:
            Concord, NC
            Local Time:
            2:32 AM
            Time for the next installment of the project(s) . . . Mad scientist style . . .

            Here's the plan for the sink in the bathroom . . . yes it is a large Pail ( will have it powder coated ) . . .

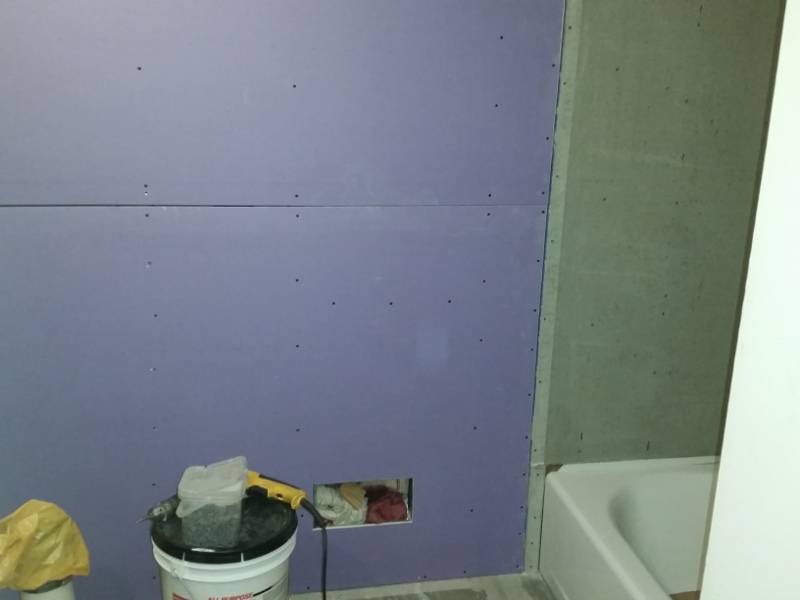

            Got the concrete backer board up around the tub and the sheetrock on the wall . . . making progress . . .

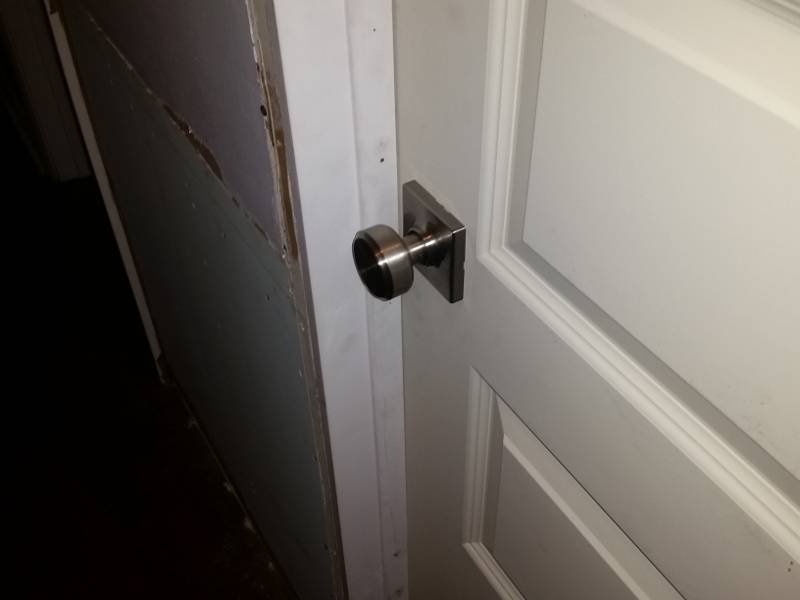

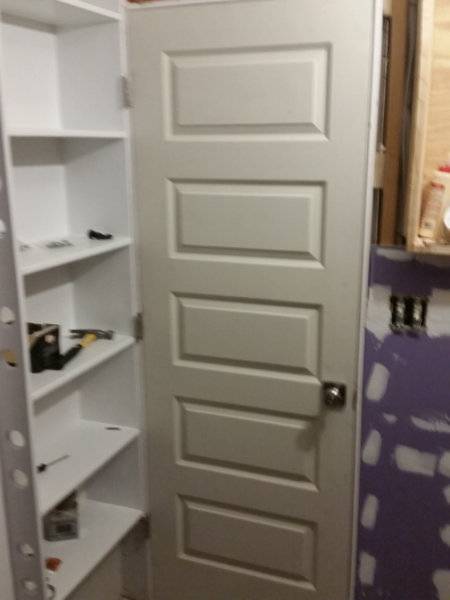

            Mentioned the hollow core doors . . . well, here's the upgrade - both a solid core door and new hardware for the door too . . .


            From inside the bath room . . .

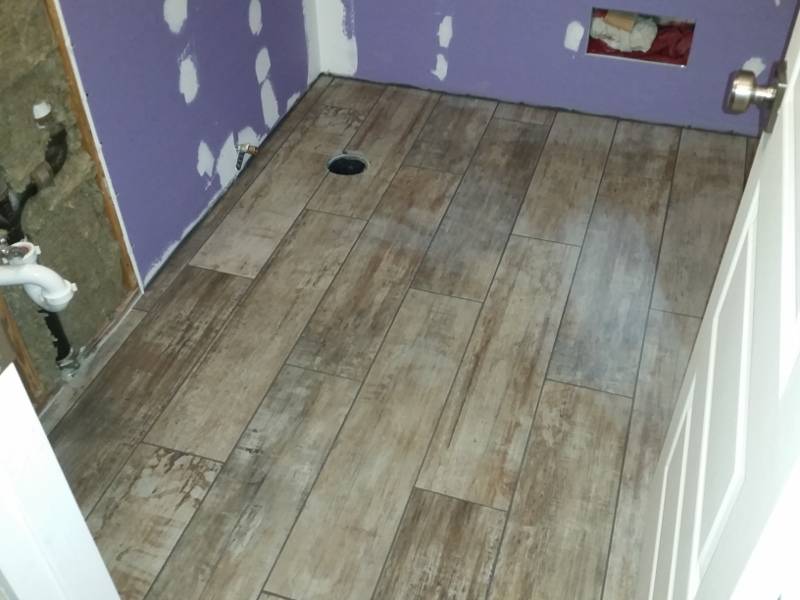

            And the new flooring has finally been put down . . . this is ceramic tile flooring ( no I did not put wood in my bath ) . . .


            Closer view of the tile ( wood ) flooring . . . this stuff looks great ! ! !


            Time for the tile around the tub to get installed . . .


            Making progress . . . goes up fast with these big tiles . . . but "fun" to work with them this big . . .


            Accent being added to the area . . .


            Here's the idea of how it's going to look . . .


            And I have to give some credit to my oldest daughter that helped with the picking of the tiles and the decor for this bath . . .

            • Like Like x 4
            • vintage chromoly

              vintage chromoly FBBO Gold Member FBBO Gold Member

              Messages:
              1,427
              Likes Received:
              2215
              Joined:
              Nov 13, 2010
              Location:
              ohio
              Local Time:
              1:32 AM
              I dig the 5 panel door.

              Looking good!

              • Thanks! Thanks! x 1
              • kiwigtx

                kiwigtx International Mod Staff Member FBBO Gold Member

                Messages:
                18,053
                Likes Received:
                30990
                Joined:
                Jun 12, 2012
                Location:
                Tomorrow, NZ
                Local Time:
                8:32 PM
                Very cool, and fast...nice work Larry. :thumbsup:

                • Thanks! Thanks! x 1
                • Agree Agree x 1
                • conv67bdere

                  conv67bdere Super Moderator Staff Member FBBO Gold Member

                  Messages:
                  6,604
                  Likes Received:
                  10078
                  Joined:
                  Aug 18, 2013
                  Location:
                  Concord, NC
                  Local Time:
                  2:32 AM
                  Forgot to get on here and update this thread with more of the pictures of the work that has already been done . . .

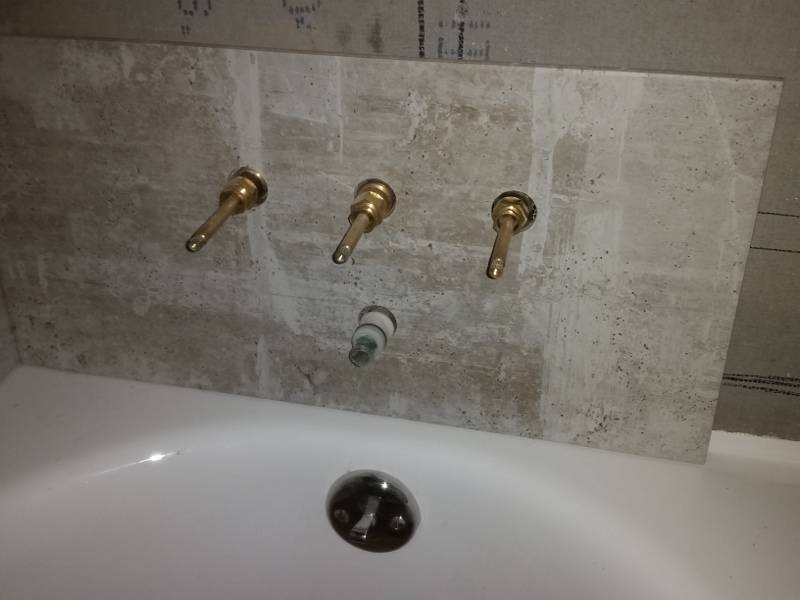

                  Working with large tiles has it's advantage . . . and it's disadvantage . . . notice how all the plumbing it contained on a single tile . . .
                  That's good . . . maybe . . . unless the measurements are off by a little bit and you have to make an adjustment . . .


                  And making that adjustment does not go quite the way you had in mind . . . .


                  This is round #2 on the tile, and I got it right this time around . . .

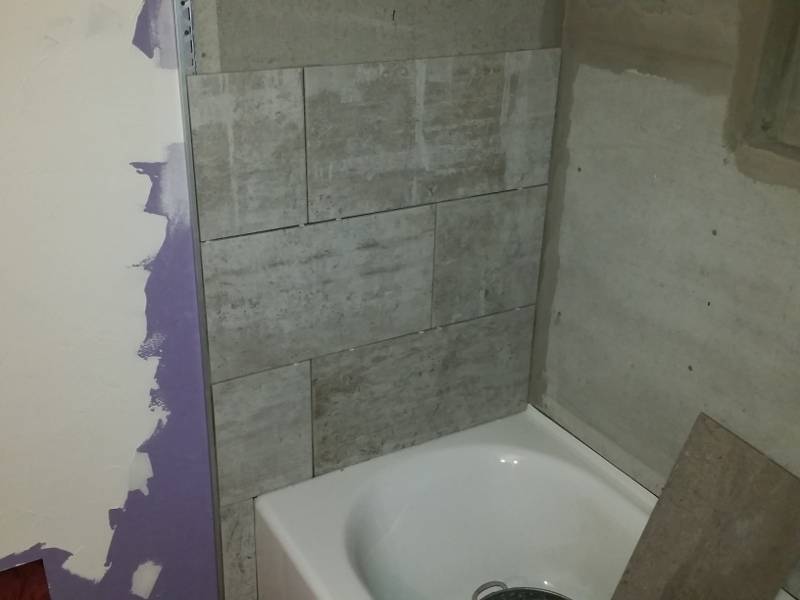

                  So time to get the tile installed . . .

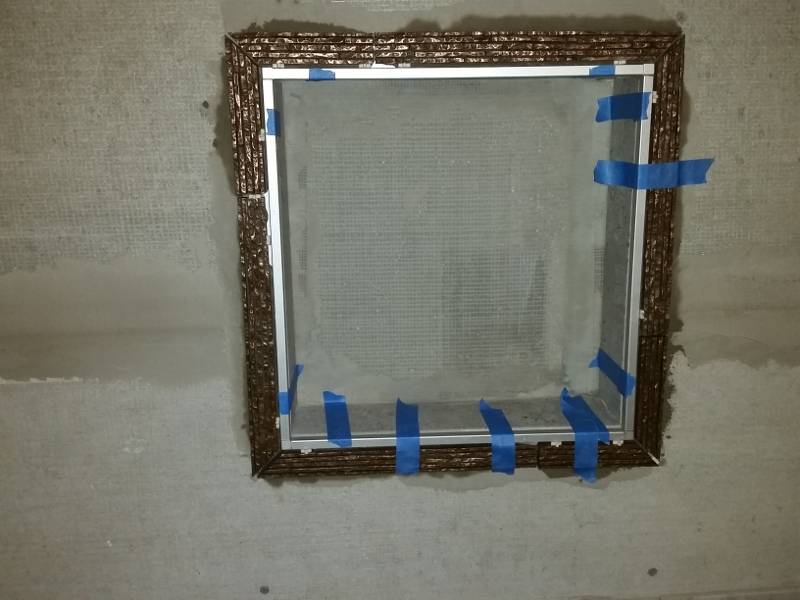

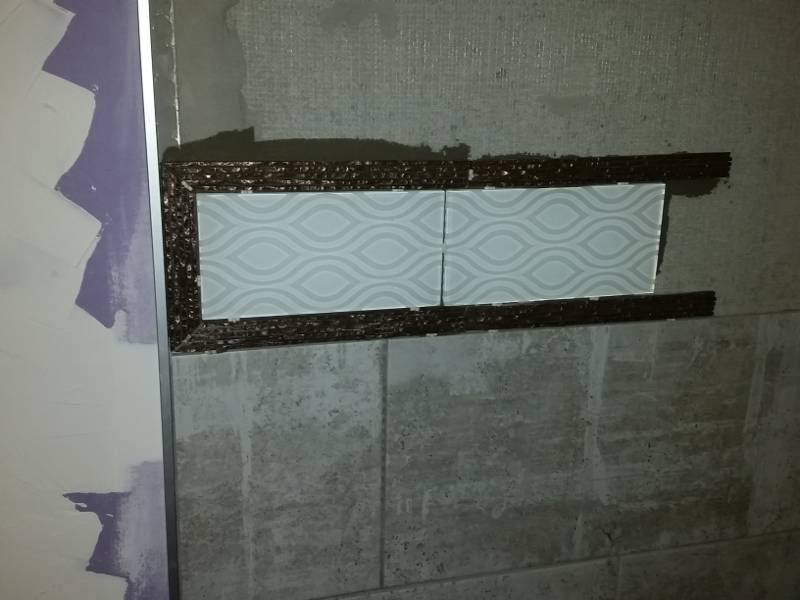

                  The shower surround has an added shampoo niche . . . for holding . . . well, . . . uh . . . shampoo . . .


                  Just a close up of the metal edging and the tile being used around the decorative accent stripe . .


                  Back wall coming along . . .


                  Accent stripe getting done . . . for the record . . . I hated this tile ! ! What a pain to work with . . .

                  Note: Mistake . . . see the back wall bottom right tile, it's a half tile, which means that the tile going into the plumping "should" have been a half, but in my measuring, and fitting it onto a single tile - it slipped my mind. It was not until I got ready to add the next tile on the plumbing wall that I noticed the mess up . . . but it's WAY TOO LATE to go back and fix it all . . . so it's staying . . . as is.


                  But . . . all in all, it didn't turn out all too bad . . .


                  More updates later . . . got a lot more to get posted up and get you caught up to my current state . . .

                  • Like Like x 3
                  • conv67bdere

                    conv67bdere Super Moderator Staff Member FBBO Gold Member

                    Messages:
                    6,604
                    Likes Received:
                    10078
                    Joined:
                    Aug 18, 2013
                    Location:
                    Concord, NC
                    Local Time:
                    2:32 AM
                    Time for me to add a few more Mad Scientist Bathroom remodel pictures to this thread . . .

                    Found these neat LED lights at Lowes, and figured I could use them as my lights ( slightly modified ) in this bath . . .


                    Using the same "wood" tile, with the added metal border was decided for the floor moldings in the bath . . .


                    This corner was converted to a quarter round corner ( no a square edge ) so the floor moldings were modified to accent it . . .


                    Got some paint . . . and had to send a picture up to my daughter for approval . . . good news, she liked the color choice . . .


                    Added the color to the back wall ( no purple was not staying up there . . .


                    Adding more paint to the different areas of the bath . . .

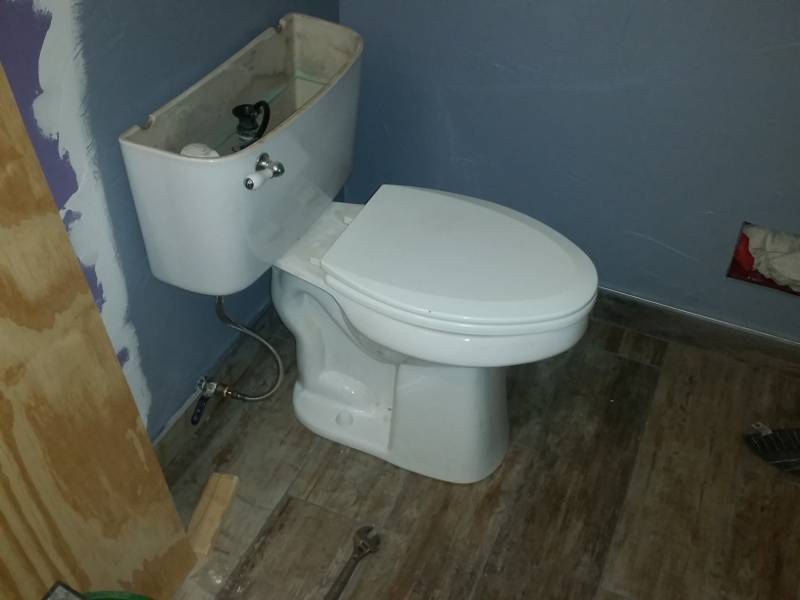

                    Finally got the toilet set back in the bath . . . nice to have a partially functioning guest bath again . . .

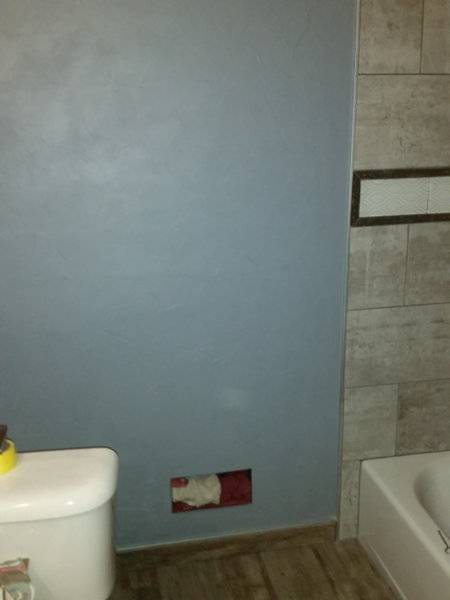

                    Better pic with the flooring . . .


                    Got plans for this in the "mill style" bath design . . . pics coming soon . . .


                    Buying the "cheaply made" off the shelf bath pieces is a whole lot faster than making up all of the parts yourself . . .

                    Guess I just wanted something "unique" for this guest bath . . .

                    • Like Like x 3
                    • conv67bdere

                      conv67bdere Super Moderator Staff Member FBBO Gold Member

                      Messages:
                      6,604
                      Likes Received:
                      10078
                      Joined:
                      Aug 18, 2013
                      Location:
                      Concord, NC
                      Local Time:
                      2:32 AM
                      Forgot to get this updated with more pictures from my past work . . .

                      Found this old gas pump handle light and just could not pass it up . . . might, or might not go in the bath . . . not sure yet . . .

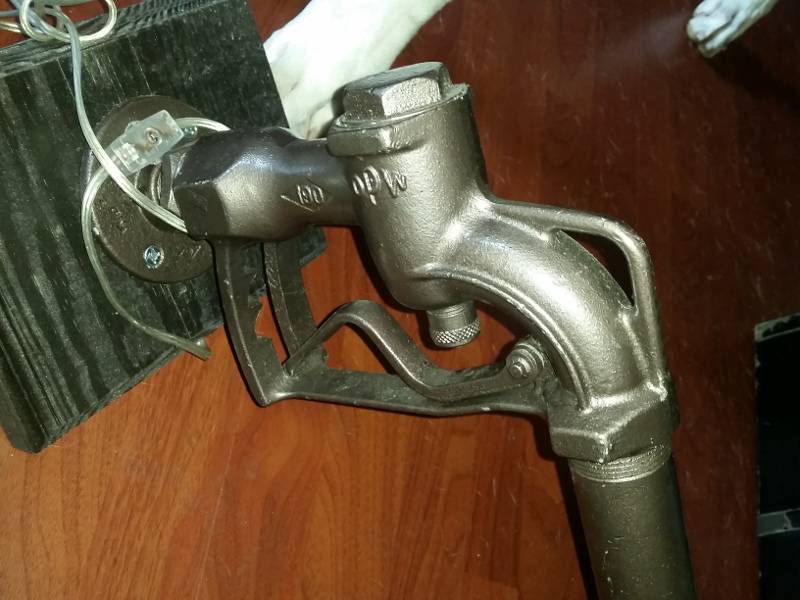

                      Closer look at the handle . . . might need a little Mad Scientist adjustments to it though . . .

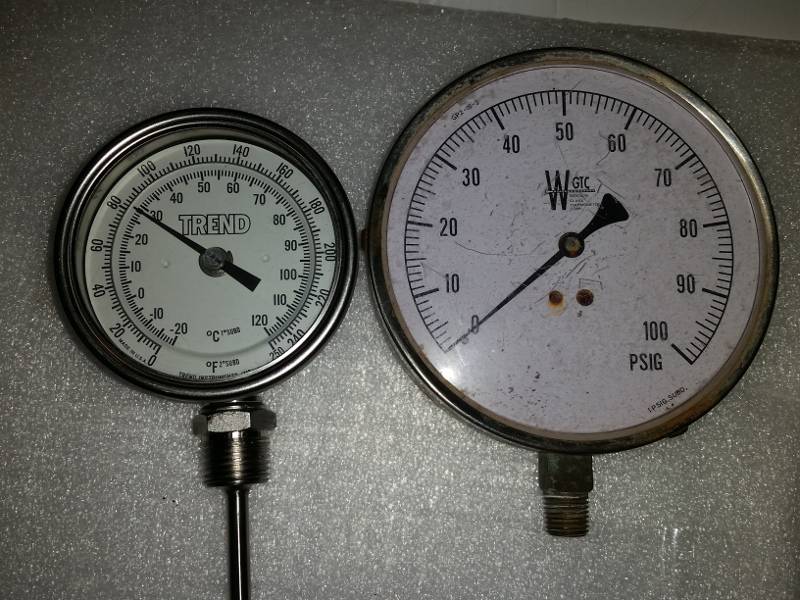

                      Found these old gauges at a antique consignment shop, and they will be used in the bath to get my desired old shop mill look . . .


                      And this was also found at the antique place . . . got plans for it too . . .


                      First off, it was far to thick to use as it was, so I cut the thing in half to thin it up for the wall . . .


                      And this was the resulting look . . . not too bad . . .


                      On the wall, covering up the wall vent, it will look kinds like this . . .


                      But I was not real happy with the big opening that was on the bottom of the heater . . .


                      But the top had (2) halves and I was only using the front half of the heater . . . so I cut the back half out . . .


                      And welded it into the bottom area to help close it up a bite more . . .

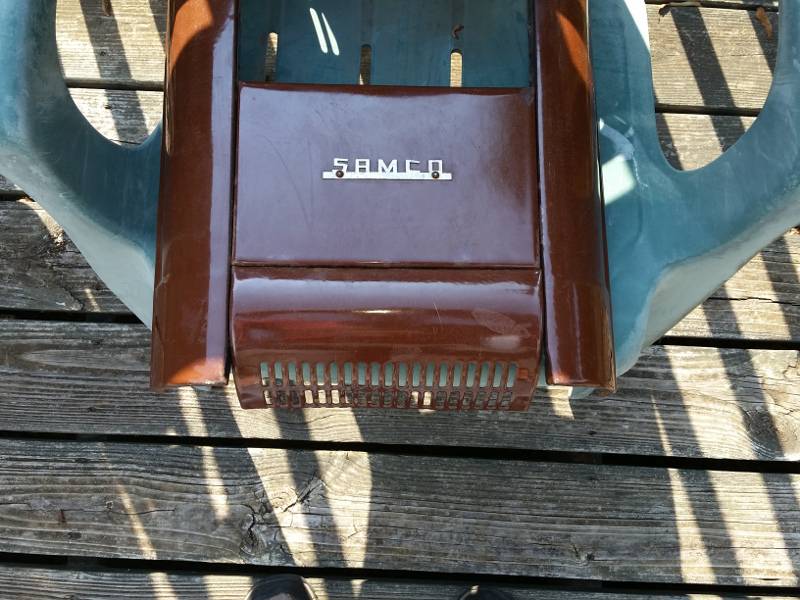

                      sm_bath99.jpg \

                      So now I've got the wall vent covering ready to go . . .

                      More to come . . .

                      • Like Like x 2
                      • conv67bdere

                        conv67bdere Super Moderator Staff Member FBBO Gold Member

                        Messages:
                        6,604
                        Likes Received:
                        10078
                        Joined:
                        Aug 18, 2013
                        Location:
                        Concord, NC
                        Local Time:
                        2:32 AM
                        Next part of the project . . . .

                        All of the fixtures in this bath will be made out of black pipe to make it "fit" the old mill shop style bath . . . Initial TP holder


                        It would work . . . but I came up with a minor update to it . . .


                        Made the holder side out of 1" pipe instead of 1/2? pipe . . . which meant welding it in place, and milling the end cap to allow it to fit the P over it . . .


                        These were the LED lights that I found at Lowes that I was wanting to use in the bath . . . modified a bit as needed . . .

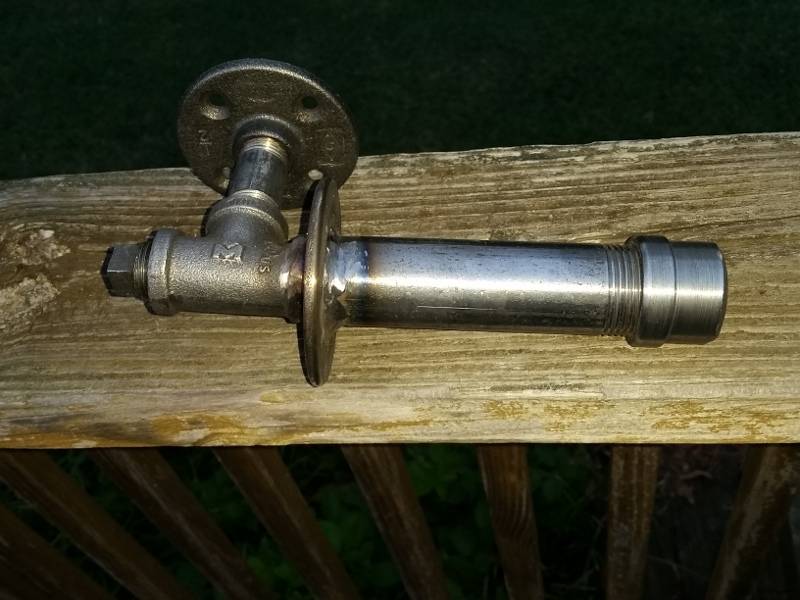

                        Here is the fabrication of fitting the light onto the black pipe decor . . . this was the plan and initial idea . . .


                        Then there was the metal panel . . . but it was all new and shiny . . . that would not do . . . so . . .

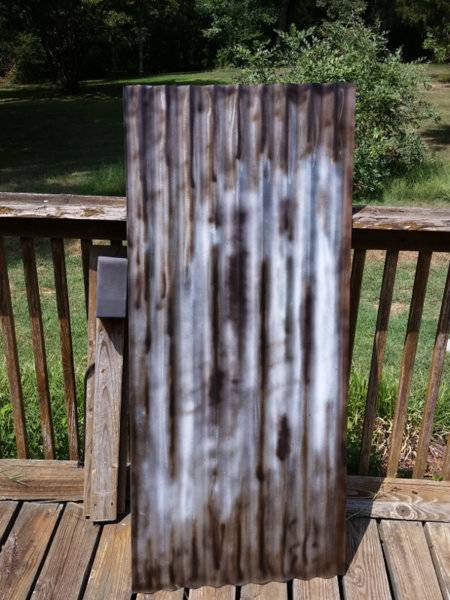

                        Pull out the air brush and do a little work on making it look rusty and old . . .

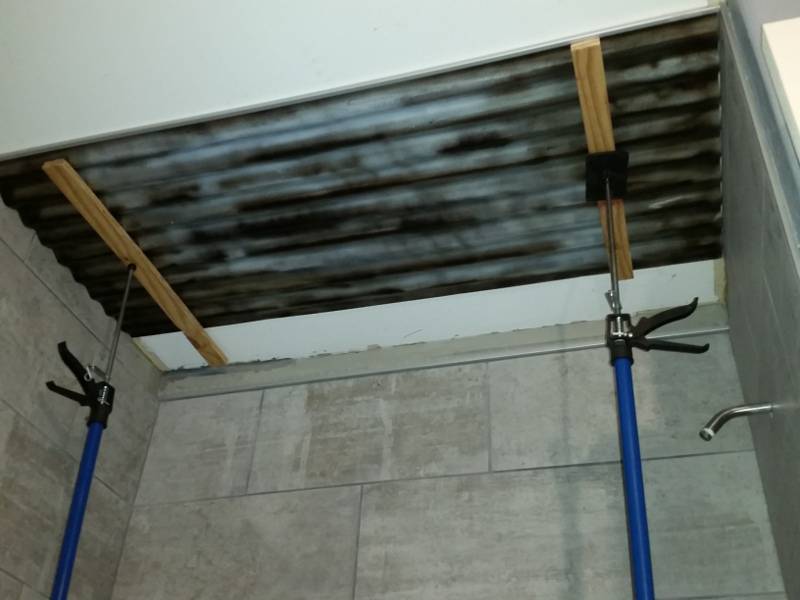

                        And then mount it to the ceiling above the tub . . . plans for the back area is a boxed in area with LED lighting . . .


                        More to come . . . still got more completed . . .

                        • Like Like x 3
                        • snakeyes

                          snakeyes FBBO Gold Member FBBO Gold Member

                          Messages:
                          25,862
                          Likes Received:
                          23607
                          Joined:
                          May 5, 2011
                          Location:
                          ohio
                          Local Time:
                          2:32 AM
                          :thumbsup:

                          • Thanks! Thanks! x 1
                          • mopar 3 B

                            mopar 3 B Well-Known Member

                            Messages:
                            8,524
                            Likes Received:
                            5887
                            Joined:
                            Aug 25, 2014
                            Location:
                            Kingsville, MO
                            Local Time:
                            1:32 AM
                            Be glad you can do it yourself. Your labor cost would be out of sight.
                            I do this for a living. Special touches get expensive real fast.

                            Yes I agree Prego flooring we will not do. I don't care what they are willing to pay. Total crap.

                            • Agree Agree x 1
                            • mopar 3 B

                              mopar 3 B Well-Known Member

                              Messages:
                              8,524
                              Likes Received:
                              5887
                              Joined:
                              Aug 25, 2014
                              Location:
                              Kingsville, MO
                              Local Time:
                              1:32 AM
                              If you haven't done so clear coat that black pipe. It will rust over time if left bare.

                              • Agree Agree x 1
                              • conv67bdere

                                conv67bdere Super Moderator Staff Member FBBO Gold Member

                                Messages:
                                6,604
                                Likes Received:
                                10078
                                Joined:
                                Aug 18, 2013
                                Location:
                                Concord, NC
                                Local Time:
                                2:32 AM
                                All of the black pipe was painted - after cleaning off all the oil . . . of course . . .

                              • kiwigtx

                                kiwigtx International Mod Staff Member FBBO Gold Member

                                Messages:
                                18,053
                                Likes Received:
                                30990
                                Joined:
                                Jun 12, 2012
                                Location:
                                Tomorrow, NZ
                                Local Time:
                                8:32 PM
                                Nice work Larry. :thumbsup:

                                • Thanks! Thanks! x 1
                                • conv67bdere

                                  conv67bdere Super Moderator Staff Member FBBO Gold Member

                                  Messages:
                                  6,604
                                  Likes Received:
                                  10078
                                  Joined:
                                  Aug 18, 2013
                                  Location:
                                  Concord, NC
                                  Local Time:
                                  2:32 AM
                                  Next update . . . more stuff that has already gotten done . . .

                                  Now it's time to start adding some of the needed accessories to the bath - and in keeping with the "old mill" style . . .

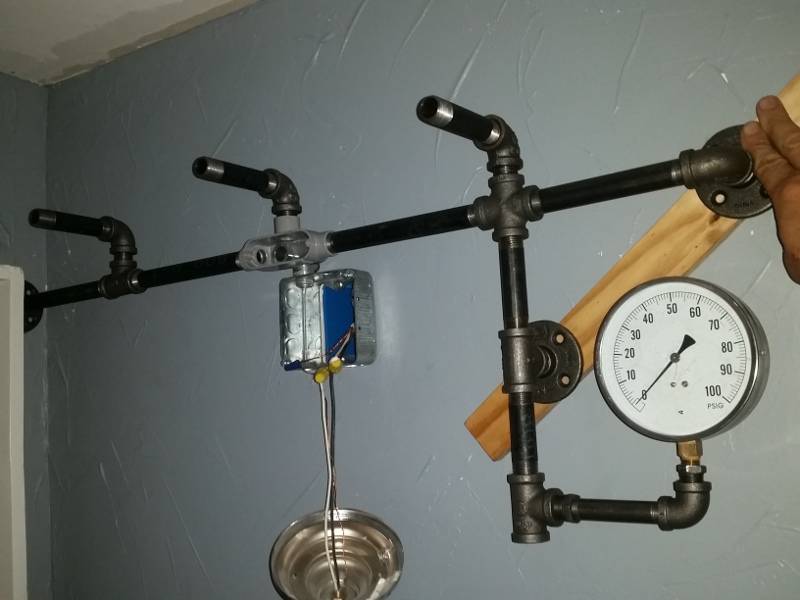

                                  Here's where one of the gauges comes into play . . . the towel rack ( again in black pipe - painted )


                                  Got the TP holder and the vent cover mounted as needed in the bath . . .


                                  And the towel rack too . . . the boards are because I added that in the wall cabinet in the master bath - right where this needs to mount. So to keep the screws from sticking out of the back of the master cabinet, these planks give me a mounting surface. They are lag bolted into the 2x6 suds on either side of the cabinet . . . plenty of strength to hold up towels . . .


                                  Then get the raw wood painted, so it'll blend into the wall . . .


                                  Now to fight with the lighting . . . and get the wires strung through the black pipe . . . here's the thought . . .


                                  Guess this got out of order . . . towels on the towel rack . . .

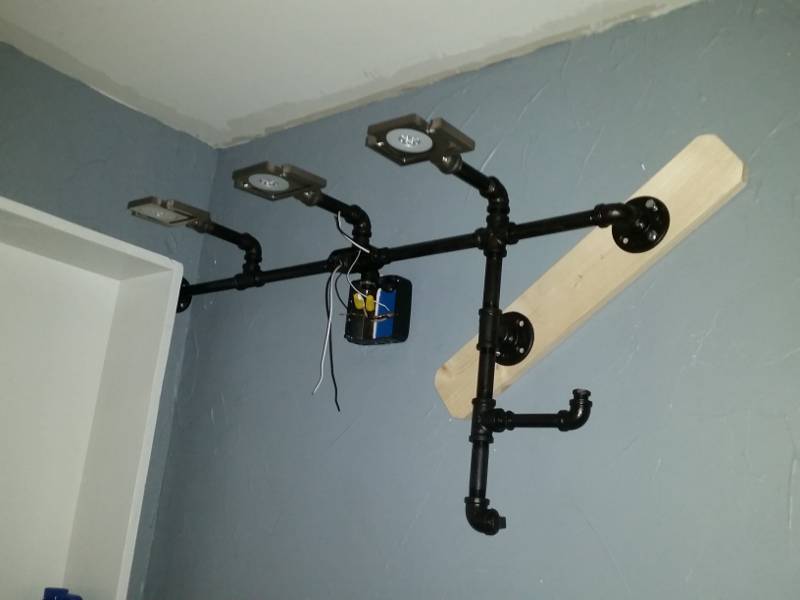

                                  Got all of the lights mounted on the black pipe - fabricated them so that they still swivel as they did before ( about 340 degrees )


                                  And . . . let there be light . . . they do work . . .


                                  Here's the final fab work on the junction box . . . welded a piece of metal to cover the switch as I could not find a blank cover . . .


                                  And on last view of the lights after I got the gauge added back into the picture . . .
                                  ( hope . . . is to add LED lights behind the gauge and make it a night light for this bath . . . )


                                  more pictures coming . . .

                                  • Like Like x 2
                                  • mopar 3 B

                                    mopar 3 B Well-Known Member

                                    Messages:
                                    8,524
                                    Likes Received:
                                    5887
                                    Joined:
                                    Aug 25, 2014
                                    Location:
                                    Kingsville, MO
                                    Local Time:
                                    1:32 AM
                                    Looking good.

                                    • Thanks! Thanks! x 1
                                    • Ironbuilt

                                      Ironbuilt FBBO Gold Member FBBO Gold Member

                                      Messages:
                                      10,387
                                      Likes Received:
                                      17896
                                      Joined:
                                      Jul 1, 2017
                                      Location:
                                      North Carolina
                                      Local Time:
                                      2:32 AM
                                      Great work Larry, it looks awesome!!

                                      • Thanks! Thanks! x 1
                                      • Agree Agree x 1
                                      • Richard Cranium

                                        Richard Cranium FBBO Gold Member FBBO Gold Member

                                        Messages:
                                        25,189
                                        Likes Received:
                                        55566
                                        Joined:
                                        Feb 20, 2012
                                        Local Time:
                                        1:32 AM
                                        No wonder the plumbing doesn't work, the pipes are all plugged up with wires!








                                        • Like Like x 3
                                        • Thanks! Thanks! x 1
                                        1. This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
                                          By continuing to use this site, you are consenting to our use of cookies.
