Not Shop - but house, remodeling a bath . . . ( mad scientist style ) . . .

Shop, Garage and Tools

  1. kiwigtx

    kiwigtx International Mod Staff Member FBBO Gold Member

    Messages:
    18,543
    Likes Received:
    32495
    Joined:
    Jun 12, 2012
    Location:
    Tomorrow, NZ
    Local Time:
    2:54 AM
    You're getting the hang of this wiring stuff now. :lol:

  2. conv67bdere

    conv67bdere Super Moderator Staff Member FBBO Gold Member

    Messages:
    6,635
    Likes Received:
    10136
    Joined:
    Aug 18, 2013
    Location:
    Concord, NC
    Local Time:
    8:54 AM
    Next installment . . . time to build the sink, it's going to be poured concrete . . .

    Here is the mold for the sink - and yes, that is the plan for the sink - Notice the white "edging" in there to create a designed edge . . .

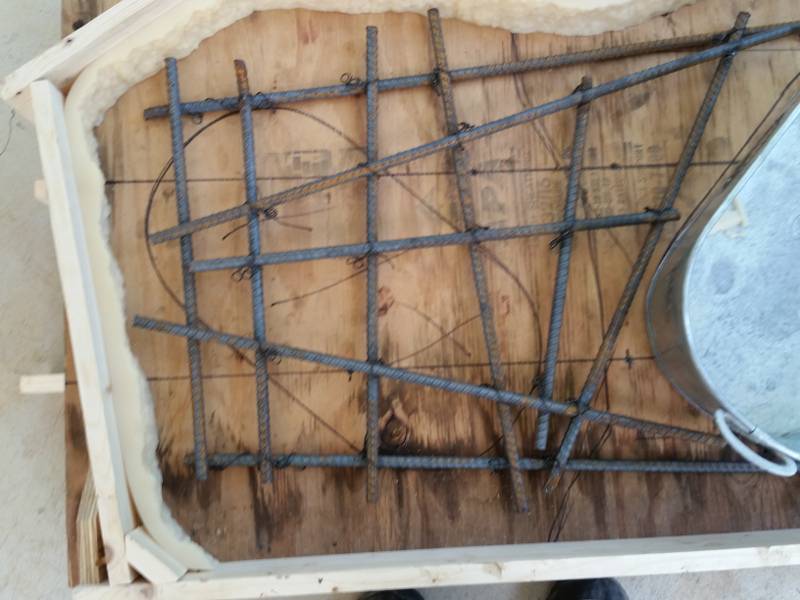

    Ass a bunch of rebar to this to keep it from cracking . . .


    Think I've got it about covered now . . . all wired together too . . .


    An pour the concrete . . . then beat the "cr*p" out of it with a hammer for an hour to try and get the air bubbles out of it . . .


    Then let it dry, pull out the "sink" tub, and the water line homes . . . and let it set up for a couple days . . .


    Then remove the rubber form edging from the slab . . .


    And you end up with a concrete slab for your bath sink . . .


    That was kinda fun, interesting, frustrating, all at the same time . . but I've got it done now . . .

    • Like Like x 4
    • hsorman

      hsorman FBBO Gold Member FBBO Gold Member

      Messages:
      3,248
      Likes Received:
      3260
      Joined:
      Aug 8, 2011
      Location:
      Lansdale, PA
      Local Time:
      8:54 AM
      Great build Larry!

      I finished re-doing my hall bath last year. Bathrooms are a PITA because you have to deal with plumbing, electricity, heating/cooling, water protection, etc. All in one small room!

      I added a few touches in mine, with cultured granite walls and sink, but definitely not the mad scientist build! Approved!

      Hawk

      • Like Like x 1
      • Thanks! Thanks! x 1
      • conv67bdere

        conv67bdere Super Moderator Staff Member FBBO Gold Member

        Messages:
        6,635
        Likes Received:
        10136
        Joined:
        Aug 18, 2013
        Location:
        Concord, NC
        Local Time:
        8:54 AM
        Next addition to the project . . .

        Time to do some polishing of the concrete top and make it a little smoother . . .


        A little water and a special cutting wheel . . .


        Got this set of (6) discs on Amazon with the grits printed right on them . . .


        And they do a really good job on the top too . . . but I'm finding some air pockets in the concrete that I could not get out with all my pounding . . .


        Now to figure out to finish it with . . . thinking of using clear coat . . .

        thoughts ? ? ?

        • Like Like x 2
        • JB400

          JB400 69 Charger

          Messages:
          3,358
          Likes Received:
          2385
          Joined:
          Feb 16, 2018
          Location:
          Left field
          Local Time:
          7:54 AM
          Water based sealer. Use a little bit of grout to fill in the air bubbles

          • Thanks! Thanks! x 1
          • conv67bdere

            conv67bdere Super Moderator Staff Member FBBO Gold Member

            Messages:
            6,635
            Likes Received:
            10136
            Joined:
            Aug 18, 2013
            Location:
            Concord, NC
            Local Time:
            8:54 AM
            So I designed the supports that I wanted for the sink top, and ordered the 1" black pipe parts and had them shipped to me . . .

            What I wanted . . . simple design . . . until I realized that you can't do this . . . UNLESS you add in a union . . .


            Well . . . maybe I shouldn't have said that you CAN'T do it . . .


            That is . . . with a little help with your welder and a bit of sanding . . .

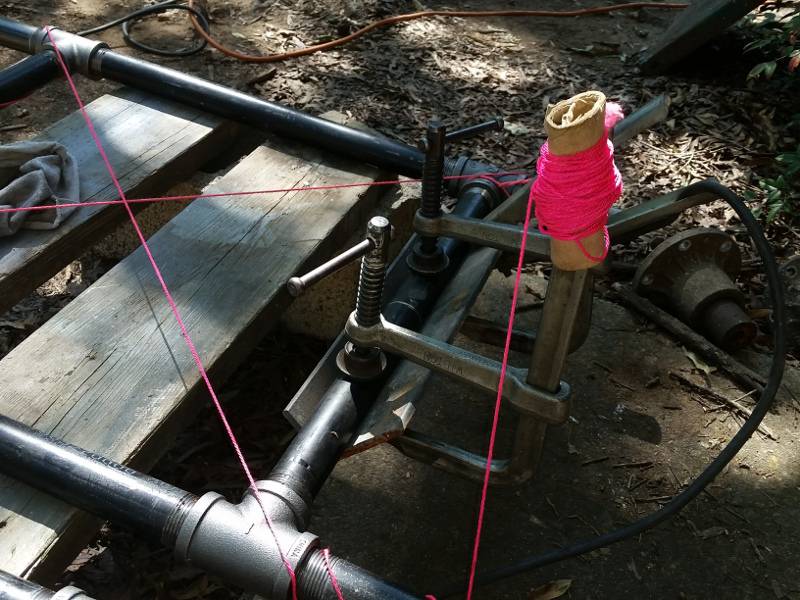

            Cut the pipe, clamp them into angle iron to keep them aligned, strings help keep the corners in alignment, weld, sand, paint . . .
            ( the strings are a neat little trick I've learned . . . )

            The "impossible" is now possible . . .


            • Like Like x 2
            • conv67bdere

              conv67bdere Super Moderator Staff Member FBBO Gold Member

              Messages:
              6,635
              Likes Received:
              10136
              Joined:
              Aug 18, 2013
              Location:
              Concord, NC
              Local Time:
              8:54 AM
              Next installment . . .

              One of the "fun" things that I enjoy about my "Mad Scientist" projects are that I NEVER know what I'm going to run into in the process . . . here's a very good example . . .

              First, I made the ( not able to make ) supports and got them ready to go - using standard lengths and measuring to make them match . . .


              Then I welded up the frame support for under the concrete sink . . . looks good ( or dies it . . . )


              This left edge is just a little tight to the edge of the concrete . . .

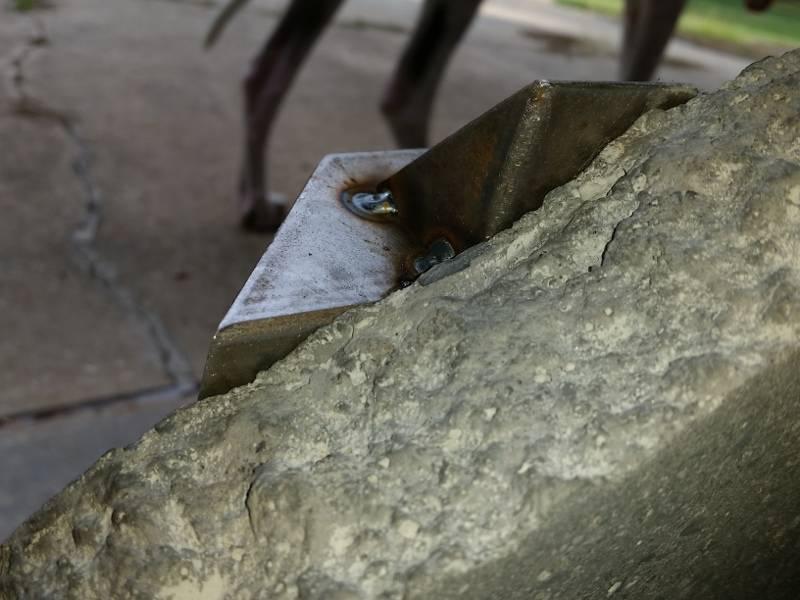

              But this one won't work as the metal sticks beyond the edge of the concrete . . . .


              This would not be a good thing to have in the bath . . . ( yeah, that's Titus in the background . . . always by my side . . . )


              So . . . time to make some modifications and figure out how to get this fixed . . . Oh boy ! ! !

              • Like Like x 1
              • conv67bdere

                conv67bdere Super Moderator Staff Member FBBO Gold Member

                Messages:
                6,635
                Likes Received:
                10136
                Joined:
                Aug 18, 2013
                Location:
                Concord, NC
                Local Time:
                8:54 AM
                Latest updates . . . .

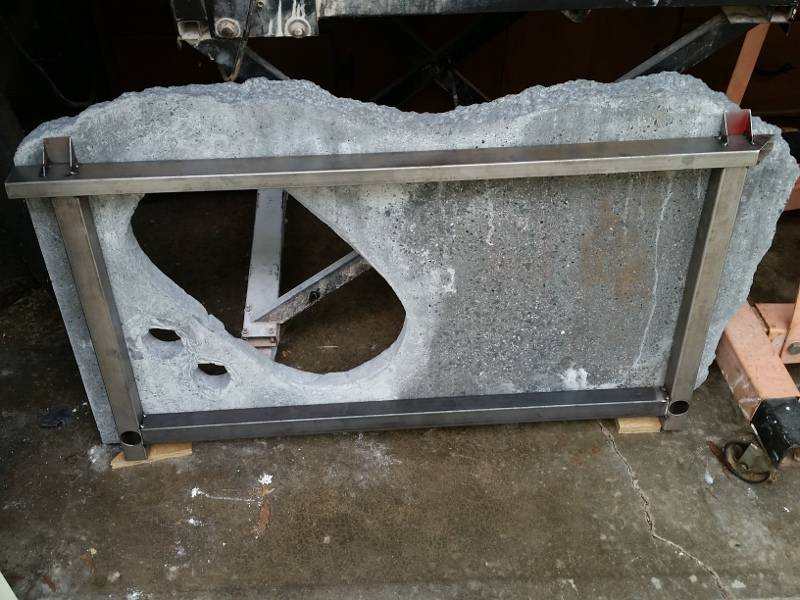

                Got the frame completed . . .

                Ready to hold the top in place . . .


                Not too shabby . . .


                • Like Like x 4
                • mopar 3 B

                  mopar 3 B Well-Known Member

                  Messages:
                  8,713
                  Likes Received:
                  6091
                  Joined:
                  Aug 25, 2014
                  Location:
                  Kingsville, MO
                  Local Time:
                  7:54 AM
                  The frame was part of the design authentics? Inserts into wet concrete and just setting it on the legs would have been less time consuming. There is enough rebar in it to support any reasonable load and with 6000 psi mix that may have been over kill.
                  Next time use a vibrating hand sander. Pad to form will work those naste bubbles right out.

                  • Thanks! Thanks! x 1
                  • conv67bdere

                    conv67bdere Super Moderator Staff Member FBBO Gold Member

                    Messages:
                    6,635
                    Likes Received:
                    10136
                    Joined:
                    Aug 18, 2013
                    Location:
                    Concord, NC
                    Local Time:
                    8:54 AM
                    Thought I had already posted up this picture . . .

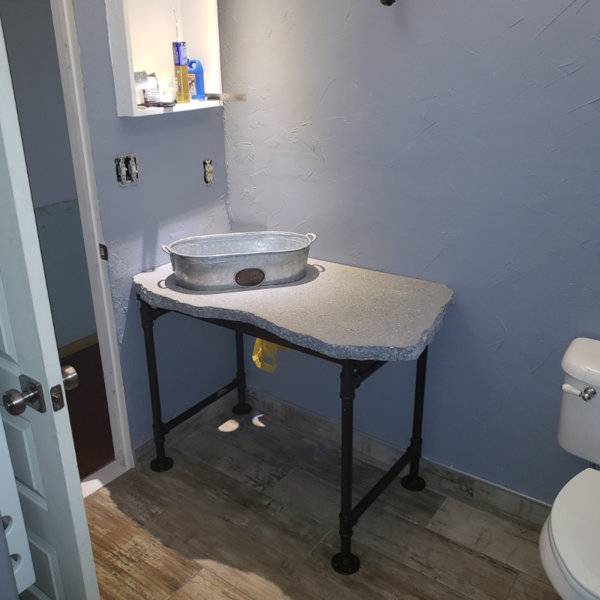

                    Here's what the sink and counter top is going to look like . . .




                    Did try and use a vibrating hand sander and a jigsaw with no blade and they did not have enough "shake" in them to get all of the bubble out . . . believe me I tried along with pounding it with a hammer for an hour too . . .

                    • Like Like x 3
                    • Mike67

                      Mike67 Well-Known Member

                      Messages:
                      5,103
                      Likes Received:
                      7754
                      Joined:
                      Nov 23, 2014
                      Location:
                      Woodlands Tx
                      Local Time:
                      7:54 AM
                      Thats pretty cool Larry!

                      • Agree Agree x 2
                      • Thanks! Thanks! x 1
                      • Ironbuilt

                        Ironbuilt FBBO Gold Member FBBO Gold Member

                        Messages:
                        11,075
                        Likes Received:
                        19589
                        Joined:
                        Jul 1, 2017
                        Location:
                        North Carolina
                        Local Time:
                        8:54 AM
                        That's awesome!! How is the faucet mounted.

                        • Like Like x 1
                        • Thanks! Thanks! x 1
                        • conv67bdere

                          conv67bdere Super Moderator Staff Member FBBO Gold Member

                          Messages:
                          6,635
                          Likes Received:
                          10136
                          Joined:
                          Aug 18, 2013
                          Location:
                          Concord, NC
                          Local Time:
                          8:54 AM
                          It's not mounted yet . . . have not got to that part of the build . . . quite yet . . .

                          • Thanks! Thanks! x 1
                          • Ironbuilt

                            Ironbuilt FBBO Gold Member FBBO Gold Member

                            Messages:
                            11,075
                            Likes Received:
                            19589
                            Joined:
                            Jul 1, 2017
                            Location:
                            North Carolina
                            Local Time:
                            8:54 AM
                            I'm watching, can't wait to see the finished project. :thumbsup:

                            • Thanks! Thanks! x 1
                            • Paul Boucher

                              Paul Boucher FBBO Gold Member FBBO Gold Member

                              Messages:
                              1,166
                              Likes Received:
                              1335
                              Joined:
                              Aug 5, 2016
                              Location:
                              Greenville, NC
                              Local Time:
                              8:54 AM
                              Very cool Larry! Really like the looks of this. Nice design.

                              • Thanks! Thanks! x 1
                              • Agree Agree x 1
                              • conv67bdere

                                conv67bdere Super Moderator Staff Member FBBO Gold Member

                                Messages:
                                6,635
                                Likes Received:
                                10136
                                Joined:
                                Aug 18, 2013
                                Location:
                                Concord, NC
                                Local Time:
                                8:54 AM
                                Boy did this get put aside for a bit . . . trying to figure out "what" and "where" this project needed to go . . .
                                ( and life got in the way . . . of course )

                                But I've got back to this project and got a few things figured out . . . and some direction . . .

                                Figured out the drain for the tub, and got it back from the Powder-coater . . .

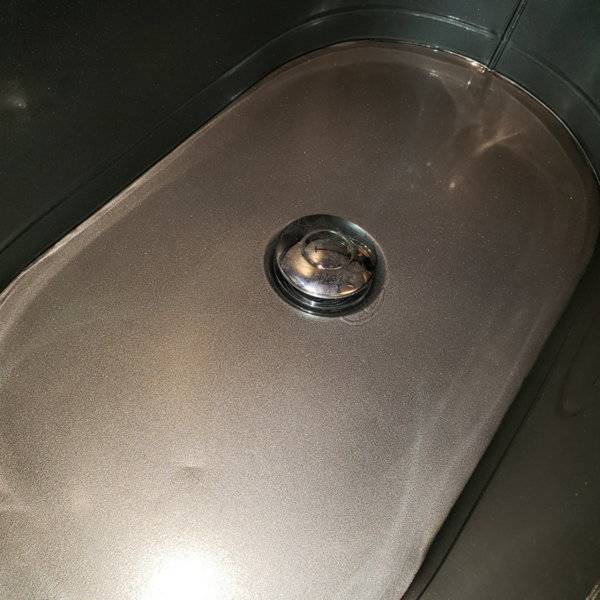

                                This is the drain hardware set in place ( gawd - sure hope that this will work out . . . )


                                Also . . . finally figured what to do with the LED light controller and got that part in the works now . . .
                                Now, with this in progress - the LED light and their mounting in the ceiling can also make some progress . . . Hopefully . . .

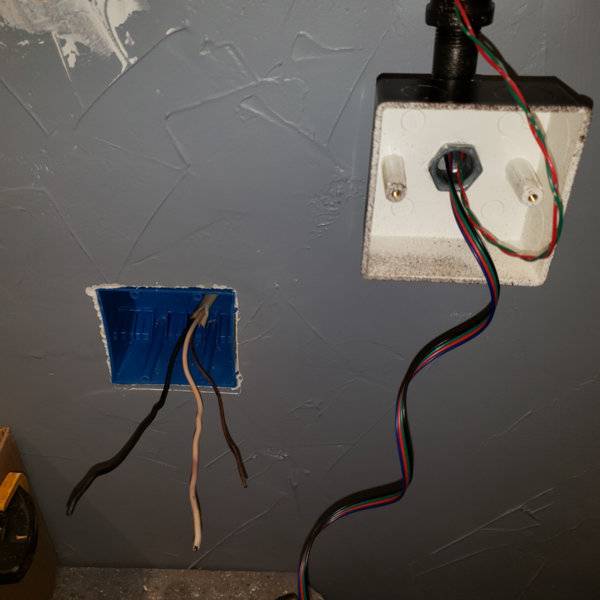

                                Wanted to make the electrical box ( see hole in the wall - bottom screen ) to also be black pipe and metal box, but thought that it would be WAY too much black pipe - so it, instead, got run inside the wall - will get the box i the wall, the dual outlets in place ( GFI ), and get it tied into the electrical system up in the attic . . .

                                • Like Like x 2
                                • Stanton

                                  Stanton Well-Known Member

                                  Messages:
                                  1,927
                                  Likes Received:
                                  1650
                                  Joined:
                                  Aug 8, 2012
                                  Location:
                                  ON
                                  Local Time:
                                  8:54 AM
                                  I think washing up in that tub will prove to be a pain in the ass in a very short time. The angle is not user-friendly. Otherwise I love it. Not my style but very cool none-the-less.

                                  • Thanks! Thanks! x 1
                                  • mopar 3 B

                                    mopar 3 B Well-Known Member

                                    Messages:
                                    8,713
                                    Likes Received:
                                    6091
                                    Joined:
                                    Aug 25, 2014
                                    Location:
                                    Kingsville, MO
                                    Local Time:
                                    7:54 AM
                                    Not sure about your area but will the tub pass code without an overflow drain?

                                    • Thanks! Thanks! x 1
                                    • conv67bdere

                                      conv67bdere Super Moderator Staff Member FBBO Gold Member

                                      Messages:
                                      6,635
                                      Likes Received:
                                      10136
                                      Joined:
                                      Aug 18, 2013
                                      Location:
                                      Concord, NC
                                      Local Time:
                                      8:54 AM
                                      It is in the guest bath, and if it turns out to be more a pain then it's worth, it can be torn out and done over again . . .


                                      Been fighting with that idea too . . . and trying to figure out what to do - got an idea ( or 2 ) to remedy that . . . but look at the counter tops bowls that you can get at the local home supply stores ( they don't have the drain either )



                                      Still trying to decide what to do about that ( do want to add "something" . . . to be safe )

                                      • Agree Agree x 1
                                      • conv67bdere

                                        conv67bdere Super Moderator Staff Member FBBO Gold Member

                                        Messages:
                                        6,635
                                        Likes Received:
                                        10136
                                        Joined:
                                        Aug 18, 2013
                                        Location:
                                        Concord, NC
                                        Local Time:
                                        8:54 AM
                                        Had a good day . . . had the day off for the holiday . . . and made some big progress on the bathroom project . . .

                                        Getting tired of climbing up and down from the attic, but got the wired fed through the black pipe up into the attic . . .


                                        And in the box, plus the box for the receptacles in the wall too . . .


                                        This control panel will be used for driving the color options for the lights ( the remote they had was junk )


                                        Test the light and the connections . . . first time they did not work ? ? Try, try, again . . .


                                        Building the box up on the ceiling for the LED lights . . .


                                        Little closer look at the box that is being built . . .

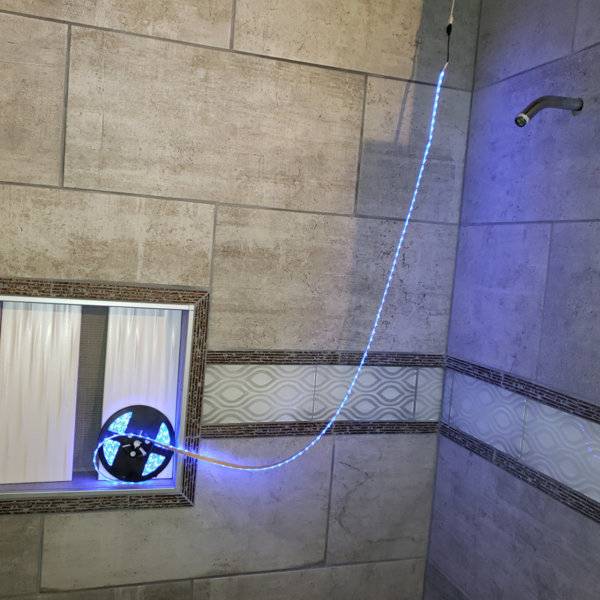

                                        Strung the light up - the tape was not so good, so zip-ties to the rescue ! ! !

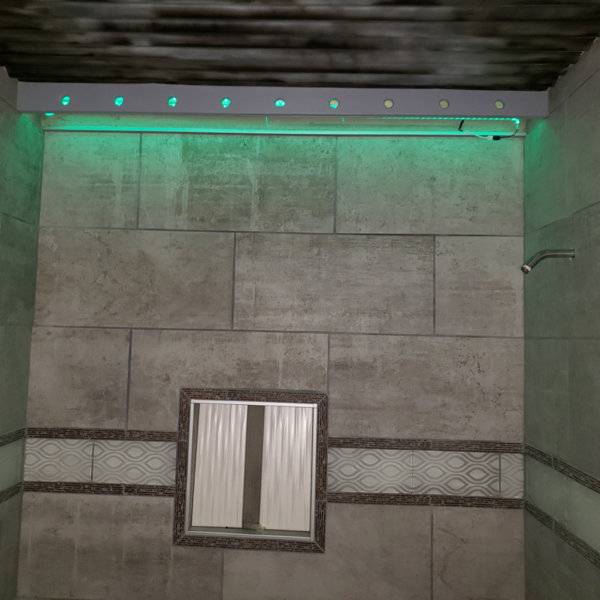

                                        Still got the plexy to put up the hide the light . . . but this is the "look" that it will achieve . . .


                                        Glad to have some of this stuff done . . . finally . . . so I can get this job off the list . . .

                                        • Like Like x 3
                                        1. This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
                                          By continuing to use this site, you are consenting to our use of cookies.
