Pinion angle help

F4R/T

Well-Known Member
Local time
3:29 AM
Joined
Jun 17, 2020
Messages
2,537
Reaction score
3,586
Location
Illinois
Phasing was something you worry about when you have multiple shafts in line to make sure each one cancels out the other. If I’m not mistaken.


VANDAN

FBBO Gold Member
FBBO Gold Member
Local time
4:29 AM
Joined
May 27, 2011
Messages
4,248
Reaction score
7,865
Location
Western NY
Mine is nuetral now, after assembly, so I was told to add 3* shim, at axle plates, for proper opinion angle. Any comments ? Thanks


RemCharger

Well-Known Member
Local time
3:29 AM
Joined
Apr 5, 2014
Messages
3,865
Reaction score
3,609
Location
Sask
Phasing was something you worry about when you have multiple shafts in line to make sure each one cancels out the other. If I’m not mistaken.
Correct. The only way to "un phase " a one piece driveshaft is to cut an end off and weld it back on incorrectly .


69 Sleeper Bee

Well-Known Member
Local time
4:29 AM
Joined
Feb 18, 2021
Messages
4,475
Reaction score
18,433
Location
Tallahassee Florida
took lowering blocks out, vibration still there
Are you saying you put it back exactly the way it was when you found it when the tail end was too high ?
I see you said it had helper springs which would have been added and you put them back in ?
Got any pictures of your trans. mount ?
More pictures the better of all mounts.


Lefty71

FBBO Gold Member
FBBO Gold Member
Local time
4:29 AM
Joined
Mar 8, 2018
Messages
2,869
Reaction score
3,113
Location
Ohio
took lowering blocks out, vibration still there
Lot of possibilities, hard to diagnose over the net.... my gut says take a hard look at the front yoke. Also, no rust or damage with the rear yoke? May have to pull the rear ujoint to look.


furyus

Well-Known Member
Local time
4:29 AM
Joined
Jan 5, 2010
Messages
1,703
Reaction score
1,070
Location
weeki wachee, florida
First, does it vibrate when in neutral, or park? If so, you're looking in the wrong place.
If it does not vibrate in park, as was already said, download the tremec app. I used it on my truck, and it worked awesome.
Unless the car was seriously screwed with, the trans angle should be fine.


INTMD8

Well-Known Member
Local time
3:29 AM
Joined
Apr 17, 2017
Messages
486
Reaction score
522
Location
Lake Villa IL
Appears you are taking measurements and running it on jack stands that are on the chassis and not the rear end.

Correct?

I would put jack stands under rear end and front k-member or control arms and re-check angles as it sits when driven.

It may have been mentioned but are the u-joints very smooth to rotate?

Many times after replacement and install of retaining clips you need to tap the caps back out so they aren't binding on the center cross.

Also, of course make sure they are the right size/tight fitment and proper clips to tightly locate it in the yoke.


olblue68

Member
Local time
4:29 AM
Joined
Jun 24, 2022
Messages
15
Reaction score
13
Location
concord
Are you saying you put it back exactly the way it was when you found it when the tail end was too high ?
I see you said it had helper springs which would have been added and you put them back in ?
Got any pictures of your trans. mount ?
More pictures the better of all mounts.
didn't reinstall helpers so it still sits a little lower, I find it hard to believe it is off now but vibration is still same so I guess it is

I will take some pics


olblue68

Member
Local time
4:29 AM
Joined
Jun 24, 2022
Messages
15
Reaction score
13
Location
concord
Appears you are taking measurements and running it on jack stands that are on the chassis and not the rear end.

Correct?

I would put jack stands under rear end and front k-member or control arms and re-check angles as it sits when driven.

It may have been mentioned but are the u-joints very smooth to rotate?

Many times after replacement and install of retaining clips you need to tap the caps back out so they aren't binding on the center cross.

Also, of course make sure they are the right size/tight fitment and proper clips to tightly locate it in the yoke.
everything is good with u joints, the vibration is the same as with the old driveshaft


olblue68

Member
Local time
4:29 AM
Joined
Jun 24, 2022
Messages
15
Reaction score
13
Location
concord
First, does it vibrate when in neutral, or park? If so, you're looking in the wrong place.
If it does not vibrate in park, as was already said, download the tremec app. I used it on my truck, and it worked awesome.
Unless the car was seriously screwed with, the trans angle should be fine.
will try the app


747mopar

Well-Known Member
Local time
3:29 AM
Joined
Oct 30, 2012
Messages
13,683
Reaction score
18,778
Location
ohio
What do you mean by "phased correctly"? Flip it 180 in the pinion yoke I am guessing? I have never heard anybody having to do that with a balanced driveshaft.
The yokes have to be perfectly inline on a driveshaft, not something you can change without cutting the yokes off but it will cause major problems. Watch the video that I posted below, phasing it's at the end of the video.

Last edited:

747mopar

Well-Known Member
Local time
3:29 AM
Joined
Oct 30, 2012
Messages
13,683
Reaction score
18,778
Location
ohio
I fought this, tried all of the recommended angles with no luck. There is no absolute angle because not every spring behaves the same for instance a weak spring will climb more under acceleration than a stiff spring so the best thing you can do is understand what's going on and adjust accordingly. Some tests while driving it will point you in the right direction, get the car up to speed where the vibration occurs then get on the gas hard, next do the same only let off the gas.. if the vibration lessons while on the gas shim the nose up and if it lessons while coasting shim down. Although that sounds simple this gives you no idea how much you need to shim, it took me a couple tries shimming more and more but it did correct the issue. In my case a suspect the aftermarket springs are just to soft or possibly bent incorrectly throwing the angle off?


747mopar

Well-Known Member
Local time
3:29 AM
Joined
Oct 30, 2012
Messages
13,683
Reaction score
18,778
Location
ohio
I've posted this video before but it gives you a really good look at what all goes into a smooth running driveshaft.



olblue68

Member
Local time
4:29 AM
Joined
Jun 24, 2022
Messages
15
Reaction score
13
Location
concord

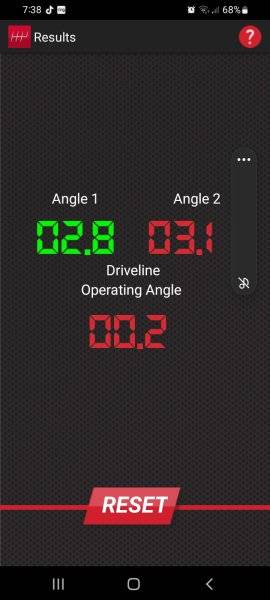

Here are the numbers



beanhead

Well-Known Member
Local time
1:29 AM
Joined
May 18, 2014
Messages
7,746
Reaction score
14,723
Location
Wackyfornia
If the transmission is pointing up 3°...
I'd be correcting this before addressing the rear. I'd want to get the transmission shaft centerline pointing down at least a half a degree, then go from there.


beanhead

Well-Known Member
Local time
1:29 AM
Joined
May 18, 2014
Messages
7,746
Reaction score
14,723
Location
Wackyfornia
Okay I see I mis-read what you stated in the first post...so then it's easy. Do whatever you need to do to get the pinion to point down approximately 1 degree at rest. The factory perch locations *should* allow this with no problem. We want the angles parallel and opposite under power, but in the real world as long as they're close to that it won't cause problems.
