Rear brake line help

Brakes, Steering & Suspension

  1. greenmachine

    greenmachine Well-Known Member

    Messages:
    638
    Likes Received:
    261
    Joined:
    Jul 23, 2012
    Location:
    portland
    Local Time:
    1:16 PM

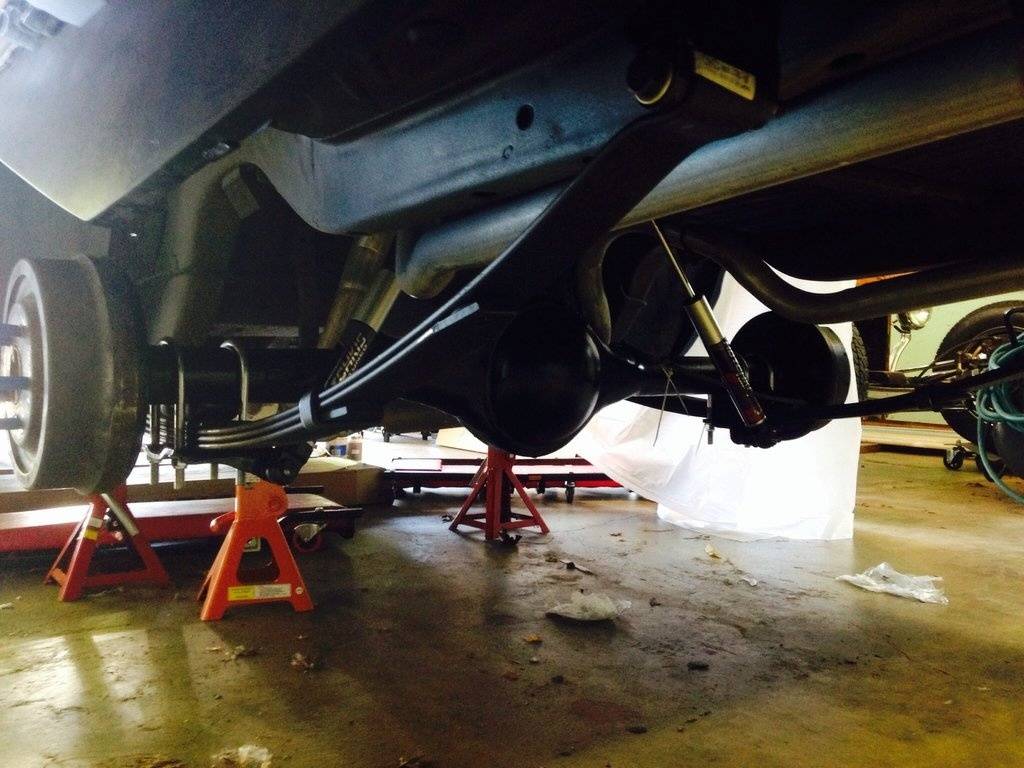

    image.jpg Hey guys. I have reinstalled my rear suspension/rear end. All hotchkiss. I'm having issue with how the rear brake lines are routed. I've found some pics on google/here. It looks like a short rubber hose from a bracket that attaches to the steel line going to the front. Does the hose just run to a distrubition block then split for left/right rear brakes? Here's a pic of progress.

  2. 1967coronet440

    1967coronet440 Well-Known Member

    Messages:
    6,864
    Likes Received:
    9530
    Joined:
    Oct 26, 2016
    Location:
    Indiana
    Local Time:
    3:16 PM
    Exactly, my 67 went from solid line that runs up to the front, to the bracket you mentioned a flex hose there running to the distribution block then solid lines to both sides

    • Agree Agree x 3
    • Riverdawg

      Riverdawg FBBO Gold Member FBBO Gold Member

      Messages:
      3,016
      Likes Received:
      2664
      Joined:
      Mar 29, 2013
      Location:
      Michigan
      Local Time:
      4:16 PM
      Looking good. That's how my 65 is too.

    • mr. b

      mr. b Well-Known Member

      Messages:
      3,707
      Likes Received:
      1145
      Joined:
      May 5, 2011
      Location:
      jeannette pa
      Local Time:
      4:16 PM
      mine is the same way nice work looks great

    • Aarons Air

      Aarons Air Well-Known Member

      Messages:
      1,779
      Likes Received:
      2319
      Joined:
      Dec 8, 2016
      Location:
      Dayton ohio
      Local Time:
      4:16 PM
      If you buy pre bent lines for the rear axle, pay attention to where the brass block/ vent is located on the axle housing. Some years are close to the center. Some are further out on the tube. I learned the hard way. Lol.

      • Agree Agree x 1
      • PurpleBeeper

        PurpleBeeper Well-Known Member

        Messages:
        4,528
        Likes Received:
        3284
        Joined:
        Mar 20, 2011
        Location:
        Chicago
        Local Time:
        3:16 PM
        Aaron is correct. I ran into this on my 8-3/4". There are two very slightly different distribution block locations....maybe 3"-4" different location which makes the solid brake lines on the axle itself a little longer on one & a little shorter on the other, depending on where your distribution block is located.

        IF you find that your lines aren't the correct ones vs. your distribution block, send me a picture of the lines laying on the rear end with your distribution block showing how the lines aren't exactly right. I have an extra set of 8-3/4" axle brake lines (the ones that were wrong for my car) and if they happen to be the ones YOU need, I'd give them to you free if you pay the shipping.

        • Like Like x 1
        • Aarons Air

          Aarons Air Well-Known Member

          Messages:
          1,779
          Likes Received:
          2319
          Joined:
          Dec 8, 2016
          Location:
          Dayton ohio
          Local Time:
          4:16 PM
          According to a small note in Classics catalog, 66-69 was close to center. 70 & later was further out on the axle tube.
          If anyone has ever done an axle swap, it could be a problem.
          I paid big bucks for what i thought was a 68 rear end. I restored it all. Tracked down the correct brake hardware etc. Then found out it was a 70 or later axle.

        • Aarons Air

          Aarons Air Well-Known Member

          Messages:
          1,779
          Likes Received:
          2319
          Joined:
          Dec 8, 2016
          Location:
          Dayton ohio
          Local Time:
          4:16 PM
          I still need the lines. If hes not interested i'd be willing to buy them. My block/ vent is the one furher out on the tube. Thx

        • greenmachine

          greenmachine Well-Known Member

          Messages:
          638
          Likes Received:
          261
          Joined:
          Jul 23, 2012
          Location:
          portland
          Local Time:
          1:16 PM
          I am missing the lines and distribution block. I can measure and show pics where the axle vent is. I was told this is a 69 charger rear end. I appreciate the help. Can I purchase a distribution block new? I have wildcat auto close buy also if not. Purple beeper I will figure out this week what I have and get back to you on those lines. That's an awesome offer. Thank you. One step closer!

        • PurpleBeeper

          PurpleBeeper Well-Known Member

          Messages:
          4,528
          Likes Received:
          3284
          Joined:
          Mar 20, 2011
          Location:
          Chicago
          Local Time:
          3:16 PM
          Here's a pic I found online

          Looks like the distribution block bolts to the housing. The "other" version bolts up the same way, but the distribution block is a few inches closer to the "pumpkin" section, so the lines are different lengths (by a couple inches). This diagram calls it a "Tee"

        • greenmachine

          greenmachine Well-Known Member

          Messages:
          638
          Likes Received:
          261
          Joined:
          Jul 23, 2012
          Location:
          portland
          Local Time:
          1:16 PM
          I ordered everything from dr. Diff yesterday (hose, brass T, OEM pre bent lines and a full overhaul kit for the brakes. I appreciate all the help and will post pics as I get it assembled.
          Erik

          • Like Like x 1
          • greenmachine

            greenmachine Well-Known Member

            Messages:
            638
            Likes Received:
            261
            Joined:
            Jul 23, 2012
            Location:
            portland
            Local Time:
            1:16 PM
            Got the rear drums rebuilt today. Came out good. Almost took my eye out with a spring though. Whoops

          • greenmachine

            greenmachine Well-Known Member

            Messages:
            638
            Likes Received:
            261
            Joined:
            Jul 23, 2012
            Location:
            portland
            Local Time:
            1:16 PM
            Bled the brakes today! First system that works on the car since tear down! Woohoo. Now I jugs need to figure routing for E brake cable. Thanks for all the help guys!
