    A month or two ago I adjusted my torsion bars up some, pushing up and down on the front bumper like you are supposed to do.

    I pushed the vehicle in and out of the garage about ten times since, but never drove the car anywhere.

    Today I drove less than 5 miles to the gas station and back. The front tires were very noisy and they both got very warm quickly. Back home I noticed the vehicle was sitting an inch or two higher in the front than I had set it, and the camber had gone crazy. Too dark now to investigate further.

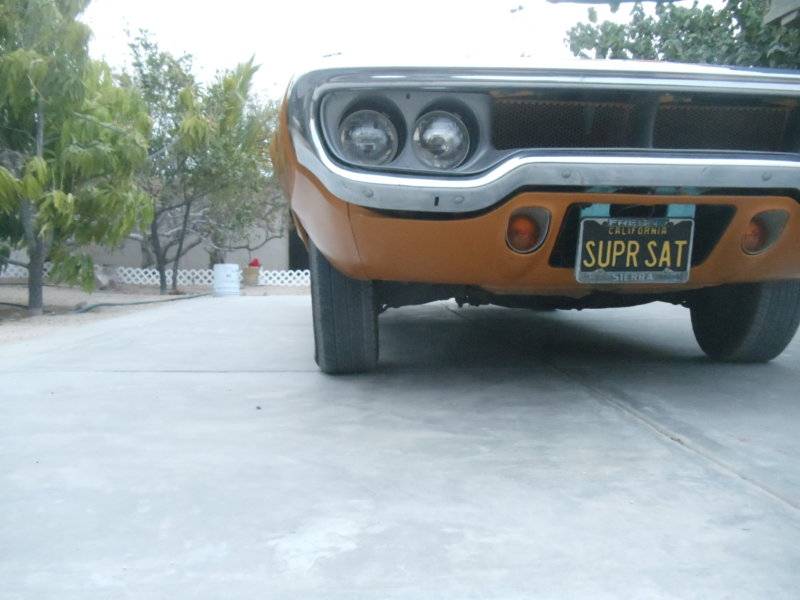

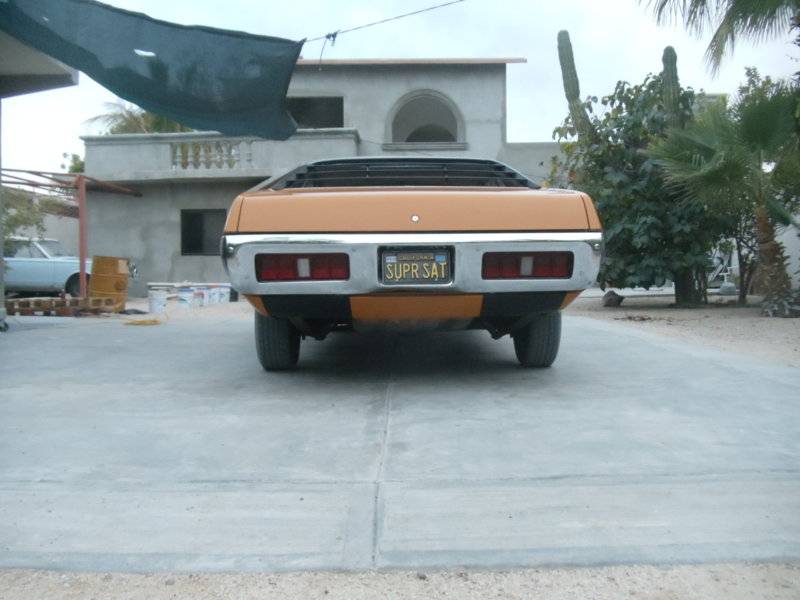

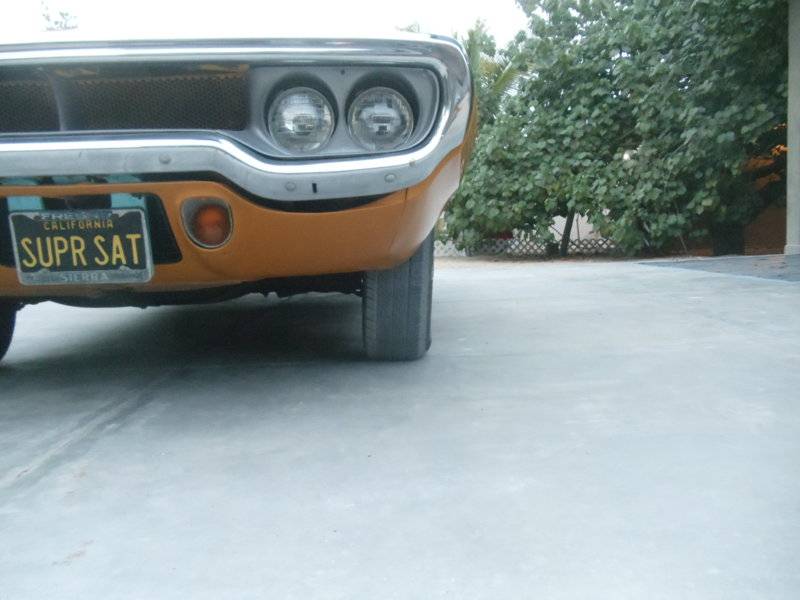

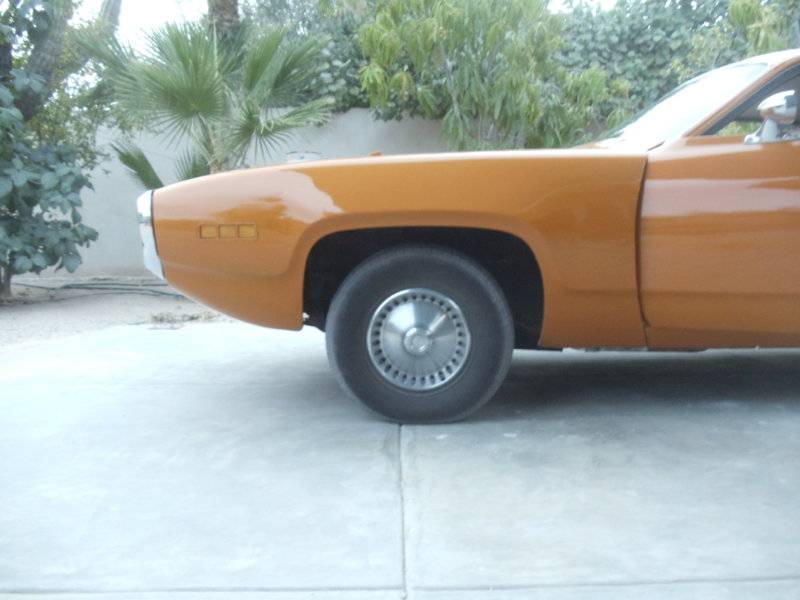

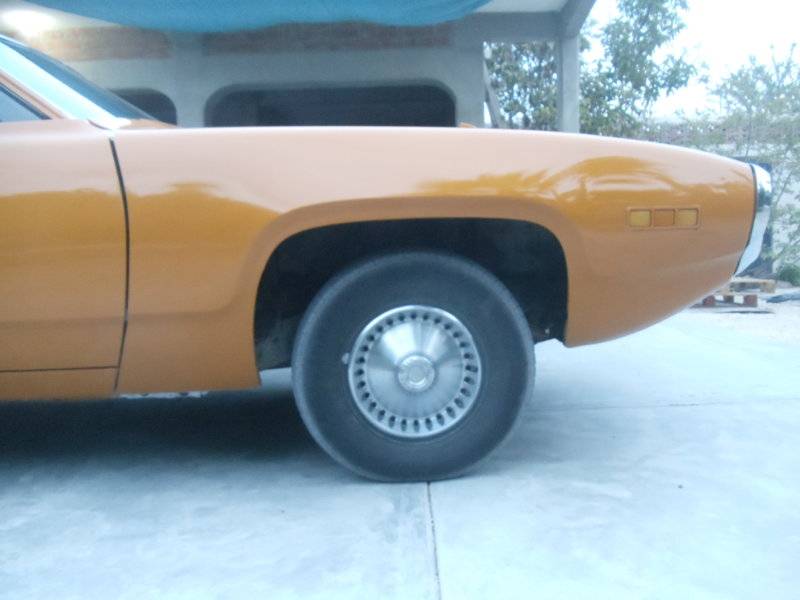

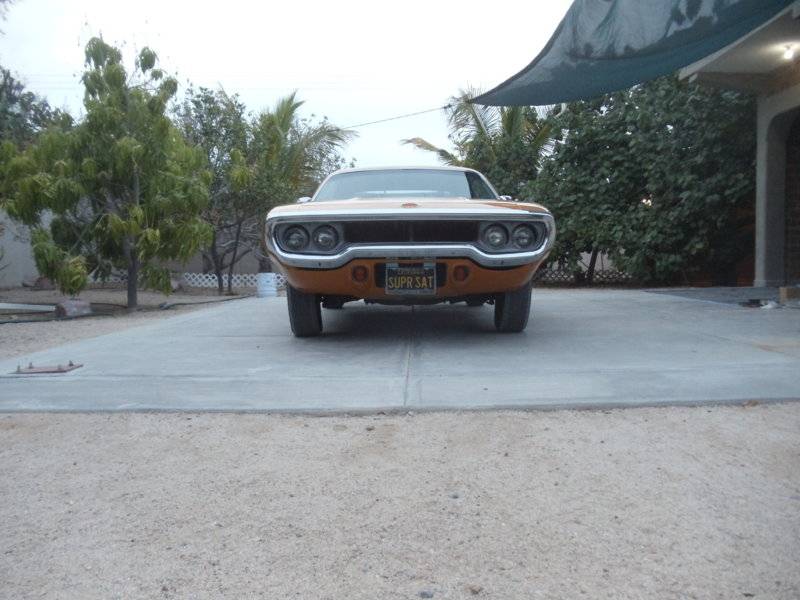

    DSC06080.JPG DSC06081.JPG DSC06082.JPG DSC06083.JPG DSC06084.JPG DSC06085.JPG

  2. khryslerkid

    khryslerkid Well-Known Member

    Messages:
    16,552
    Likes Received:
    22115
    Joined:
    Mar 10, 2010
    Location:
    Hanover, Pennslyvania
    Local Time:
    9:38 PM
    You can get by with a couple of turns of the adjustments if they are sagging from age. But cranking them much more than that will require a new alignment.

    • Agree Agree x 2
    • Disagree Disagree x 1
    • kiwigtx

      kiwigtx International Mod Staff Member FBBO Gold Member

      Messages:
      16,217
      Likes Received:
      26105
      Joined:
      Jun 12, 2012
      Location:
      Tomorrow, NZ
      Local Time:
      1:38 PM
      Screwing with the torsion bars throws the alignment out instantly. Scrubbing the tires out is going to happen.

      • Agree Agree x 3
      • MoparLeo

        MoparLeo NRA PATRON LEVEL LIFE MEMBER FBBO Gold Member

        Messages:
        483
        Likes Received:
        327
        Joined:
        Nov 24, 2015
        Location:
        Moreno Valley, So California
        Local Time:
        6:38 PM
        Camber And toe both change with a ride height change. The toe change is what really wears the tires. The procedure to do an alignment is to set the ride height first. Then set caster/camber. Lastly set the toe. Raise or lower the cars height and the whole alignment instantly goes out. The noise you heard was the squeeling of the tires scrubbing because the tires were towed in. Should be excessive wear on the out side edges of the tires.

        • Agree Agree x 3
        • Like Like x 2
        • Dibbons

          Dibbons Well-Known Member

          Messages:
          2,132
          Likes Received:
          1253
          Joined:
          Nov 29, 2014
          Location:
          La Paz, B.C.S., Mexico
          Local Time:
          7:38 PM
          Just read on another FBBO thread that when adjusting torsion bars, bouncing on the bumper is ineffective compared to rolling the vehicle. That would explain how and why my vehicle came home higher in the front (with a corresponding camber change) after my little drive down to the gas station. Actually, I did notice the change beginning (little by little) during the weeks I was rolling/pushing the vehicle in and out of the garage.

          Now I can lower it back down to where I wanted it and get the alignment checked.

          • Agree Agree x 1
          • kiwigtx

            kiwigtx International Mod Staff Member FBBO Gold Member

            Messages:
            16,217
            Likes Received:
            26105
            Joined:
            Jun 12, 2012
            Location:
            Tomorrow, NZ
            Local Time:
            1:38 PM
            That maybe true on solid ground, but most good Alignment shops use floating plates to align cars.

            • Agree Agree x 1
            • 91r/t

              91r/t FBBO Gold Member FBBO Gold Member

              Messages:
              1,244
              Likes Received:
              1303
              Joined:
              May 7, 2011
              Location:
              Buffalo, NY
              Local Time:
              8:38 PM
              I can attest to this as well. Do a turn or a couple turns then take it for a ride. It changes a lot more after being driven and everything settles rather than just bouncing the front end.
              :thumbsup:

              • Like Like x 1
              • Frank Mopar

                Frank Mopar Well-Known Member

                Messages:
                448
                Likes Received:
                687
                Joined:
                May 7, 2015
                Location:
                Buffalo, NY
                Local Time:
                9:38 PM
                You have the bounce the bumper and roll the car back and forth.

                You can also put garbage bags under the tires. Little trick we used setting up tractor trailer front ends.

                • Like Like x 2
                • Agree Agree x 1
                • 69L48Z27

                  69L48Z27 FBBO Gold Member FBBO Gold Member

                  Messages:
                  1,960
                  Likes Received:
                  1820
                  Joined:
                  Nov 19, 2015
                  Location:
                  York, Pa
                  Local Time:
                  9:38 PM
                  Unless you went like 20 rounds I can’t image it throwing it off that much. No idea how it was before. Make sure all your upper control hardware is tight. But it does look like you cranked the hell out of the front end. Run the adjusters out a bit and see what happens.

                  • Like Like x 1
                  • YY1

                    YY1 Well-Known Member

                    Messages:
                    12,615
                    Likes Received:
                    5229
                    Joined:
                    Jun 26, 2010
                    Location:
                    FL
                    Local Time:
                    9:38 PM
                    I was gonna say-

                    how many turns did you give it?

                    I've raised and/or lowered over an inch without markedly affecting the alignment.

                    I'll agree that driving it does allow it to totally settle in but jouncing should settle most of the change.

                    • Like Like x 2
                    • 400sforever

                      400sforever Well-Known Member

                      Messages:
                      217
                      Likes Received:
                      205
                      Joined:
                      Jan 1, 2015
                      Location:
                      iowa
                      Local Time:
                      8:38 PM
                      Nice satellite by the way!

                    • 70Bronco

                      70Bronco Well-Known Member

                      Messages:
                      181
                      Likes Received:
                      51
                      Joined:
                      Aug 27, 2015
                      Location:
                      Indiana
                      Local Time:
                      8:38 PM
                      I went through this last year. After adjusting torsion bars, start the car, put it in gear, drive backward and forward several feet (I think I moved about 20-30 feet). I did it twice for good measure. You have to give all of the moving suspension parts the opportunity to return to normal operating positions after it had been jacked up off the ground and adjusted:)

                    • Ron H

                      Ron H FBBO Gold Member FBBO Gold Member

                      Messages:
                      1,518
                      Likes Received:
                      1245
                      Joined:
                      Feb 29, 2016
                      Location:
                      WI
                      Local Time:
                      8:38 PM
                      Having done this on my '63 years ago with only doing a mild adjustment, found my tires were wearing unevenly and ended up getting it set at the preferred height at the alignment shop with some other front suspension parts replaced due to wear, then full alignment. This was after getting new tires and wheels and wanting to avoid undue wear with the cost of my new radial tires. While it's easy to play with the height with T-bars, my thought is better done with an alignment. Not knowing the overall condition of your front suspension, bushing condition, etc. that might a played into this, I'd think an alignment is a good idea looking at your tires...

                      • Agree Agree x 1
                      • YY1

                        YY1 Well-Known Member

                        Messages:
                        12,615
                        Likes Received:
                        5229
                        Joined:
                        Jun 26, 2010
                        Location:
                        FL
                        Local Time:
                        9:38 PM
                        Maybe this matters-

                        I usually don't adjust my t bars with the weight off of them!

                        I just get under there and turn them, without jacking up anything.

                        • Agree Agree x 2
                        • Thanks! Thanks! x 1
                        • 65wgn440

                          65wgn440 Well-Known Member

                          Messages:
                          332
                          Likes Received:
                          283
                          Joined:
                          Aug 16, 2016
                          Location:
                          Toledo, Ohio
                          Local Time:
                          9:38 PM
                          Take a real good look at your lower control arm bushings ! You say the front end rose after road test. Have seen this before and lower bushings were toast both times.

                          • Thanks! Thanks! x 2
                          • Like Like x 1
                          • hunt2elk

                            hunt2elk FBBO Gold Member FBBO Gold Member

                            Messages:
                            4,874
                            Likes Received:
                            2627
                            Joined:
                            Jul 15, 2009
                            Location:
                            WI
                            Local Time:
                            8:38 PM
                            I used to do it that way also, until I broke an adjuster cranking it up several years ago. Quite a shock and lucky I didnt get hurt. Learned my lesson though.

                            • Agree Agree x 1
                            • Dibbons

                              Dibbons Well-Known Member

                              Messages:
                              2,132
                              Likes Received:
                              1253
                              Joined:
                              Nov 29, 2014
                              Location:
                              La Paz, B.C.S., Mexico
                              Local Time:
                              7:38 PM
                              I think the factory service manual suggestion of simply bouncing on the bumpers was fine for factory fresh vehicles, but fifty years later a trip around the block is required after torsion bar adjustments.

                            • Cranky

                              Cranky Moderator Staff Member FBBO Gold Member

                              Messages:
                              17,302
                              Likes Received:
                              12365
                              Joined:
                              Dec 4, 2009
                              Location:
                              Pasa-getdown-dena Texas
                              Local Time:
                              8:38 PM
                              I've never bounced my cars up and down after a height change but did roll them several feet back and forth. Also, if the adjusters are lubed well, then you can turn them without jacking the front up but I usually jacked it up some....just not all the way up where the tires were off the ground.

                            • kiwigtx

                              kiwigtx International Mod Staff Member FBBO Gold Member

                              Messages:
                              16,217
                              Likes Received:
                              26105
                              Joined:
                              Jun 12, 2012
                              Location:
                              Tomorrow, NZ
                              Local Time:
                              1:38 PM
                              Thanks ...the term coined by Chrysler was 'jouncing' :thumbsup:

                              • Like Like x 1
                              • Thanks! Thanks! x 1
                              • Agree Agree x 1
                              • wahya

                                wahya Well-Known Member

                                Messages:
                                595
                                Likes Received:
                                369
                                Joined:
                                Dec 1, 2011
                                Location:
                                Florida
                                Local Time:
                                9:38 PM
                                About 7 years ago,I was just getting my 71 back on the road again after sitting for about 20 years in my garage. I had an alignment done and the car was very squirrely driving home. I pulled into a friends driveway a couple of days later and I noticed that the front end looked about the same as these pictures. I backed out and then back into the driveway and the wheels then were straight up and down. The front was still high and I took it back to the shop and had the front end lowered. The car drove well after that, but it was a bit low, almost on the bumpstops. I've raised the front end since, but I think I will go back and check those bushings.
