working on 71 superbee.

Member's Projects & Restorations

  1. polywideblock

    polywideblock FBBO Gold Member FBBO Gold Member

    Messages:
    19,637
    Likes Received:
    38742
    Joined:
    Jul 31, 2014
    Location:
    Newcastle AU
    Local Time:
    5:05 AM
    wow lots of work done ,starting to look like a car again . really coming along :)
    keep up the good work :thumbsup:

    sorry no help on the wheel wells, think they sealed it after assembly

  2. Charger72

    Charger72 Well-Known Member

    Messages:
    394
    Likes Received:
    227
    Joined:
    Mar 13, 2009
    Location:
    Oakville, Ontario, CANADA
    Local Time:
    3:05 PM
    Any tips you can share from your Dash resto?

  3. velrob

    velrob Well-Known Member

    Messages:
    531
    Likes Received:
    77
    Joined:
    Jan 15, 2016
    Location:
    toronto
    Local Time:
    3:05 PM
    Hmm i used the chrome tip pen from ebay for the edges otherwise if i had to spray paint that it would of been a disaster.

    i made my own lenses from plastic at home depot with a dremel and dremel stand. took me about 20 times before i got them to all fit. theyre rough around but you cant see the rough edges.

    i took apart the speedo gauge and applied decals on the tripometer and all the gauge faces

    i spray painted the wood grain with flat black matte paint

    i re-applied new gaskets and reused a few that werent included

    i used red ink kinda like nail polish to paint the needles flourescent red

    as for the dash cap i used plastic welder with fiberglass rods and then dash pad filler on top of that. im still not finished work in progress.

    if you need help with the items i can try to locate them if your looking for the gaskets or decals. if you need some details for any of the steps let me know.

    i did a bunch of research

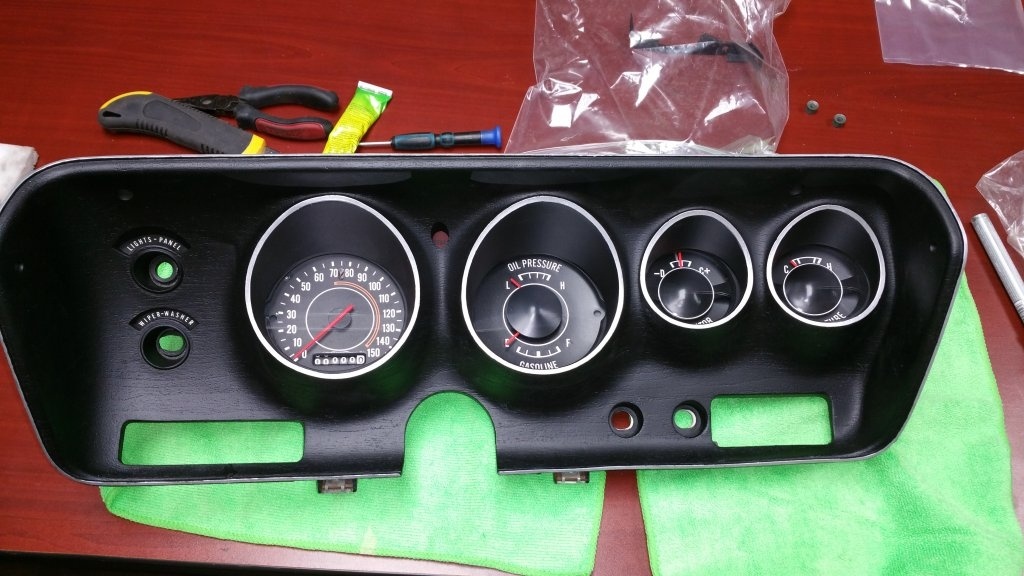

    here is the cluster


  4. Glenwood

    Glenwood Well-Known Member

    Messages:
    2,818
    Likes Received:
    2728
    Joined:
    Jun 19, 2015
    Location:
    Kawartha Lakes, Ontario
    Local Time:
    3:05 PM
    nicely done!

  5. CDN72SE

    CDN72SE Well-Known Member

    Messages:
    45
    Likes Received:
    39
    Joined:
    Apr 7, 2014
    Location:
    Oakville, ON, Canada
    Local Time:
    2:05 PM
    Thanks for the breakdown on the cluster and dash pad, looking good.

  6. velrob

    velrob Well-Known Member

    Messages:
    531
    Likes Received:
    77
    Joined:
    Jan 15, 2016
    Location:
    toronto
    Local Time:
    3:05 PM

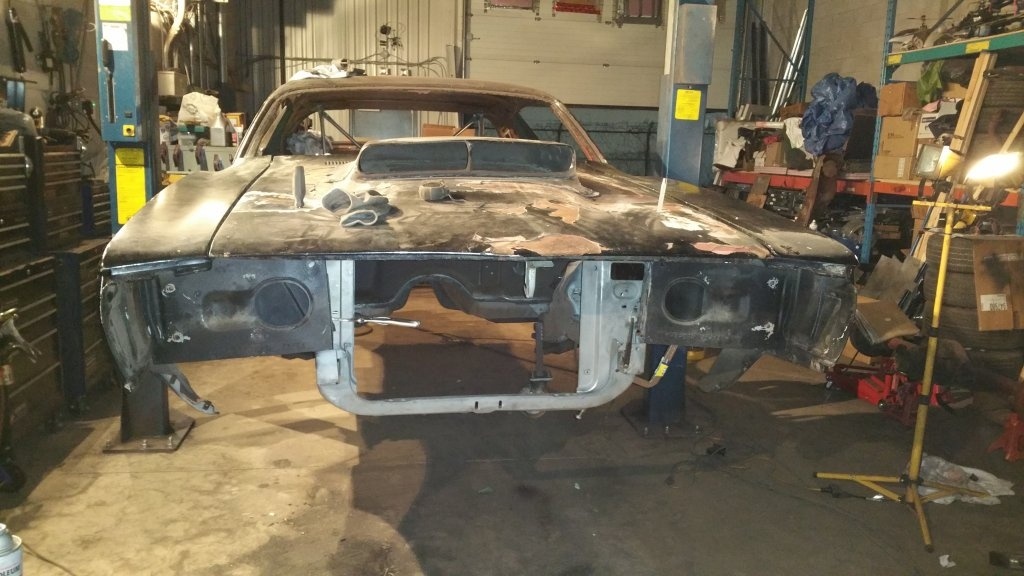

    last night till 5am we finally got the other fender on and fitted the fenders and hood

    seems to line up properly. was afraid these after market inner fenders would be off.

    i decided to order full quarters instead of the partial hand formed quarters. AMD finally received stock. was afraid there would be tons of warping and body work if i used the hand formed panels.

    front is about 95% completed then onto the back.

    • Like Like x 1
    • velrob

      velrob Well-Known Member

      Messages:
      531
      Likes Received:
      77
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      3:05 PM
      Anyone know what size bolts are used for hinges to inner fender?

    • nstyle73

      nstyle73 Well-Known Member

      Messages:
      389
      Likes Received:
      103
      Joined:
      Jan 17, 2012
      Location:
      Illinois
      Local Time:
      2:05 PM
      3/8" x 1 1/2" Dogpoint, well maybe 1 1/4", I would have to double check on that now that I think about it.

    • velrob

      velrob Well-Known Member

      Messages:
      531
      Likes Received:
      77
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      3:05 PM
      thanks alot

    • velrob

      velrob Well-Known Member

      Messages:
      531
      Likes Received:
      77
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      3:05 PM

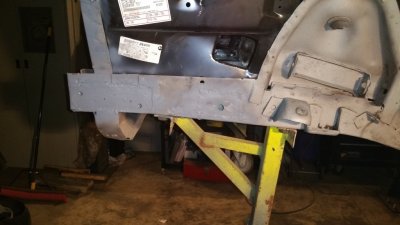

      can anyone tell me if the inner fender to firewall brace is supposed to have a space between the inner fender and the brace at the bottom? if i move the brace down the hole in the brace will be partially covered by the frame rail. not sure if i need to modify it and rebend it at the proper place or there should be a gap or its ok if part of the hole is covered?

      OAyddXT.jpg thanks!

    • velrob

      velrob Well-Known Member

      Messages:
      531
      Likes Received:
      77
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      3:05 PM

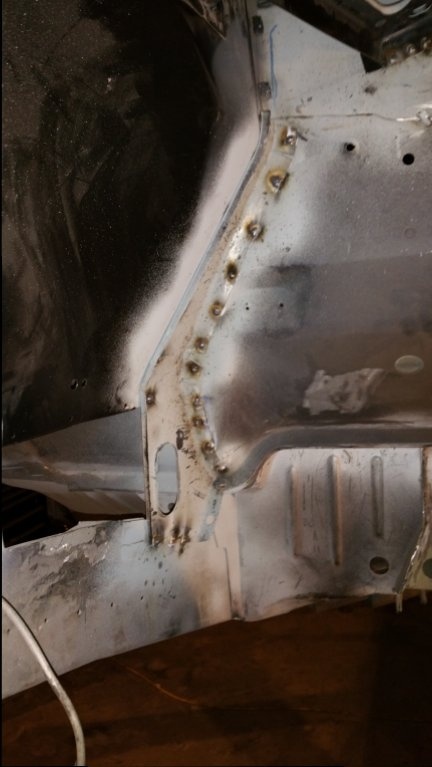

      welding inner fender supports on.

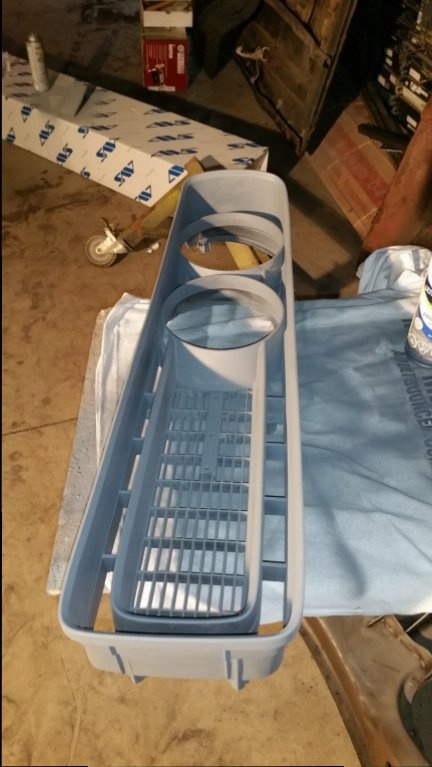

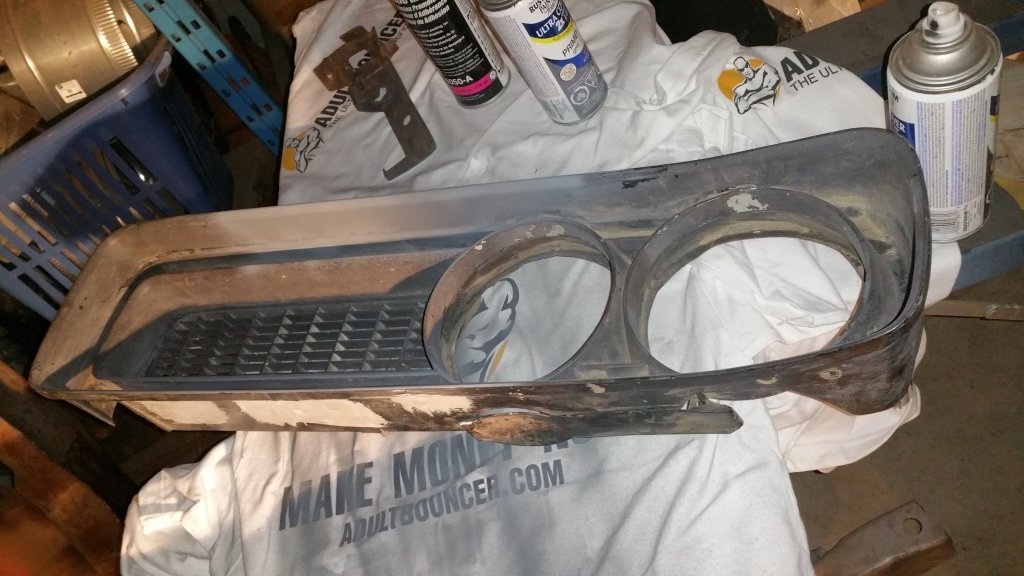

      also working on headlight grills. they were cracked and had holes. using plastifix glue + 2020 SMC sandable filler

      you can see the second one im working on and the grey one ive primed

      20160521_020256.jpg 20160527_120853.jpg 20160527_120804.jpg

    • velrob

      velrob Well-Known Member

      Messages:
      531
      Likes Received:
      77
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      3:05 PM

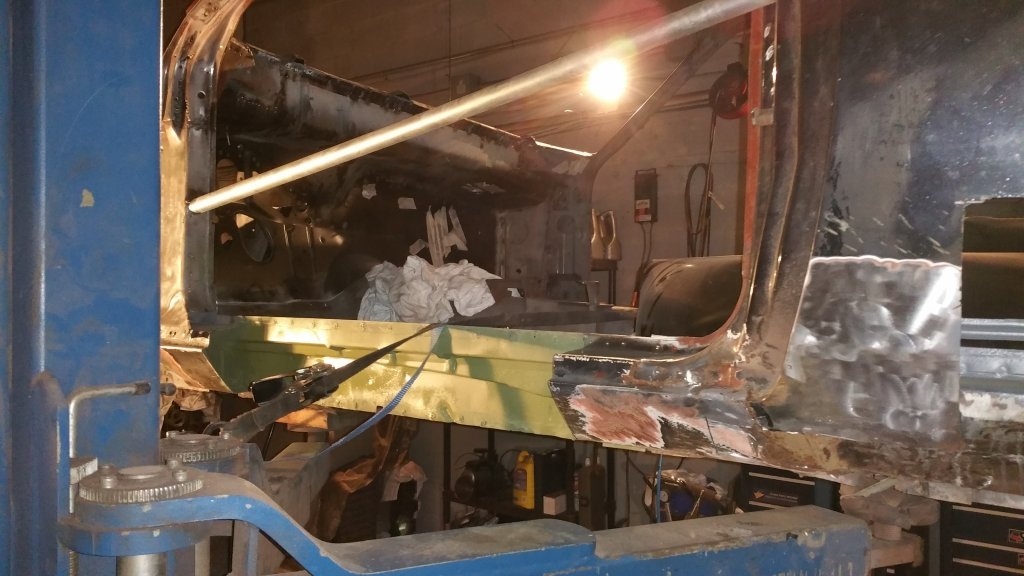

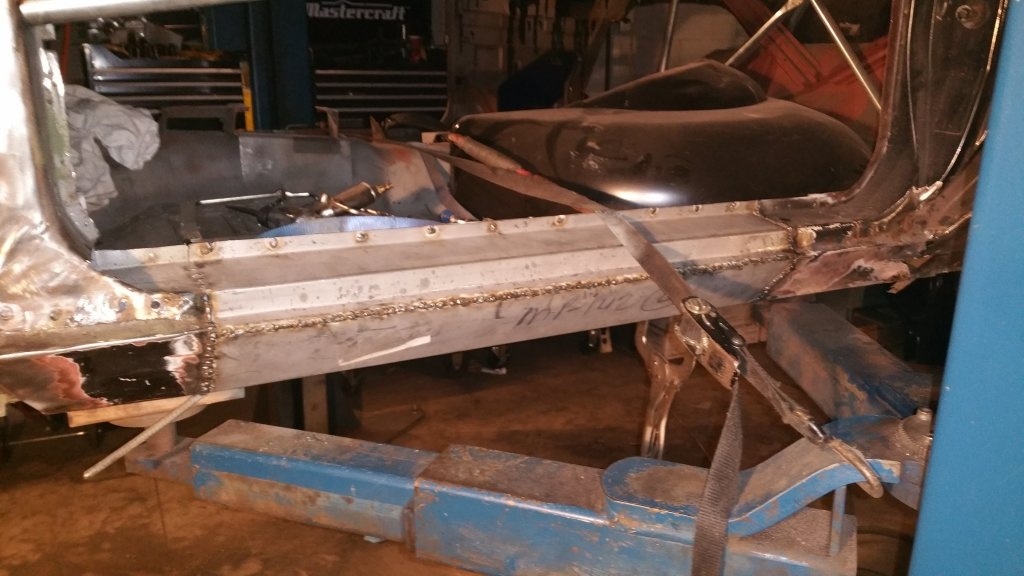

      working on driver rocker. have to use that hand formed crap since repo not avail. doesnt fit right its a slip on but i dont want that so im cutting it and trying to form it as original. :(

      anyone know if a challenger outer rocker would fit the charger?


    • velrob

      velrob Well-Known Member

      Messages:
      531
      Likes Received:
      77
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      3:05 PM
      yay that only took 5 hrs


    • velrob

      velrob Well-Known Member

      Messages:
      531
      Likes Received:
      77
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      3:05 PM

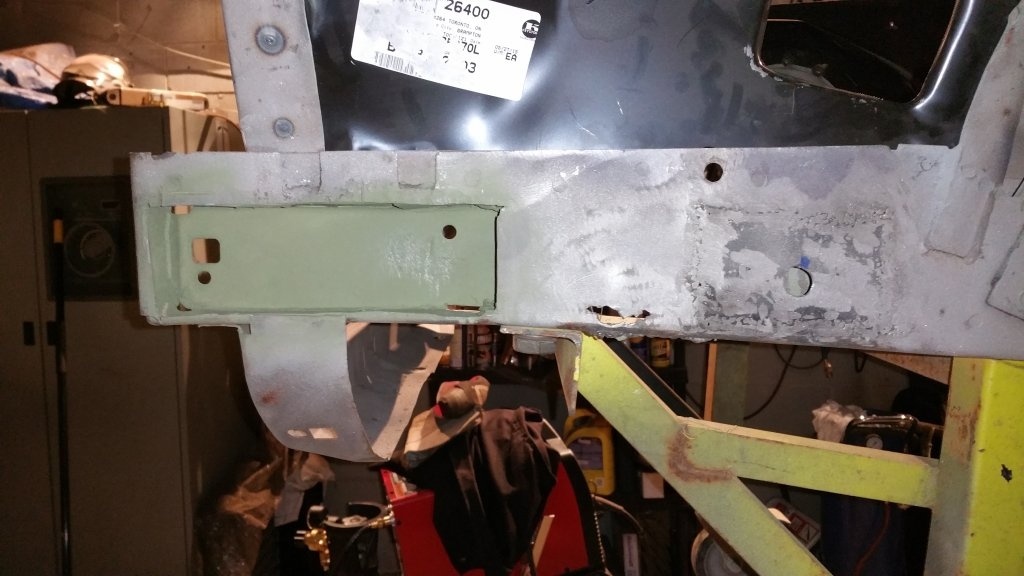

      repaired the frame rail had to make a bracket for the bumper bracket to mount onto

      20160605_031827.jpg 20160609_155637.jpg

    • charger360

      charger360 Well-Known Member

      Messages:
      555
      Likes Received:
      103
      Joined:
      Jan 7, 2012
      Location:
      kingston
      Local Time:
      2:05 PM
      Good work! i am doing pretty much the same steps you are on a customer car.

    • pat1969charger

      pat1969charger Well-Known Member

      Messages:
      214
      Likes Received:
      54
      Joined:
      Oct 11, 2014
      Location:
      Nova Scotia
      Local Time:
      3:05 PM
      The challenger rockers are shaped similar but are totally different. They are shorter, and smaller overall. I already researched this for my 73 charger. I did what you did just used the patch style ones and sectioned it in.

    • velrob

      velrob Well-Known Member

      Messages:
      531
      Likes Received:
      77
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      3:05 PM
      thx for the info. were the front and rear of your rockers rotted also?

    • threewood

      threewood FBBO Gold Member FBBO Gold Member

      Messages:
      4,180
      Likes Received:
      4878
      Joined:
      May 30, 2014
      Location:
      Yuma, AZ
      Local Time:
      12:05 PM
      Wow! Awesome project, progress looks good.

      Are you asking about the quarter window area behind the door jamb and in front of the wheel well? I coated everything on mine with rust bullet and then 3M seam sealer on the factory joints and weld beads I made on the rockers and outer wheel houses. I am also doing a partial quarter replacement, butt welded. I plan on going over the inside of the quarter weld seam with seam sealer, just rub it on with my finger as far back as I can get with my fat arm lol. But first, find and weld pin holes. Lights off in garage, put a light inside the trunk to see and mark them.

      Also, on my previous project I used All Metal filler over all weld seams and joints before final coating with regular filler. No issues with pop out or cracking. This stuff it suppose to be pretty tough.

    • velrob

      velrob Well-Known Member

      Messages:
      531
      Likes Received:
      77
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      3:05 PM
      I decided to buy the full quarters i guess i will keep the partial quarters i took off if i find another project car. i coated inside the window area with Por 15 silver i guess similar to rust bullet

      should i seam seal inside the window channel as well everywhere possible? how do you seam seal the rockers? not clear on that part. any picture?

      also i was test fitting the bumper and was going over the service manual as well. looks like the front should have 2 impact pads part of the fender. looks like my car didnt have them. did they come with all 3rd gen chargers? im guessing its similar or possibly same as the attached picture. any advice?

      thx


    • threewood

      threewood FBBO Gold Member FBBO Gold Member

      Messages:
      4,180
      Likes Received:
      4878
      Joined:
      May 30, 2014
      Location:
      Yuma, AZ
      Local Time:
      12:05 PM
      I put seam sealer on the welds I made in the inner rockers and where the rocker meets the wheel housing. Not a big deal as there are weep holes in the rockers to drain water. And the waves you see in the lower quarter flange is a feature as it allows water to exit out the flange.

      POR is the same type of stuff and can actually fill some pin holes.
