70 Accessory Fuse Box Non Fused Terminal

[mrmolding]

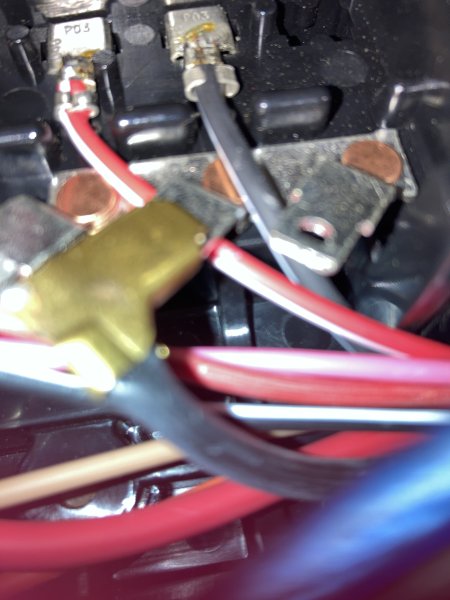

Wondering if this extra tab has power to connect an accessory. I see there is no corresponding top connection for a fuse. But wondering if this can be used with an inline fuse since it’s connected to the metal buss.
Thanks in advance!



[Kern Dog]

Sure...why not? Adding some type of inline fuse accomplishes the same protection as the fuse in the panel.



[mrmolding]

Sure...why not? Adding some type of inline fuse accomplishes the same protection as the fuse in the panel.

Thanks! Between radio, voltmeter, a/f gauge, and tach it’s getting a little crowded in there!



[Kern Dog]

I replaced the one in my '70 Charger.....

The stock 6 panel unit at the bottom was replaced with a 7 panel one I got from somewhere I don't recall.



[kiwigtx]

I replaced the one in my '70 Charger.....

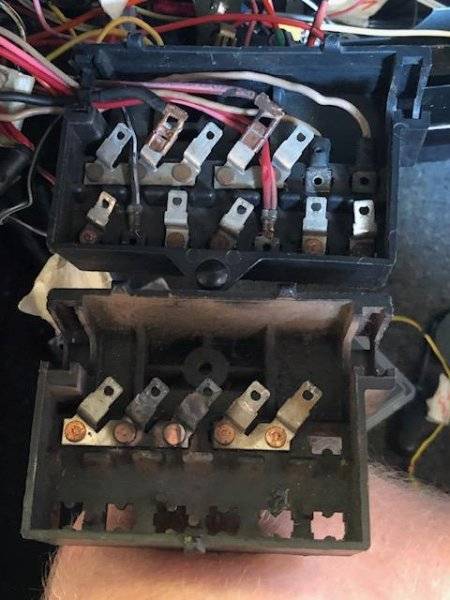

View attachment 1495511

The stock 6 panel unit at the bottom was replaced with a 7 panel one I got from somewhere I don't recall.

The bottom one is cooked anyway.....good job replacing it.



[Kern Dog]

Oh, there is a story with THAT one....an incident of my ineptitude with electrical systems that almost put the car into serious peril.
I finished with the Classic Auto Air installation and made a few other under-dash changes. In a moment of pure dumb-shittery, I found a loose wire and thought it was a ground. It was not at all. It ran to the fuse panel on one end and the spade near the cigarette lighter on the other. Because it was on the UNfused side of the fuse box, once the car started, it started to burn. I was able to stop an actual fire by ripping the fusible link apart underhood. I had to replace some melted wires and that 6 terminal fuse panel.
I learned from that one.



[mrmolding]

I replaced the one in my '70 Charger.....

View attachment 1495511

The stock 6 panel unit at the bottom was replaced with a 7 panel one I got from somewhere I don't recall.

Awesome idea! Thanks! Except for the actual reason you swapped it out. Trying not to replicate what happened to you. Just too many accessories. Each day is a new adventure!



[kiwigtx]

Oh, there is a story with THAT one....an incident of my ineptitude with electrical systems that almost put the car into serious peril.
I finished with the Classic Auto Air installation and made a few other under-dash changes. In a moment of pure dumb-shittery, I found a loose wire and thought it was a ground. It was not at all. It ran to the fuse panel on one end and the spade near the cigarette lighter on the other. Because it was on the UNfused side of the fuse box, once the car started, it started to burn. I was able to stop an actual fire by ripping the fusible link apart underhood. I had to replace some melted wires and that 6 terminal fuse panel.
I learned from that one.


View attachment 1495515

At least you own up to your mistakes Greg.

Half the work I struggle with is because people don't tell me what they did just prior to the machine breaking down...or whatever it is I'm repairing for them.
