A390 speed dodge 1975 trans oil

[67belvedere/225]

Anyone know what oil goes in a 3 speed manual transmission for 1975 dodge tradesmen
it was red coming out so i'm thinking atf , ???, i don t what to use
thanks



[493 Mike]

I'd stick with ATF, especially up North if you drive the van in the winter.
Mike



[67belvedere/225]

wont be winter driving this for sure
but is that what was in it originaly?



[VANDAN]

I still have the 3 spd from my '75 Tradesman, and the manual for it. I'll take a look for it when I get home today...



[VANDAN]

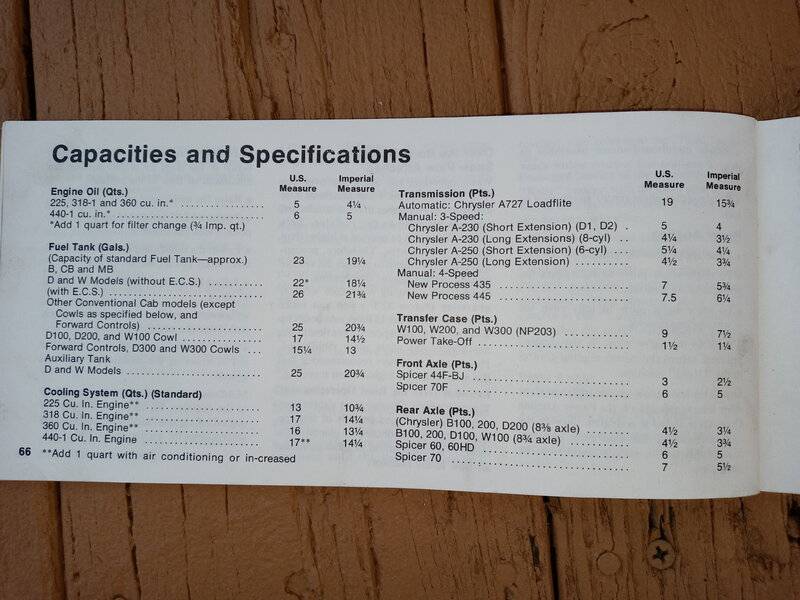

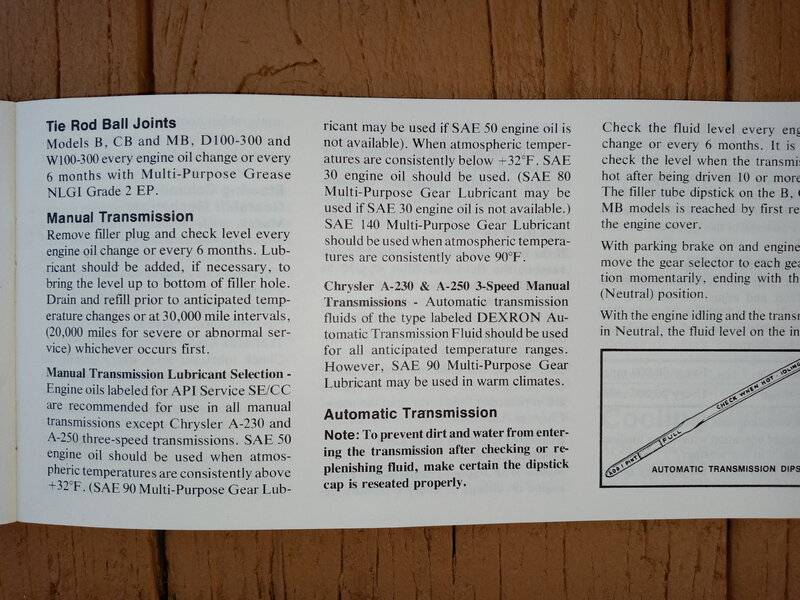

Here's those pics of the specs for your Tradesman, from the original manual.



[67belvedere/225]

thanks dan , if you could be so kind the alignement specs if you have them



[VANDAN]

67b, I'll look, but I don't think those will be in the Glovebox manual. Will let you know.



[67belvedere/225]

67b, I'll look, but I don't think those will be in the Glovebox manual. Will let you know.

thank dan



[67belvedere/225]

Parameter MIN spec Standard spec MAX spec
Front Total Toe 0.13 0.25
FL Toe 0.07 0.13
FR Toe 0.07 0.13
FL Camber 0 0.5
FR Camber 0 0.5
Rear Total Toe N/A N/A
RL Toe N/A N/A
RR Toe N/A N/A
RL Camber N/A N/A
RR Camber N/A N/A
Left Caster -0.5 1.5
Right Caster -0.5 1.5
Left SAI N/A N/A
Right SAI N/A N/A
Wheelbase
Front Track
found this on a site . 75 with manual steering



[khryslerkid]

I remember the first time I prepped/serviced a new Dodge with a three speed and found ATF. I thought it was some kind of a joke.

Removed a rear end cover on a new one and found no gasket, just black RTV. What?
