Bergman Supplied Saginaw Pulley, mounts which way?

Bergman Auto Craft

  1. MoparGuy68

    MoparGuy68 Well-Known Member

    Messages:
    550
    Likes Received:
    348
    Joined:
    Mar 31, 2019
    Location:
    Phoenix, AZ
    Local Time:
    7:08 AM

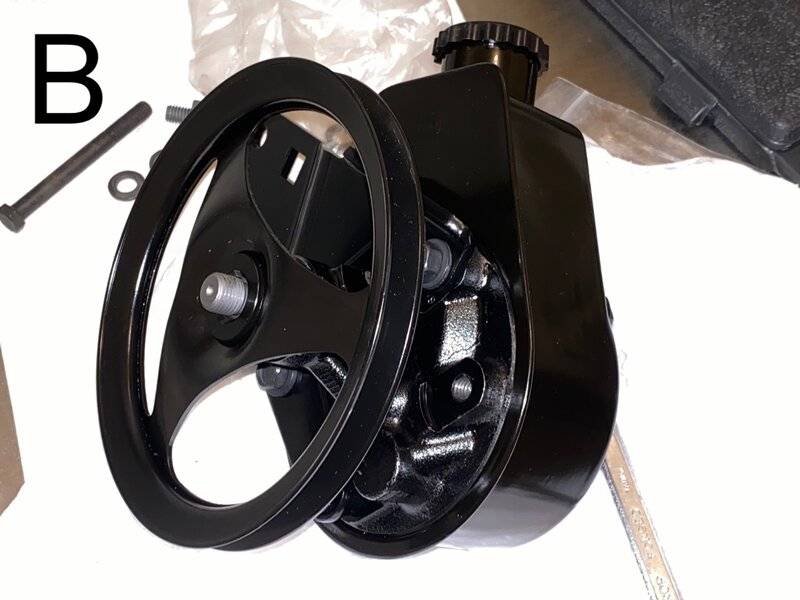

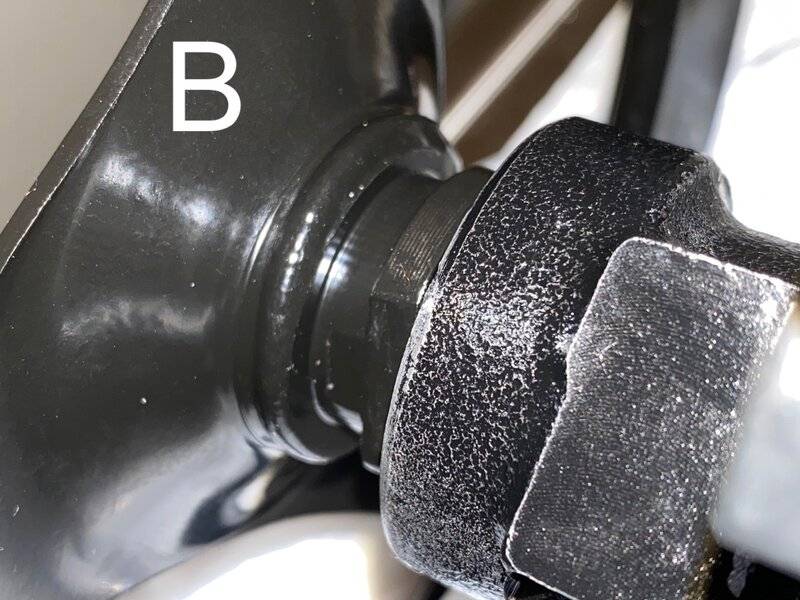

    Peter, I bought this Pulley and Pump from you. I'm not sure which way the pulley is intended to be mounted on the pump shaft. It is possible for me to mount it either of two ways shown in my photos. Which way is correct, the Photos labeled "A" or "B"? I'm guessing the correct way is "A". But I want your confirmation on whether that is correct or not.

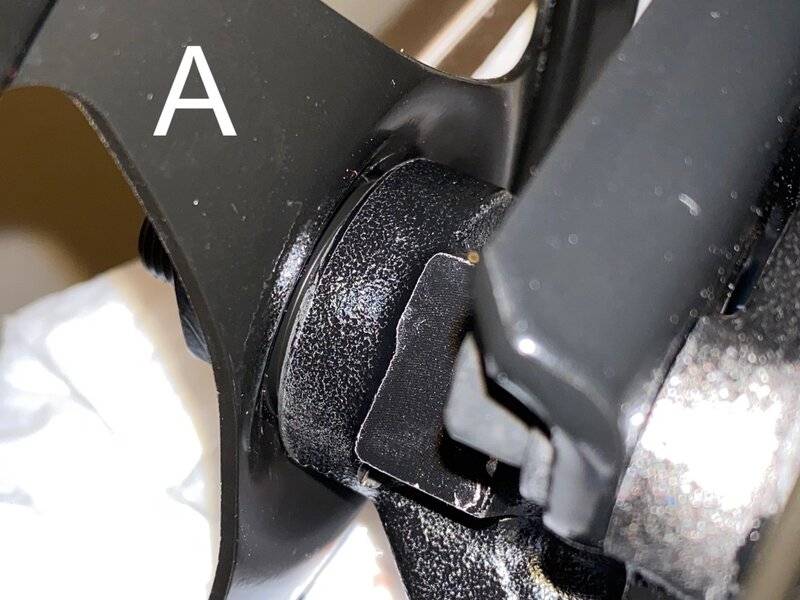

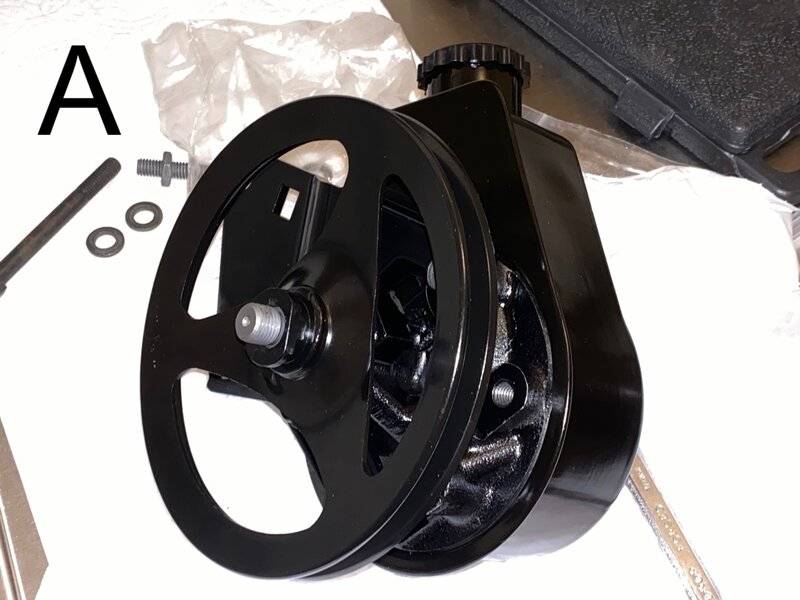

    MethodA_front.jpg MethodA_rear.jpg MethodB_front.jpg MethodB_rear.jpg

  2. Kern Dog

    Kern Dog FBBO Gold Member FBBO Gold Member

    Messages:
    20,988
    Likes Received:
    54541
    Joined:
    Apr 13, 2012
    Location:
    Granite Bay CA
    Local Time:
    7:08 AM
    It mounts where it aligns with the crankshaft pulley. Version A.
    Don't believe me? Mount the pump and then test fit the pulley to see if it aligns with the crank pulley.

    Thumb UP.JPG

  3. MoparGuy68

    MoparGuy68 Well-Known Member

    Messages:
    550
    Likes Received:
    348
    Joined:
    Mar 31, 2019
    Location:
    Phoenix, AZ
    Local Time:
    7:08 AM
    It's not quite aligning with my crankshaft pulley in either A or B, BUT it is closer to correct alignment with A. To get it to align perfectly I will probably need to use the studs that are already mounted to the Bergman pump, instead of the ones that came with his mounting bracket kit.

    • Like Like x 1
    • Kern Dog

      Kern Dog FBBO Gold Member FBBO Gold Member

      Messages:
      20,988
      Likes Received:
      54541
      Joined:
      Apr 13, 2012
      Location:
      Granite Bay CA
      Local Time:
      7:08 AM
      The studs you write of are used to mount the Y shaped bracket.

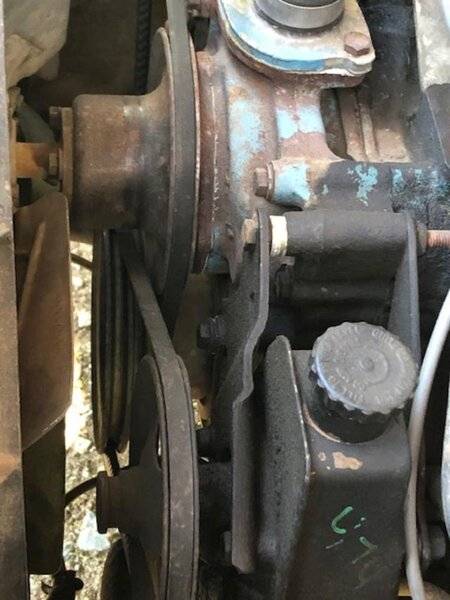

      Pulley 5.jpg

    • MoparGuy68

      MoparGuy68 Well-Known Member

      Messages:
      550
      Likes Received:
      348
      Joined:
      Mar 31, 2019
      Location:
      Phoenix, AZ
      Local Time:
      7:08 AM
      Yeah, the rear bracket. You should see the bizarre pulley to pump arrangement of the old Saginaw pump that was in this car when I got it. They had to use long spacers to attempt to line the pump pulley up to the crank pulley, and it was still misaligned (too far foward).

      • Like Like x 1
      • Mr Belvedere

        Mr Belvedere Well-Known Member

        Messages:
        73
        Likes Received:
        105
        Joined:
        Sep 30, 2012
        Location:
        Calgary
        Local Time:
        8:08 AM
        The studs on the pump might be metric, hence the other set. I forget why, but I did change them on mine.

        You may need to use spacers or washers to get the alignment right.

      • Suregrip391

        Suregrip391 Well-Known Member

        Messages:
        542
        Likes Received:
        168
        Joined:
        Dec 6, 2008
        Location:
        Niagara
        Local Time:
        10:08 AM
        A is correct, you want the part the pulley puller tool hooks up to facing out in the event you need to pull the pulley off.

      • MoparGuy68

        MoparGuy68 Well-Known Member

        Messages:
        550
        Likes Received:
        348
        Joined:
        Mar 31, 2019
        Location:
        Phoenix, AZ
        Local Time:
        7:08 AM

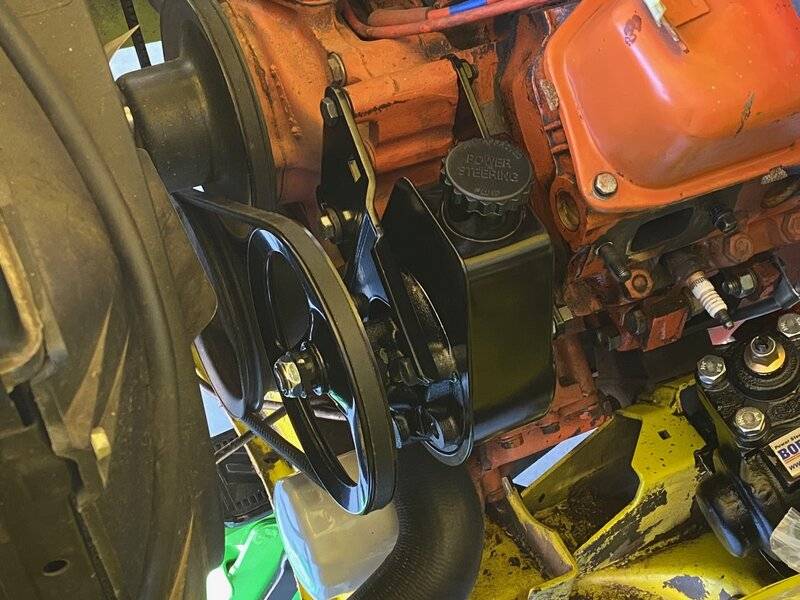

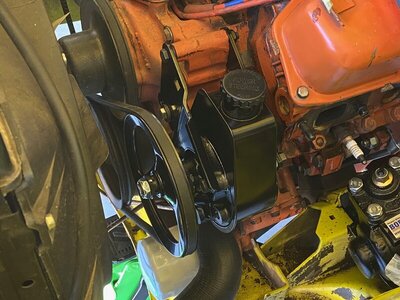

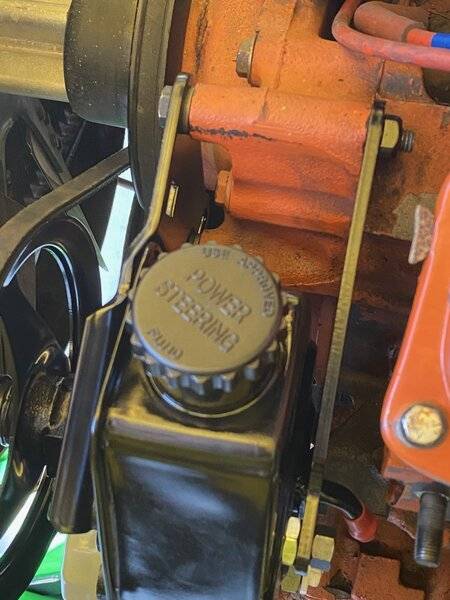

        I used the studs that were already on the pump. I did not use the studs that were included with the mounting bracket kit.. I did mount the pulley in orientation A shown at the beginning of this thread.

        If I had used the studs in the mounting bracket kit, the steering pulley would not have been aligned properly with the crankshaft pulley. In my test fitting it would have been positioned aft of the crankshaft pulley using the mounting bracket kit studs.

        I did have to add two of my own washers between the front mounting bracket and the water pump housing to get proper alignment.

        Compare with the pump that was on the car before I started the swap. It had long spacers between the front bracket and water pump housing. And the pump pulley was misaligned, being too far forward of the crankshaft pulley.

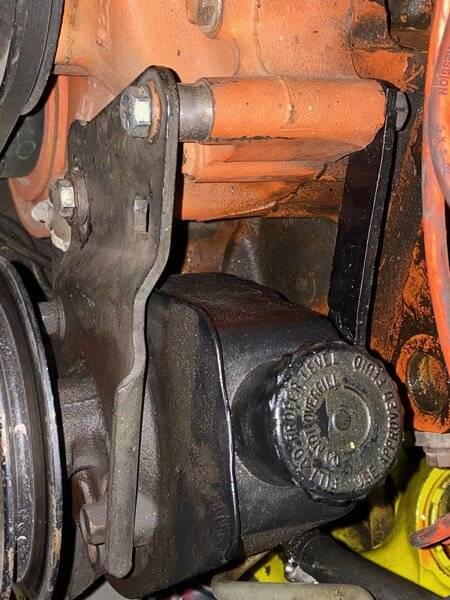

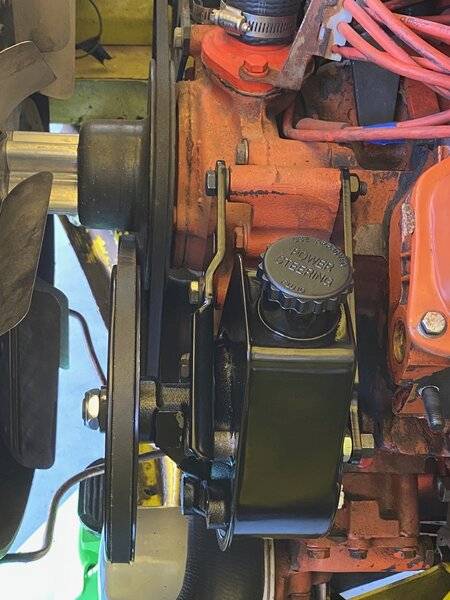

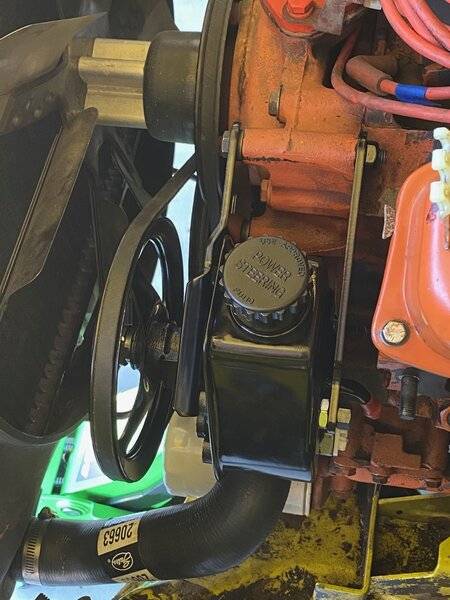

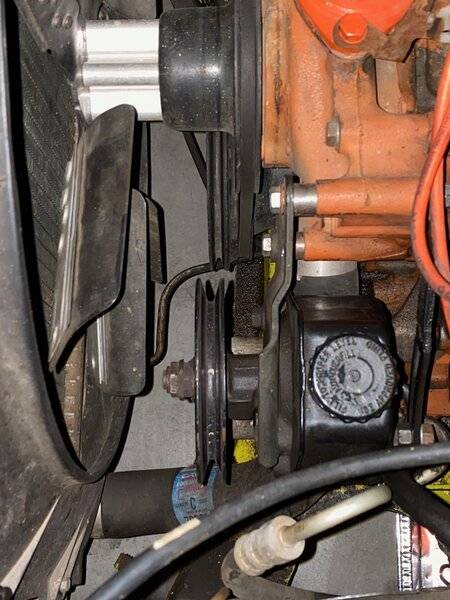

        IMG_2006.jpg IMG_2007.jpg IMG_2009.jpg IMG_2010.jpg IMG_1052.jpg IMG_1034.jpg

      • BergmanAutoCraft

        BergmanAutoCraft FBBO Vendor FBBO Sponsor

        Messages:
        37
        Likes Received:
        35
        Joined:
        Feb 18, 2013
        Location:
        Long Island, NY
        Local Time:
        10:08 AM
        Glad you have it worked out. Normally, the studs in the package with the brackets work best.
