bulk head connectors

Electrical & Ignition

  1. bearman

    bearman FBBO Gold Member FBBO Gold Member

    Messages:
    3,320
    Likes Received:
    2883
    Joined:
    Jan 9, 2018
    Location:
    Phoenix
    Local Time:
    2:21 AM
    what's the fix. after market have the same problem and is it from old age or a factory screw up. what's everybody fix i'm sure this has been address before i'm curious as everybody ups the alt and adds electronic everything but never them talk about changing the bulk head when they do this. everybody changes from ammeter to volt meter but uses the bulk head connector. which is a real problem to begin with. so curious of the fix to the bulk head problem

    • Thanks! Thanks! x 1
    • Robking

      Robking FBBO Gold Member FBBO Gold Member

      Messages:
      54
      Likes Received:
      52
      Joined:
      Sep 22, 2013
      Location:
      Raleigh, nc
      Local Time:
      5:21 AM
      • Thanks! Thanks! x 2
      • Like Like x 1
      • Glenwood

        Glenwood Well-Known Member

        Messages:
        2,819
        Likes Received:
        2732
        Joined:
        Jun 19, 2015
        Location:
        Kawartha Lakes, Ontario
        Local Time:
        5:21 AM
        I ran wiring directly through the firewall. The bulkhead spade connectors are not suited for higher currents if upgrading the charging system. They tend to overheat, corrode and become loose fitting, which I do not trust for the heavier power wiring.

        • Agree Agree x 4
        • Like Like x 1
        • Robking

          Robking FBBO Gold Member FBBO Gold Member

          Messages:
          54
          Likes Received:
          52
          Joined:
          Sep 22, 2013
          Location:
          Raleigh, nc
          Local Time:
          5:21 AM
          I'm getting ready to go that direction myself. The mad electrical suggestion of drilling out the bulk head connector and passing the wire through there bugs me for some reason. I'm also considering changing from fusible link to some sort of fuse holder on that connection.

        • bearman

          bearman FBBO Gold Member FBBO Gold Member

          Messages:
          3,320
          Likes Received:
          2883
          Joined:
          Jan 9, 2018
          Location:
          Phoenix
          Local Time:
          2:21 AM
          circuit breakers and relays for me.

          • Agree Agree x 2
          • Like Like x 1
          • 72RoadrunnerGTX

            72RoadrunnerGTX Well-Known Member

            Messages:
            1,151
            Likes Received:
            722
            Joined:
            Jan 14, 2009
            Location:
            Seattle, Washington
            Local Time:
            2:21 AM
            Not everyone blindly follows the full “Mad Electrical” approach. Read that article carefully, specifically states it addresses the late seventies Dodge truck plastic ammeters. The earlier passenger car ammeters don’t spontaneously combust. Start with by-passing the bulkhead connectors in the charging circuit. Add a hole in the firewall with a good grommet, run the wires directly to the ammeter.
            Inspect the ammeter connections for previous over-tightening and/or insulator damage.



            If the larger alternator and additional loads are added the vehicle, up-size the charging circuit wiring and fusible link.

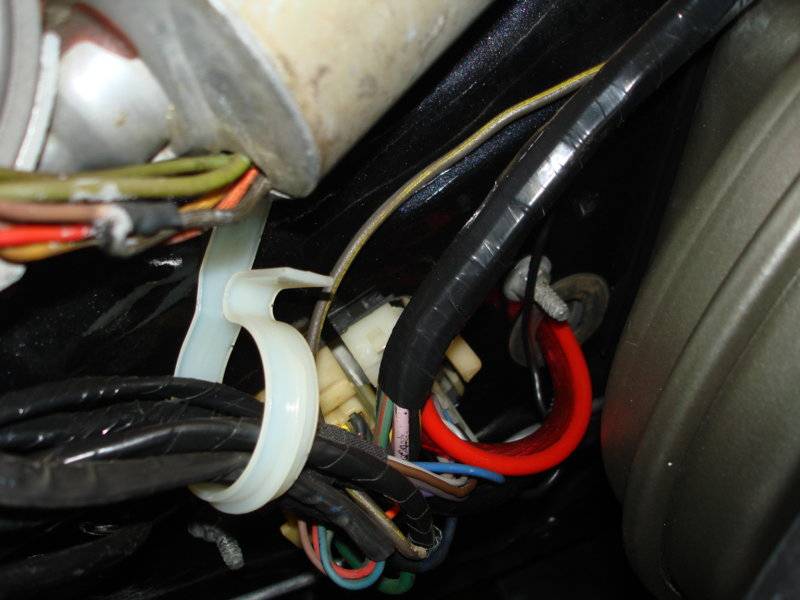

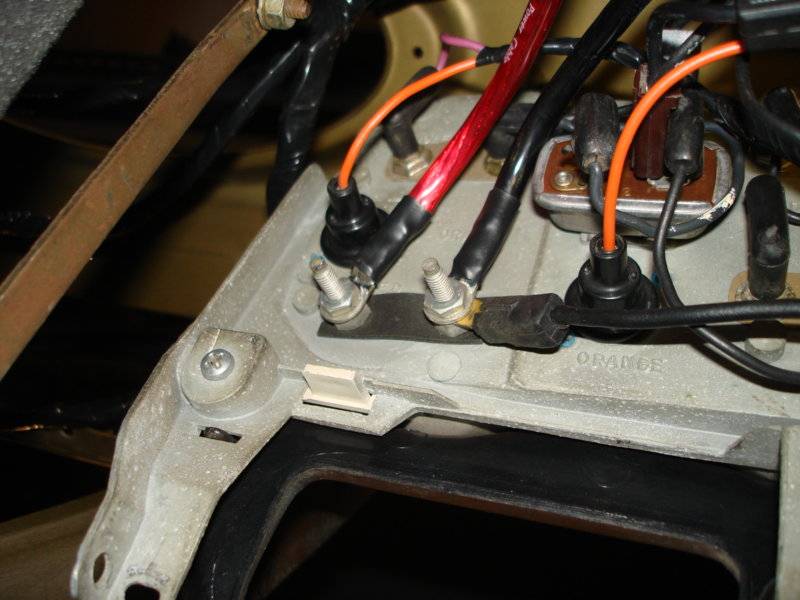

            DSC09069.JPG DSC09071.JPG

            Last edited: Aug 6, 2019
            • Agree Agree x 2
            • Like Like x 1
            • Dennis H

              Dennis H FBBO Gold Member FBBO Gold Member

              Messages:
              13,855
              Likes Received:
              16610
              Joined:
              Jul 11, 2010
              Location:
              San Jose
              Local Time:
              4:21 AM
              Chased an electrical problem for 3 years. Driving along, car shuts off like someone reached over and pulled out the keys and threw them out the window. Once on top of Carson Pass. Didn’t happen again for 18 months. Replaced ignition etc in the meantime. Quit near the house one day, coasted to the curb. Had an electric fuel pump at the time. Left the ignition in the on position, went under the hood and started pulling on things. Son of a bitch if I didn’t grab the bulkhead and the fuel pump started running. 3 fucking years. Got home and ordered every component, plug, receiver. It’s all still on the shelf in the closet. I carefully removed each plug bank without breaking the ears off and sprayed them with electrical contact cleaner until the black ran clear. Looked like they had not been touched since the boys installed them on Lynch Road. I used the whole goddamed can. I plugged them back in and it has worked perfectly since. It’s been a few years now. An aha moment after years of terror never knowing when or where this would happen again. I will leave a sleeping dog lie. If it takes another 45 years, I won’t be here to worry about it. Ammeter disconnected.

              • Like Like x 3
              • Agree Agree x 1
              • bearman

                bearman FBBO Gold Member FBBO Gold Member

                Messages:
                3,320
                Likes Received:
                2883
                Joined:
                Jan 9, 2018
                Location:
                Phoenix
                Local Time:
                2:21 AM
                just can't see using that type of connector with all the better types being out there to use.

              • 72RoadrunnerGTX

                72RoadrunnerGTX Well-Known Member

                Messages:
                1,151
                Likes Received:
                722
                Joined:
                Jan 14, 2009
                Location:
                Seattle, Washington
                Local Time:
                2:21 AM
                No vehicles built in that era were ever designed to last more than 5 years or so, until the next trade-in. The Packard 56 terminal was fairly standard in the automotive industry of the time. Never designed to handle more than a few amps of current, but made for quick assembly line connections. Exposed to moisture they corroded and built up resistance pretty quick. Using them on a circuit with more than a few amps was a problem and the factory came to know it early on. There were several C-body (more factory loads) recalls to address this issue back in the day. Car manufactures finally came around to sealing almost every electrical connection from moisture.

                Last edited: Aug 9, 2019
                • Agree Agree x 3
                • Billccm

                  Billccm Well-Known Member

                  Messages:
                  2,122
                  Likes Received:
                  1620
                  Joined:
                  Aug 3, 2016
                  Location:
                  Tucson
                  Local Time:
                  2:21 AM
                  Back in 1982 I was sitting at a red light idling in my 69 Coronet. It was late at night and dark. I had been smelling something electrical, but could not figure it out until I looked down and saw a dim glow shining on the floorboard at that red light. I pulled into a gas station, looked under the dash, and my ammeter was glowing white hot! Shut the car off and called my dad. He said limp it home without any accessories on and keep the headlights off whenever possible.
                  The next morning when I got up dad had already been to NAPA and bought a under dash ammeter, and we drilled a hole in the firewall and did our own direct harness rig up. Lasted another 9 years until I sold the car.
                  I'm not saying ammeters are bad, but from my experience I prefer to run a voltmeter and bypass the bulkhead. I know there are many of you out there that prefer the ammeter and never had an issue, but I'll not do it after seeing mine glow white hot that night many years ago.

                  • Thanks! Thanks! x 1
                  • 72RoadrunnerGTX

                    72RoadrunnerGTX Well-Known Member

                    Messages:
                    1,151
                    Likes Received:
                    722
                    Joined:
                    Jan 14, 2009
                    Location:
                    Seattle, Washington
                    Local Time:
                    2:21 AM
                    On that dash cluster, the ammeter is within the cluster frame and would not be visible from under the dash. The connections are visible however, likely what you saw, sounds like you experienced heat build up at the ammeter stud connections. The stud nuts were either too loose, allowing resistance to build and create heat or the fiber insulator failed likely due to over a tightening of the stud nuts, crushing the fiber insulator. Once the fiber insulator is crushed it will no longer maintain it thickness and will lead to the connections loosening up over time. Loose enough, stud contact to the cluster frame is possible and will cause arcing and heat if not a full dead short.

                    Last edited: Aug 6, 2019
                  • Xp29h

                    Xp29h FBBO Gold Member FBBO Gold Member

                    Messages:
                    4,226
                    Likes Received:
                    3961
                    Joined:
                    Aug 9, 2013
                    Location:
                    Maine
                    Local Time:
                    5:21 AM
                    To chime in..I went with all new Autometer gauges and new wires throughout the entire car. I completely did away with the bulkhead connector and fabricated a cover and went straight though that and directly to the location. Lots of work and expensive considering new wires, new alternator, new gauges and everything in between to make the connections! Also, not original which many want to keep, but my car isn’t original anyway so it wasn’t a big deal to me. But, no bulkhead or ammeter to be concerned about.

                    Good luck!

                    • Like Like x 2
                    • threewood

                      threewood FBBO Gold Member FBBO Gold Member

                      Messages:
                      4,180
                      Likes Received:
                      4878
                      Joined:
                      May 30, 2014
                      Location:
                      Yuma, AZ
                      Local Time:
                      2:21 AM
                      That's exactly what I did on mine. If you do it, leave a couple feet of extra wire zip tied together in case you have to take it apart. I much prefer the single wire with no sketchy connections carrying power.

                      • Like Like x 1
                      • JoePole

                        JoePole Well-Known Member

                        Messages:
                        137
                        Likes Received:
                        102
                        Joined:
                        Jan 24, 2018
                        Location:
                        Hyde Park,NY. NOT NYC!
                        Local Time:
                        5:21 AM
                        Also a good idea to pack the bulkhead connector with dielectric grease after cleaning.
                        Also any other connectors for that matter.

                        • Agree Agree x 3
                        • Like Like x 1
                        • Thanks! Thanks! x 1
                        • Dipstick

                          Dipstick Well-Known Member

                          Messages:
                          580
                          Likes Received:
                          542
                          Joined:
                          Oct 26, 2018
                          Location:
                          Out West
                          Local Time:
                          2:21 AM

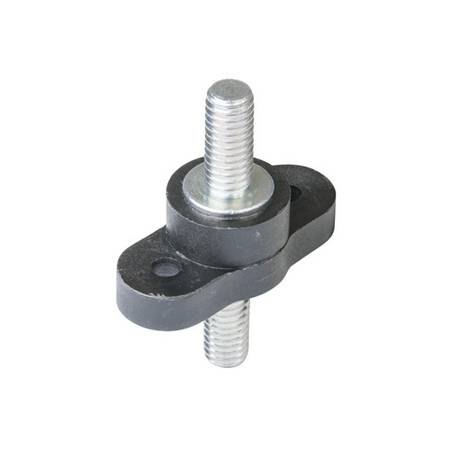

                          • Like Like x 2
                          • Robking

                            Robking FBBO Gold Member FBBO Gold Member

                            Messages:
                            54
                            Likes Received:
                            52
                            Joined:
                            Sep 22, 2013
                            Location:
                            Raleigh, nc
                            Local Time:
                            5:21 AM
                            Yep was just looking at something similar but bigger (which I thought was over kill). That right there is about perfect, thanks!

                            • Agree Agree x 2
                            • Ron H

                              Ron H FBBO Gold Member FBBO Gold Member

                              Messages:
                              2,317
                              Likes Received:
                              2084
                              Joined:
                              Feb 29, 2016
                              Location:
                              WI
                              Local Time:
                              4:21 AM
                              I had a knowledgeable fellow member give me direction on bypassing the BH for re-wiring up the amp gauge. The gauge is currently bypassed and nonfunctional. So far I've run the new wiring but have left it disconnected for a winter project. My BH shows signs of having been overheated and read up on how amp gauges were a hazardous arrangement. Could be when I installed electronic system some years ago this contributed to this issue...not sure. Recently I had a no start problem - car would only run with key in start mode. The fixes for this are common such as a bad ballast or key switch; but wasn't the problem. After long searching come to find the damn upper harness on the BH was just cocked loose enough losing contact...tip it up and car runs fine. Old BH, and as mentioned, car mfg's don't make them to last half a century. Some day I might look to replace the in cab wiring as I have a new engine and rear harness done so far.

                              • Like Like x 1
                              • Dennis H

                                Dennis H FBBO Gold Member FBBO Gold Member

                                Messages:
                                13,855
                                Likes Received:
                                16610
                                Joined:
                                Jul 11, 2010
                                Location:
                                San Jose
                                Local Time:
                                4:21 AM
                                Grab that goddam connector, torque on it, then spray the shit out of it with electrical contact cleaner. Good as new.

                                • Like Like x 1
                                • Robking

                                  Robking FBBO Gold Member FBBO Gold Member

                                  Messages:
                                  54
                                  Likes Received:
                                  52
                                  Joined:
                                  Sep 22, 2013
                                  Location:
                                  Raleigh, nc
                                  Local Time:
                                  5:21 AM

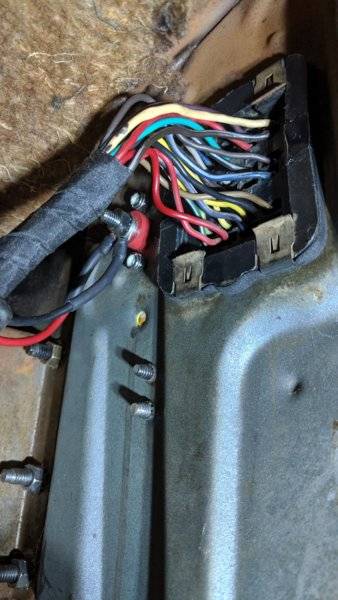

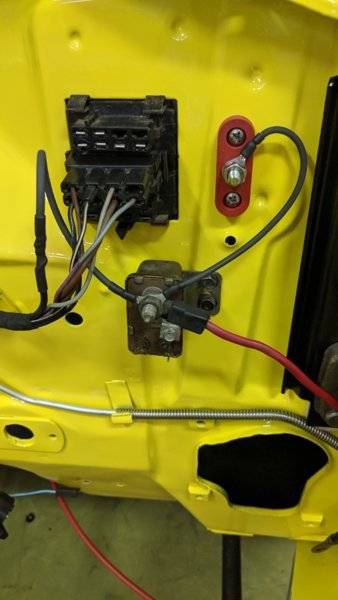

                                  Finally getting around to this, went with Dipsticks suggestion. Under the dash the ammeter is bypassed and both wires are brought to the post. On the firewall, 16ga fusible link from starter relay to post. Added 14ga fusible link to alternator wire and bright it to starter relay as well.

                                  IMG_20191111_115837.jpg IMG_20191109_163646.jpg

                                  • Like Like x 1
                                  • Rusty 72

                                    Rusty 72 Well-Known Member

                                    Messages:
                                    70
                                    Likes Received:
                                    28
                                    Joined:
                                    Jun 16, 2019
                                    Location:
                                    Minneapolis, MN
                                    Local Time:
                                    4:21 AM

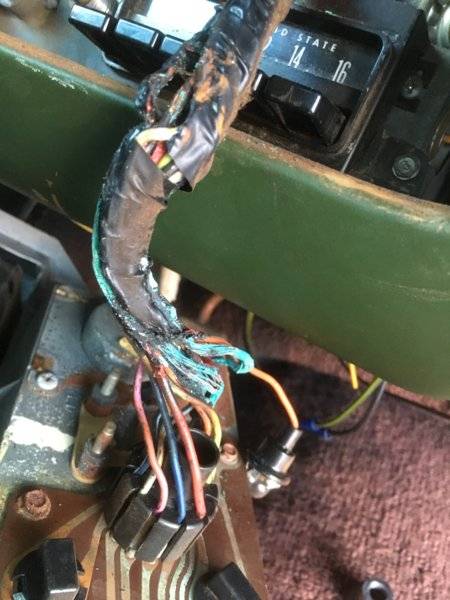

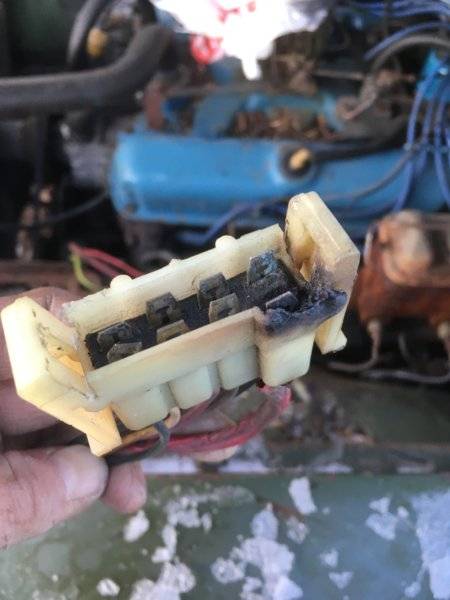

                                    1E4DF508-9D5F-4B29-99E1-D53638EA8B97.jpeg A850009C-1666-463F-9FEC-9271EE49005C.jpeg For what’s its worth my 72 Charger had the entire harness burn up from the electrical problems highlighted in the Mad Electrical article. It wasn’t just trucks.

                                    • Thanks! Thanks! x 2
