Head Lights keep going out

1966-1967 Dodge Charger Forum

  1. 493 Mike

    493 Mike FBBO Gold Member FBBO Gold Member

    Messages:
    3,228
    Likes Received:
    3545
    Joined:
    Dec 25, 2011
    Location:
    White Cloud, MI
    Local Time:
    1:57 PM
    The dimmer switch does not need a ground and shouldn't have one!
    Mike

    • Agree Agree x 3
    • 440 4 speed

      440 4 speed Well-Known Member

      Messages:
      1,031
      Likes Received:
      411
      Joined:
      Oct 20, 2019
      Location:
      Saskatoon Saskatchewan Canada
      Local Time:
      11:57 AM
      Thank you. I did clean the base of the switch off, and the rust on the floor pan bolted it back down and it worked. Now I won’t know what the problem was I guess.

    • 493 Mike

      493 Mike FBBO Gold Member FBBO Gold Member

      Messages:
      3,228
      Likes Received:
      3545
      Joined:
      Dec 25, 2011
      Location:
      White Cloud, MI
      Local Time:
      1:57 PM
      Those dimmer switches can corrode inside. They live a rough life! I would't want someone's foot stomping on me every night!
      Mike

    • Builderguy

      Builderguy Builderguy FBBO Gold Member

      Messages:
      1,017
      Likes Received:
      871
      Joined:
      Sep 5, 2017
      Location:
      Alma, mi
      Local Time:
      1:57 PM
      Lambertw.

      Here is a better diagram:


    • Builderguy

      Builderguy Builderguy FBBO Gold Member

      Messages:
      1,017
      Likes Received:
      871
      Joined:
      Sep 5, 2017
      Location:
      Alma, mi
      Local Time:
      1:57 PM

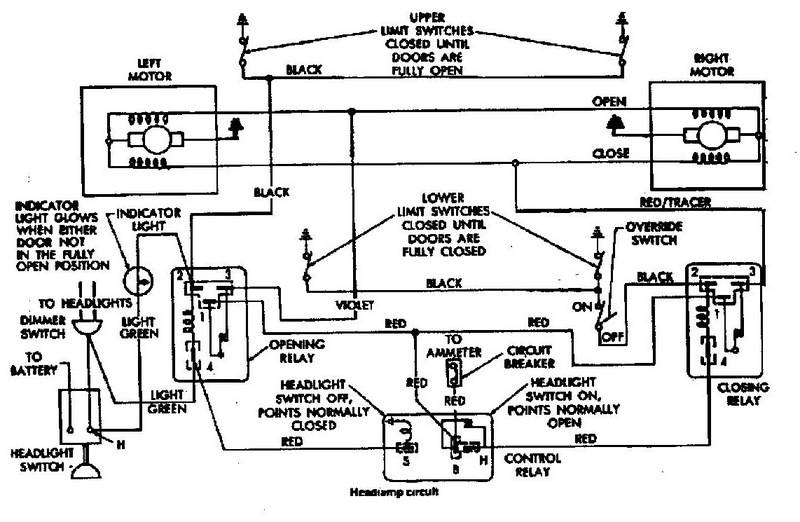

      Sorry, this is the diagram I was trying to find from the start:

    • onlyone

      onlyone Bird of Pray FBBO Gold Member

      Messages:
      2,483
      Likes Received:
      1872
      Joined:
      Jun 24, 2013
      Location:
      State of Denial
      Local Time:
      12:57 PM
      Your headlights are going out or not closing?
      As you can see, the CB feeds the rotations, not the illumination side.

      Some good suggestions on why they are going out.

      There is more information here than you need, but check post 4 for some simplified prints.
      https://www.forbbodiesonly.com/moparforum/threads/rotating-headlight-relay-modification.135356/
      I removed parts from prints that might help.
      These sections are from the factory manual 67.
      It appears that Chrysler didn't make any changes in the prints between years.
      Even if that is the case the cars may actually be different.
      For example IIRC, when I rewired the 67 there was an inline fuse hidden in the wiring bundle in the dash feeding the emergency flasher.
      Someone would never have found it.

      Last edited: Apr 9, 2020
    • Demonic

      Demonic Well-Known Member

      Messages:
      1,359
      Likes Received:
      1186
      Joined:
      Jun 5, 2017
      Location:
      Maryland
      Local Time:
      1:57 PM
      There is a circuit breaker built into the headlight switch, for the illumination, as well as the one at the kick panel. It has a fairly high rating I believe. More often they go bad, vs actually seeing a high load, as built.

    • Ramtough

      Ramtough Member

      Messages:
      6
      Likes Received:
      13
      Joined:
      Aug 28, 2011
      Location:
      Ontario, CA.
      Local Time:
      1:57 PM
      If the lights are going out with switch on, 90 % of the time its in the dimmer switch, have run into this many times over the years, contact points inside dimmer overheat with draw putting stain on headlamp switch, kicking breaker inside headlight switch off, things cool off, lights back on till heat builds again. replace dimmer usually fixes this but in rare occasion had to do switch as well.

    • Maxrat

      Maxrat Well-Known Member

      Messages:
      343
      Likes Received:
      247
      Joined:
      Feb 13, 2018
      Location:
      Virginia
      Local Time:
      1:57 PM
      You said when they go out you hear a loud click under the dash. From my experience, the only thing that makes a loud click in the dash is the three headlight relays (behind the glove box) which open and close the headlights buckets. What else could possibly make a loud click

    • Ramtough

      Ramtough Member

      Messages:
      6
      Likes Received:
      13
      Joined:
      Aug 28, 2011
      Location:
      Ontario, CA.
      Local Time:
      1:57 PM
      The circuit breaker in the switch will click also, noticeable on some cars more then others, the position on the dash makes a difference here

      • Like Like x 1
      • Agree Agree x 1
