How To Install Camshaft Bearings.

General Mopar Tech Discussions

  1. RustyRatRod

    RustyRatRod Well-Known Member

    Messages:
    6,202
    Likes Received:
    1973
    Joined:
    Jun 6, 2011
    Location:
    In a house.
    Local Time:
    9:09 PM
    I have been wanting to do this for a while now and since I got my 383, no better time than the present.

    This is how to install camshaft bearings.

    First, you need the right tool for the job. I've seen people use generic bushing drivers in the past, but the right tool makes it stupid proof and will provide good results everytime. Mine is the Lisle 18000 universal camshaft bearing tool. It will install and remove camshaft bearings in just about any engine made and it's a very affordable tool. I paid 115 bucks shipped for mine. You can easily offset the cost by telling your friends you have the tool and doing it reasonable for them. Here's how it's done.

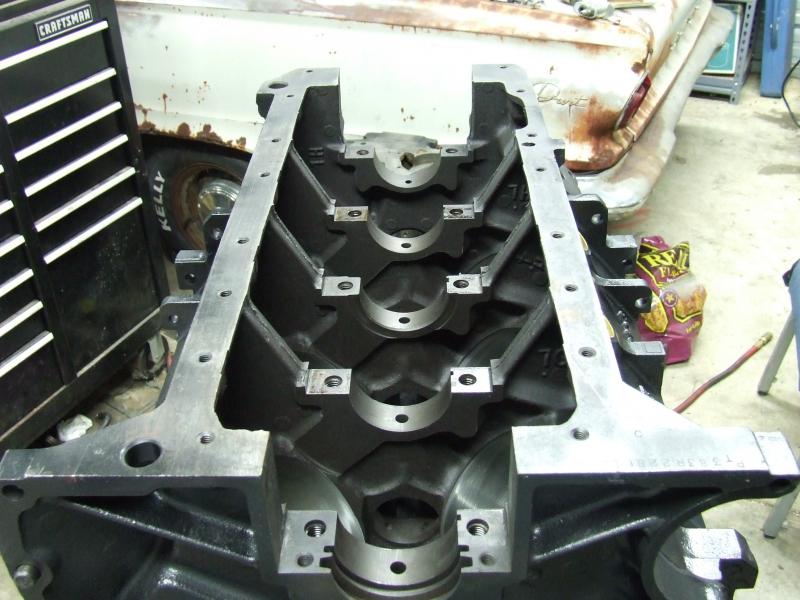

    First, remove all the main caps so that you can see STRAIGHT through the oil passages through the camshaft bores.


    Attached Files:

    Last edited: Jul 29, 2012
    • Like Like x 2
    • RustyRatRod

      RustyRatRod Well-Known Member

      Messages:
      6,202
      Likes Received:
      1973
      Joined:
      Jun 6, 2011
      Location:
      In a house.
      Local Time:
      9:09 PM

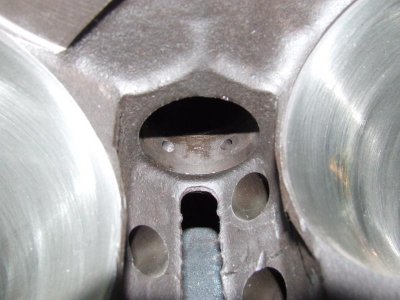

      Pay close attention to this picture. Camshaft bearings have a specific placement in the engine. Notice each one has a different part number. USUALLY, they are in the box in the correct order, but you always need to read the individual part numbers on the bearings themselves, since the human equation loaded the box.


      Attached Files:

      • 003.jpg
        File size:
        39.5 KB
        Views:
        1,435
      • Like Like x 2
      • RustyRatRod

        RustyRatRod Well-Known Member

        Messages:
        6,202
        Likes Received:
        1973
        Joined:
        Jun 6, 2011
        Location:
        In a house.
        Local Time:
        9:09 PM

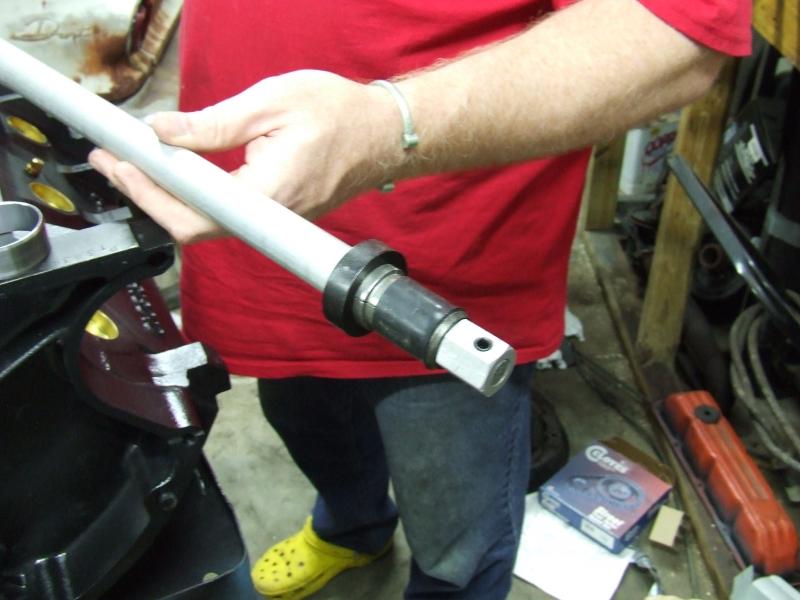

        The tool looks like this. It is an arbor with a screw in collet that expands as it tightens and has interchangable collets that slide on top of it.


        Attached Files:

        • 005.jpg
          File size:
          54.1 KB
          Views:
          1,454
        • Like Like x 2
        • RustyRatRod

          RustyRatRod Well-Known Member

          Messages:
          6,202
          Likes Received:
          1973
          Joined:
          Jun 6, 2011
          Location:
          In a house.
          Local Time:
          9:09 PM

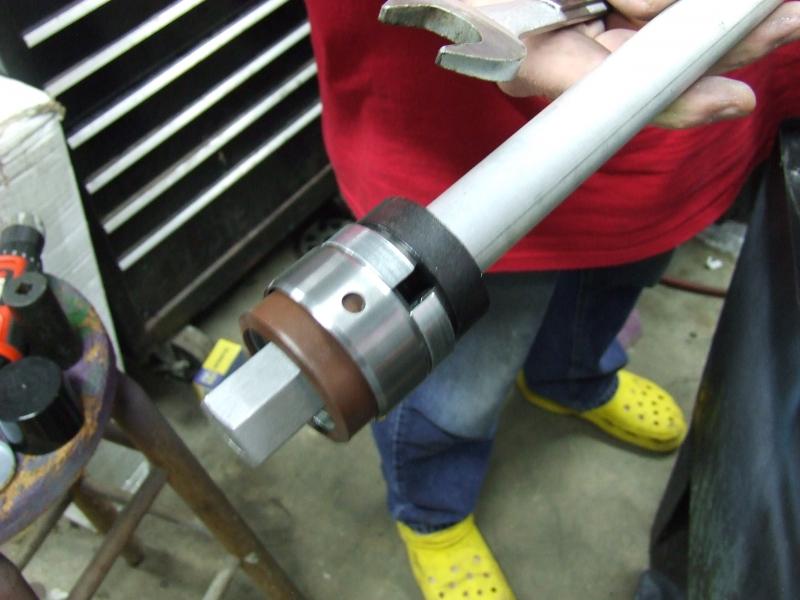

          I start from the rear with Mopars since that bearing is the smallest. Here is the rear camshaft bearing in the tool and almost ready to install. You slide the tool with the bearing on it through the front of the engine and install the rear bearing from the front side.


          Attached Files:

          • 006.jpg
            File size:
            51.8 KB
            Views:
            2,469
          • Like Like x 2
          • RustyRatRod

            RustyRatRod Well-Known Member

            Messages:
            6,202
            Likes Received:
            1973
            Joined:
            Jun 6, 2011
            Location:
            In a house.
            Local Time:
            9:09 PM

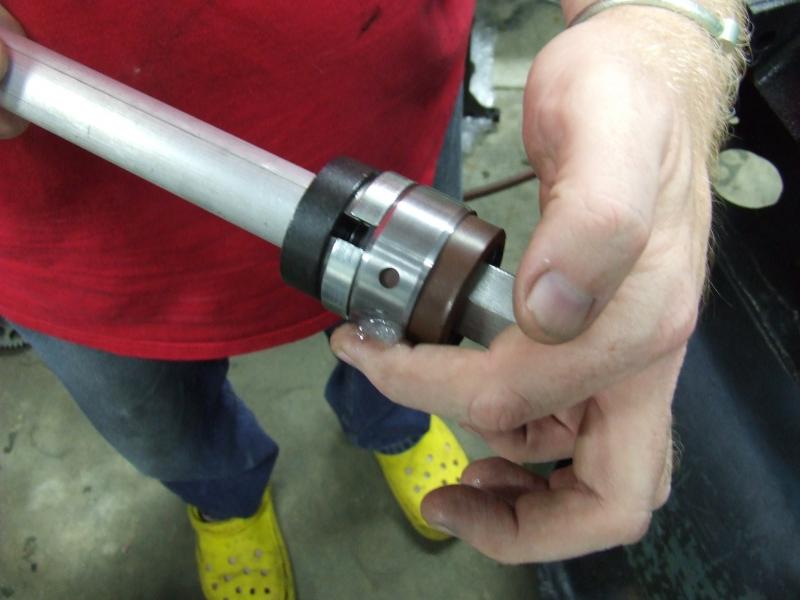

            You need to lube the bearings up as you install them. Ommiting this will result in a difficult install and will gall the bearings on the back side causing metal chips to possibly fall into the engine. I use simple petroleum jelly to get the job done.


            Attached Files:

            • 007.jpg
              File size:
              44.1 KB
              Views:
              1,378
            Last edited: Jul 29, 2012
            • Like Like x 2
            • RustyRatRod

              RustyRatRod Well-Known Member

              Messages:
              6,202
              Likes Received:
              1973
              Joined:
              Jun 6, 2011
              Location:
              In a house.
              Local Time:
              9:09 PM

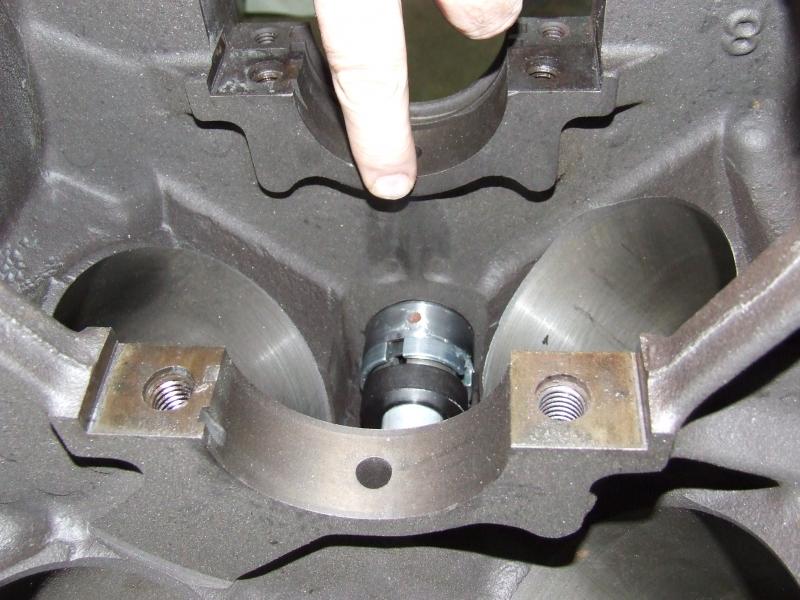

              Lining up the bearings with the main oil passages is nothing short of critical. It is also equally important to line them up as accurately as possible. If you get one in too far, or off center with a passage, turn the tool around and knock the bearing out and reposition it, or knock it back lined up with the oil passage. It's that important.


              Attached Files:

              • 008.jpg
                File size:
                71.5 KB
                Views:
                1,413
              • Like Like x 2
              • RustyRatRod

                RustyRatRod Well-Known Member

                Messages:
                6,202
                Likes Received:
                1973
                Joined:
                Jun 6, 2011
                Location:
                In a house.
                Local Time:
                9:09 PM

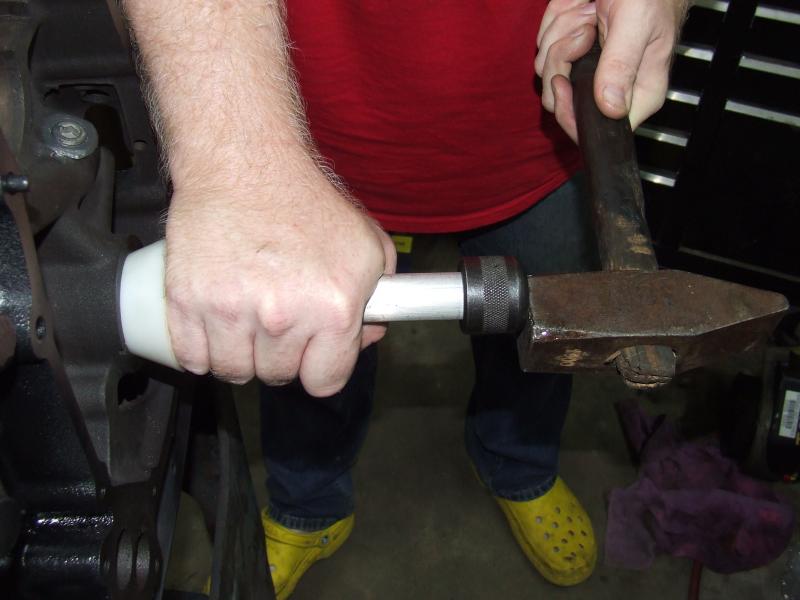

                Position the tool with the bearing at the start of the bore. Slide the plastic cone up tight against the front camshaft bearing bore. This centers the tool and keeps the bearing driving in straight. It is near bout impossible to drive a bearing crooked using this method. Remember when I said "stupid proof"?


                Attached Files:

                • 009.jpg
                  File size:
                  45.9 KB
                  Views:
                  1,379
                • Like Like x 2
                • RustyRatRod

                  RustyRatRod Well-Known Member

                  Messages:
                  6,202
                  Likes Received:
                  1973
                  Joined:
                  Jun 6, 2011
                  Location:
                  In a house.
                  Local Time:
                  9:09 PM

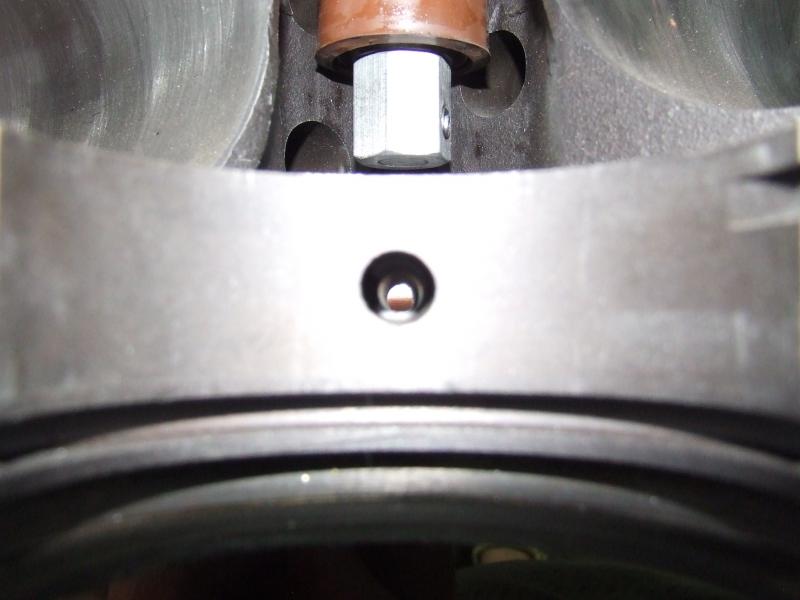

                  Continue gently tapping the bearing into place until the the hole is lined up with the oil passage perfectly. You may need to loosen and remove the tool to check the position of the bearing. It should look like this when right.


                  Attached Files:

                  • 010.jpg
                    File size:
                    39.3 KB
                    Views:
                    1,416
                  • Like Like x 2
                  • RustyRatRod

                    RustyRatRod Well-Known Member

                    Messages:
                    6,202
                    Likes Received:
                    1973
                    Joined:
                    Jun 6, 2011
                    Location:
                    In a house.
                    Local Time:
                    9:09 PM

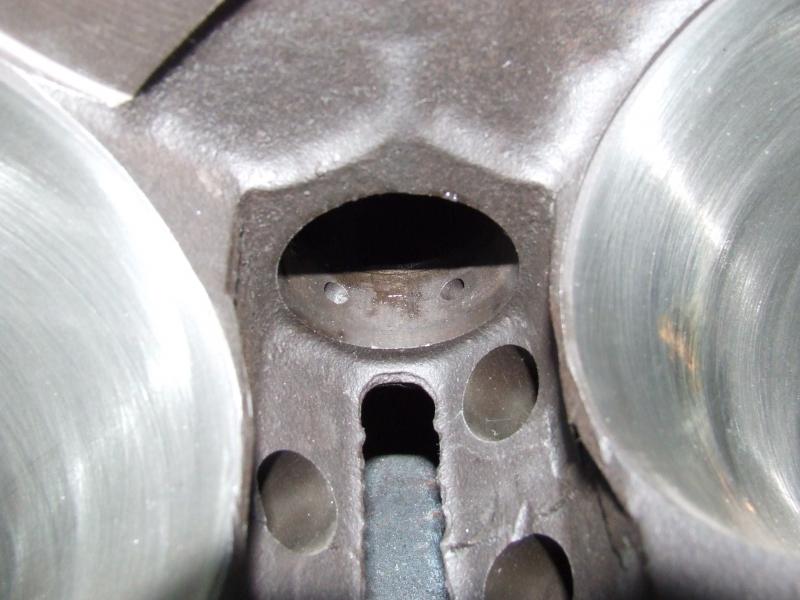

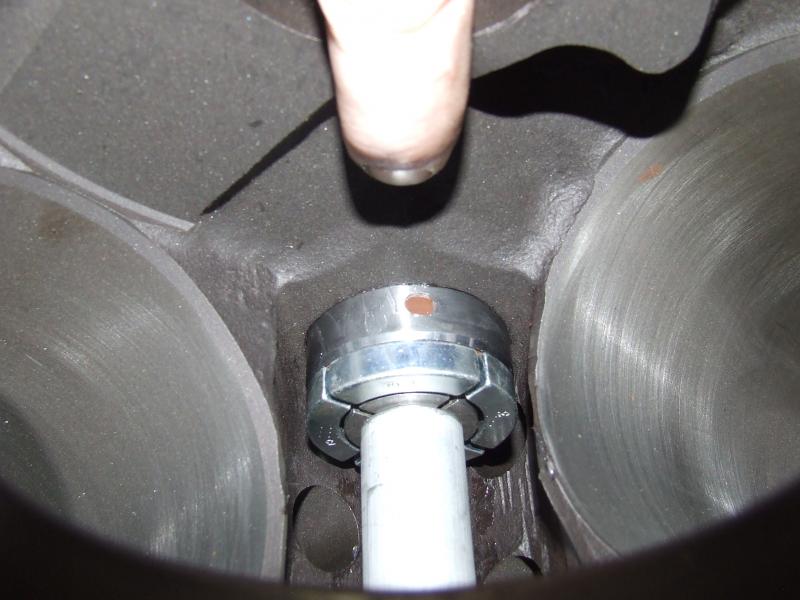

                    Bearings with multiple holes can be tricky. Simply look closely at the bore it's designated for. Look at how the holes are spaced apart in the bore. Then look at the bearing. Notice here, how there are two holes close together. Those holes correspond with the two holes in the camshaft bore that feed the right and left lifter banks. No need saying how important lining up these holes is. Notice the two holes in the camshaft bearing bore.


                    Attached Files:

                    • 011.jpg
                      File size:
                      55.2 KB
                      Views:
                      1,393
                    Last edited: Jul 29, 2012
                    • Like Like x 2
                    • RustyRatRod

                      RustyRatRod Well-Known Member

                      Messages:
                      6,202
                      Likes Received:
                      1973
                      Joined:
                      Jun 6, 2011
                      Location:
                      In a house.
                      Local Time:
                      9:09 PM

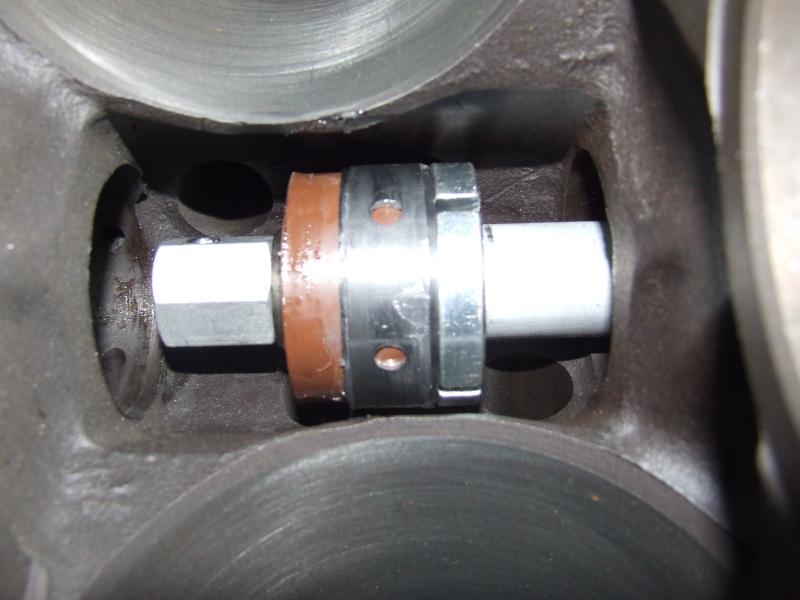

                      Notice the two corresponding holes in the camshaft bearing. They line up with the two lifter galley feed holes in the bearing bore.


                      Attached Files:

                      • 013.jpg
                        File size:
                        46.1 KB
                        Views:
                        1,380
                      • Like Like x 2
                      • RustyRatRod

                        RustyRatRod Well-Known Member

                        Messages:
                        6,202
                        Likes Received:
                        1973
                        Joined:
                        Jun 6, 2011
                        Location:
                        In a house.
                        Local Time:
                        9:09 PM

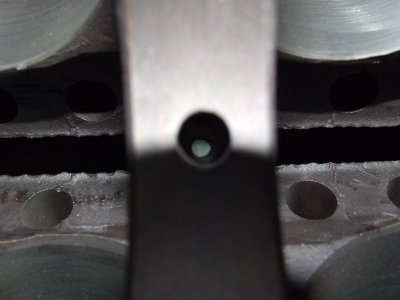

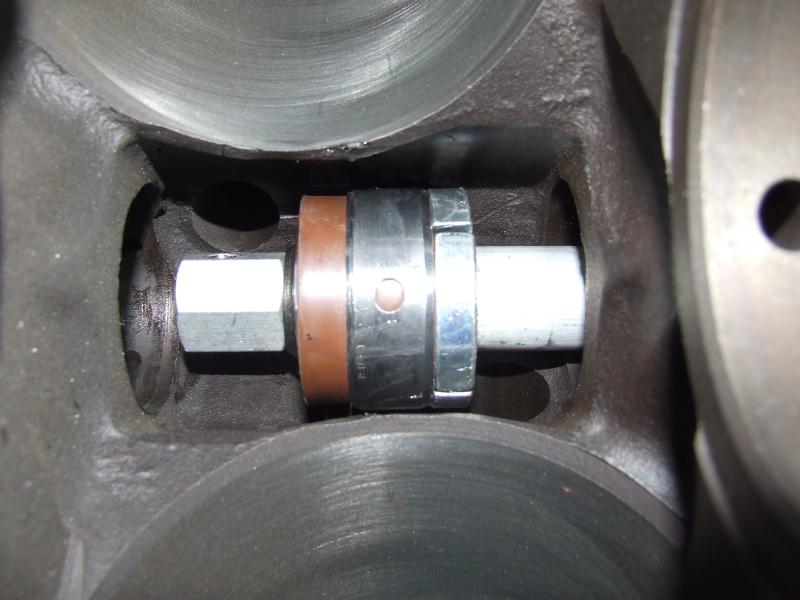

                        Notice the single hole in the bearing. As with the rear bearing, line this single hole up with the supply hole from the main bearing bore. lube the bearing up, line the single hole up with the main bearing supply passage and drive it in.


                        Attached Files:

                        • 012.jpg
                          File size:
                          50.8 KB
                          Views:
                          1,364
                        • 014.jpg
                          File size:
                          54.2 KB
                          Views:
                          1,375
                        • Like Like x 4
                        • RustyRatRod

                          RustyRatRod Well-Known Member

                          Messages:
                          6,202
                          Likes Received:
                          1973
                          Joined:
                          Jun 6, 2011
                          Location:
                          In a house.
                          Local Time:
                          9:09 PM

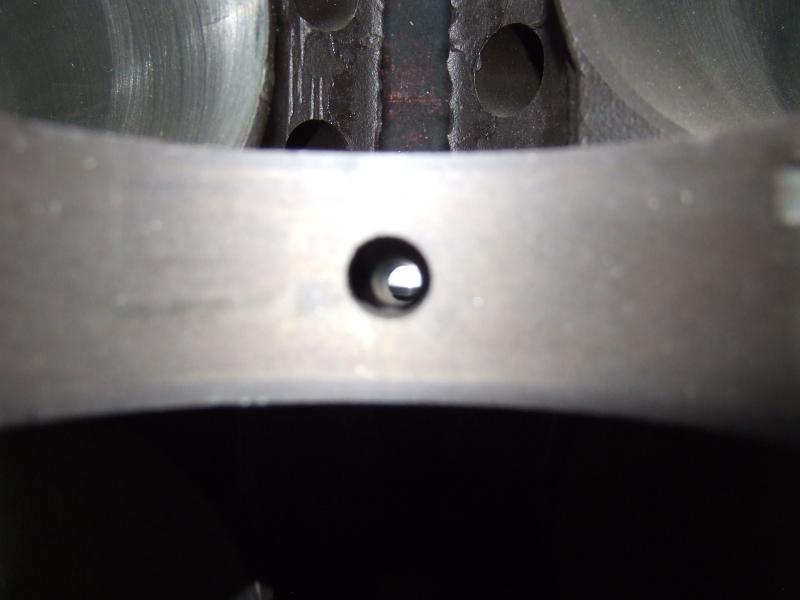

                          When in correctly, the main bearing supply passage will line up with the hole in the bearing and the two lifter galley supply holes will line up with the lifter supply passages. This is perhaps the most important thing to get nailed, balls out on the money. Again, it will look like this when correct.


                          Attached Files:

                          • 016.jpg
                            File size:
                            28.4 KB
                            Views:
                            1,349
                          • Like Like x 2
                          • RustyRatRod

                            RustyRatRod Well-Known Member

                            Messages:
                            6,202
                            Likes Received:
                            1973
                            Joined:
                            Jun 6, 2011
                            Location:
                            In a house.
                            Local Time:
                            9:09 PM

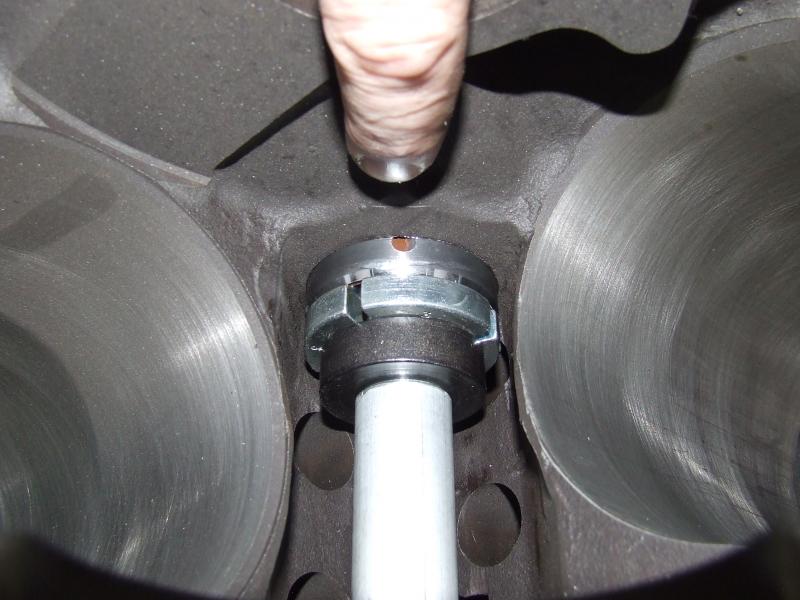

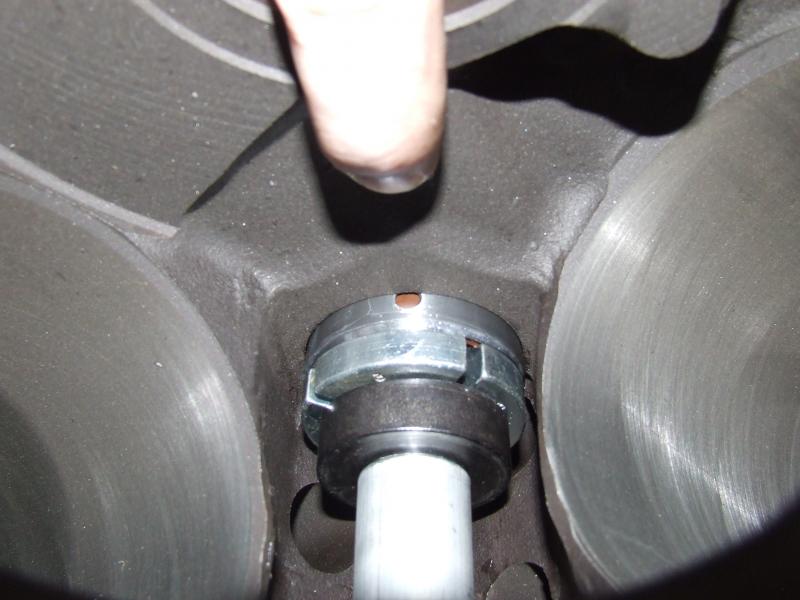

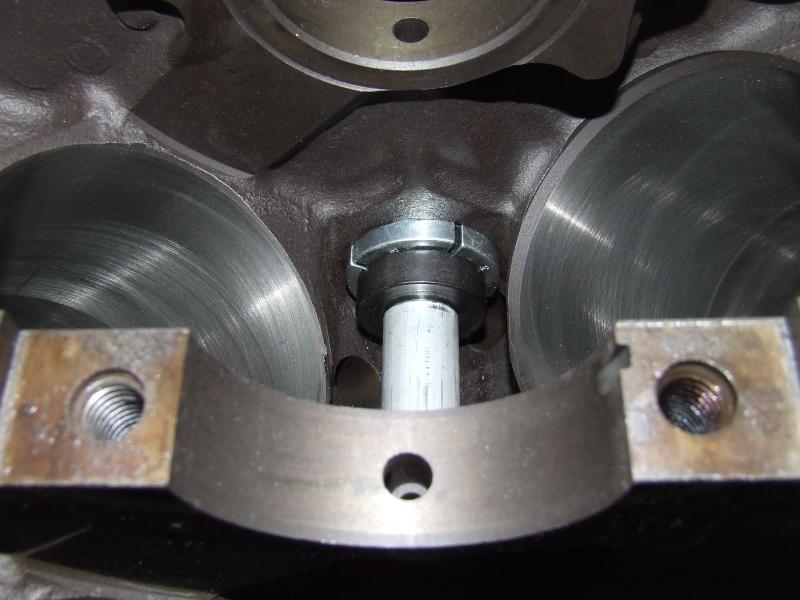

                            The rest of the bearings only have one hole, so they are not as tricky. However, it is still equally important to line the passages up with the holes in the bearings perfectly. Line the hole up with the indention from the main bearing supply passage and drive in the lubed bearing. I knocked this one in a little too far, so I reversed the tool, came in from the rear and knocked it back in the proper location.


                            Attached Files:

                            • 017.jpg
                              File size:
                              50.9 KB
                              Views:
                              1,351
                            • 018.jpg
                              File size:
                              53.8 KB
                              Views:
                              1,359
                            • 019.jpg
                              File size:
                              33.3 KB
                              Views:
                              1,355
                            Last edited: Jul 29, 2012
                            • Like Like x 2
                            • RustyRatRod

                              RustyRatRod Well-Known Member

                              Messages:
                              6,202
                              Likes Received:
                              1973
                              Joined:
                              Jun 6, 2011
                              Location:
                              In a house.
                              Local Time:
                              9:09 PM

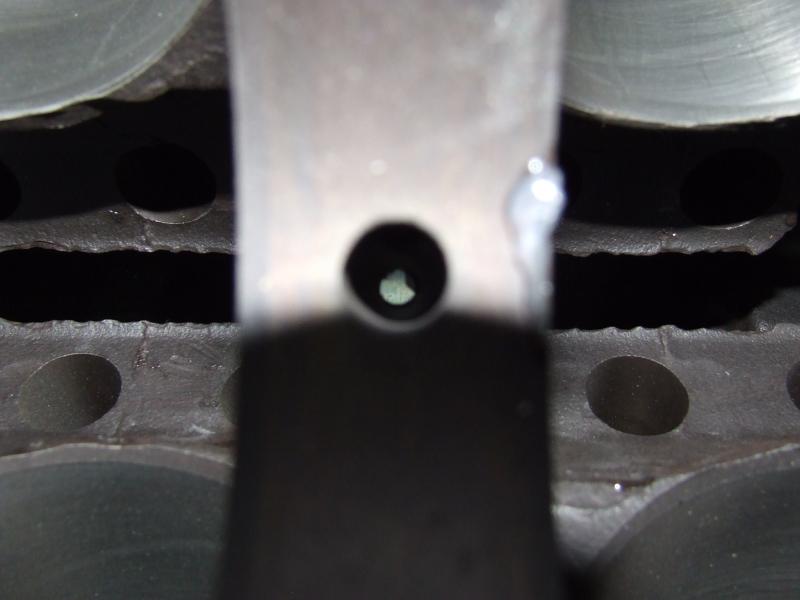

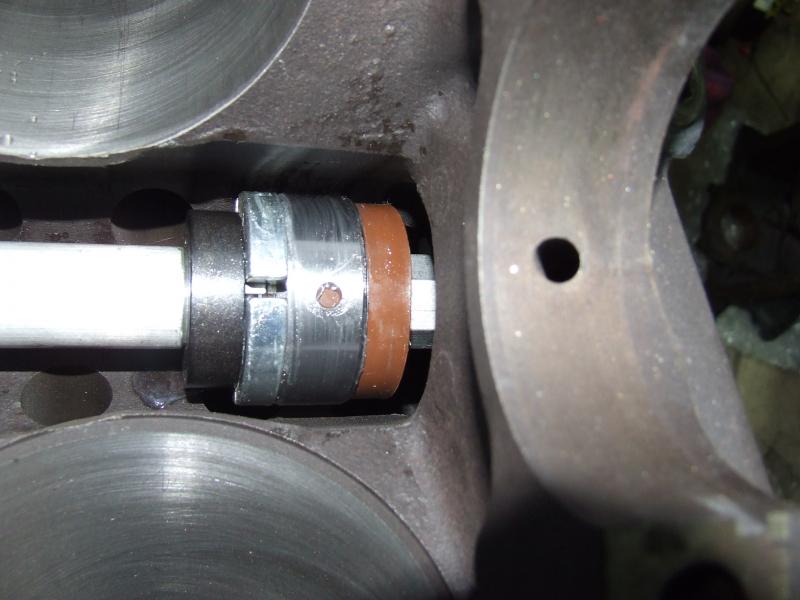

                              Continue on driving the bearings in in the same manner. Lube the bearing up good, line the hole up in the bearing with the main oil passage and drive the bearing in. I use a heavy hammer, because I do not like hitting the bearings very hard. Gentle taps is all it takes. Anything more and something is wrong.


                              Attached Files:

                              • 020.jpg
                                File size:
                                58.6 KB
                                Views:
                                1,340
                              • 021.jpg
                                File size:
                                33.2 KB
                                Views:
                                1,305
                              • Like Like x 3
                              • RustyRatRod

                                RustyRatRod Well-Known Member

                                Messages:
                                6,202
                                Likes Received:
                                1973
                                Joined:
                                Jun 6, 2011
                                Location:
                                In a house.
                                Local Time:
                                9:09 PM

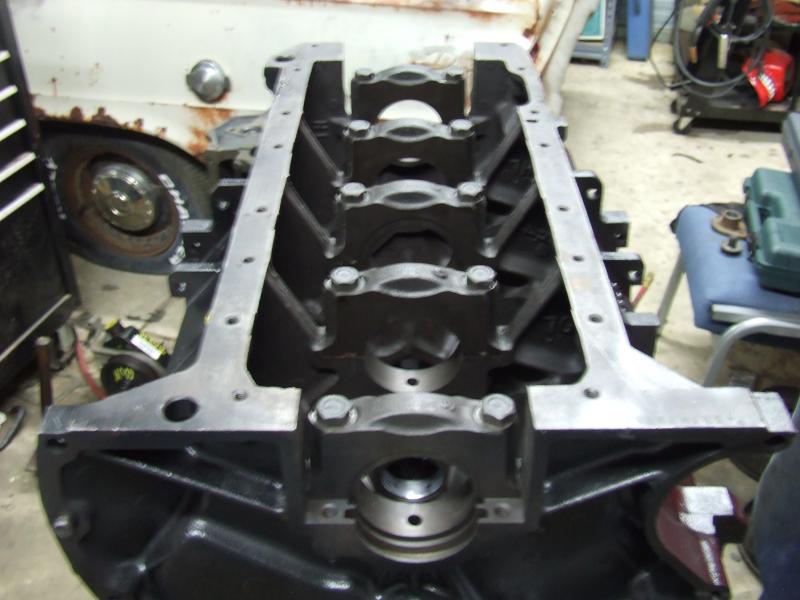

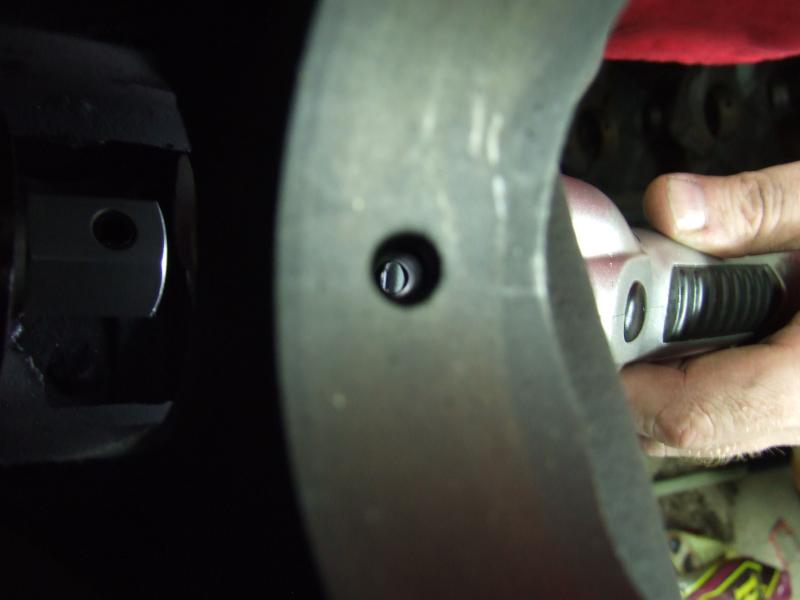

                                Now, on the big block, the front camshaft bearing is pretty tricky. The main oil passage is at an angle going toward the front of the engine from the bottom. It is somewhat difficult to see the hole lined up. So, here is what I did. I positioned the hole in the bearing even with one of the slots in the collet. This gives a reference so you know where the hole is. Lube the bearing up, line the slot in the collet up with the main oil passage and drive it in. Make sure there are no metal chips anywhere by wiping everything down good, put the main caps back on and you're done.

                                I hope some of yall will jump on your own install after this. It's really very easy to do and you can get it dead on if you take your time and go slowly.

                                Please thank my beautiful wife Kitty for all of the pictures. I could not have done this without her. Thanks.

                                Rob


                                Attached Files:

                                • 022.jpg
                                  File size:
                                  48.1 KB
                                  Views:
                                  1,368
                                • 024.jpg
                                  File size:
                                  28.3 KB
                                  Views:
                                  1,391
                                • 025.jpg
                                  File size:
                                  56.7 KB
                                  Views:
                                  1,353
                                Last edited: Jul 29, 2012
                                • Like Like x 2
                                • RustyRatRod

                                  RustyRatRod Well-Known Member

                                  Messages:
                                  6,202
                                  Likes Received:
                                  1973
                                  Joined:
                                  Jun 6, 2011
                                  Location:
                                  In a house.
                                  Local Time:
                                  9:09 PM

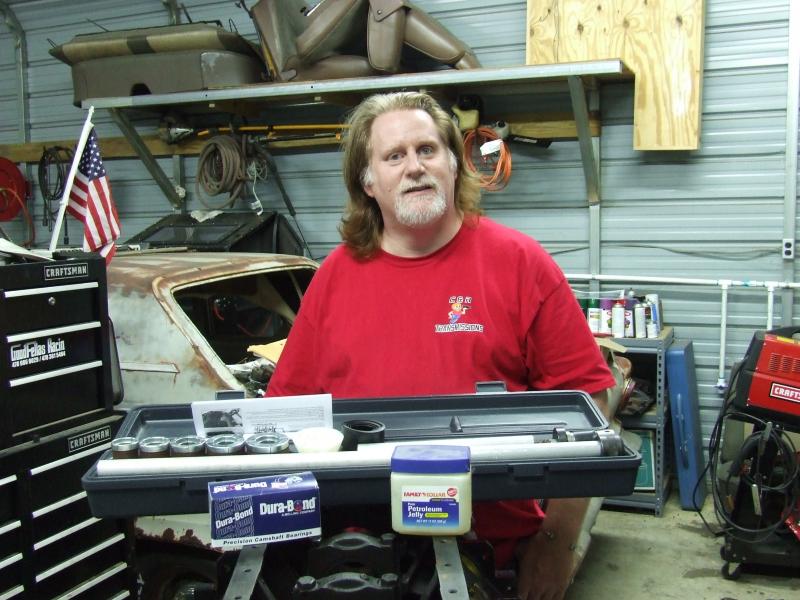

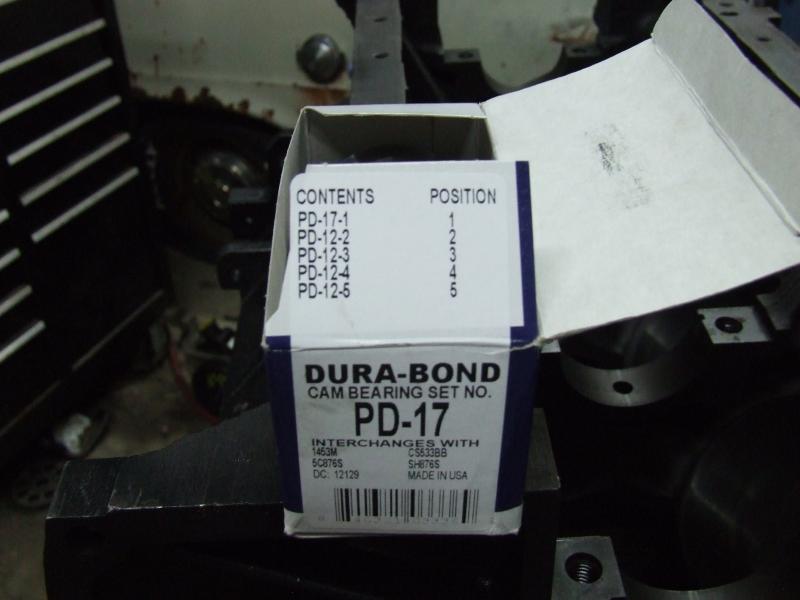

                                  I almost forgot. Here's a pic of everything you need. Includin a dead ass redneck to do the job. lol Hope yall enjoyed this. Don't hesitate to ask any questions.
