Measuring Pushrod Lenth

Engine, Trans & Driveline

  1. khryslerkid

    khryslerkid FBBO Gold Member FBBO Gold Member

    Messages:
    19,790
    Likes Received:
    28643
    Joined:
    Mar 10, 2010
    Location:
    Hanover, Pennslyvania
    Local Time:
    10:39 PM
    Did my measuring for pushrod lenth and came up with 9.00, outside of cup to end of ball end.

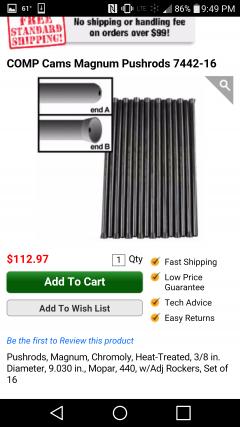

    Summit has one that measures 9.030. That should work just fine. So I receive them today and they measure 9.200 from outside of cup to end of the ball.
    Too long!
    So I guess Comp Cam measures to the inside of the cup? Everywhere I've looked they want the measurement to the total outside. What's what?


    Attached Files:

  2. Hemirunner

    Hemirunner Well-Known Member

    Messages:
    4,317
    Likes Received:
    4789
    Joined:
    Jul 12, 2011
    Location:
    Down South
    Local Time:
    9:39 PM

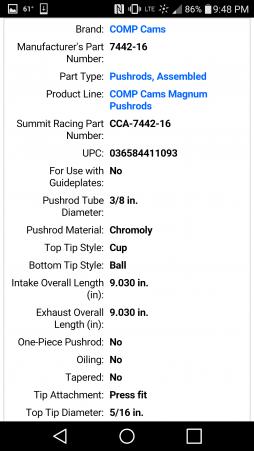

    Summit lists them as overall length but comp lists them as effective length. They are 9.030 effective and 9.200 overall. Call smith brothers pushrods and order them however you need, just be sure to tell them whether the measuement you give them is overall or effective length.

    • Like Like x 1
    • khryslerkid

      khryslerkid FBBO Gold Member FBBO Gold Member

      Messages:
      19,790
      Likes Received:
      28643
      Joined:
      Mar 10, 2010
      Location:
      Hanover, Pennslyvania
      Local Time:
      10:39 PM
      Figures, Summit even states overall lenth in the add...

      Back to the drawing board. What happen to throwing these engines together with what we had laying around!

    • 62 Dart Convertible

      62 Dart Convertible Well-Known Member

      Messages:
      997
      Likes Received:
      440
      Joined:
      Feb 1, 2011
      Location:
      Australia
      Local Time:
      12:09 PM
      Mate, the ball end is spot welded in to the pushrod tube, but the cup end is just a light press fit (the summit page states that too). Easily removed, then pushrods best shortened in a lathe with a parting tool. If you can't do it, any machine shop can... I did all mine in under an hour.

      • Like Like x 1
      • khryslerkid

        khryslerkid FBBO Gold Member FBBO Gold Member

        Messages:
        19,790
        Likes Received:
        28643
        Joined:
        Mar 10, 2010
        Location:
        Hanover, Pennslyvania
        Local Time:
        10:39 PM
        A year ago I had access to a machine shop but now I work somewhere else doing QA. Might contact a former co worker!

      • texas69bee

        texas69bee Well-Known Member

        Messages:
        1,646
        Likes Received:
        1077
        Joined:
        Dec 3, 2013
        Location:
        texas
        Local Time:
        9:39 PM
        As stated above, Smith Brothers. Easy people to work with.

        • Like Like x 1
        • Shorthorse

          Shorthorse Well-Known Member

          Messages:
          927
          Likes Received:
          787
          Joined:
          Oct 6, 2012
          Location:
          Ohio
          Local Time:
          10:39 PM
          You also need to consider the wall thickness which is determined by your spring pressure and cam lift. I didn't see that mentioned on the ad you posted. Smith Brothers or Manton can help you with this.

          • Like Like x 1
          • khryslerkid

            khryslerkid FBBO Gold Member FBBO Gold Member

            Messages:
            19,790
            Likes Received:
            28643
            Joined:
            Mar 10, 2010
            Location:
            Hanover, Pennslyvania
            Local Time:
            10:39 PM
            They are 0.080 wall thickness. Sent them back. I contacted my former co-worker and we're going to cut down a long set that I already have. Gotta do what you gotta do!
            Thanks to who replied on this. Live and learn!

          • 383man

            383man Well-Known Member

            Messages:
            4,361
            Likes Received:
            3110
            Joined:
            Jul 19, 2008
            Location:
            Md
            Local Time:
            9:39 PM
            I used Manton for my pushrods and they did a great job on them. Good luck with yours , Ron

            • Like Like x 1
