    This is probably old news to everyone except me. I bought a new DC distributor last year & I finally am working on my timing & fuel curves. I bought a FBO mechanical advance limiter plate, but when I gutted my distributor, I found that this newer one has that feature already built in. Great engineering Ma' Mopar!

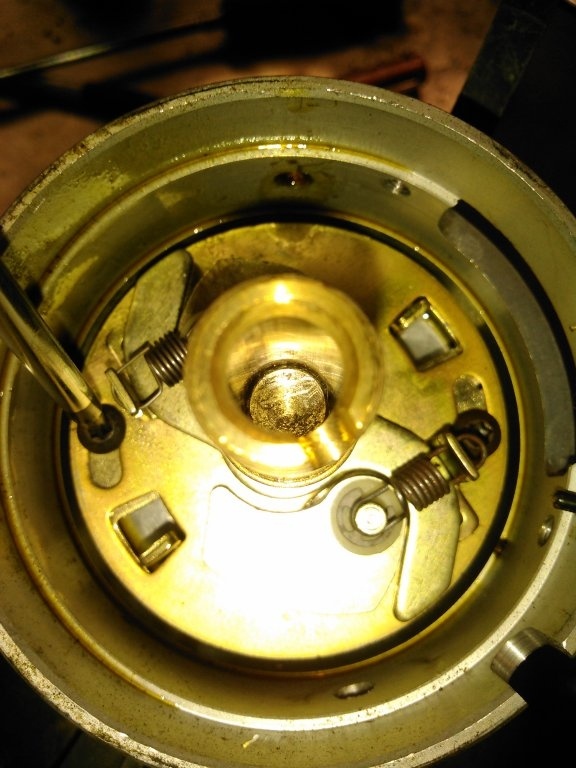

    Direct Connection Distributor Guts.jpg

    • Like Like x 1
    • biomedtechguy

      biomedtechguy Accelerati Rapidus Maximus FBBO Gold Member

      Messages:
      20,983
      Likes Received:
      28859
      Joined:
      Mar 28, 2014
      Location:
      South Louisiana
      Local Time:
      3:18 PM
      So there are multiple square holes in the disc under there?

    • HEMI-ITIS

      HEMI-ITIS STREETER on LI FBBO Gold Member

      Messages:
      11,760
      Likes Received:
      13989
      Joined:
      Dec 14, 2008
      Location:
      Long Island,New York
      Local Time:
      4:18 PM
      In my old one just tacked it to lock it out,,,,,,,,

    • Darthomas

      Darthomas Well-Known Member

      Messages:
      1,210
      Likes Received:
      906
      Joined:
      May 19, 2016
      Location:
      Chicago, Illinois
      Local Time:
      3:18 PM
      I used to fit spacers into the slot where the weights swing out.
      This became necessary after real leaded premium gas disappeared in the early 80s. I limited mechanic advance to about 10 degrees, and picked up 12 in vacuum.
      The stops made full advance seem more smooth and fixed in timing than when just letting the weights run out to the springs' limits. The engine was more ragged with the springs only, much smoother with the solid advance stops.

    • biomedtechguy

      biomedtechguy Accelerati Rapidus Maximus FBBO Gold Member

      Messages:
      20,983
      Likes Received:
      28859
      Joined:
      Mar 28, 2014
      Location:
      South Louisiana
      Local Time:
      3:18 PM
    • PurpleBeeper

      PurpleBeeper Well-Known Member

      Messages:
      4,528
      Likes Received:
      3291
      Joined:
      Mar 20, 2011
      Location:
      Chicago
      Local Time:
      3:18 PM
      Nope. On the newer Direct Connection distributor, you loosen two star head screws (screwdriver in one & other is half hidden behind one of the advance springs) and then you can twist the center plate (the screws will slide in those slots). The screws/slots are the mechanical advance limiters, so you basically have the FBO plate built right into the distributor. The distributor came with the screws where they're shown in the picture... all the way at one end. So I loosen the screws, slid the plate about 1/8" and tightened the screws back down to reduce my total mechanical advance. I don't need the FBO plate I bought at all. The only downside is that there aren't any "numbers" on the distributor slots, so you have to "ballpark" how much you're limiting the advance & try it. My first guess of 1/8" seems to be pretty close. With 15 degrees initial, I've got 35 total (no vacuum).

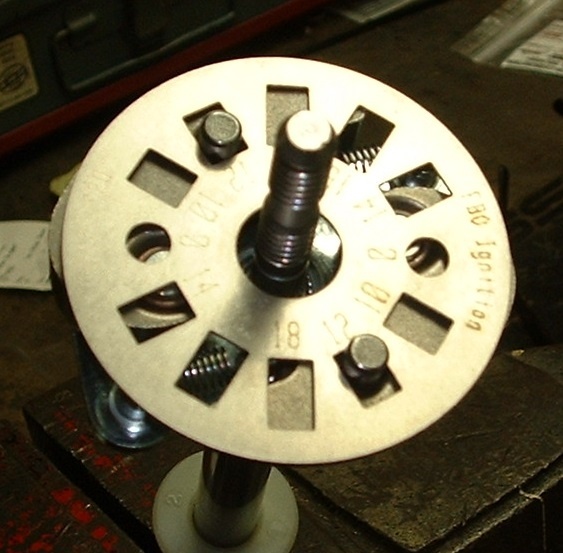

      One thing I noticed about the FBO plate was that the least I could limit the mechanical advance to was 18-degrees. My cam isn't all that radical and I'm fine with limiting the mechanical advance only to a 20-degree limit and I couldn't do that with the FBO plate.

    • biomedtechguy

      biomedtechguy Accelerati Rapidus Maximus FBBO Gold Member

      Messages:
      20,983
      Likes Received:
      28859
      Joined:
      Mar 28, 2014
      Location:
      South Louisiana
      Local Time:
      3:18 PM
      I see. Thanks. After I installed the FBO system, I made adjustments to the 6 bbl carbs with major improvements at idle. The outboard carbs were supplying way too much fuel at idle. I am idling at about 850-900 rpm now, pulling 10" of vacuum. Next is to bring the rpm up a bit to see if I get 11" of vacuum because now that I have the carbs "dialed in" my vacuum advance isn't functioning at idle. It was (before carb tweak) adding the 12° of advance it was supposed to. I may try tweaking the vacuum can allen adjuster too.

    • Darthomas

      Darthomas Well-Known Member

      Messages:
      1,210
      Likes Received:
      906
      Joined:
      May 19, 2016
      Location:
      Chicago, Illinois
      Local Time:
      3:18 PM
      It's some work, but if you'd like more vacuum at idle, get a set of offset cam keys. Use the 5 degree key and advance the cam timing. Much better drivability, torque, and helps mileage.
      Just have to keep that in mind when figuring out total advance.
      This makes the engine a "more efficient air pump" at lower rpms.
      I also figured I would be ahead even as the timing chain stretched.
      If you are primarily racing, this cuts into top end output, then you wouldn't want to do this.

    • biomedtechguy

      biomedtechguy Accelerati Rapidus Maximus FBBO Gold Member

      Messages:
      20,983
      Likes Received:
      28859
      Joined:
      Mar 28, 2014
      Location:
      South Louisiana
      Local Time:
      3:18 PM
      Manual brakes, my choice even though I switched out from stock drums to discs up front. It's easier for me to feel how much brake I'm applying that way. I'm ok w/the vac, but I want my distributor to work as designed, as it did when I installed it April 28th. I'm going to tweak it today. Thanks for the suggestion, though.

    • Darthomas

      Darthomas Well-Known Member

      Messages:
      1,210
      Likes Received:
      906
      Joined:
      May 19, 2016
      Location:
      Chicago, Illinois
      Local Time:
      3:18 PM
      Spring in vacuum advance can should be set so that no advance comes from it at idle, or very little. The vacuum advance is supposed to be pulling the full amount of advance when at part throttle and steady load. As soon as you go deeper into the throttle, it should back off timing so you don't have knocking. I like to hear just 1 tiny ping as I go into the gas, then I know I'm at maximum efficiency.

      • Disagree Disagree x 1
      • biomedtechguy

        biomedtechguy Accelerati Rapidus Maximus FBBO Gold Member

        Messages:
        20,983
        Likes Received:
        28859
        Joined:
        Mar 28, 2014
        Location:
        South Louisiana
        Local Time:
        3:18 PM
        Interesting viewpoint darthomas..different from my understanding. What I got from Don's explanation is more advance during inefficient burning and lean fuel cycle allows for more complete burning of the air fuel mix because it is "lit" earlier. Anyway, using the recommended constant manifold vacuum source this did (and should again if I can figure it out) provide more advance at idle/closed throttle, and less vacuum advance as you open the throttle.

      • HEMI-ITIS

        HEMI-ITIS STREETER on LI FBBO Gold Member

        Messages:
        11,760
        Likes Received:
        13989
        Joined:
        Dec 14, 2008
        Location:
        Long Island,New York
        Local Time:
        4:18 PM
        That ping you can hear is not the only detonation going on.That ping is damaging and will take it's toll in time.Take out 1* at a time till you can't hear it.

        • Agree Agree x 2
        • Darthomas

          Darthomas Well-Known Member

          Messages:
          1,210
          Likes Received:
          906
          Joined:
          May 19, 2016
          Location:
          Chicago, Illinois
          Local Time:
          3:18 PM
          Well, it also depends on the year of the carb, and whether the dist vacuum port is below the throttle plate when it's closed.
          They moved the port for emission reasons to just even/above at some point, so that has to be considered.
          In 38 years, I haven't damaged anything from detonation.

        • biomedtechguy

          biomedtechguy Accelerati Rapidus Maximus FBBO Gold Member

          Messages:
          20,983
          Likes Received:
          28859
          Joined:
          Mar 28, 2014
          Location:
          South Louisiana
          Local Time:
          3:18 PM
          I adjusted my idle up after reaching normal operating temperature. It was around 825-840, brought it to 890-910 and voila! Picked up 1 inch of vacuum (went from 10 to 11) and that got the vacuum advance working again (constant manifold vacuum source). Tried adjusting the vac can on the distributor per Don's instructions (3/32nds Allen wrench) in the nipple of the can, but I couldn't get a "bite" so I am at 18-19° vac line off, 28° vac line on (should be adding 12° as it was setup by Don). Took a "test hit" nice and strong smooth 1st and 2nd gear pull (a833 4 speed) and at 35 mph no ping when I floor it in 3rd...I had advanced the initial timing to 22° last weekend, but from a 10 mph roll in 1st, when the outboard carbs opened it stumbled. Took it back to 18-19 initial and repeated, all good. So that's it for now until Don or someone can tell me why the Allen wrench didn't bite when I tried to adjust the vacuum can. Also I still want to check out the timing advance range again as I go up through the rpm range out of gear watching it with my light. Al in all, between the carbs adjustments and the iggy, better by a lot than before :)

        • hunt2elk

          hunt2elk FBBO Gold Member FBBO Gold Member

          Messages:
          6,263
          Likes Received:
          4595
          Joined:
          Jul 15, 2009
          Location:
          WI
          Local Time:
          3:18 PM
          I have a couple of cans that take a metric allen wrench instead of the 3/32".

          • Thanks! Thanks! x 1
          • biomedtechguy

            biomedtechguy Accelerati Rapidus Maximus FBBO Gold Member

            Messages:
            20,983
            Likes Received:
            28859
            Joined:
            Mar 28, 2014
            Location:
            South Louisiana
            Local Time:
            3:18 PM
            I tried +/- 1 step in size, each, standard and metric with no luck. Thanks for the reply.

          • Ratroaster

            Ratroaster Well-Known Member

            Messages:
            129
            Likes Received:
            52
            Joined:
            Jun 24, 2014
            Location:
            Bullhead City, Arizona
            Local Time:
            1:18 PM

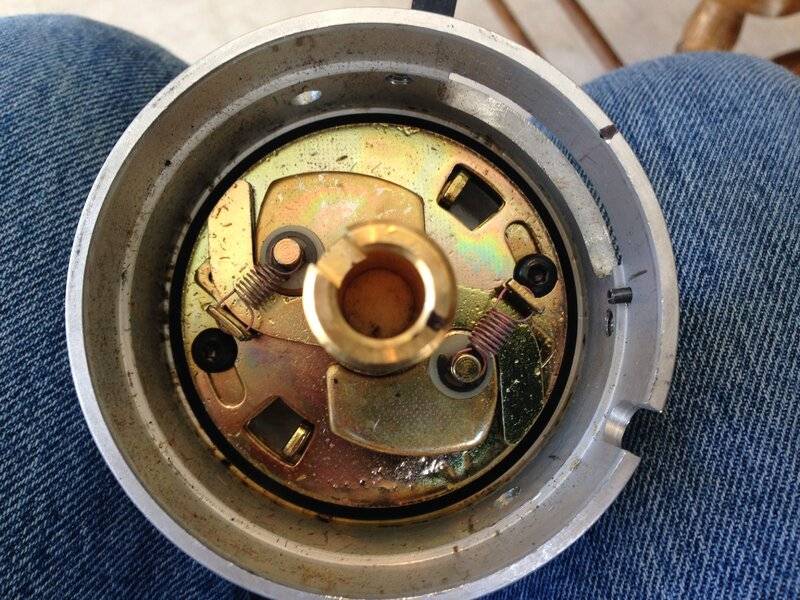

            Beeper, did you take a picture of the plate after your adjustment? I have the same
            distributor and am trying to adjust it the same way. Attached, I hope, is a picture of mine. If I read you right, after adjustment, the tab in the slot should be back an 1/8. Is this correct? Thanks. Rat Roaster.


          • 72RoadrunnerGTX

            72RoadrunnerGTX FBBO Gold Member FBBO Gold Member

            Messages:
            1,186
            Likes Received:
            776
            Joined:
            Jan 14, 2009
            Location:
            Seattle, Washington
            Local Time:
            1:18 PM

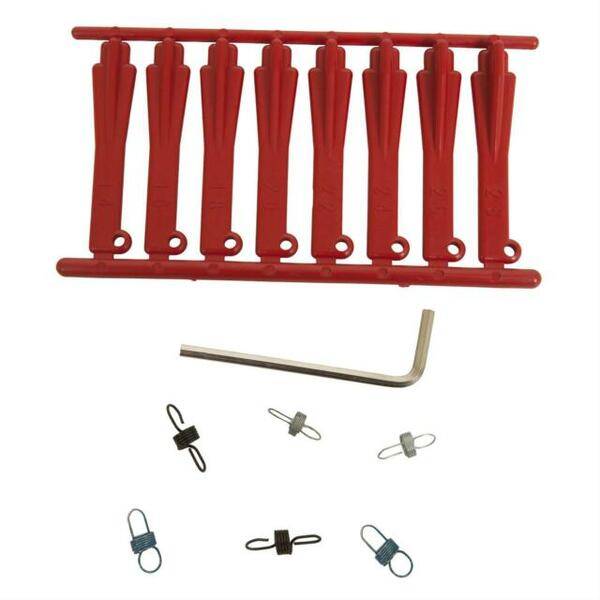

            Yes, the later original Mopar Performance distributors used a Mallory designed centrifugal advance mechanism, not the OE Chrysler design. The MP spring kit for them included a gauge set for setting the advance limit on those. Pretty sure they are long out of production now, haven’t seen them available for some time. Had to buy Proform copies of it for the last couple of projects.

            Last edited: Jul 21, 2020
            • Thanks! Thanks! x 1
            • beanhead

              beanhead Well-Known Member

              Messages:
              5,264
              Likes Received:
              8735
              Joined:
              May 18, 2014
              Location:
              Wackyfornia
              Local Time:
              1:18 PM
              Where the tabs end up will differ for your specific needs. Make your adjustment, put the timing light on it, check the full curve and re-adjust if needed (I like to use small drill bits to hold the plate in place while tightening the screws).

              • Thanks! Thanks! x 1
              • HALIFAXHOPS

                HALIFAXHOPS hops farmer and MOPAR only distributor rebuilder! FBBO Gold Member

                Messages:
                2,730
                Likes Received:
                1093
                Joined:
                May 5, 2016
                Location:
                Halifax, PA USA
                Local Time:
                4:18 PM
                MP has been using that style for a while, but think they stopped the design now. Kind of hard to find. You use the Mallory keys to easily set the mechanical advance. I actually like those units. Just FYI
