Picture request: clutch pedal with overcenter spring

Engine, Trans & Driveline

  1. ChargerST

    ChargerST Well-Known Member

    Messages:
    191
    Likes Received:
    132
    Joined:
    Dec 7, 2011
    Location:
    Austria
    Local Time:
    12:16 AM
    I need a picture of a 68-70 clutch pedal assembly with the overcenter spring installed. Preferably a shot from above (want to see how much clearance there is between the spring and the bracket). Maybe a picture from the bottom when installed in the car does work as well.

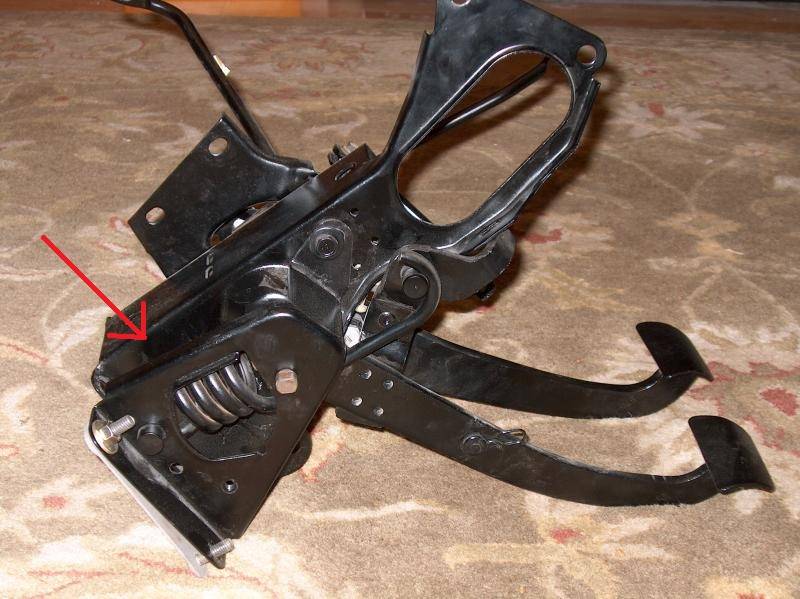

    See picture for desired angle of the photo.

    Thanks


  2. Tony Tee

    Tony Tee Well-Known Member

    Messages:
    541
    Likes Received:
    584
    Joined:
    Jun 4, 2018
    Location:
    ocala florida
    Local Time:
    1:16 AM
    Looking at your picture, that spring is pulling the brackets closer together. I can't send you a overhead picture of mine, due to its already installed in the car.
    You will have more clearance when its bolted down to the firewall.
    I.painted my assembly as you did. All black.. I regret doing it all in black. It would have been way better to paint all the brackets silver or white. And then only the pedals in black. It makes it way easier to see everything under the dash when you have to work on it later on. Like when adjusting the brake light switch or linkage.

  3. ChargerST

    ChargerST Well-Known Member

    Messages:
    191
    Likes Received:
    132
    Joined:
    Dec 7, 2011
    Location:
    Austria
    Local Time:
    12:16 AM
    Thanks for the tip on the paint! Picture was just for reference, the pedals are not mine.

  4. Cojohnso1

    Cojohnso1 Well-Known Member

    Messages:
    1,673
    Likes Received:
    1512
    Joined:
    Feb 25, 2019
    Location:
    Minnesota
    Local Time:
    12:16 AM
    I'm still wondering why that spring is removed on diaphragm style (Centerforce) clutch assemblies? Is that because too much back pressure to the throw out assembly?

  5. RussT Plymouths

    RussT Plymouths Well-Known Member

    Messages:
    156
    Likes Received:
    86
    Joined:
    Apr 24, 2020
    Location:
    Kansas
    Local Time:
    12:16 AM

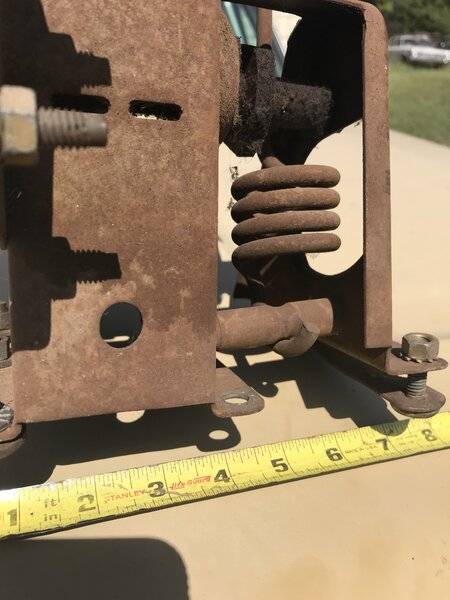

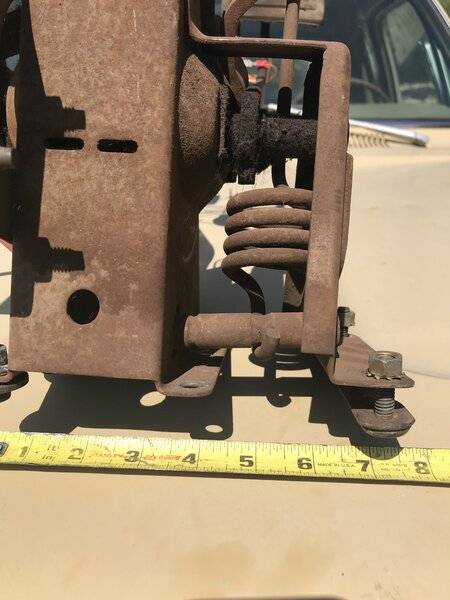

    Maybe this helps. From a '68 or '69 B, can't remember exactly.

    IMG_1689.JPG IMG_1690.JPG

    • Thanks! Thanks! x 1
    • ChargerST

      ChargerST Well-Known Member

      Messages:
      191
      Likes Received:
      132
      Joined:
      Dec 7, 2011
      Location:
      Austria
      Local Time:
      12:16 AM
    • RussT Plymouths

      RussT Plymouths Well-Known Member

      Messages:
      156
      Likes Received:
      86
      Joined:
      Apr 24, 2020
      Location:
      Kansas
      Local Time:
      12:16 AM
      Simple answer, cause the spring is strong enough to hold the pedal on the floor, not good. I proved this when I installed the diaphragm clutch in my '67. Besides the way a diaphragm clutch applies pressure is different than how a coil spring clutch does. Search this site, I'm sure someone has posted the full explanation.

      edit: Yes I had to remove the spring in mine for it to operate correctly.

    • Cojohnso1

      Cojohnso1 Well-Known Member

      Messages:
      1,673
      Likes Received:
      1512
      Joined:
      Feb 25, 2019
      Location:
      Minnesota
      Local Time:
      12:16 AM
      When I bought my current GTX the seller had to replace clutch to make car more "Sellable" He for some reason upgraded to a big 11" Centerforce clutch. (Which of course I have never used or installed.) With that spring removed the pedal would not return to original starting position. I just added a small spring to the fork arm to correct. So I thought I would poke around with questions and try to get this old brain to learn something new?
