    Hello everyone, my 68 Charger should be painted in a few months and looking into locations to mount relays for the headlights, horn and fans. I originally bought new stock wiring harnesses but decided to go with American Autowire as I'm also adding Classic Air, power windows and stereo. I wondered where everyone is placing these, would like to keep things as neat and clean as possible. Under the battery tray? I'm not sure how much room is available under there. Thanks! Matt

  2. 1 Wild R/T

    1 Wild R/T Well-Known Member

    Messages:
    1,522
    Likes Received:
    2430
    Joined:
    Jul 9, 2019
    Location:
    California
    Local Time:
    12:48 PM
    You could easily hide a dozen relays under the battery tray....

    My headlight relays are in the grill cavity under the drivers headlights...

  3. Runningman20

    Runningman20 Active Member

    Messages:
    26
    Likes Received:
    5
    Joined:
    Sep 24, 2019
    Location:
    Romeo, Mi
    Local Time:
    3:48 PM
    I wasn't sure with the vacuum canister under there, I'll have to get to the shop and mock it up and take a look. Have any pics of your install? Thanks!

  4. 1 Wild R/T

    1 Wild R/T Well-Known Member

    Messages:
    1,522
    Likes Received:
    2430
    Joined:
    Jul 9, 2019
    Location:
    California
    Local Time:
    12:48 PM
    I haven't owned a Charger in 40 years, forgot about that vacuum can... Okay maybe a dozen is a stretch... but 3-4 should still be pretty easy...

    My current vehicle is a 70 Challenger, the relays can't be seen till you remove a few things, like the lower valance & bumper...

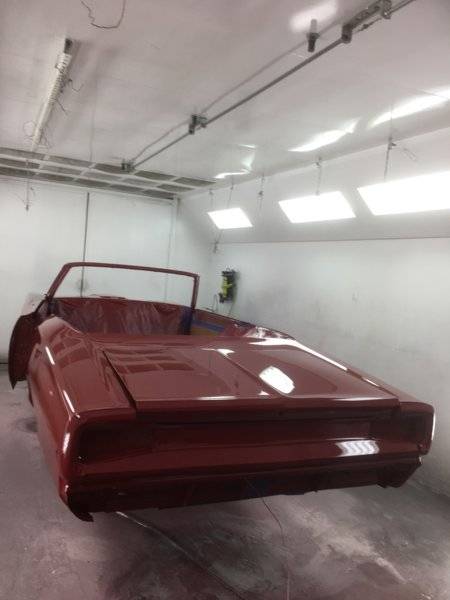

    My 68 Coronet doesn't have wiring yet... IMG_4515.JPG

    • Like Like x 4
    • Runningman20

      Runningman20 Active Member

      Messages:
      26
      Likes Received:
      5
      Joined:
      Sep 24, 2019
      Location:
      Romeo, Mi
      Local Time:
      3:48 PM
      Awesome! Yeah I'll just have to take some measurements and see what I can come up with.

    • 451Mopar

      451Mopar Well-Known Member

      Messages:
      1,791
      Likes Received:
      1190
      Joined:
      Oct 25, 2011
      Location:
      Aurora, CO
      Local Time:
      1:48 PM
      We are using the EATON Bussman Series 15305 Fuse/Relay Block (5 relays with 5 30-Amp fuses, and an additional 5 fuse locations.)
      https://peerlesselectronics.com//files/15305-2-6-4.pdf
      https://www.amazon.com/gp/product/B01FWILL20/ref=ppx_yo_dt_b_asin_title_o06_s00?ie=UTF8&psc=1

      If building the box from scratch, it takes "TANGLESS" Metri-Pack 280 Female Terminals. The "Tangless" terminals are a bit different than the regular Metri-Pack 280 terminals in how they lock into the fuse block.

      Battery is re-located to trunk, so box is mounted about where the battery tray would have been.
      I haven't tried the relays with the built in fuse holder, so I don't know how good they are, but would make wiring easier than having individual fuses to wire to the relays.

      • Like Like x 1
      • Runningman20

        Runningman20 Active Member

        Messages:
        26
        Likes Received:
        5
        Joined:
        Sep 24, 2019
        Location:
        Romeo, Mi
        Local Time:
        3:48 PM
        Pretty slick, thanks!!

      • 65-440

        65-440 Well-Known Member

        Messages:
        2,730
        Likes Received:
        2113
        Joined:
        Dec 2, 2009
        Location:
        virginia beach, va
        Local Time:
        5:48 PM

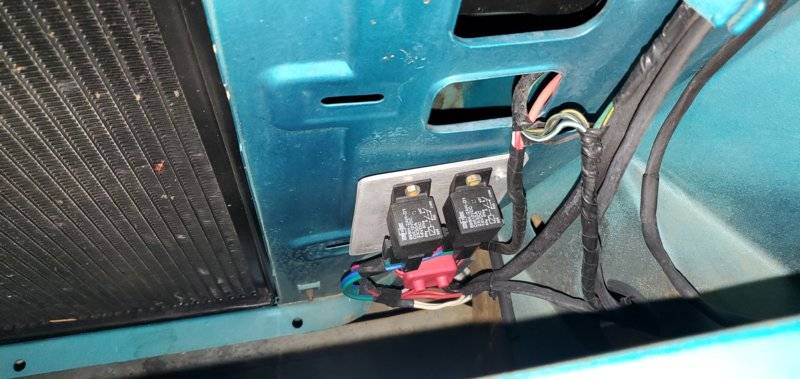

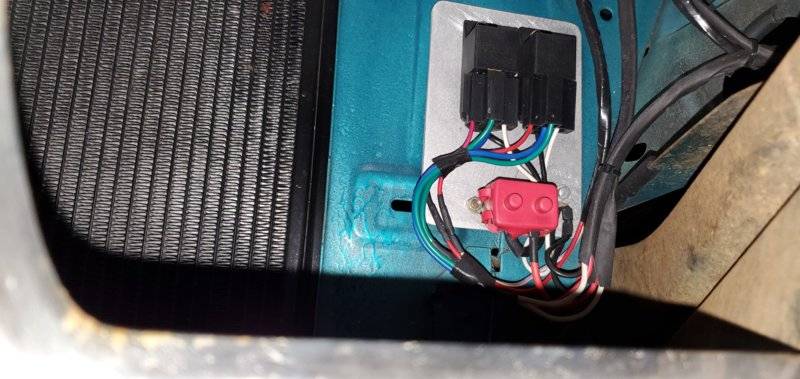

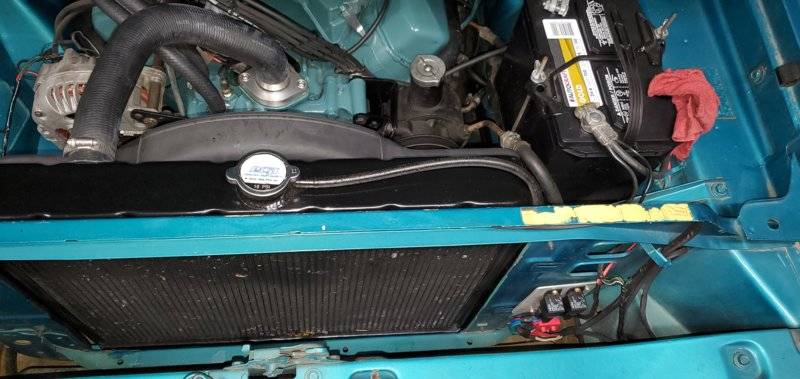

        On my 70 dart the relays are hidden under the battery tray, on my 68 coronet I mounted them on a aluminum plate on the front side of the radiator support at the bottom.

        • Like Like x 1
        • Runningman20

          Runningman20 Active Member

          Messages:
          26
          Likes Received:
          5
          Joined:
          Sep 24, 2019
          Location:
          Romeo, Mi
          Local Time:
          3:48 PM
          Any pics??

        • 65-440

          65-440 Well-Known Member

          Messages:
          2,730
          Likes Received:
          2113
          Joined:
          Dec 2, 2009
          Location:
          virginia beach, va
          Local Time:
          5:48 PM

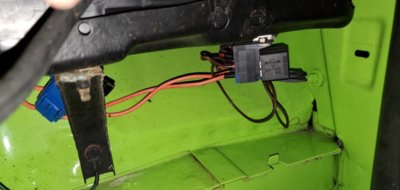

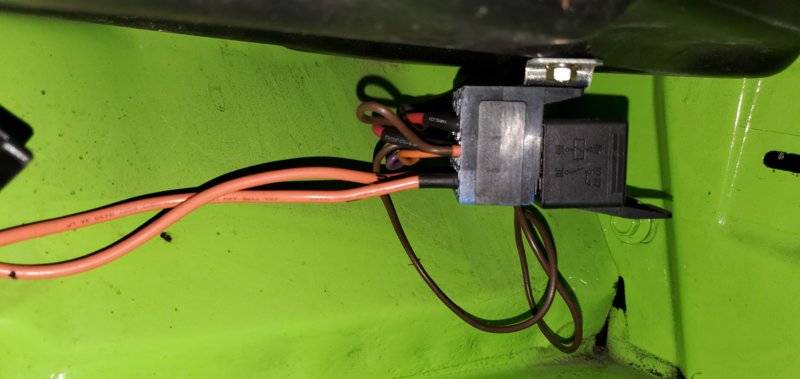

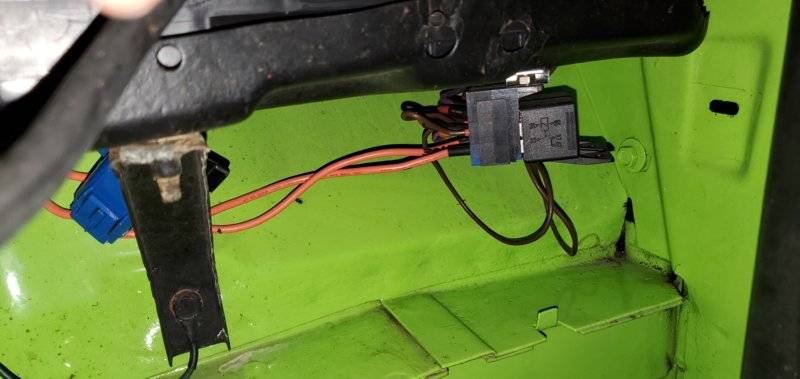

          Keep in mind my coronet is no show car, it's my reliable driver ! Hiding the relays was not a concern to me. The dart, those are hidden ! Man underneath my battery tray is filthy !

          20200125_100142.jpg 20200125_100214.jpg 20200125_100337.jpg 20200125_100357.jpg 20200125_100417.jpg

          • Like Like x 1
          • munger77

            munger77 FBBO Gold Member FBBO Gold Member

            Messages:
            316
            Likes Received:
            231
            Joined:
            Apr 25, 2015
            Location:
            Atlanta, GA
            Local Time:
            3:48 PM
            To 1 Wild R/T - that 68 Coronet is going to be AMAZING.

            • Agree Agree x 2
            • Like Like x 1
            • Thanks! Thanks! x 1
            • 451Mopar

              451Mopar Well-Known Member

              Messages:
              1,791
              Likes Received:
              1190
              Joined:
              Oct 25, 2011
              Location:
              Aurora, CO
              Local Time:
              1:48 PM
              Forgot to mention, We used the version like the one in the Amazon link which has two busses, one for the fuses and one for one side of the relay coils.
              I modified the relay coil side bus, cut the bus so the upper two relay bus part is grounded, and the lower three relays on the bus are powered.
              This allows the upper two relays to trigger on +12v for the headlights, The lower 3 are ground triggered for Fan 1, Fan 2, and Horns.
              One of the extra fused outlets is being used for an under hood light.

              • Like Like x 1
              • Runningman20

                Runningman20 Active Member

                Messages:
                26
                Likes Received:
                5
                Joined:
                Sep 24, 2019
                Location:
                Romeo, Mi
                Local Time:
                3:48 PM
              • Runningman20

                Runningman20 Active Member

                Messages:
                26
                Likes Received:
                5
                Joined:
                Sep 24, 2019
                Location:
                Romeo, Mi
                Local Time:
                3:48 PM
                So the fans are coming off temp senders and the horn switch is to ground? I haven't looked at the wiring diagram yet to refresh my memory. I took my car apart about 15 years ago lol

              • 451Mopar

                451Mopar Well-Known Member

                Messages:
                1,791
                Likes Received:
                1190
                Joined:
                Oct 25, 2011
                Location:
                Aurora, CO
                Local Time:
                1:48 PM
                Car has Sniper EFI. The EFI monitors the temperature and controls the fans, A/C clutch (no A/C yet.) The horn switch wire connects to ground at the steering wheel. That is why the horns have the relay next to them, but we just used the relay in the relay box and removed the relay mounted near the horns.

                • Like Like x 1
                • andyf

                  andyf Well-Known Member

                  Messages:
                  649
                  Likes Received:
                  1012
                  Joined:
                  Jul 21, 2012
                  Location:
                  Oregon
                  Local Time:
                  12:48 PM
                  Take a look at the MSD solid state relay. I'm using those solid state relay blocks on the cars I'm working on now.

                  • Like Like x 1
                  • Runningman20

                    Runningman20 Active Member

                    Messages:
                    26
                    Likes Received:
                    5
                    Joined:
                    Sep 24, 2019
                    Location:
                    Romeo, Mi
                    Local Time:
                    3:48 PM
                    Awesome, thank you!!

                  • Runningman20

                    Runningman20 Active Member

                    Messages:
                    26
                    Likes Received:
                    5
                    Joined:
                    Sep 24, 2019
                    Location:
                    Romeo, Mi
                    Local Time:
                    3:48 PM
                    I'll check them out, thank you!

                  • 451Mopar

                    451Mopar Well-Known Member

                    Messages:
                    1,791
                    Likes Received:
                    1190
                    Joined:
                    Oct 25, 2011
                    Location:
                    Aurora, CO
                    Local Time:
                    1:48 PM
                    The Solid state relays are more expensive, but should not be affected by High G-Force vibration like tire shake.
                    The regular type relays are less expensive. Here is a link to the Picker 35 Amp relay specifications used in the Bussman Box:

                    https://www.pickercomponents.com/pdf/Relays/PC785.pdf

                    A bit off topic, but has anyone pulled apart a circular LED rocker switch and reversed the LED polarity? I want to illuminate the LED when switching to Ground, not to +12v. If the switch(s) can not be modified, I may use them to trigger more relays to reverse the polarity action....

                    • Like Like x 1
                    • 440ronnie67

                      440ronnie67 FBBO Gold Member FBBO Gold Member

                      Messages:
                      472
                      Likes Received:
                      184
                      Joined:
                      Jul 29, 2012
                      Location:
                      Belton
                      Local Time:
                      2:48 PM

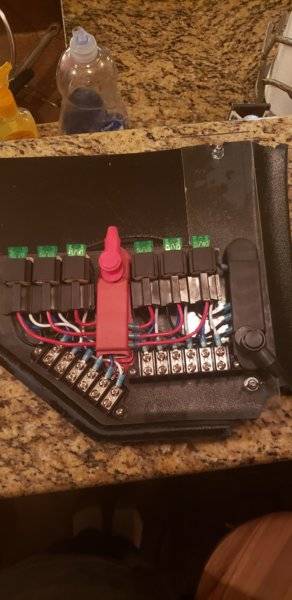

                      Here is mine, mounted to passenger side kick panel with wing nuts. Nitrous, trans brake,, cooler, gear vendors ect 20200309_202703.jpg
