SRT8 Roadrunner conversion, NOT a body over!!

Resto-Mods & Pro-Touring forum

  1. CJD AUTO

    CJD AUTO Well-Known Member

    Messages:
    133
    Likes Received:
    363
    Joined:
    Oct 2, 2015
    Location:
    JACKSONVILLE, FL
    Local Time:
    11:38 PM
    Started this project when a customer was going to install an XV suspension setup with SRT8 running gear. XV imploded, and I offered this a solution for the customers request to have a modern car in an old wrapper. Been kicking myself ever since!

    So the car he started with was a salvage title SRT8 that ran and drove, but was hit in the front. Now that I was using the suspension, I needed a jig. A quick tram gauge check showed the cars rails and cradle were bent. So off to the frame shop to pull the car into spec. That means a new cradle and pull the engine for the frame shop.

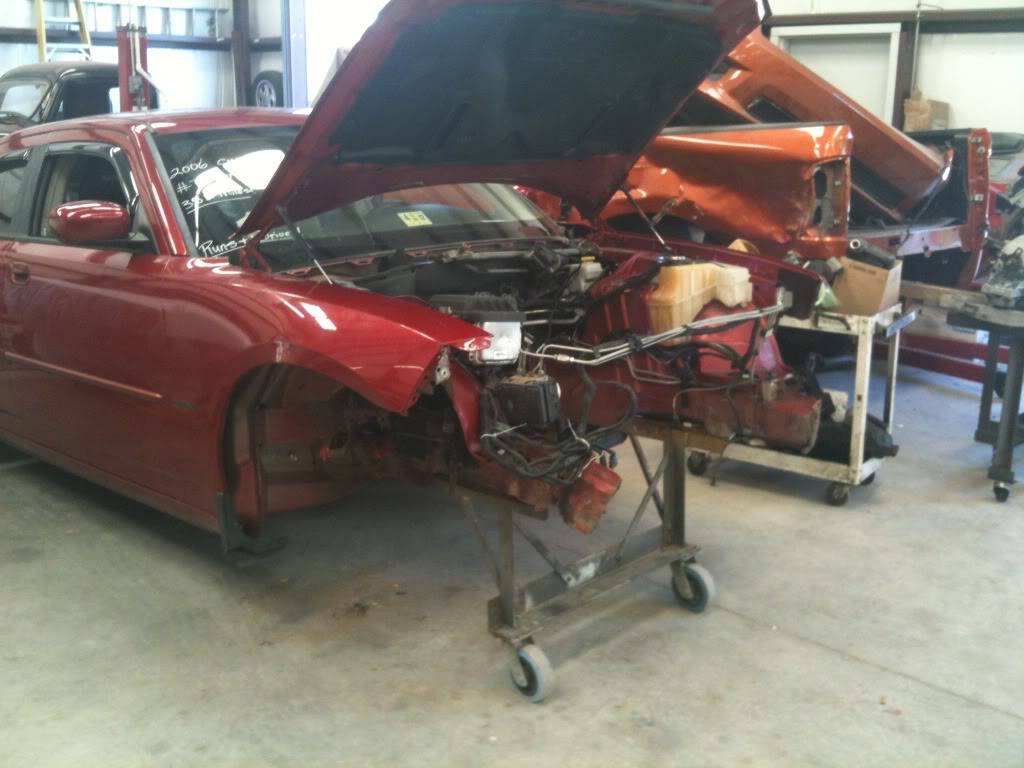

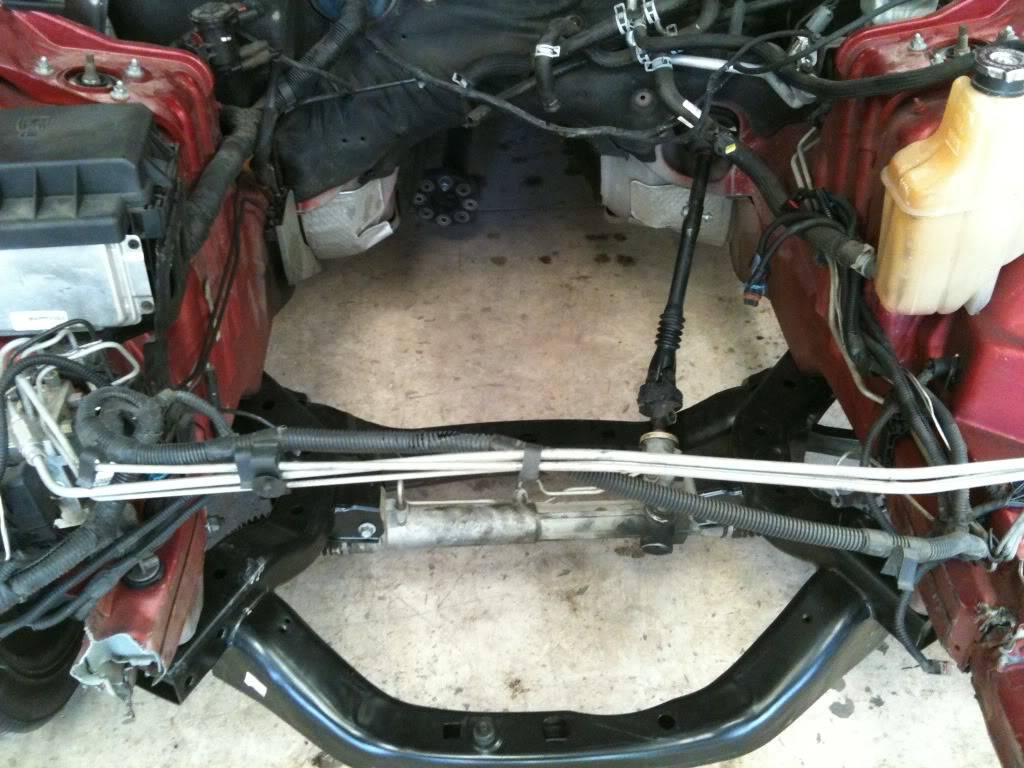

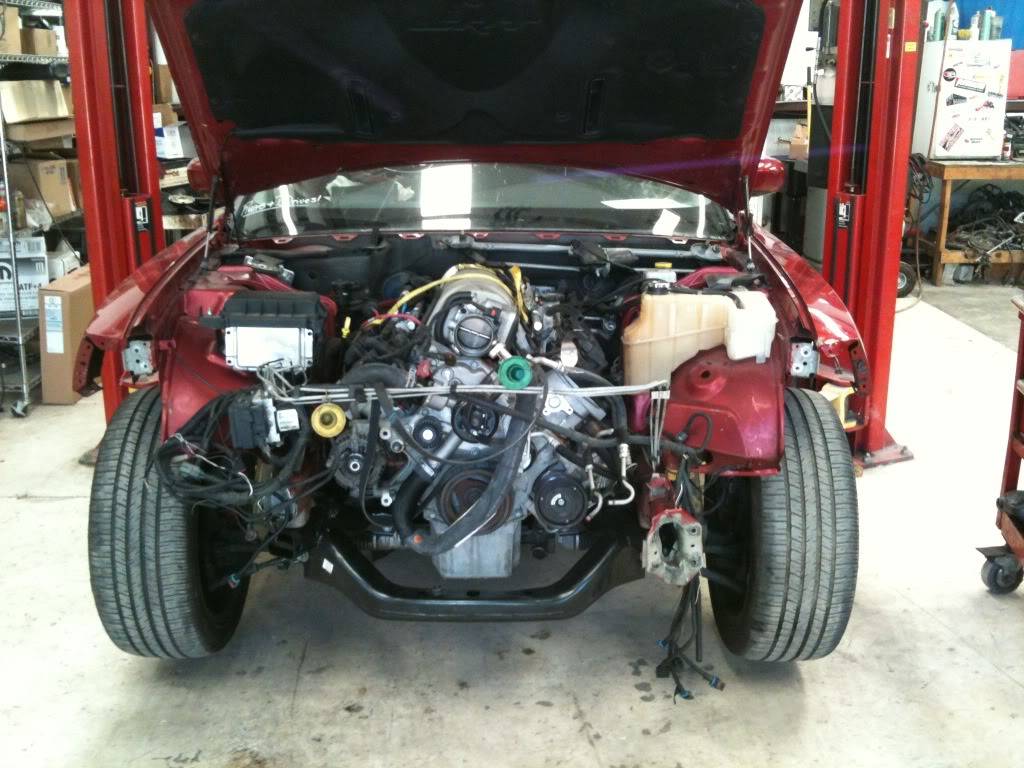

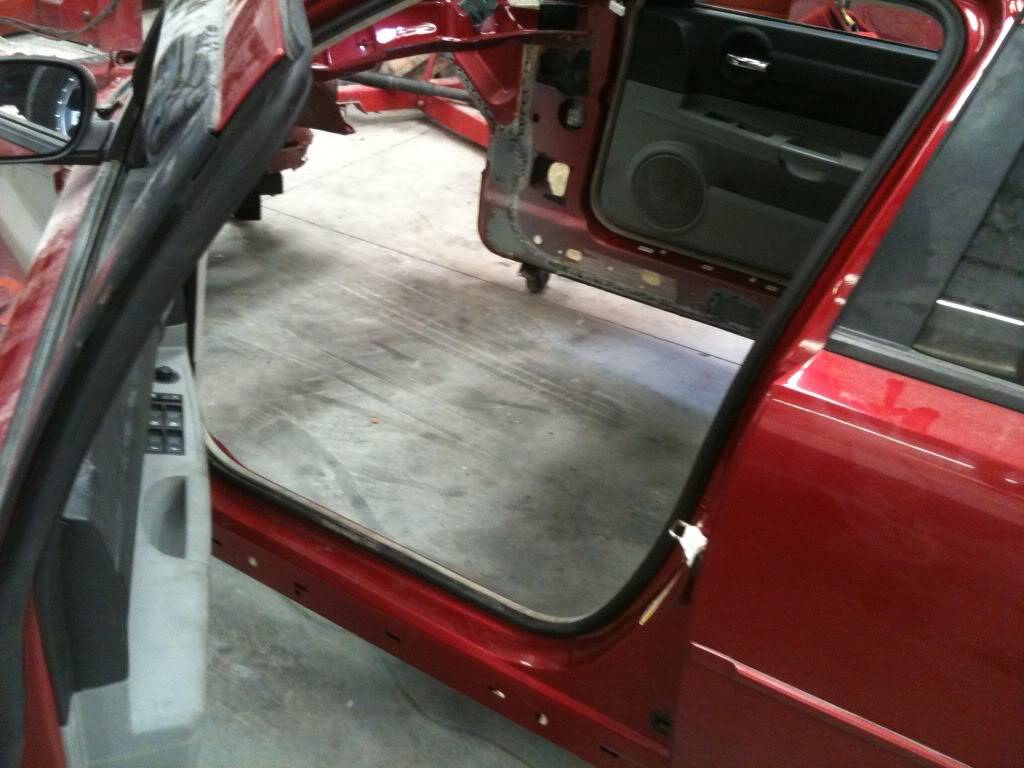

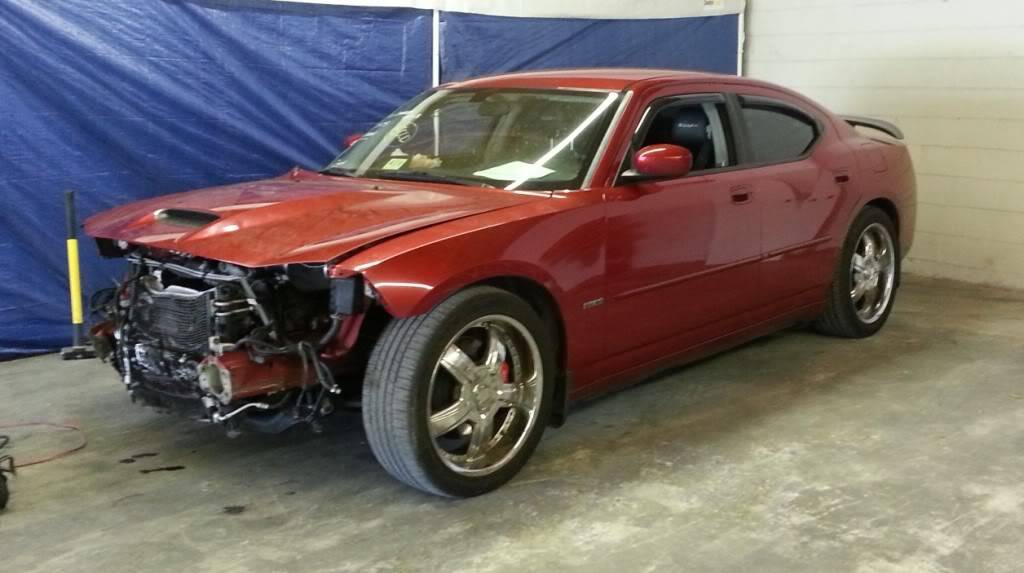

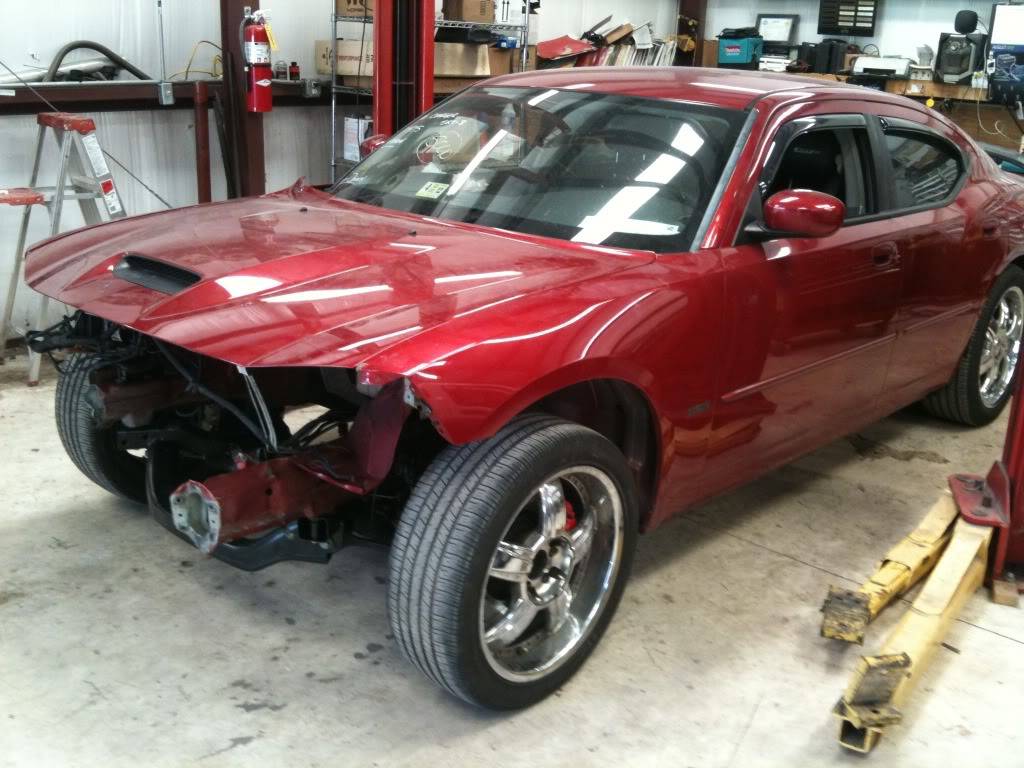

    This is the car as delivered:


    To the frame shop:

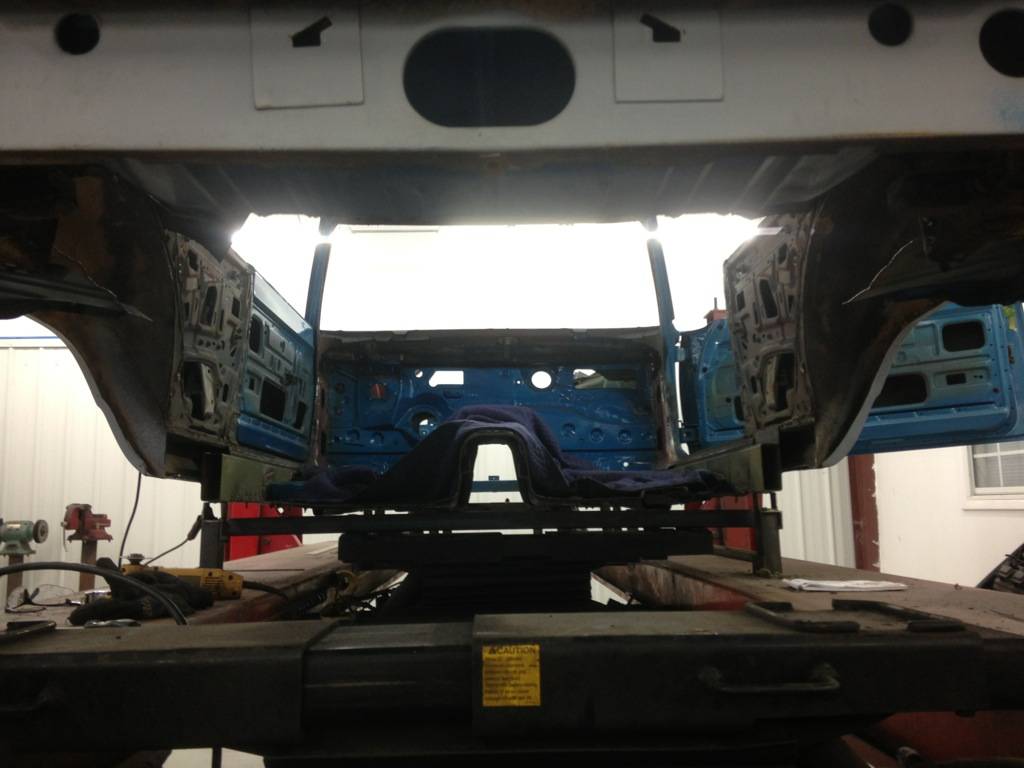

    Back from the frame shop:

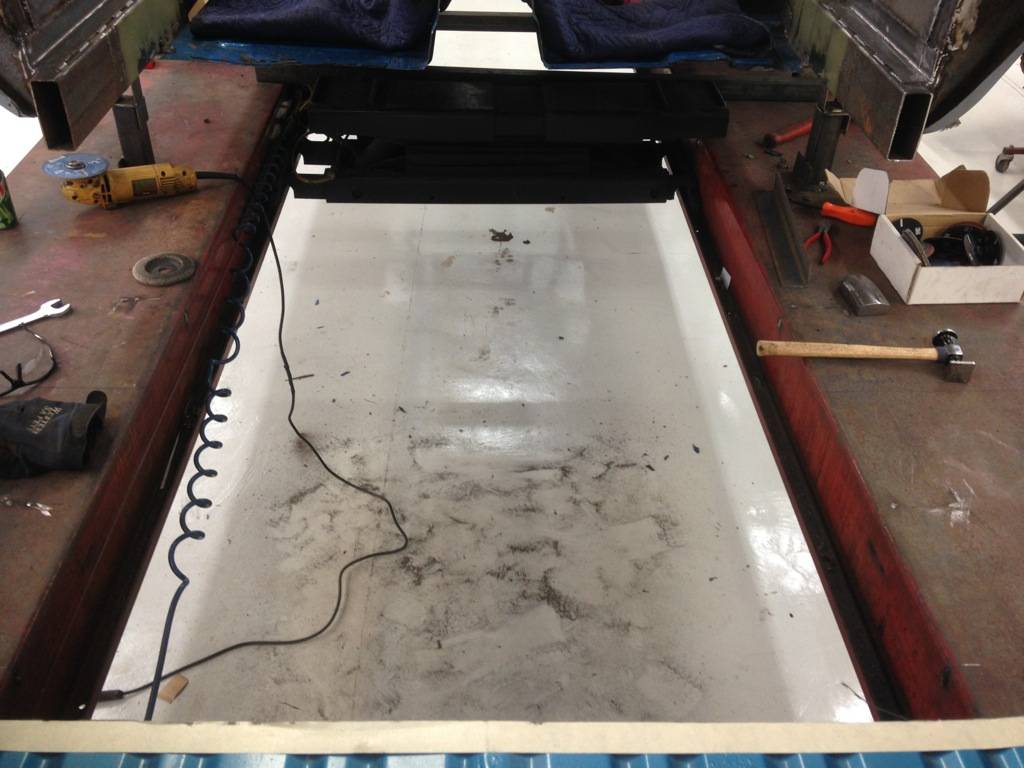

    Then I had to level out the drive on and use it as the frame table. Set the Charger at ride height and locked it down. Now to build jigs that attach to the rack:

    file-5.jpg file-6.jpg

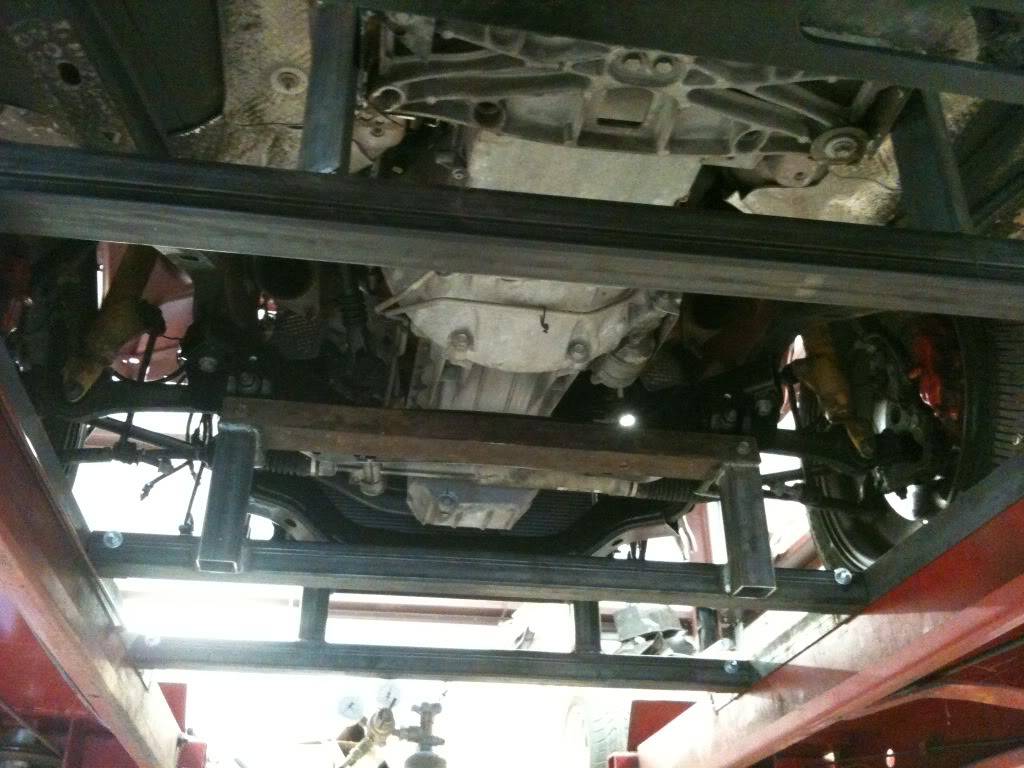

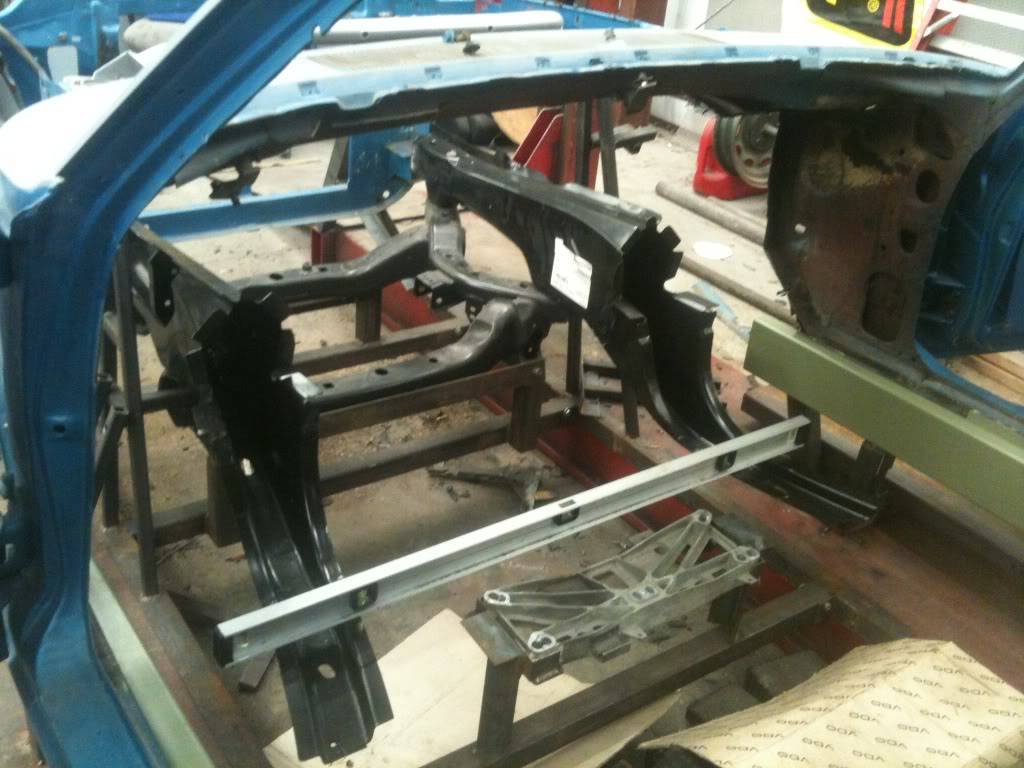

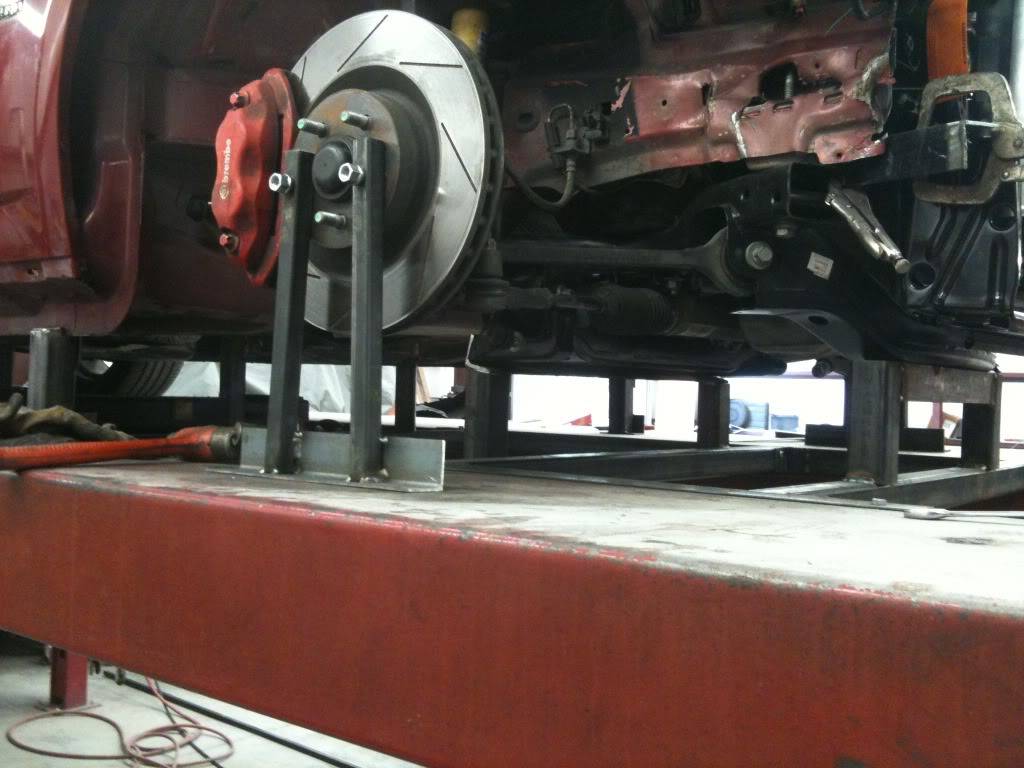

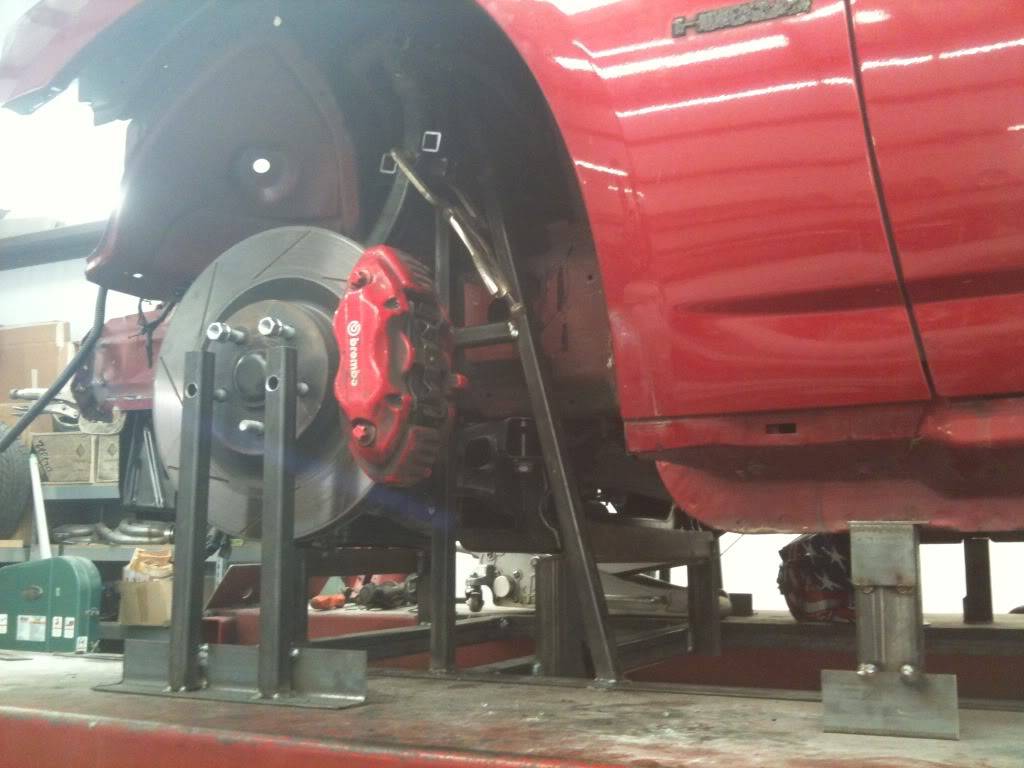

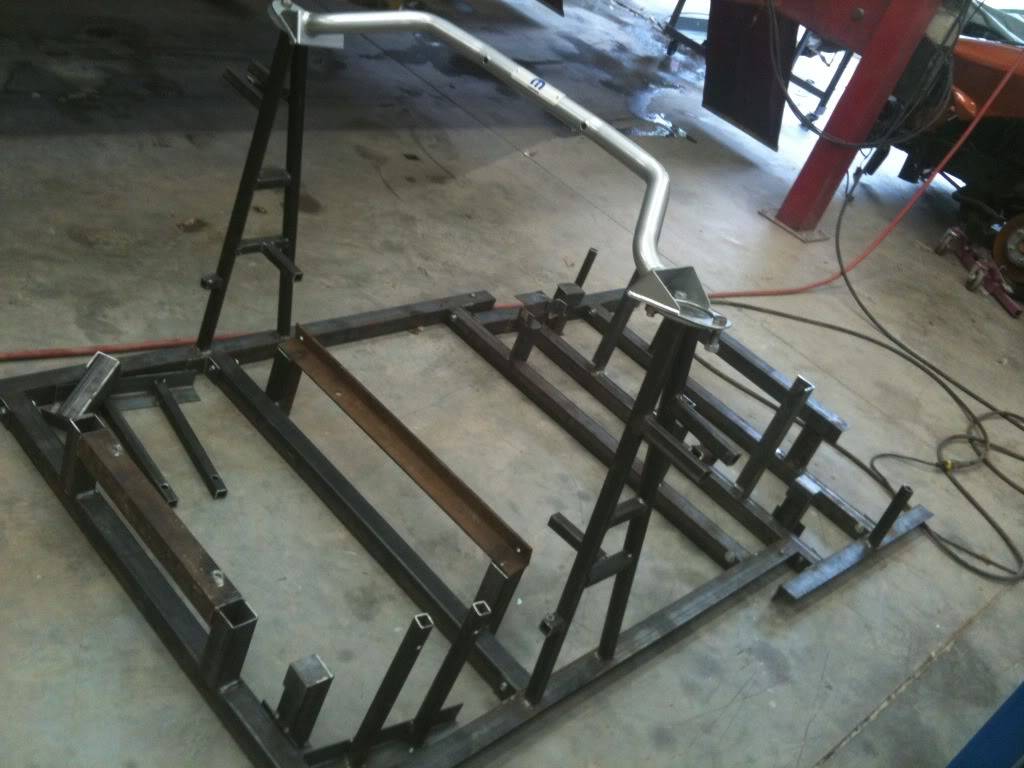

    And end up with these jigs that locate the suspension and floor mounts:

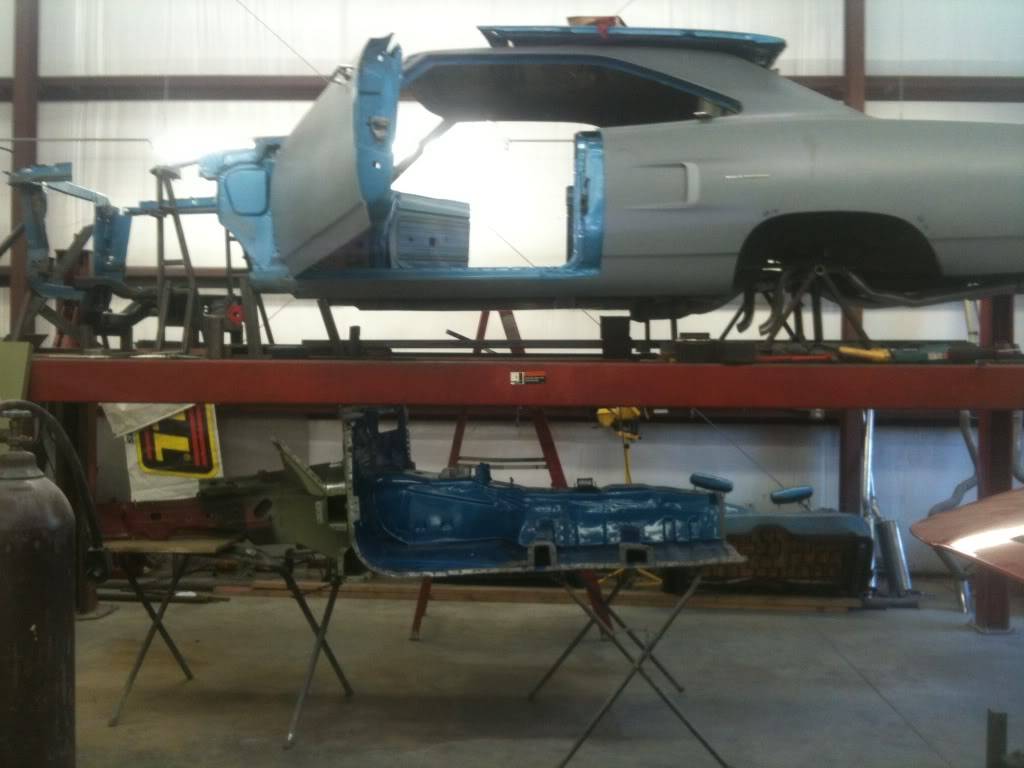

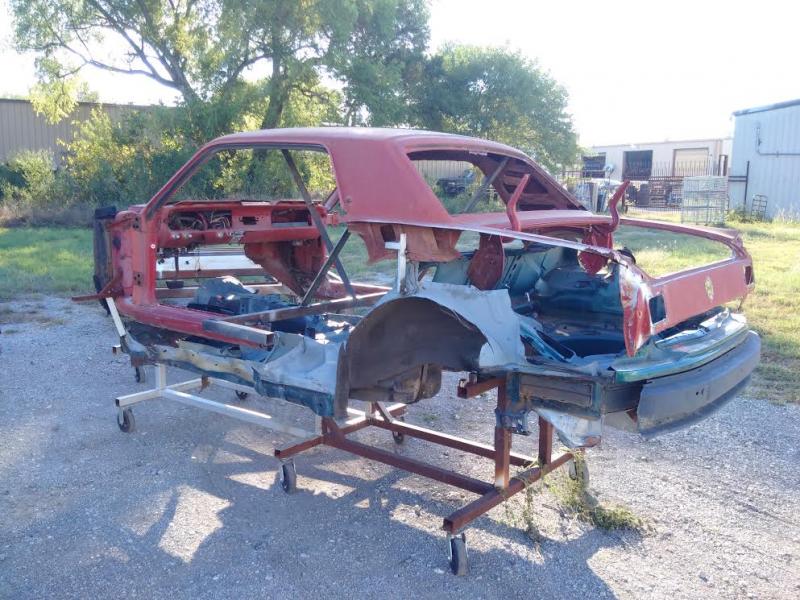

    Off with the SRT8 and on with the Roadrunner. I have the body on air jacks to manipulate the stance to the customers liking. Remember the jigs fix the suspension at ride height. I am simply adjusting the rake off the body and will attach the body to the rack at the customers preferred stance and ride height:

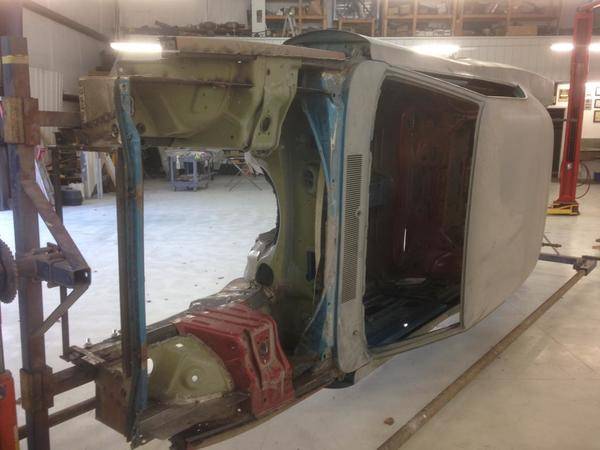

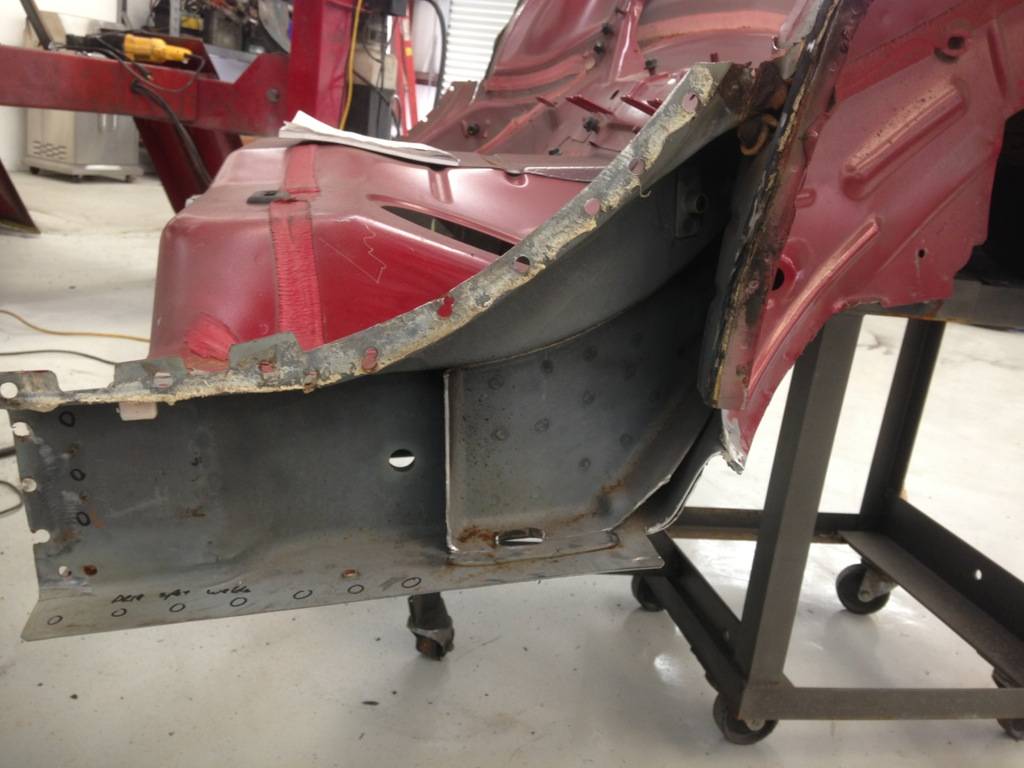

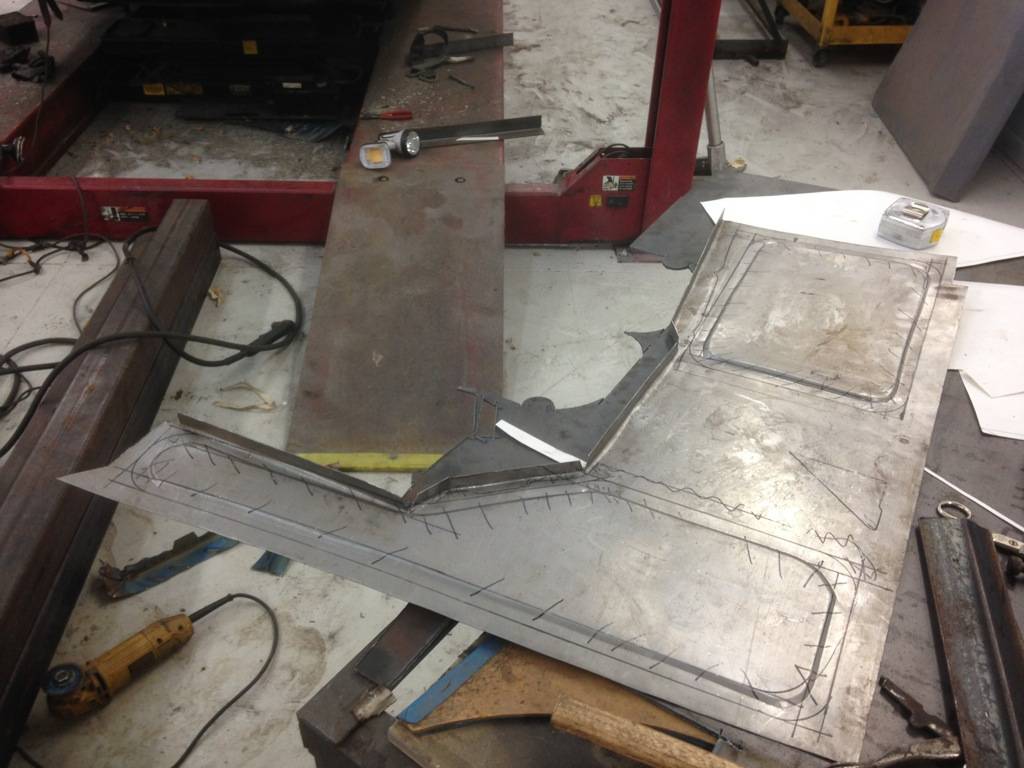

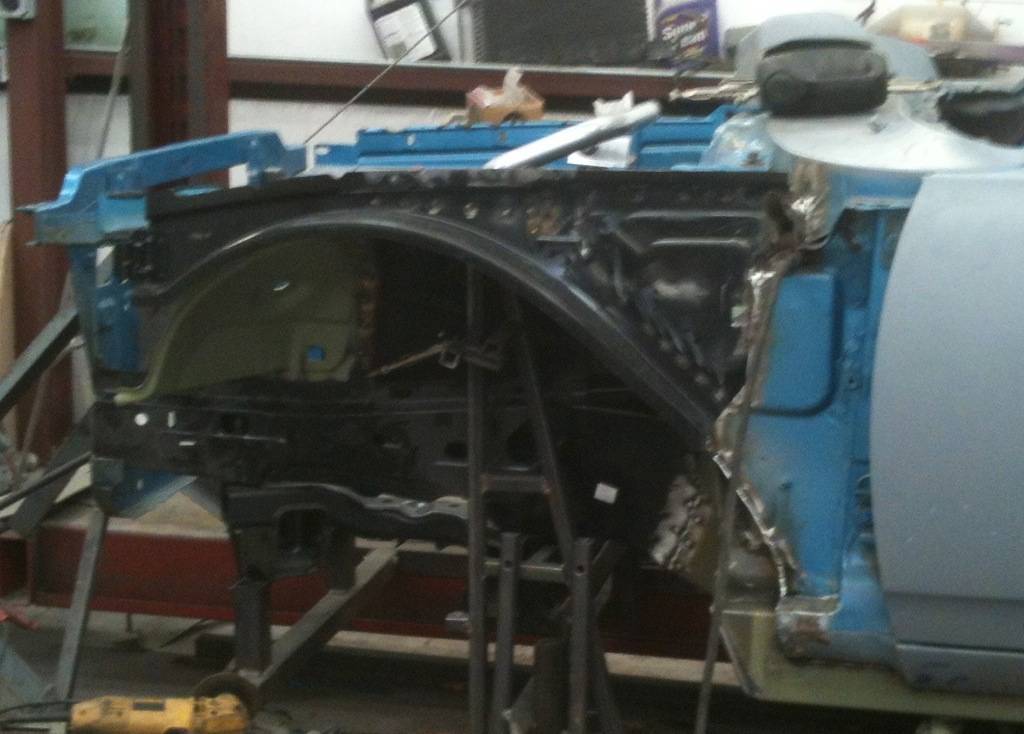

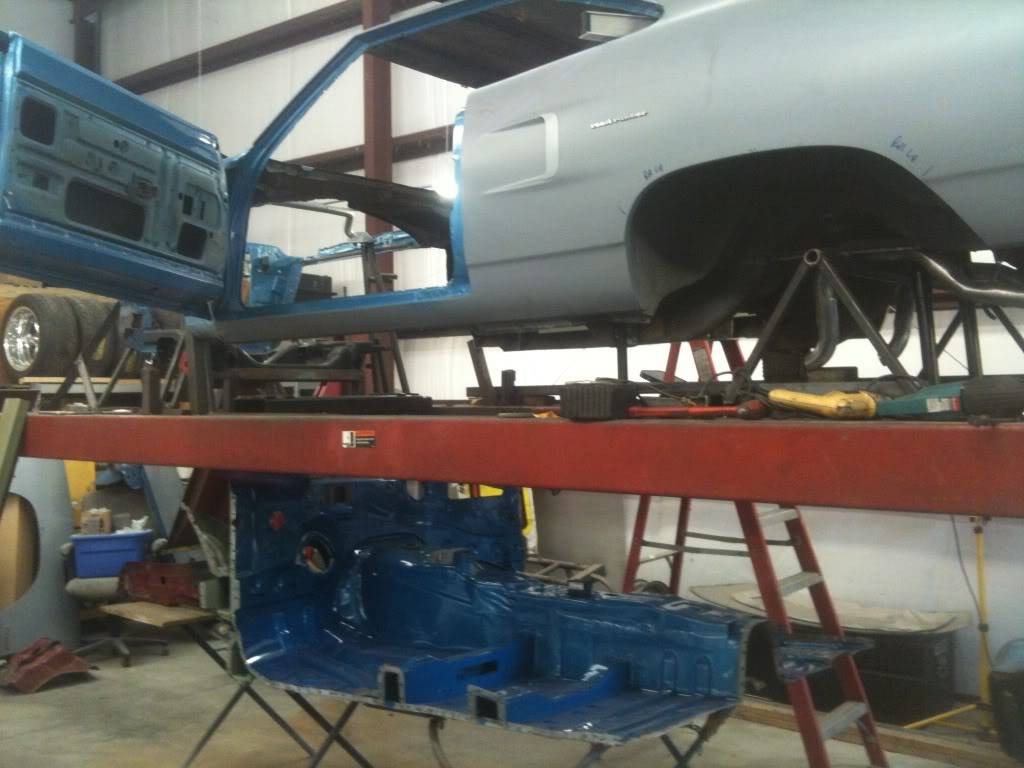

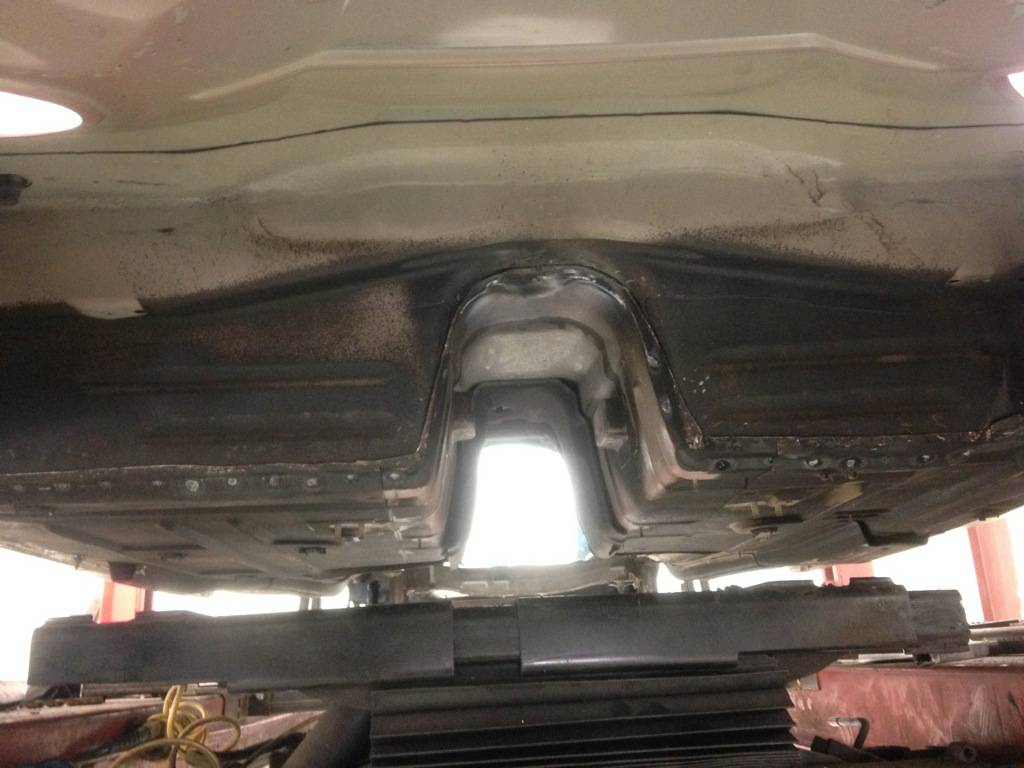

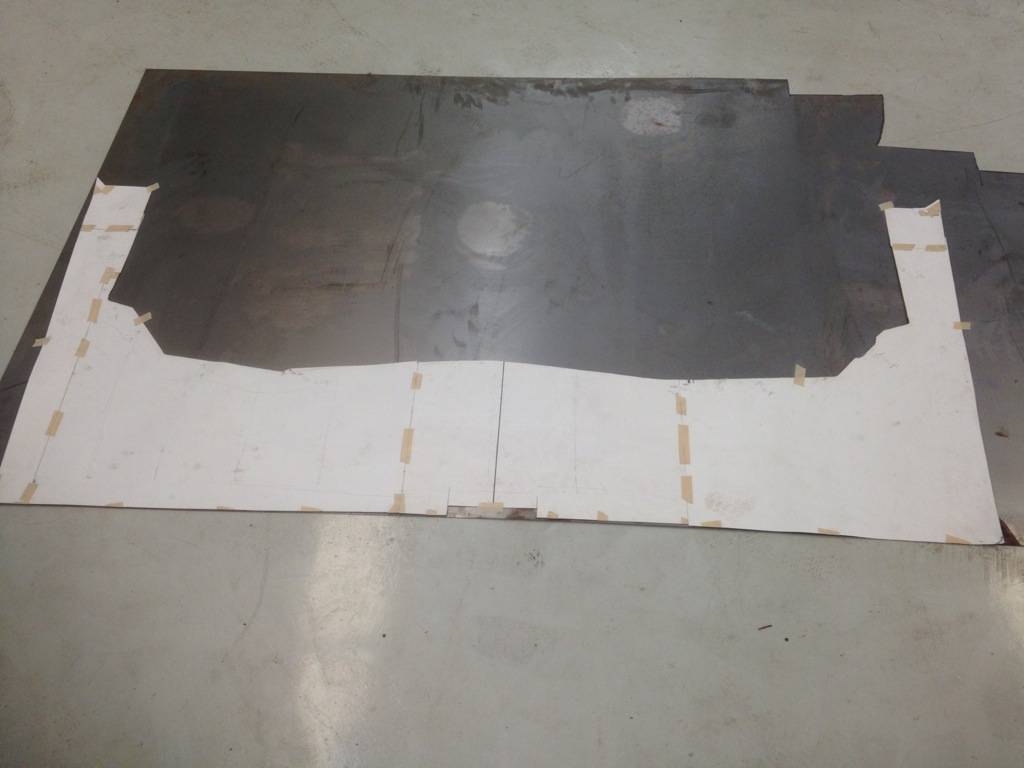

    Okay, RR body locked down. Now to start cutting the floor section out. The LX floor is actually narrower than the RR's original, so I need to bridge the gap. I'll use a 2x5 box beam. This is where I get adamant that this isn't a body over. When they "skin" an LX car, they are removing the outside of the LX floor's bridge beams. This IS the structure of that car. You are seriously compromising the chassis integrity. So I remove the floor section from the LX where it attaches to the bridge beam, and attach to the new RR's box beam structure. Hope that made sense!

    file-22.jpg [/URL file-13.jpg file-14.jpg file-15.jpg

    Throw a little paint, not sure why, ended up blasting!

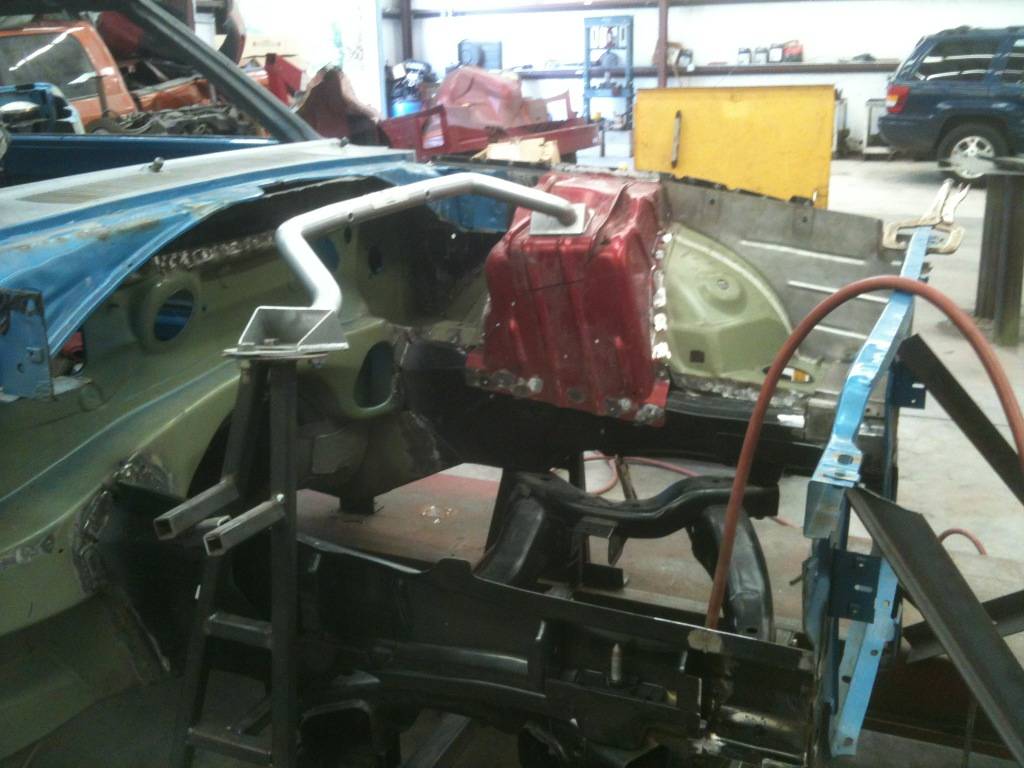

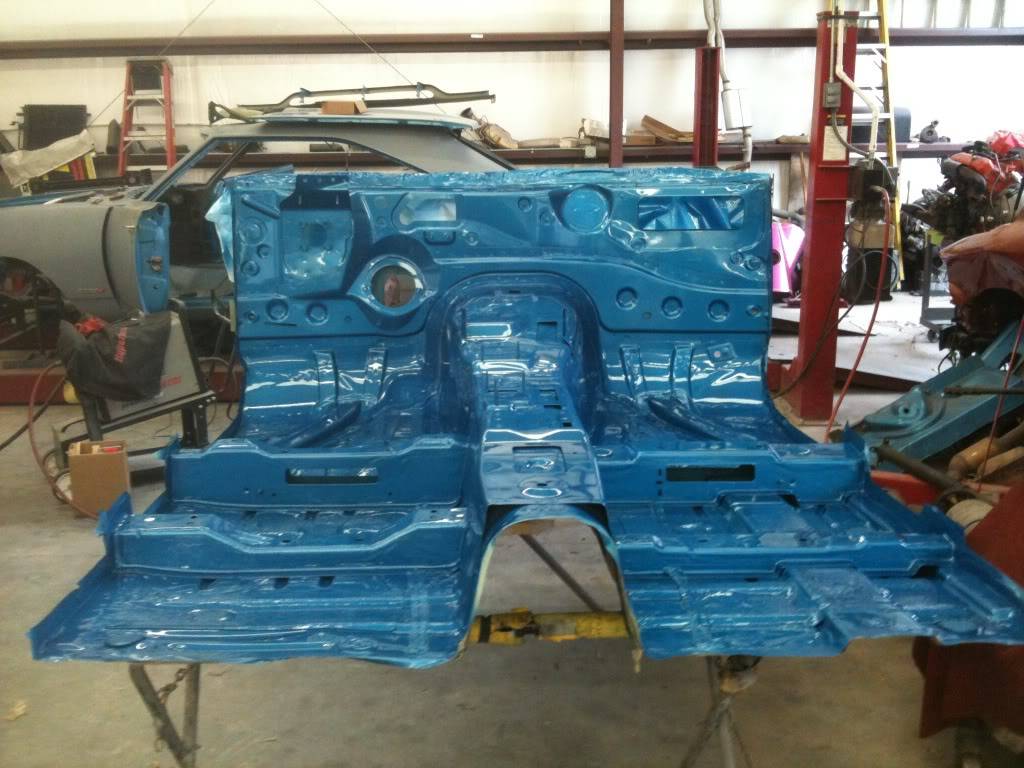

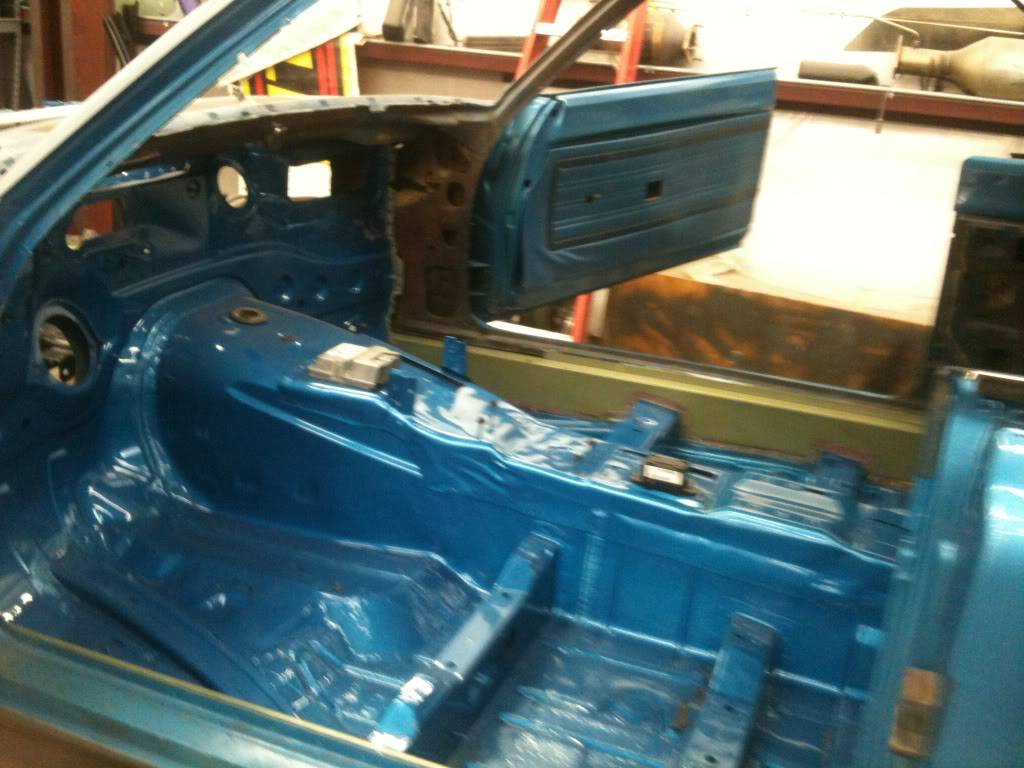

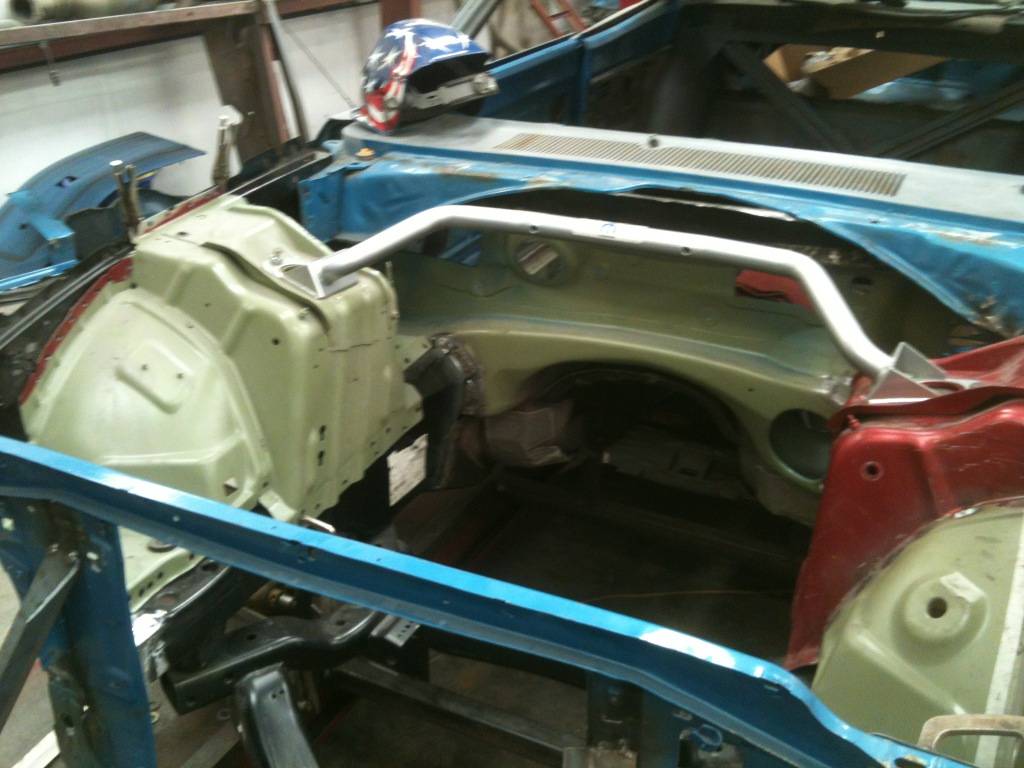

    And then slip it into place and locate with the jigs:

    file-23.jpg file-24.jpg file-25.jpg file-28.jpg

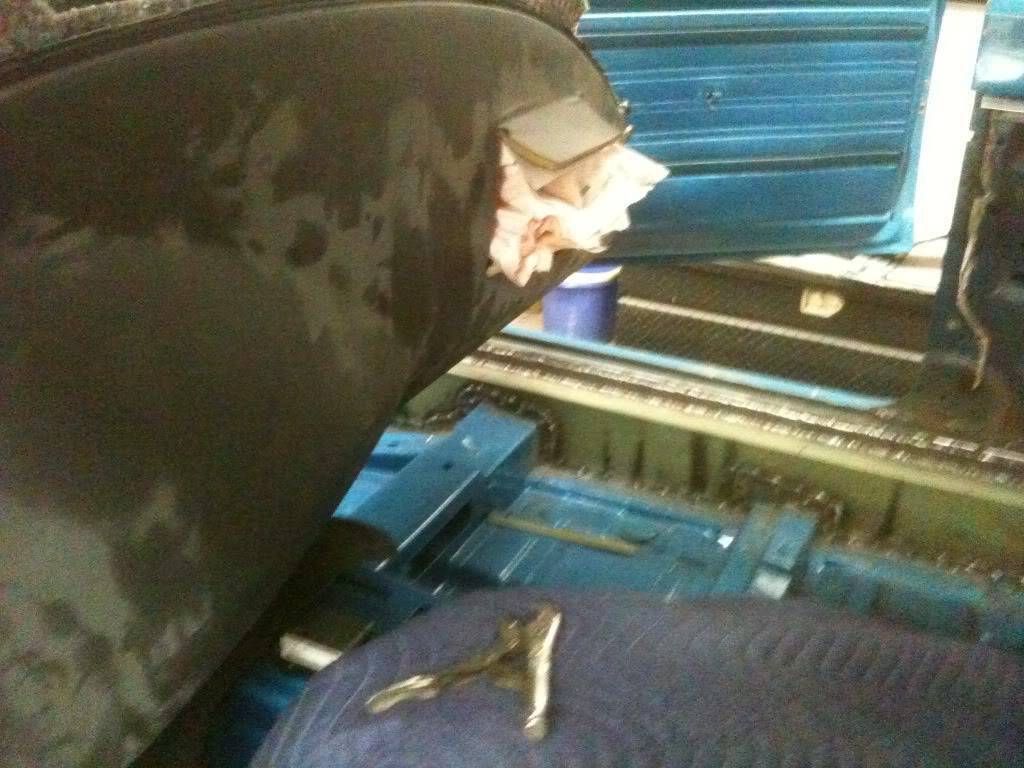

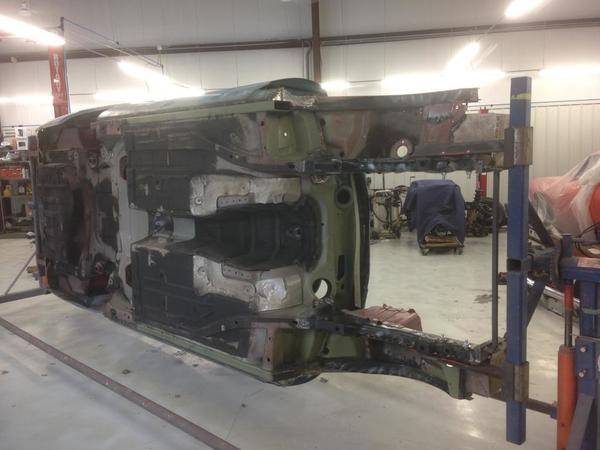

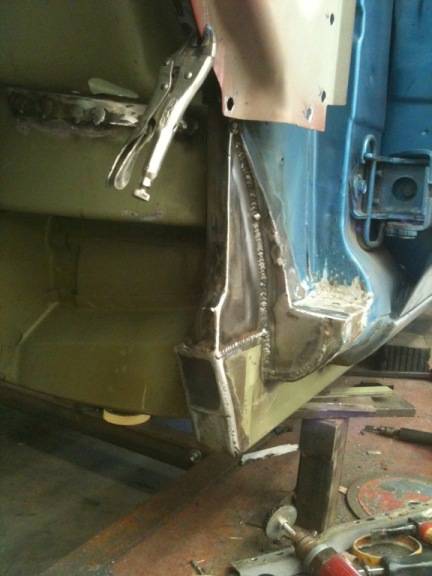

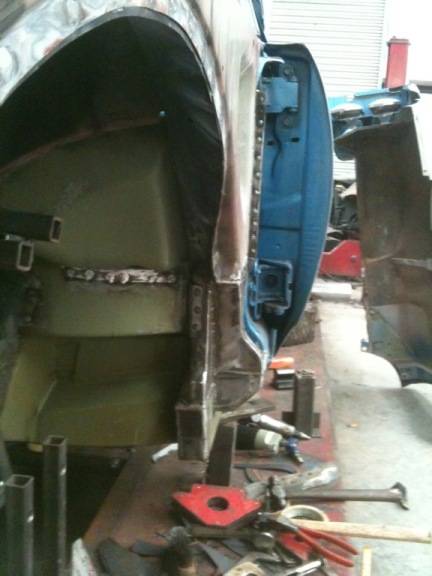

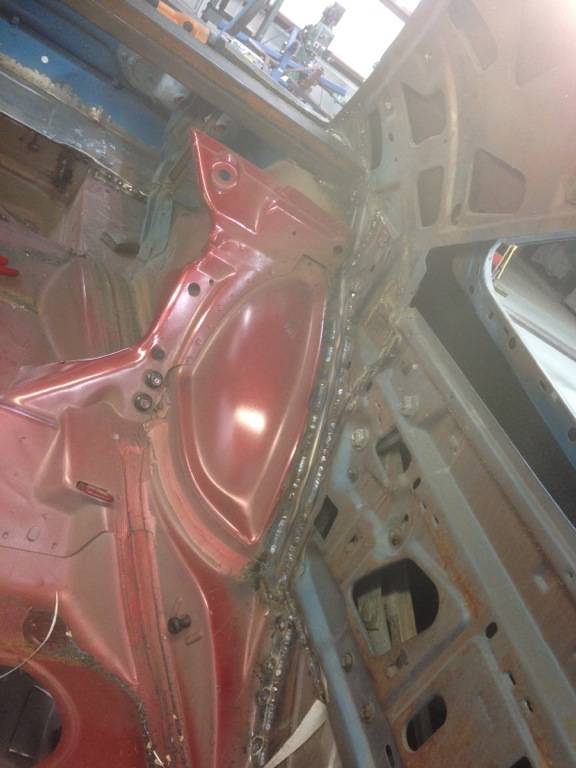

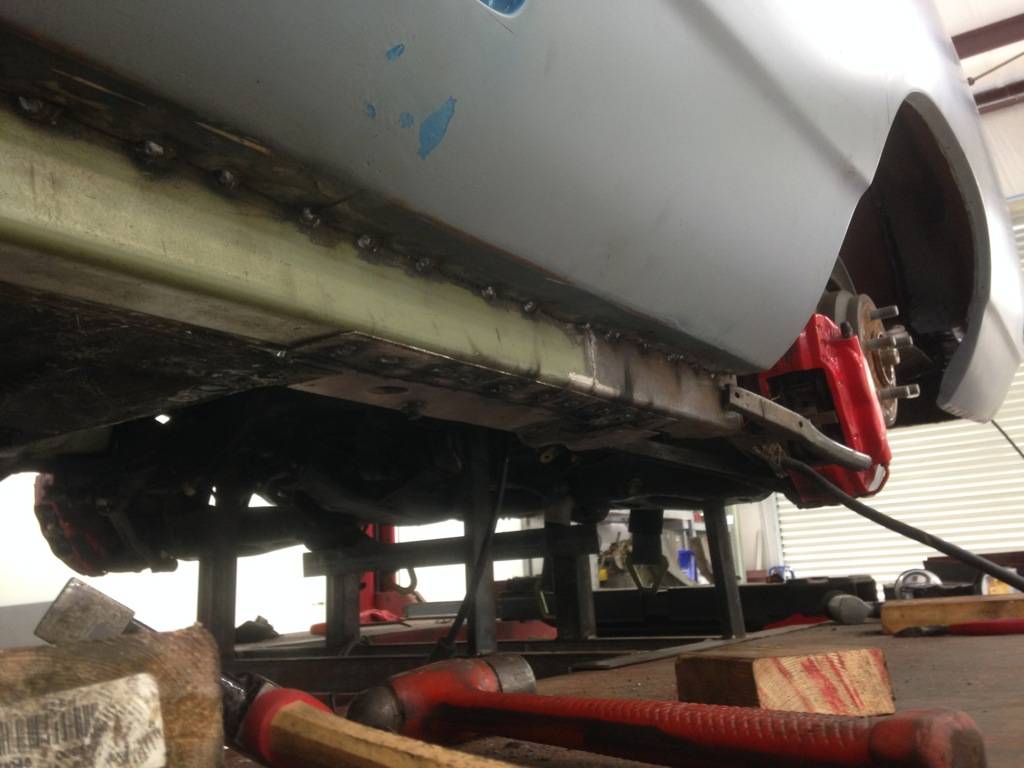

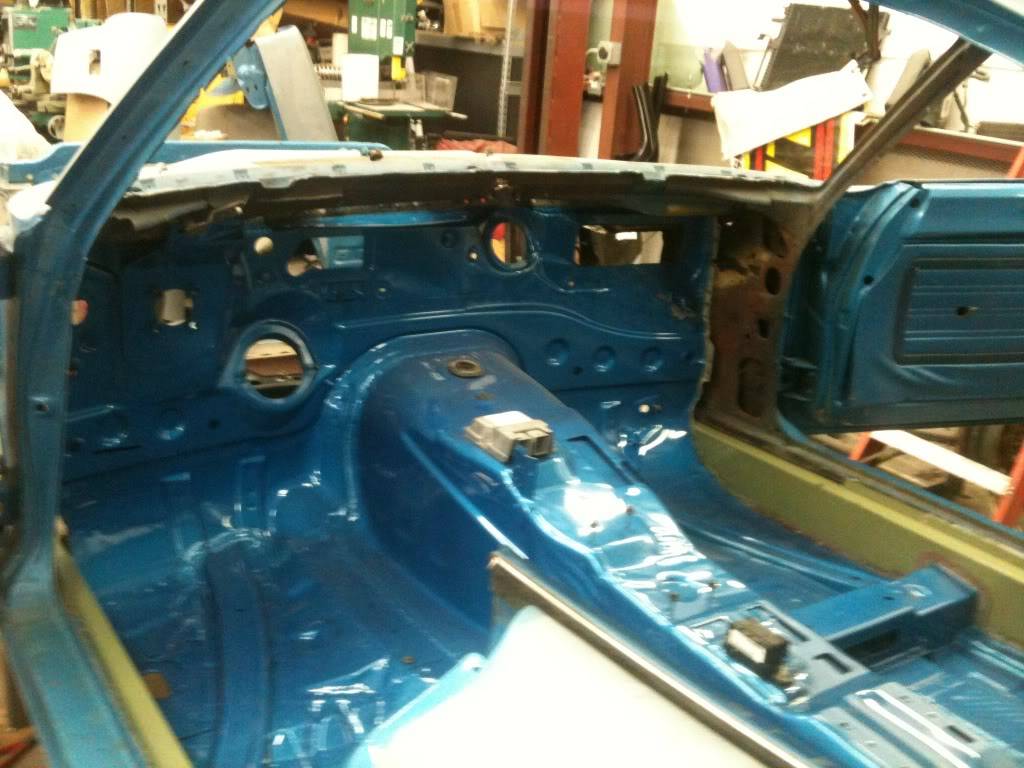

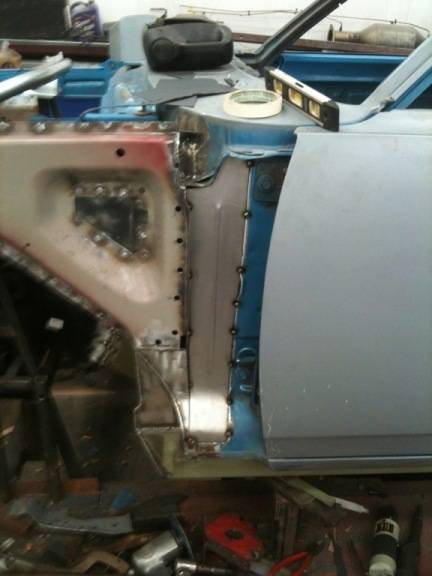

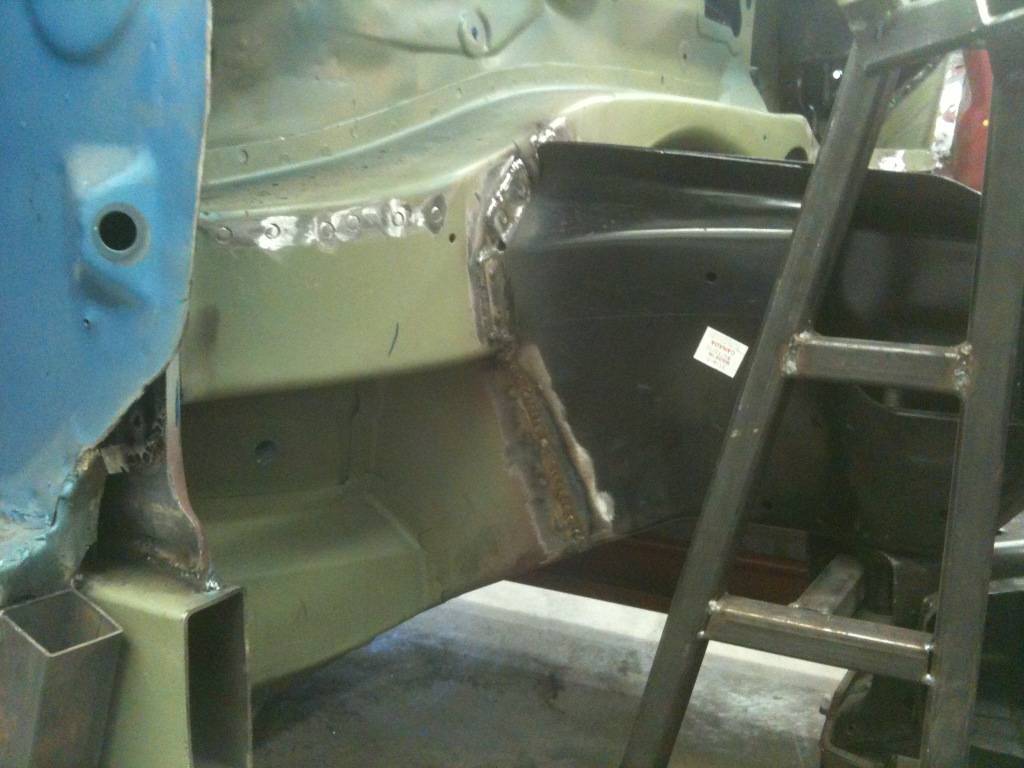

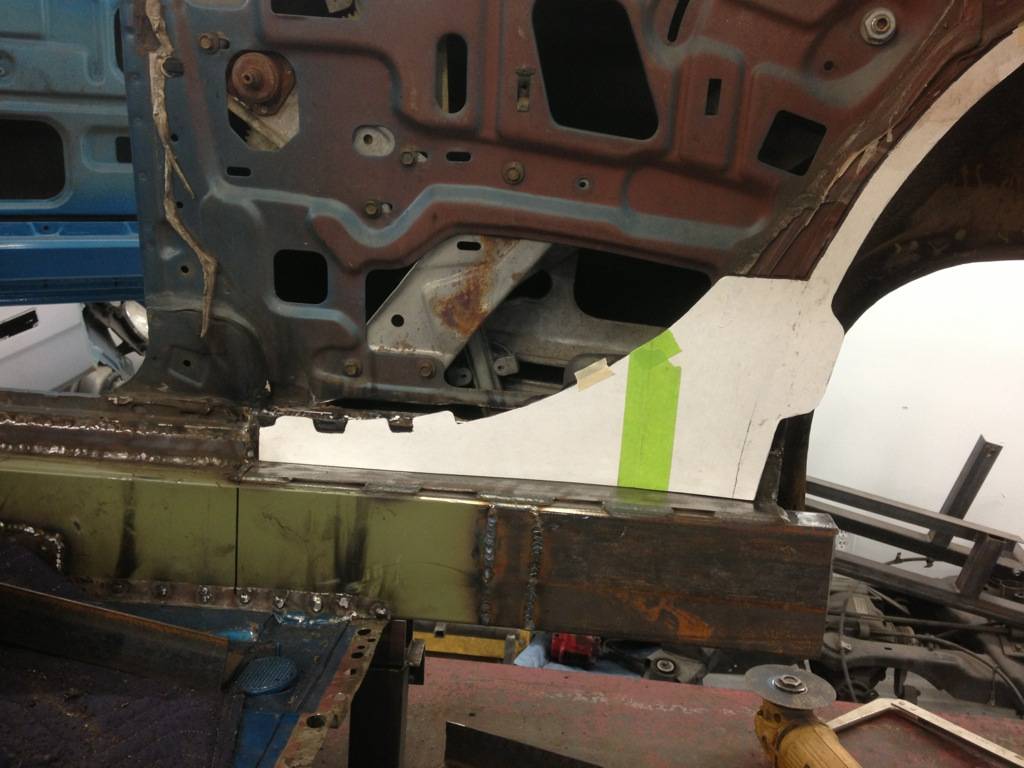

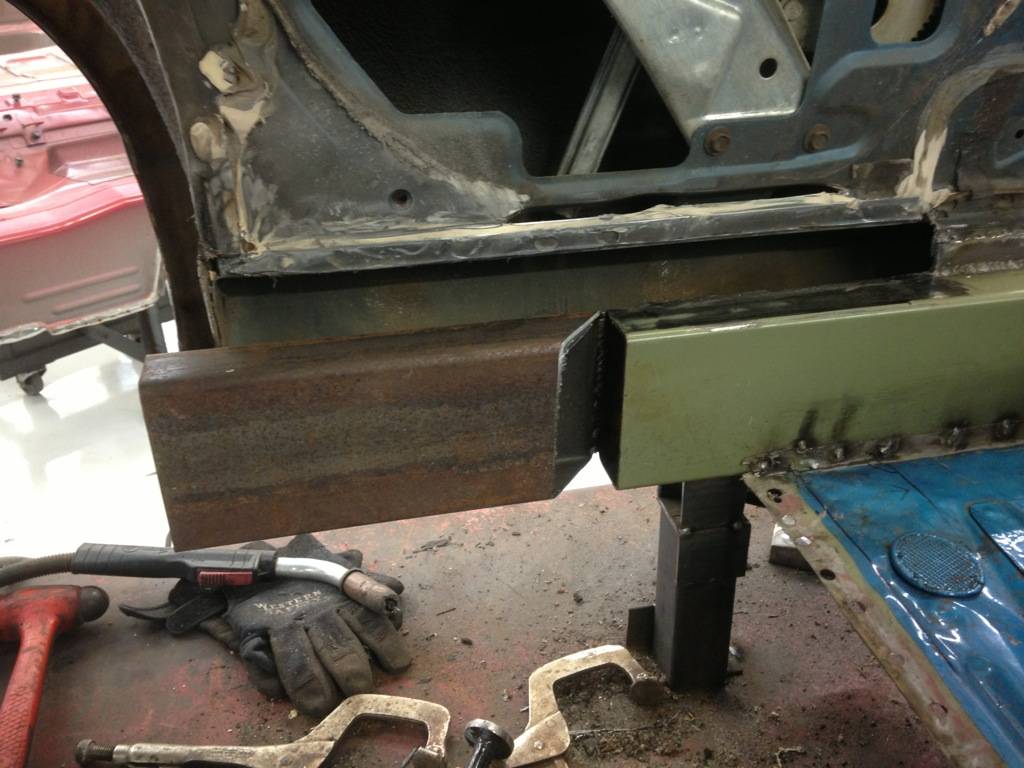

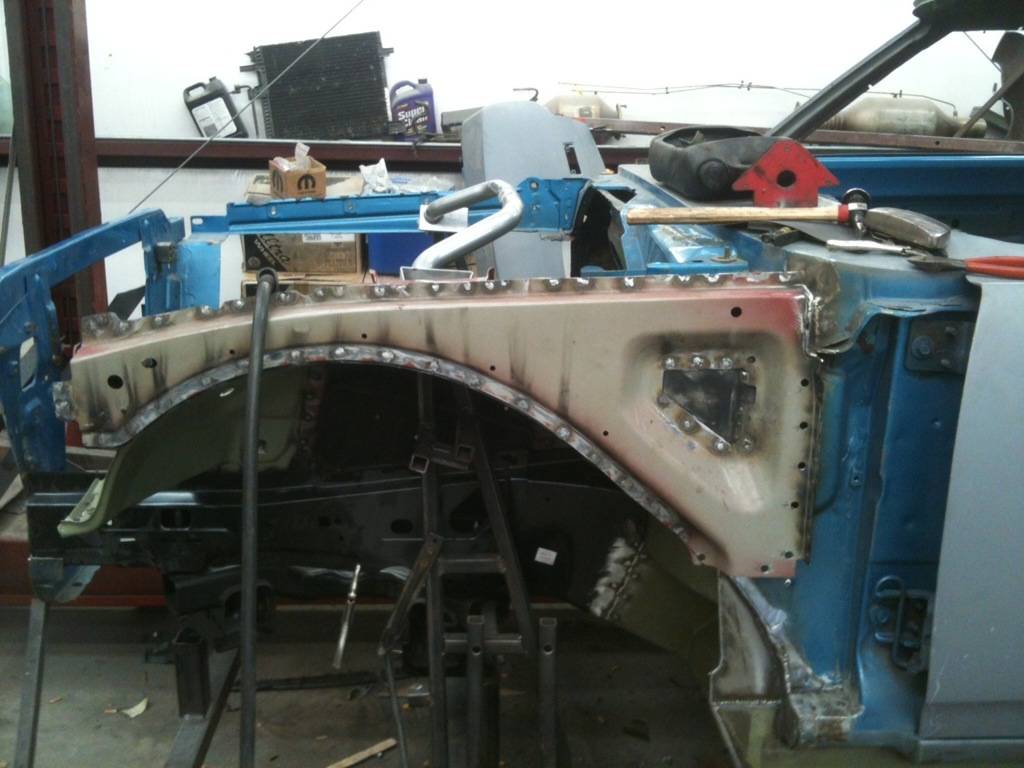

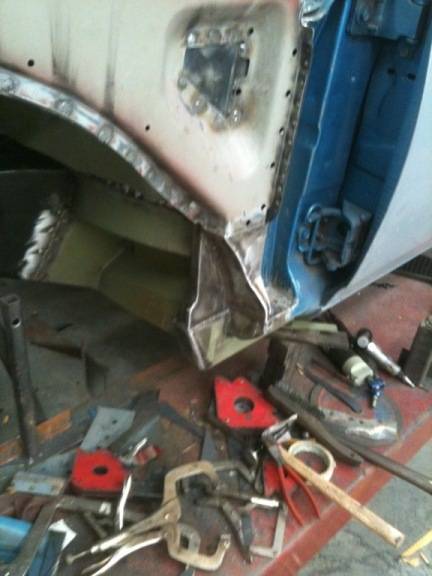

    About 30 feet of weld per side. It is built in layers to the rocker:

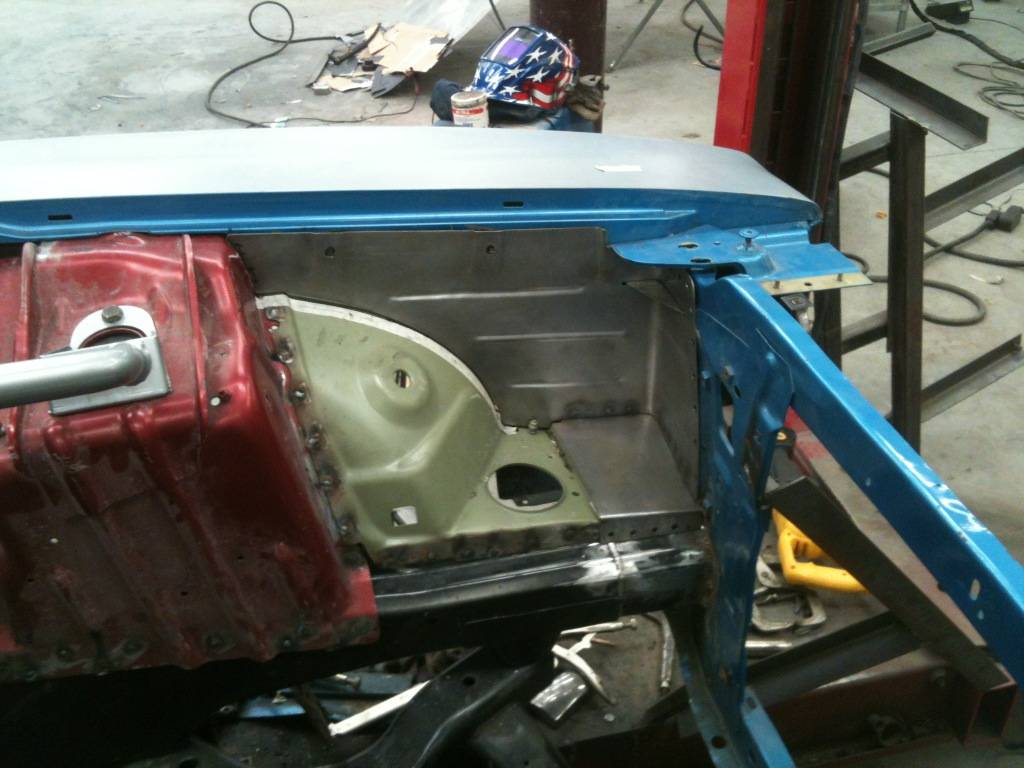

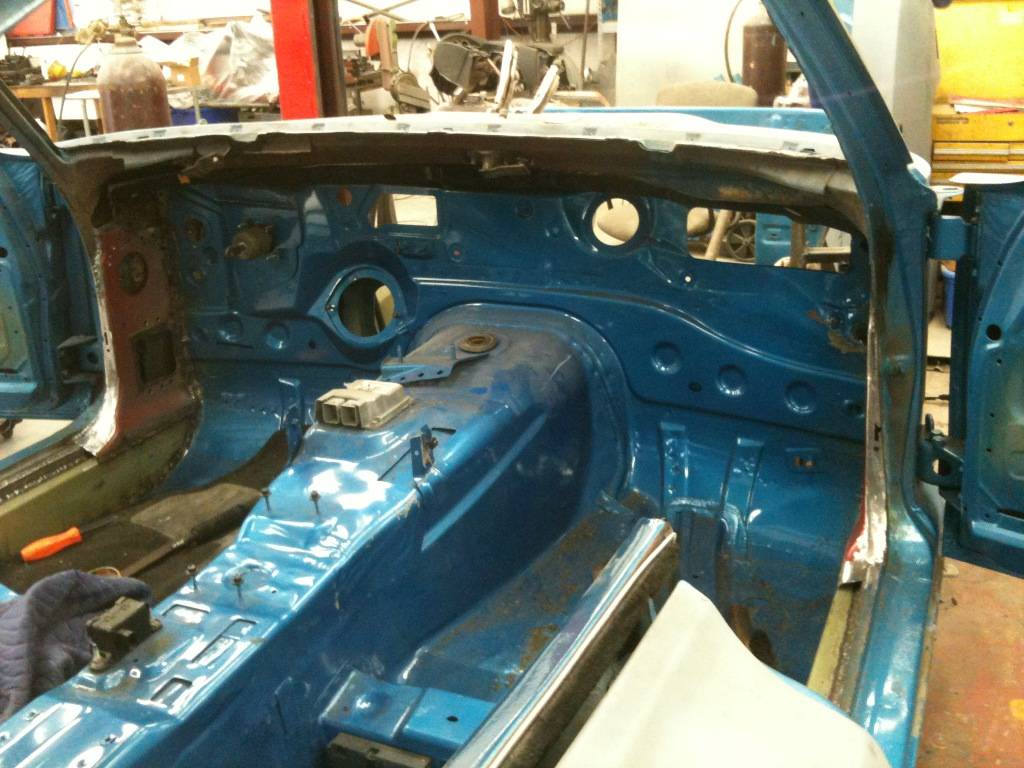

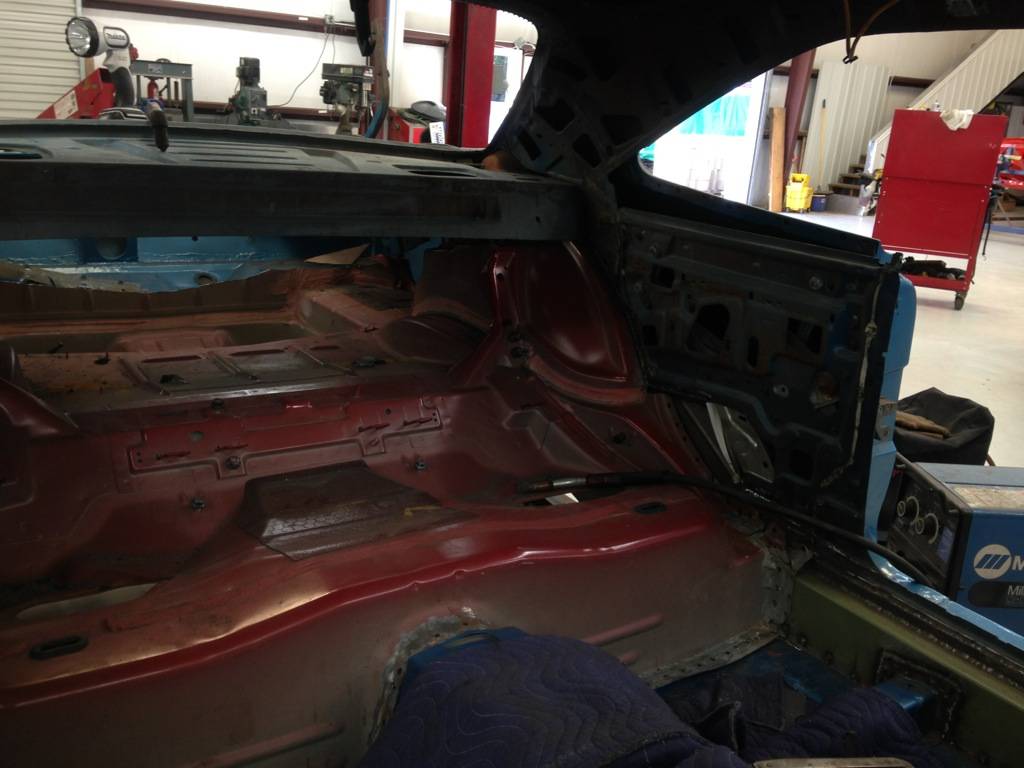

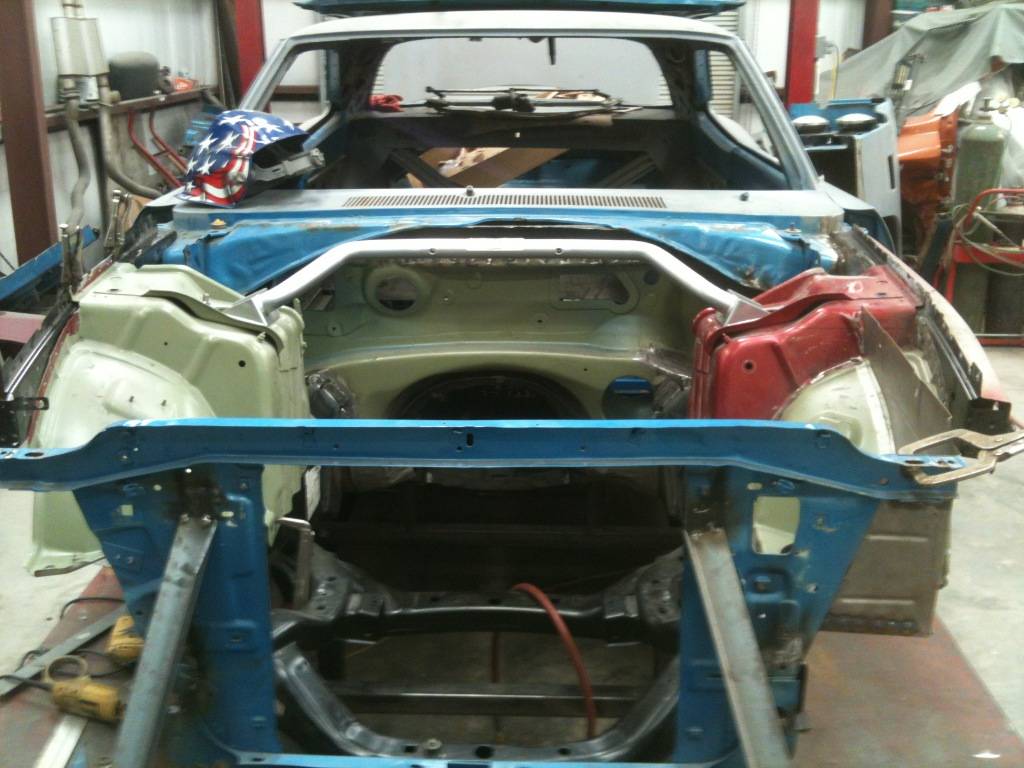

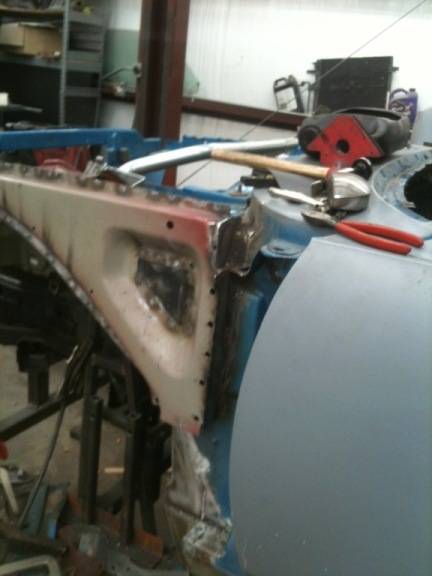

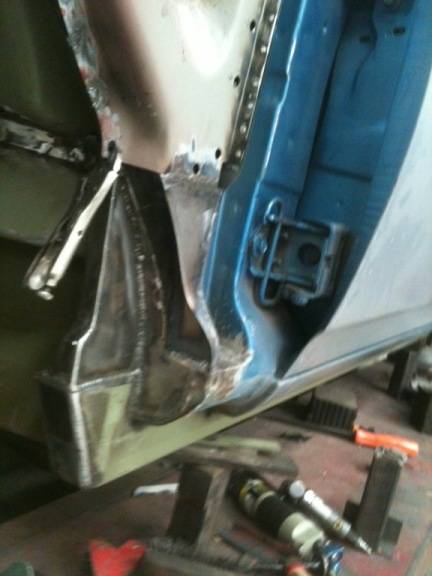

    Fitting the dash frame. Just the frame, upholstery is for some else!

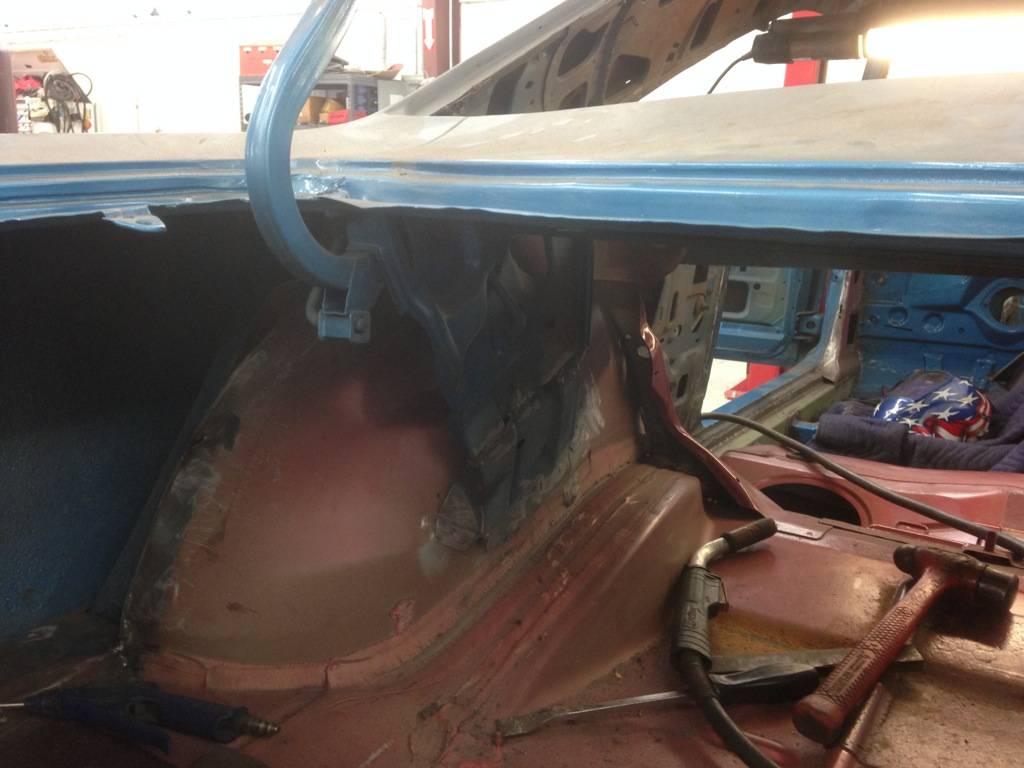

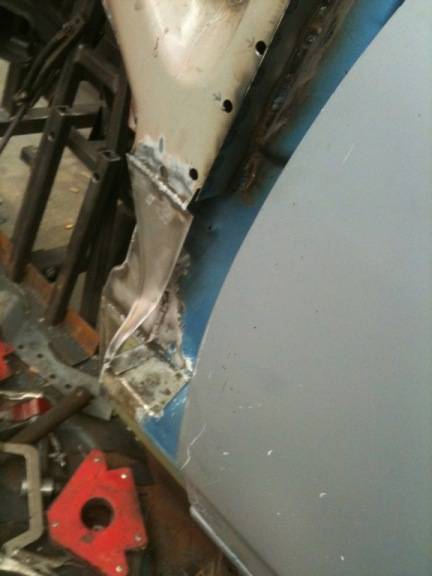

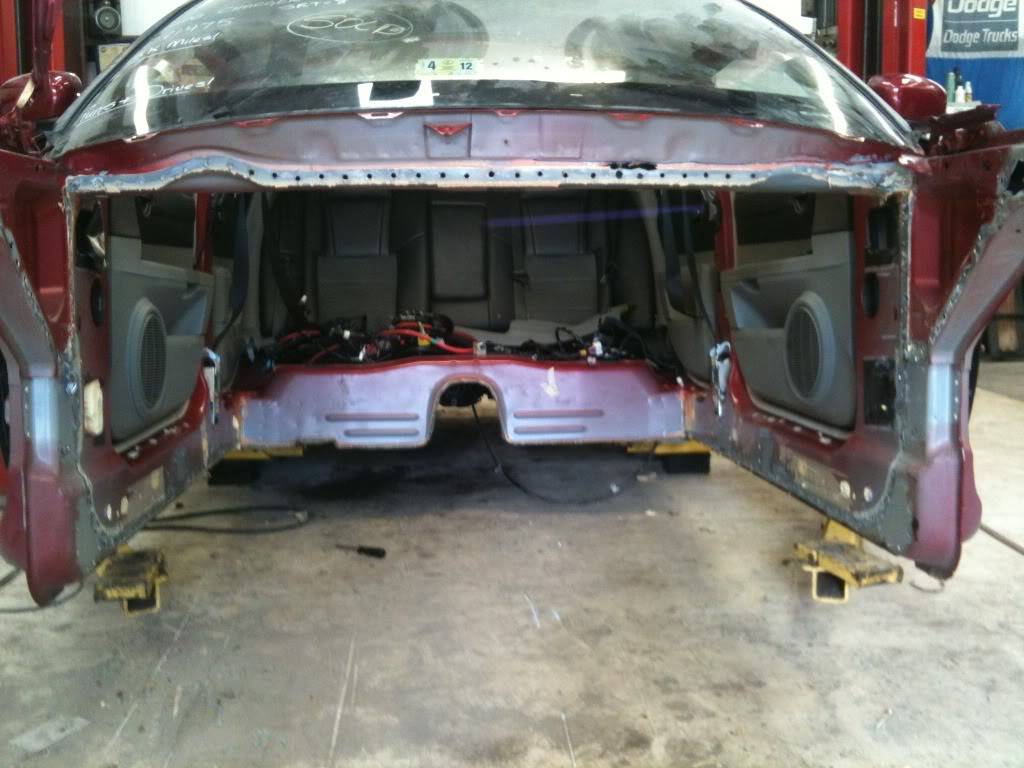

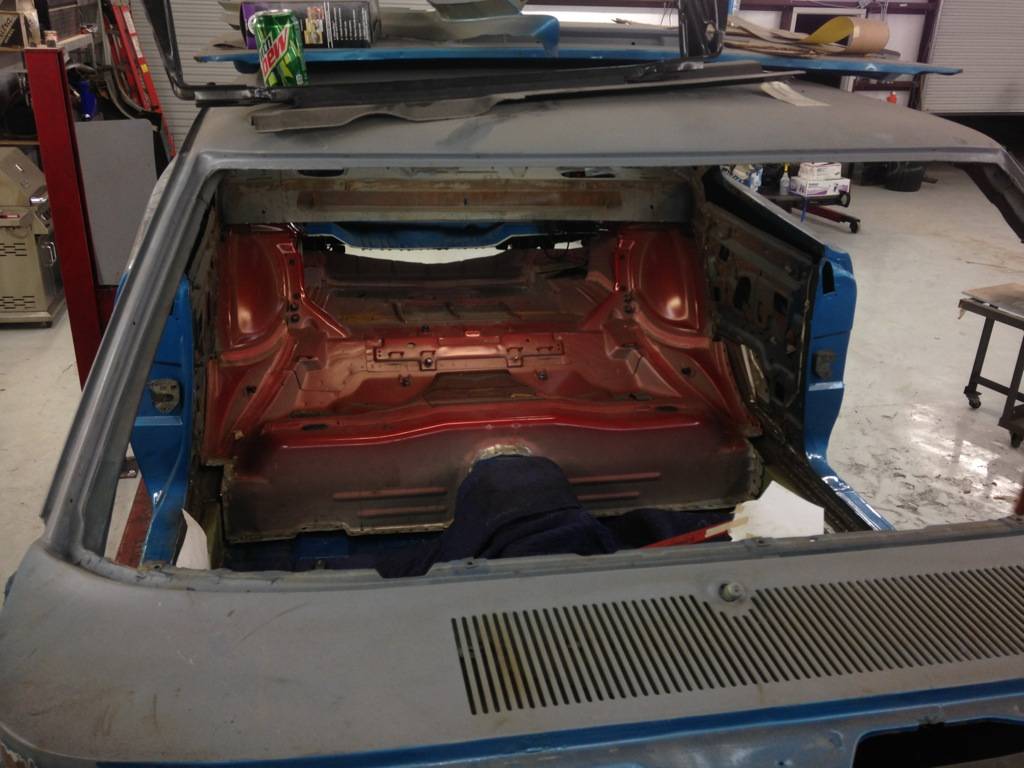

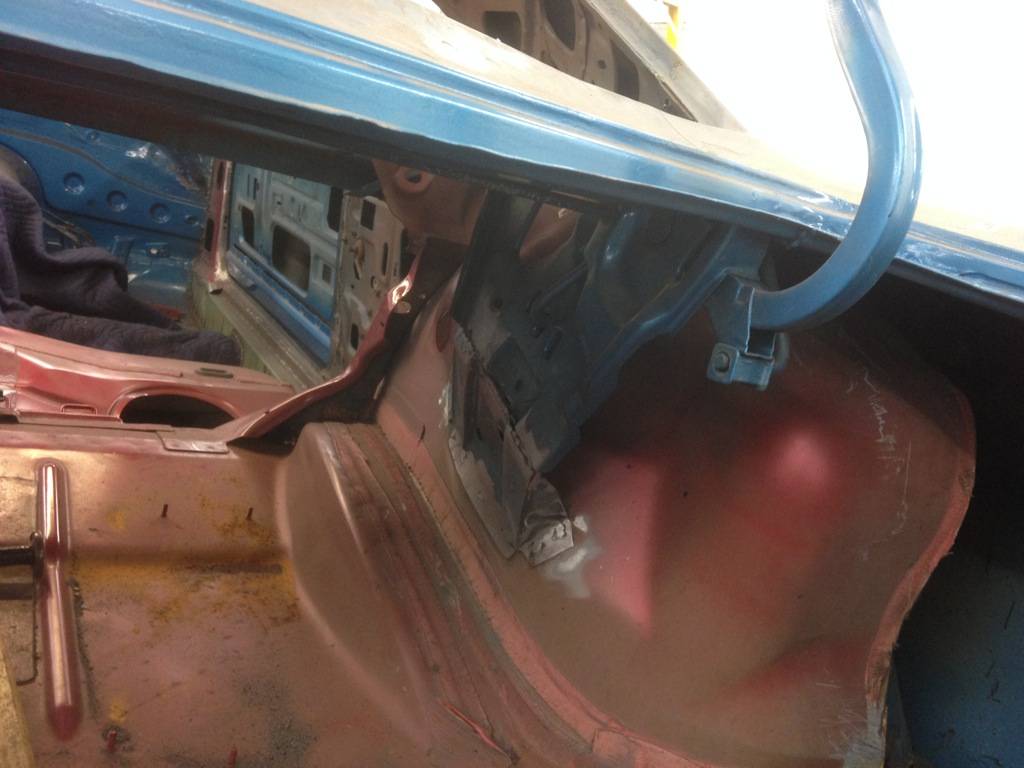

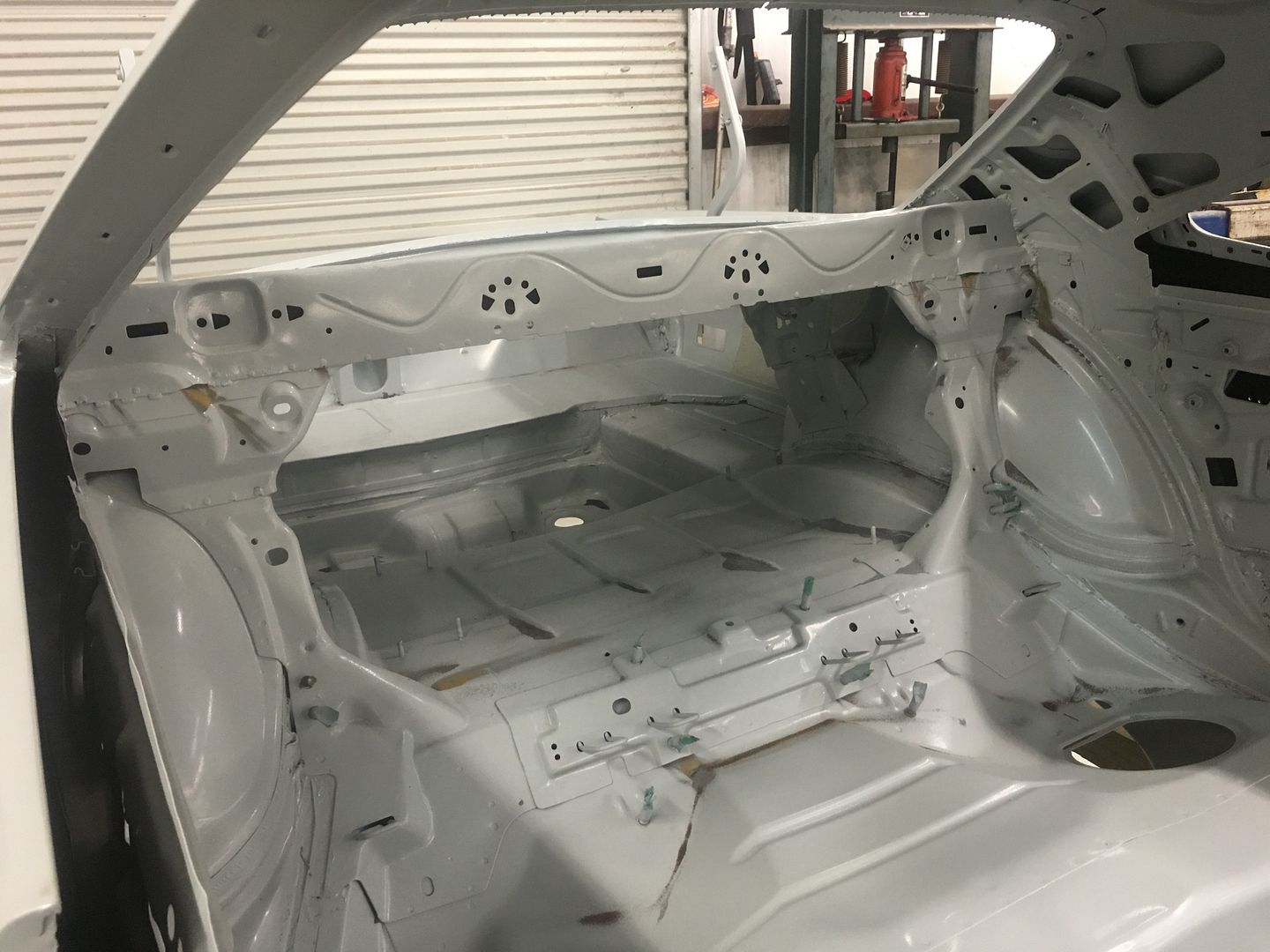

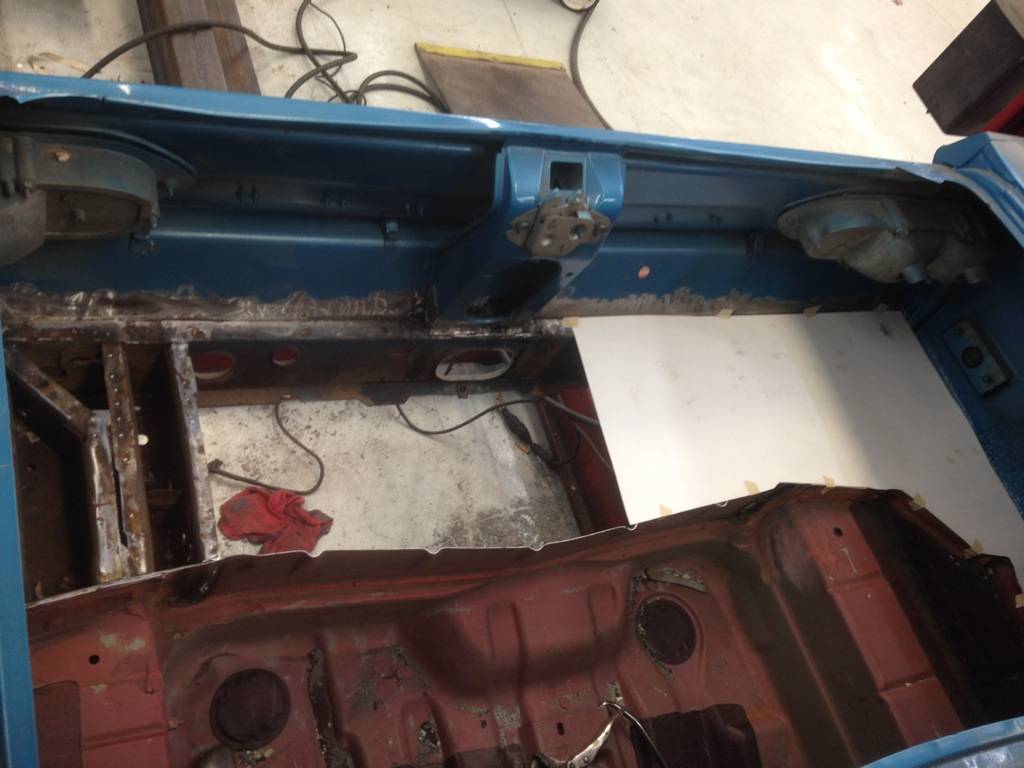

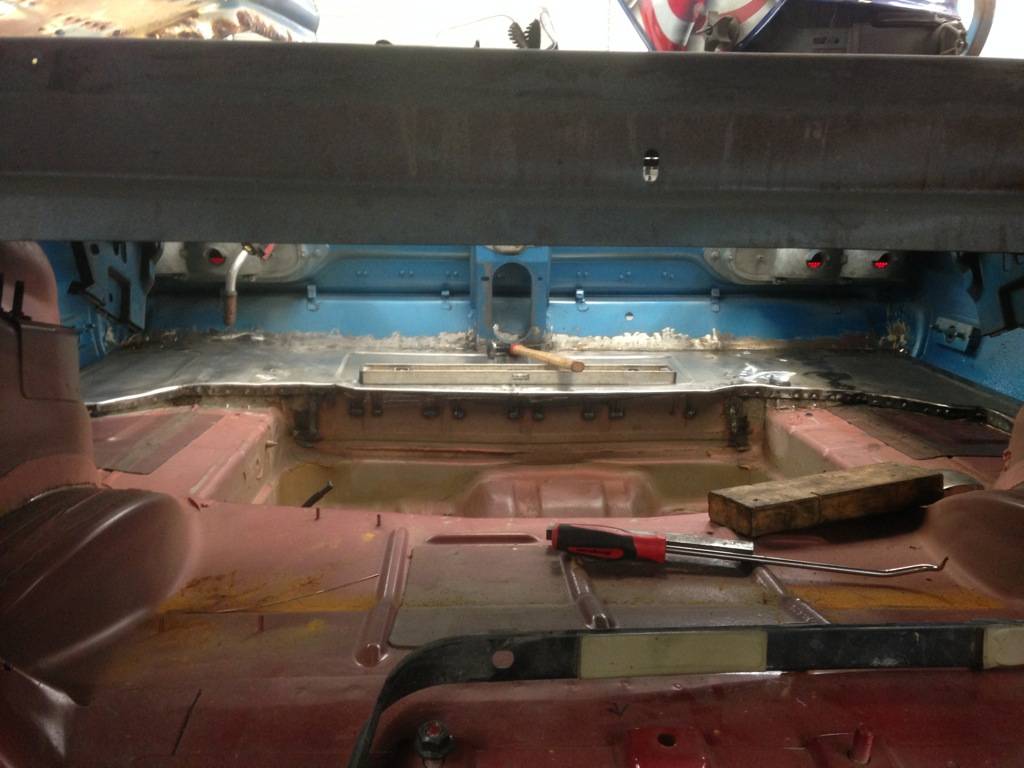

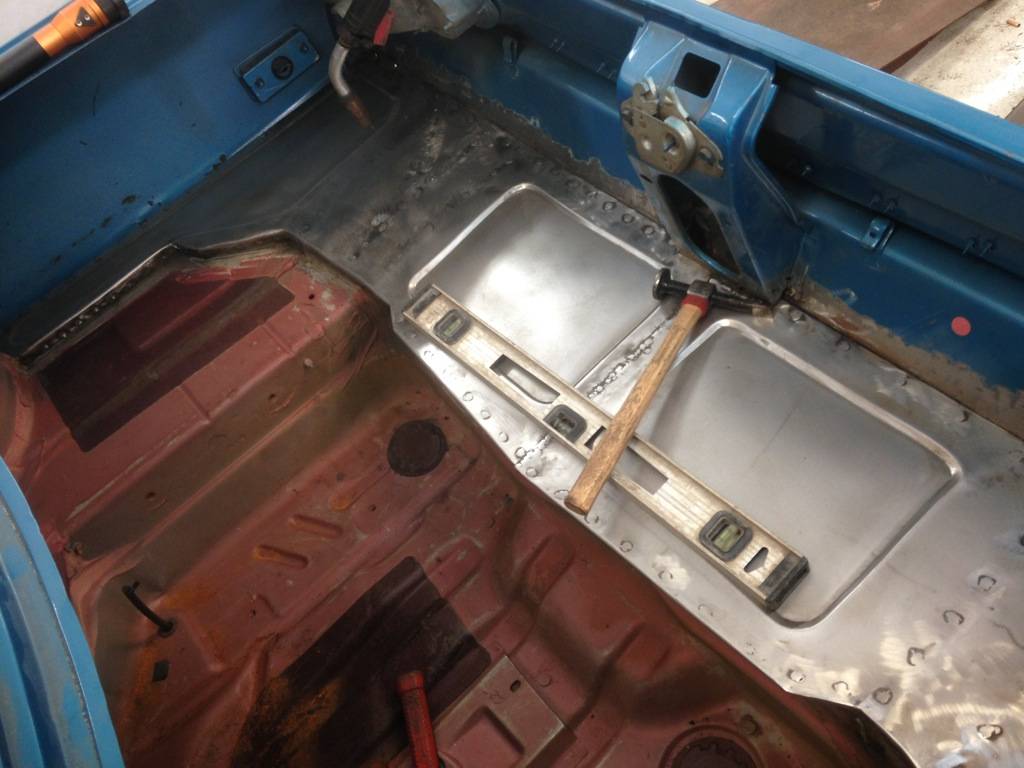

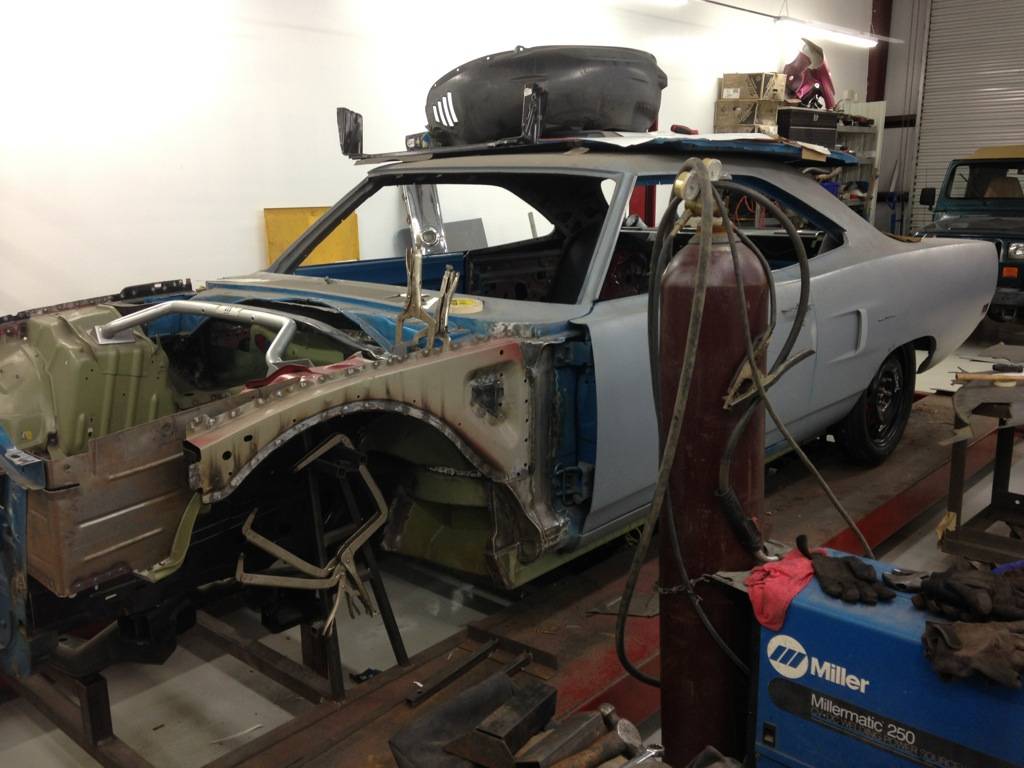

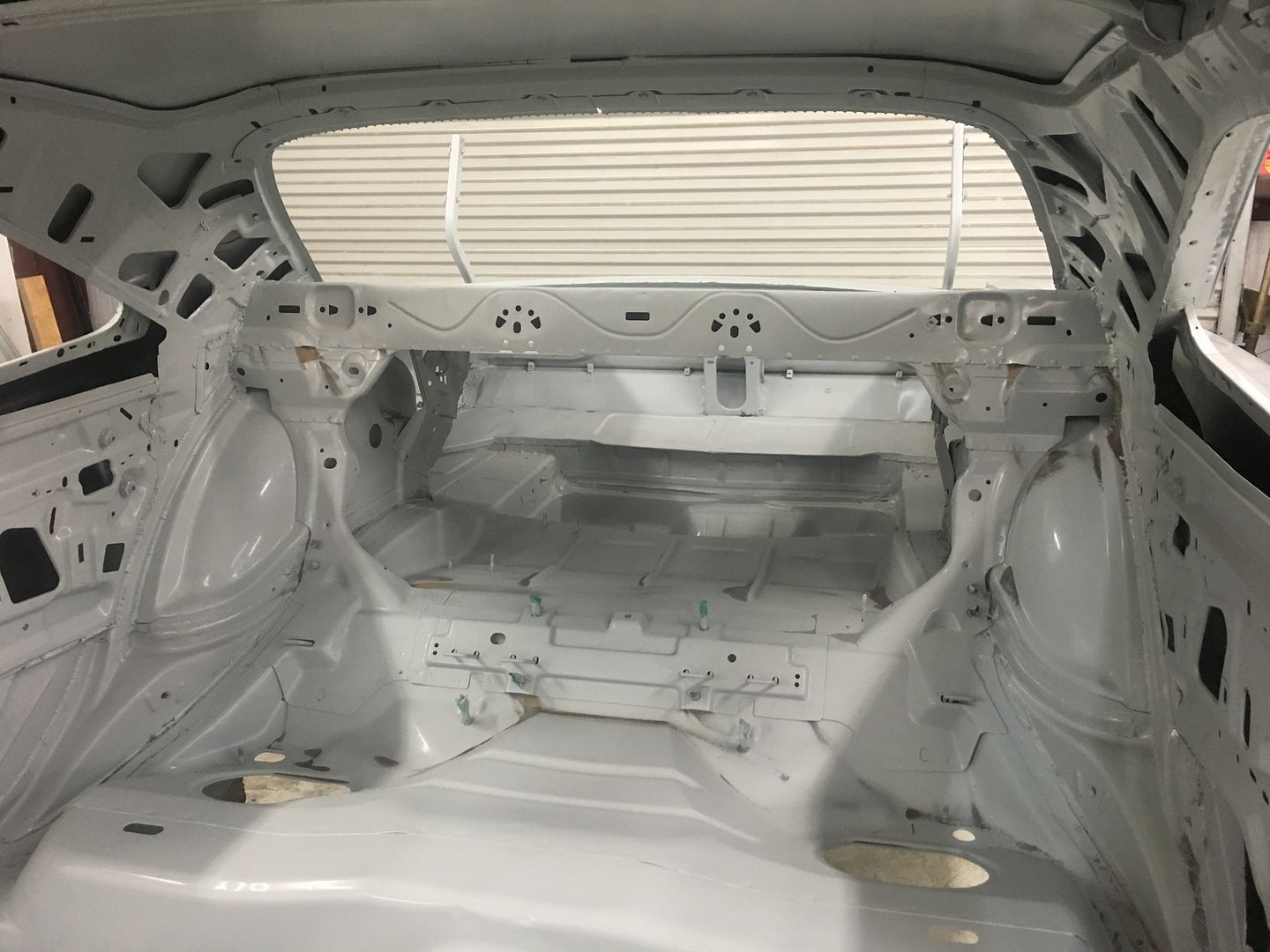

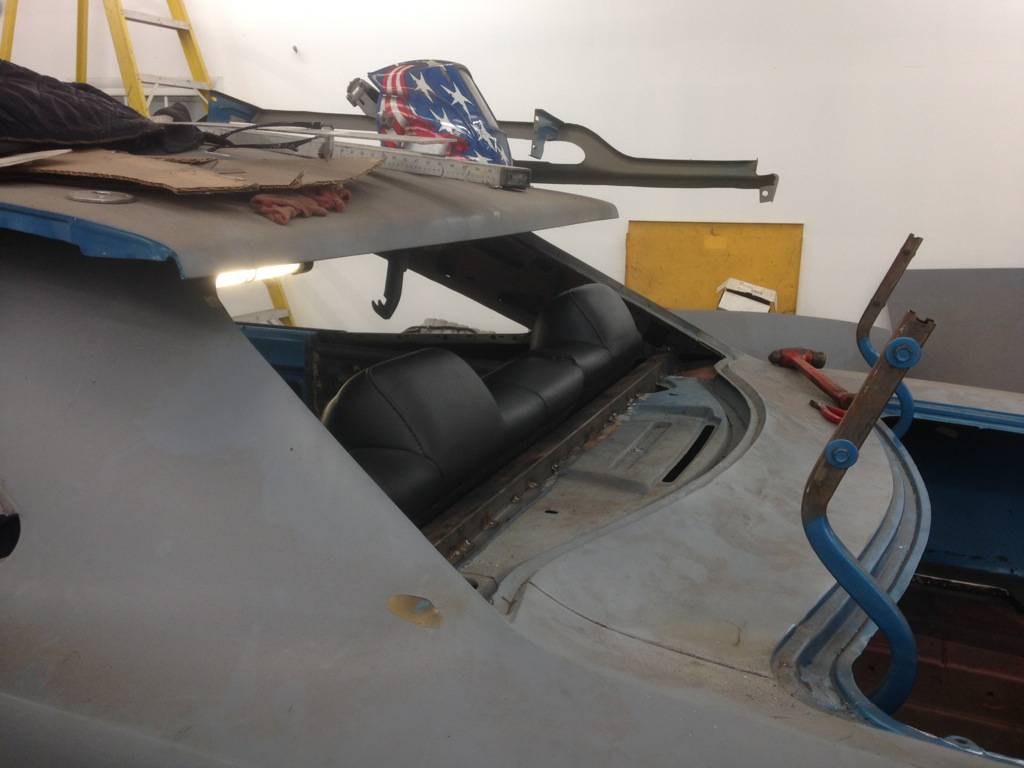

    Now to do the same for the rear section. The wheelbase is shorter on the RR than the SRT, so a little trimming on the rear of the front section was necessary. Now to remove the rear section:

    file_zpsfcf74fd5.jpg file_zps360f2d2d.jpg

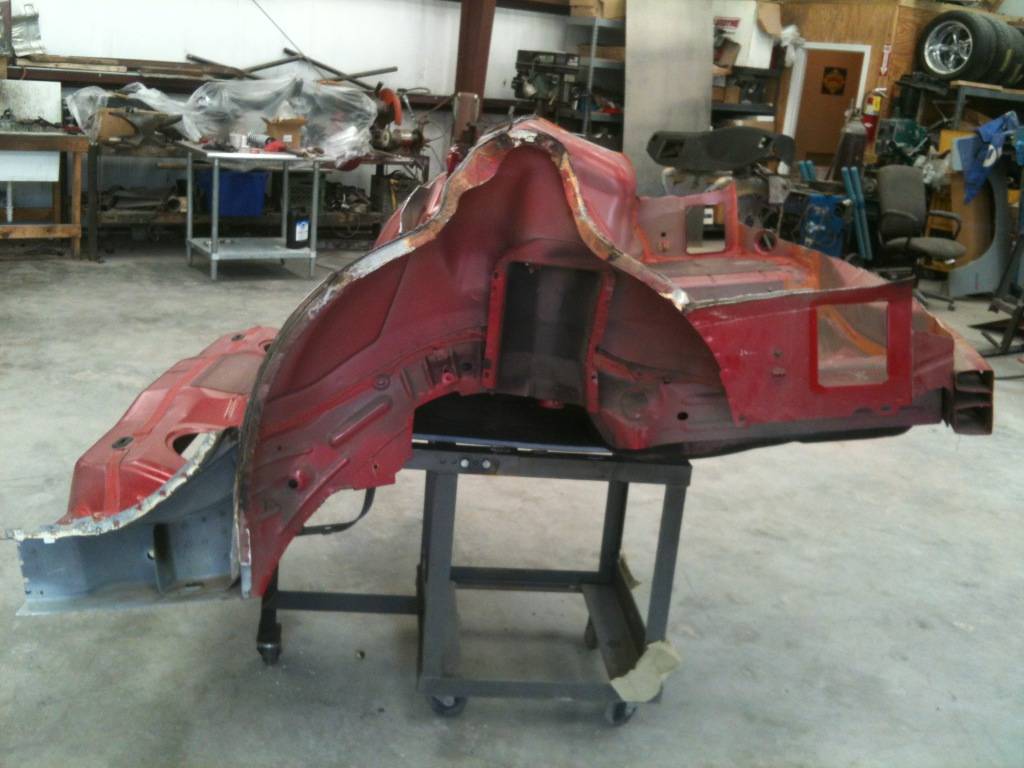

    Leaving only this:


    Cut in half and call the scrap guy:

    • Like Like x 21
    • Car Nut

      Car Nut Well-Known Member

      Messages:
      23,511
      Likes Received:
      73292
      Joined:
      Dec 6, 2012
      Location:
      Zombieland
      Local Time:
      9:38 PM
      :popcorn: Love this!

      • Like Like x 1
      • Darius

        Darius FBBO Gold Member FBBO Gold Member

        Messages:
        4,251
        Likes Received:
        7438
        Joined:
        Jul 17, 2008
        Location:
        Sacramento,Ca
        Local Time:
        8:38 PM
        Craig....did you get burnt out on the other site? Anxious to see where you are with this now, I know it is further than these shots! Some awesome fab work goin on here!

      • CJD AUTO

        CJD AUTO Well-Known Member

        Messages:
        133
        Likes Received:
        363
        Joined:
        Oct 2, 2015
        Location:
        JACKSONVILLE, FL
        Local Time:
        11:38 PM
      • CJD AUTO

        CJD AUTO Well-Known Member

        Messages:
        133
        Likes Received:
        363
        Joined:
        Oct 2, 2015
        Location:
        JACKSONVILLE, FL
        Local Time:
        11:38 PM

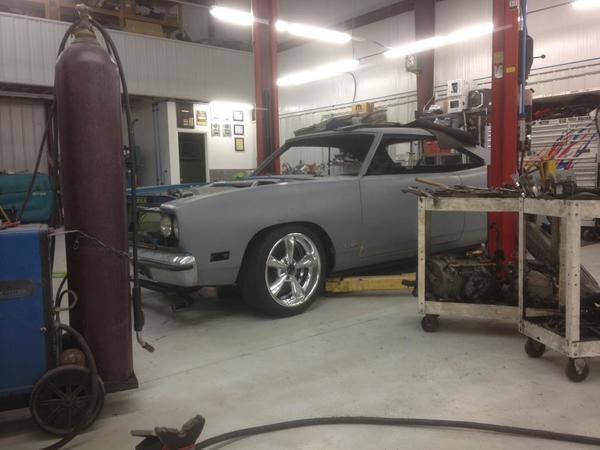

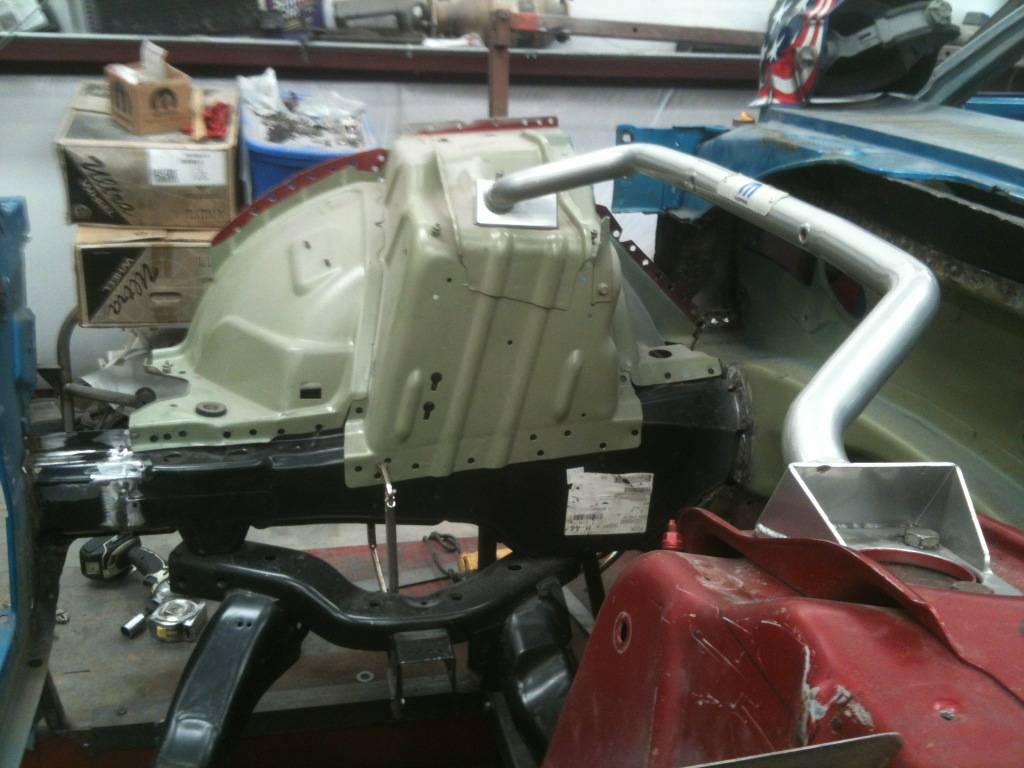

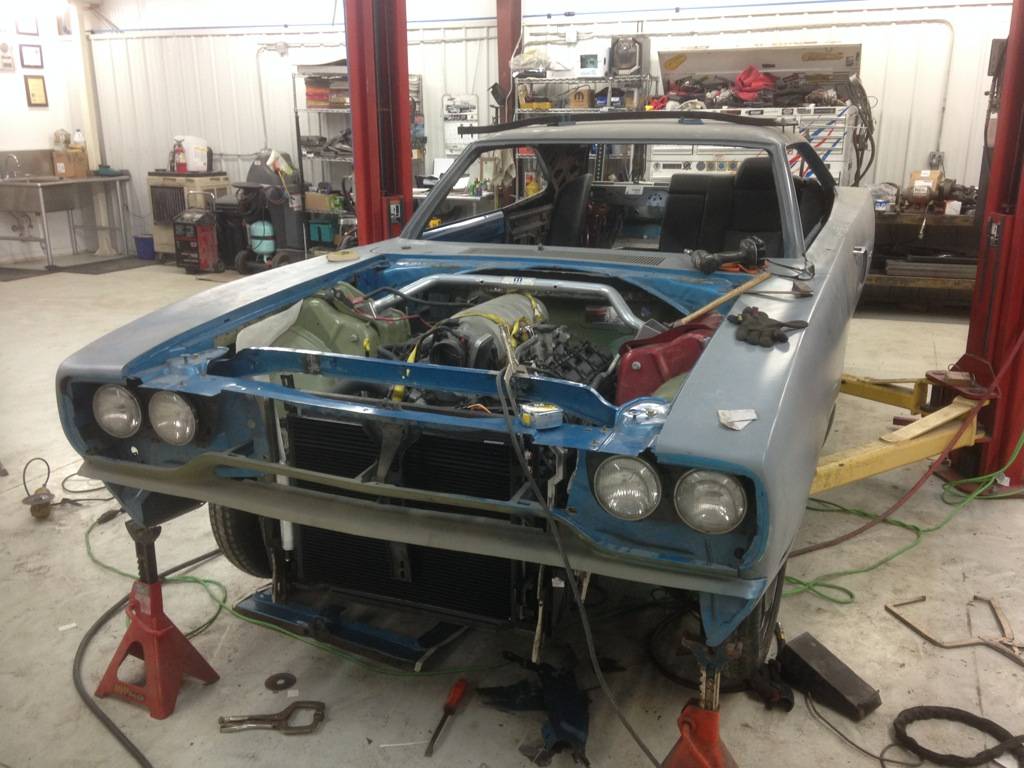

        Cradles back in and rolling:

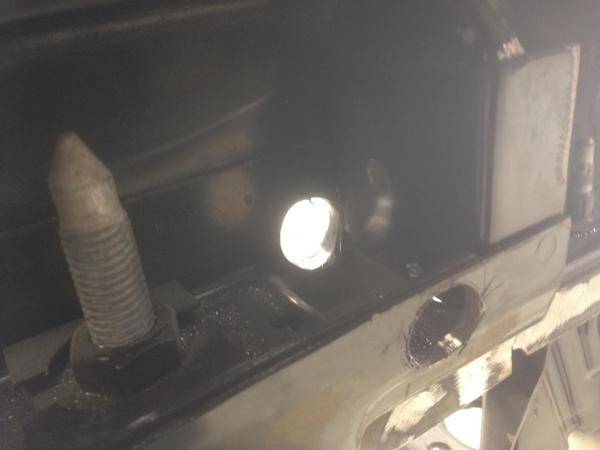

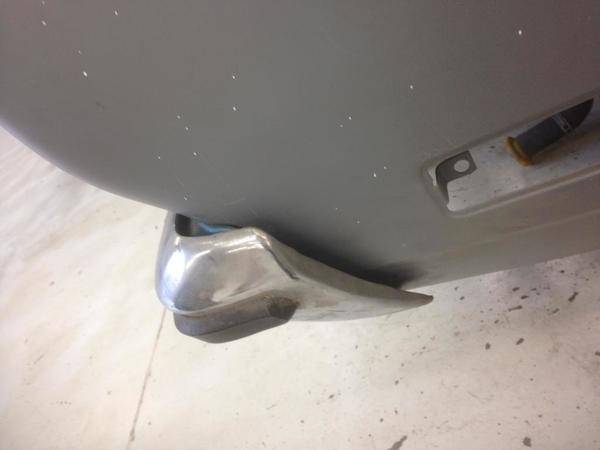

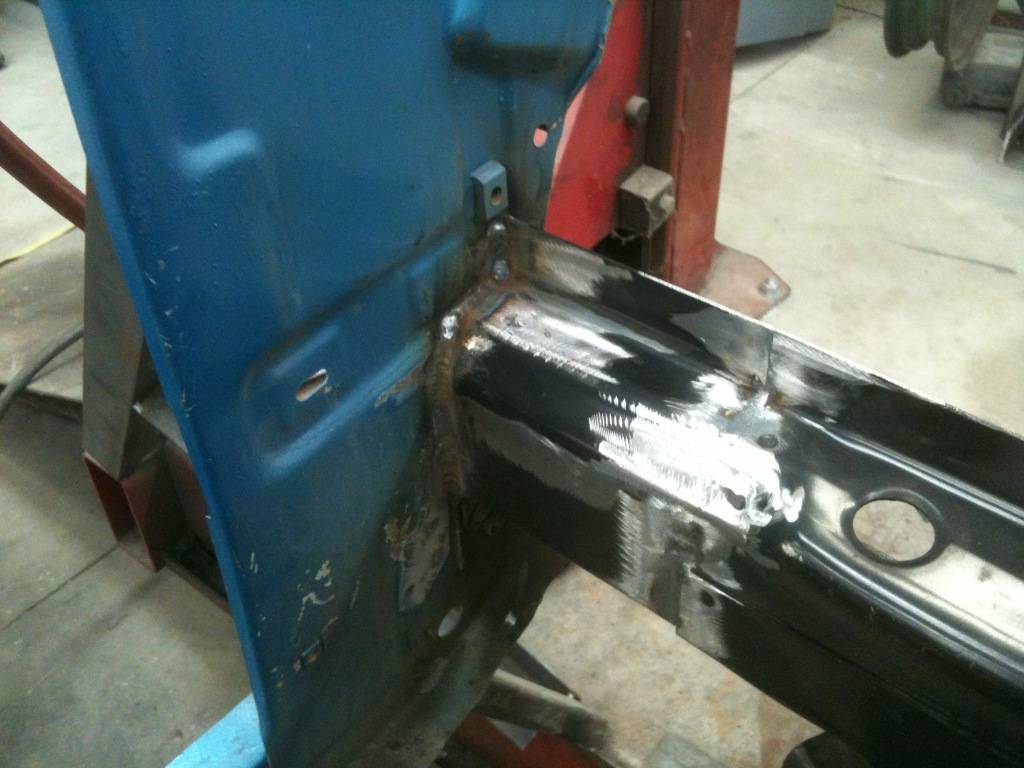

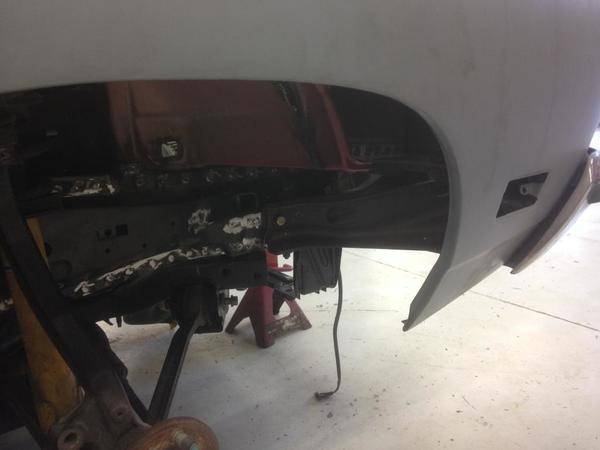

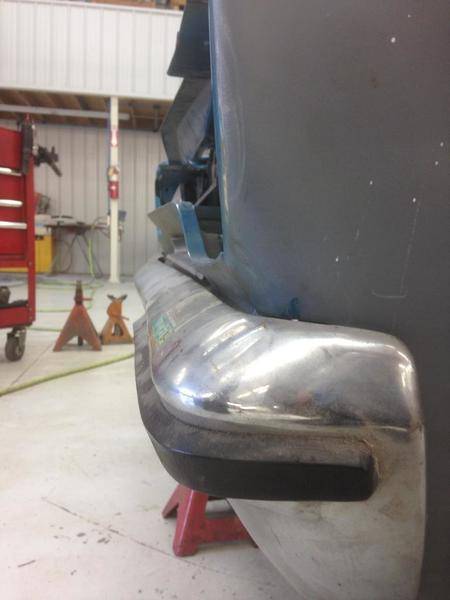

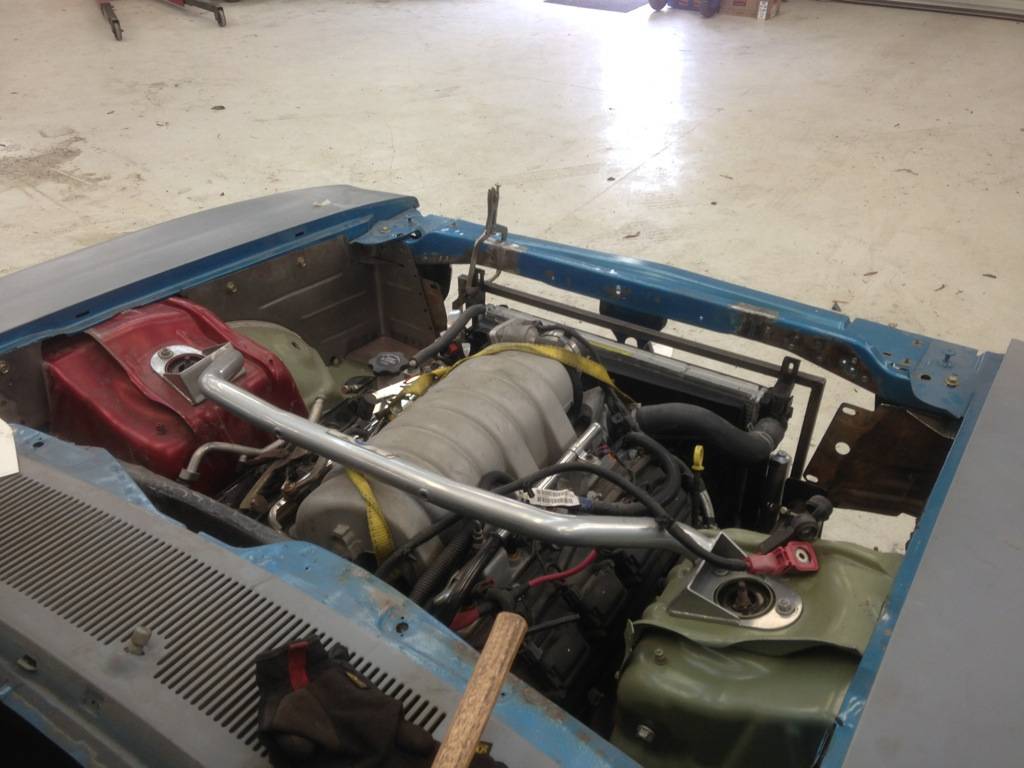

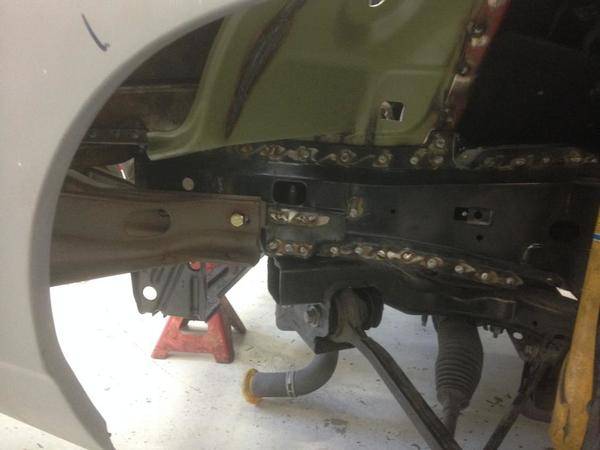

        Frame slugged for stock bumper brackets:

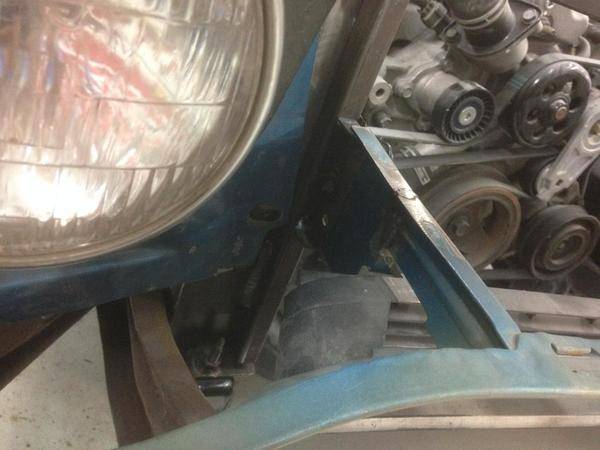

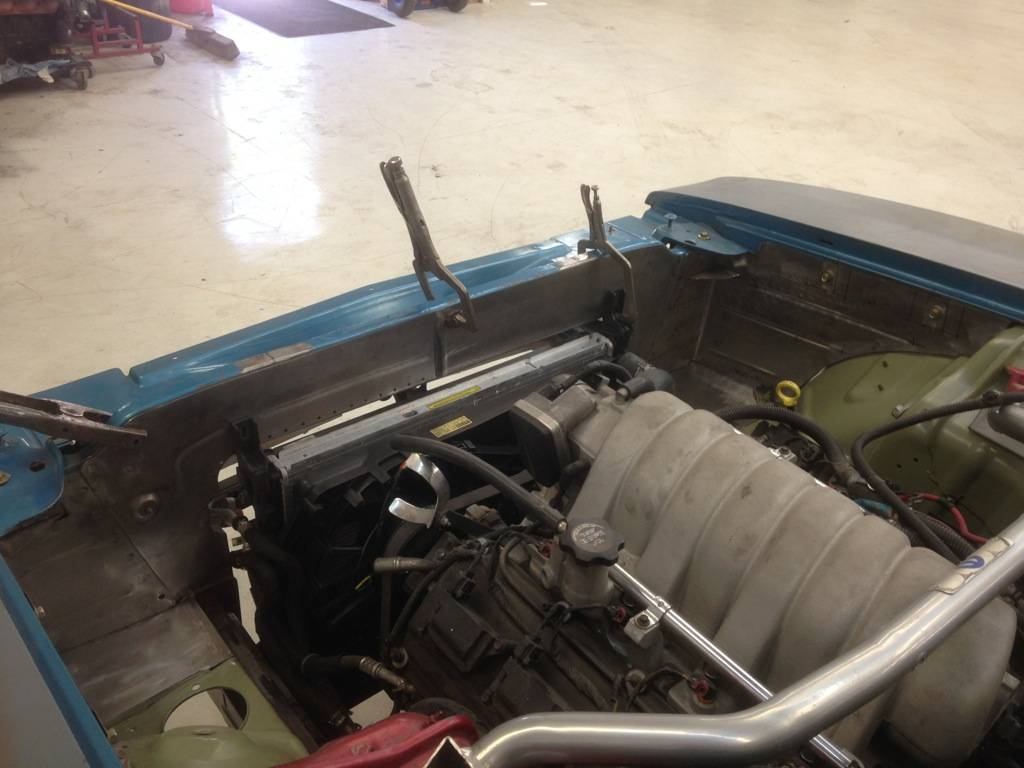

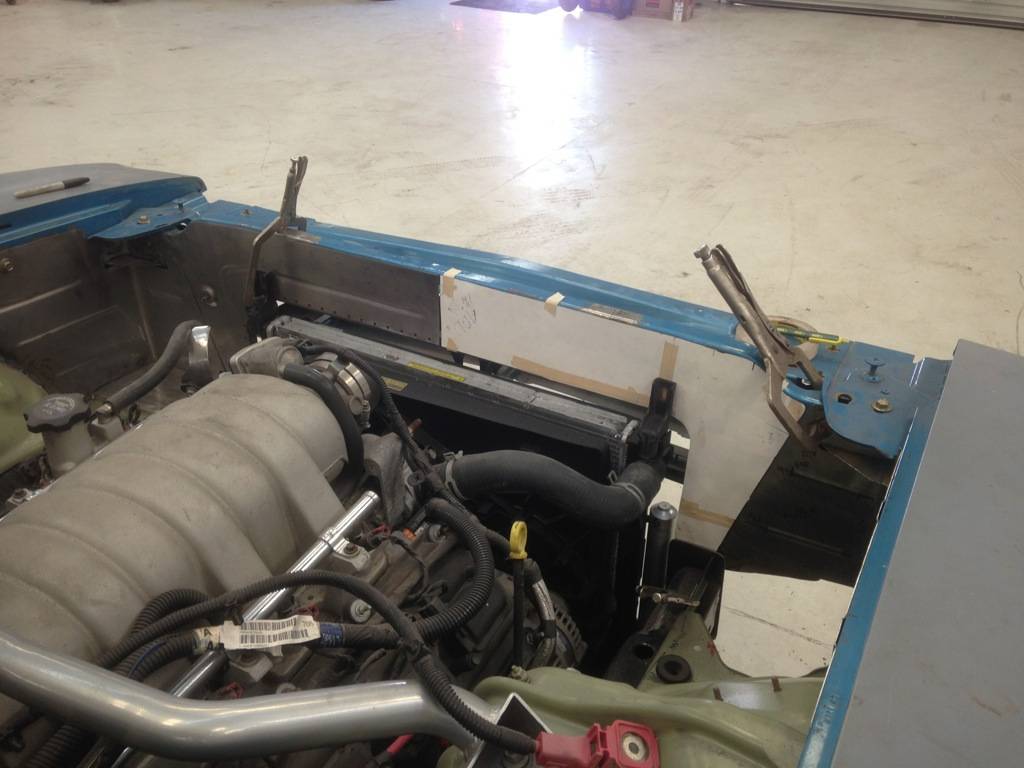

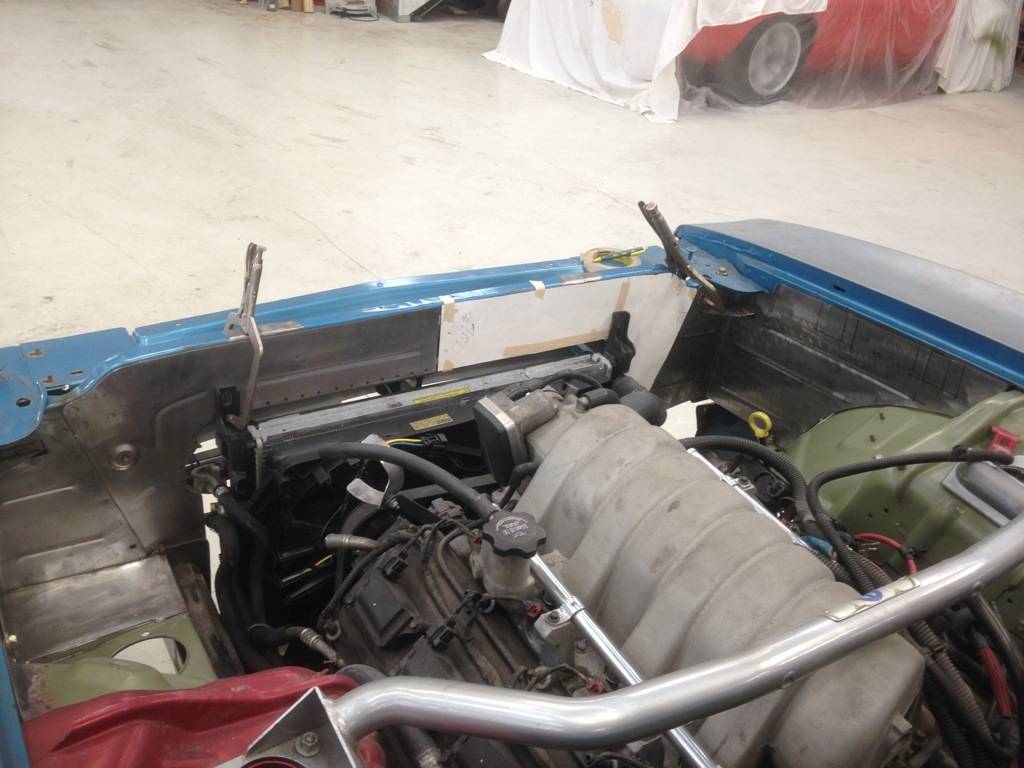

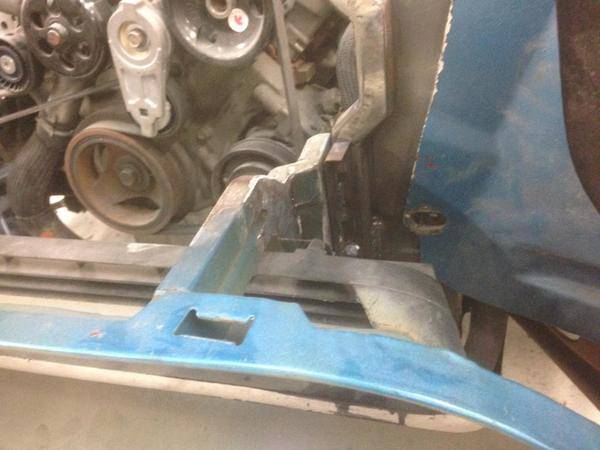

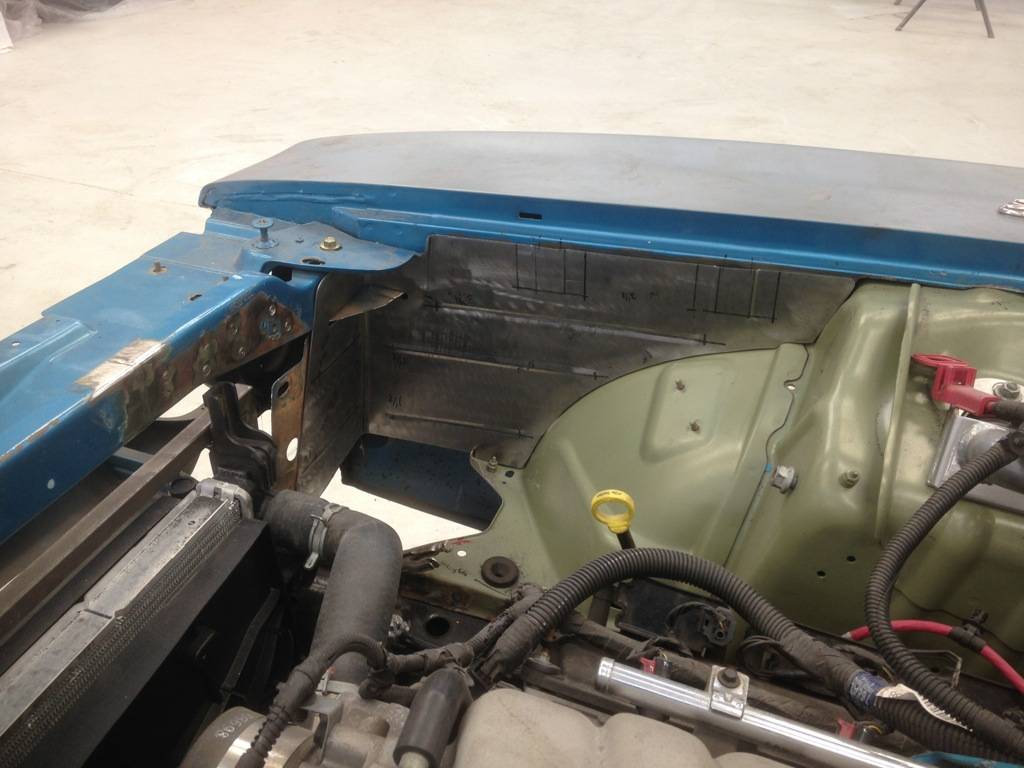

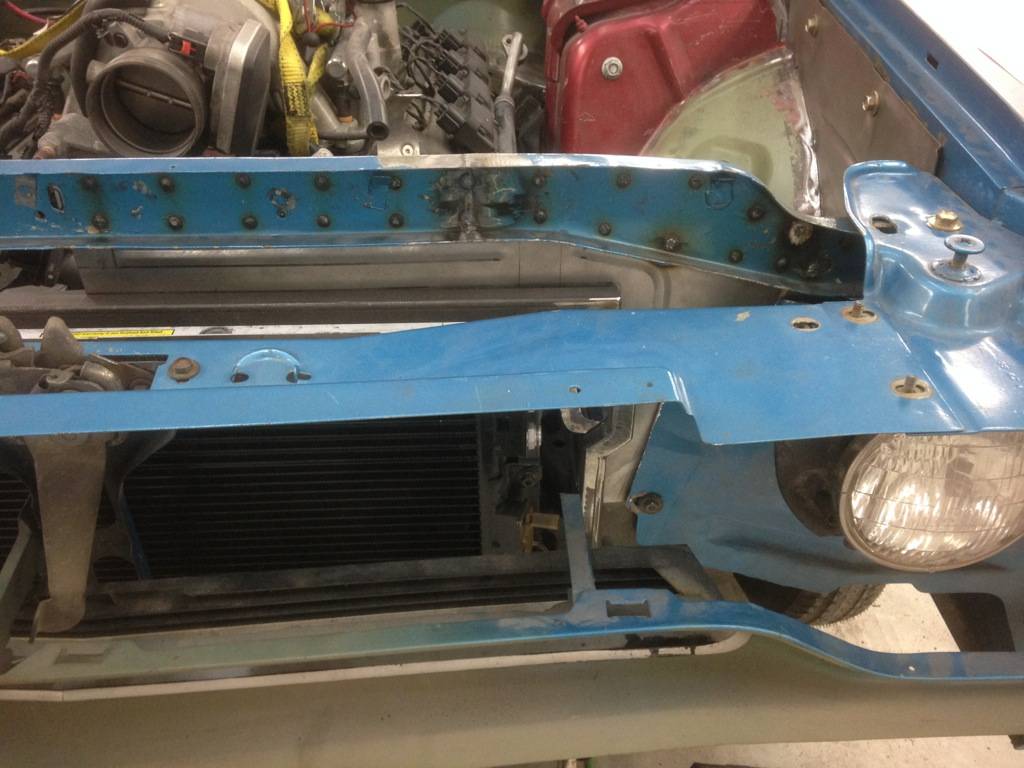

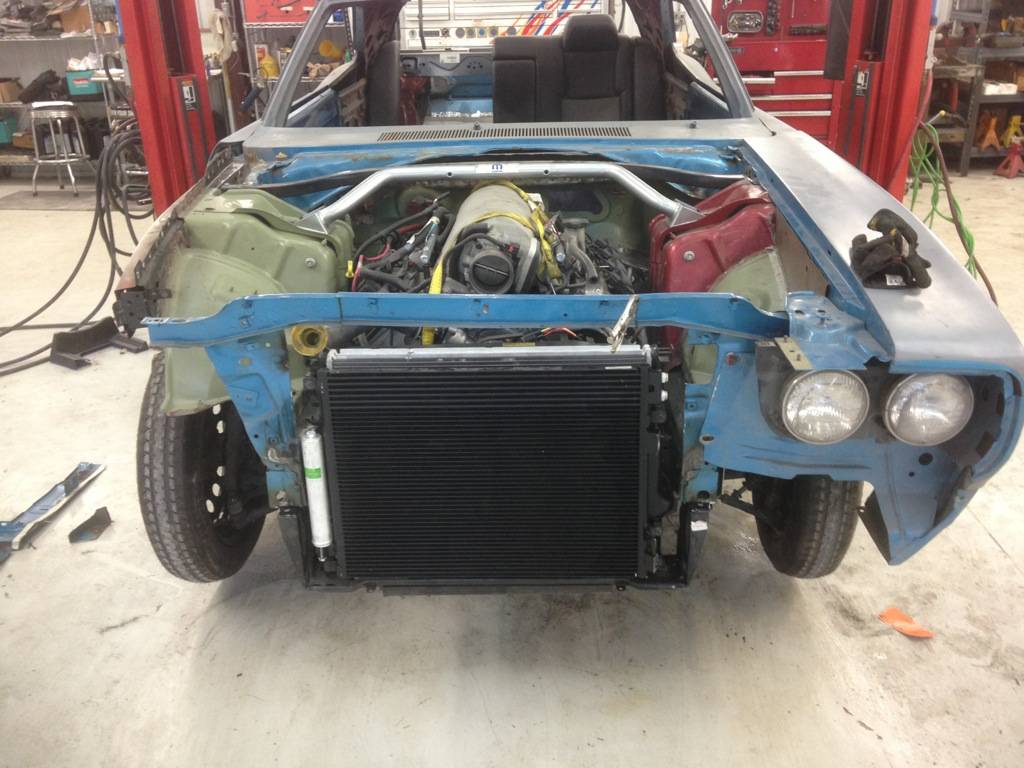

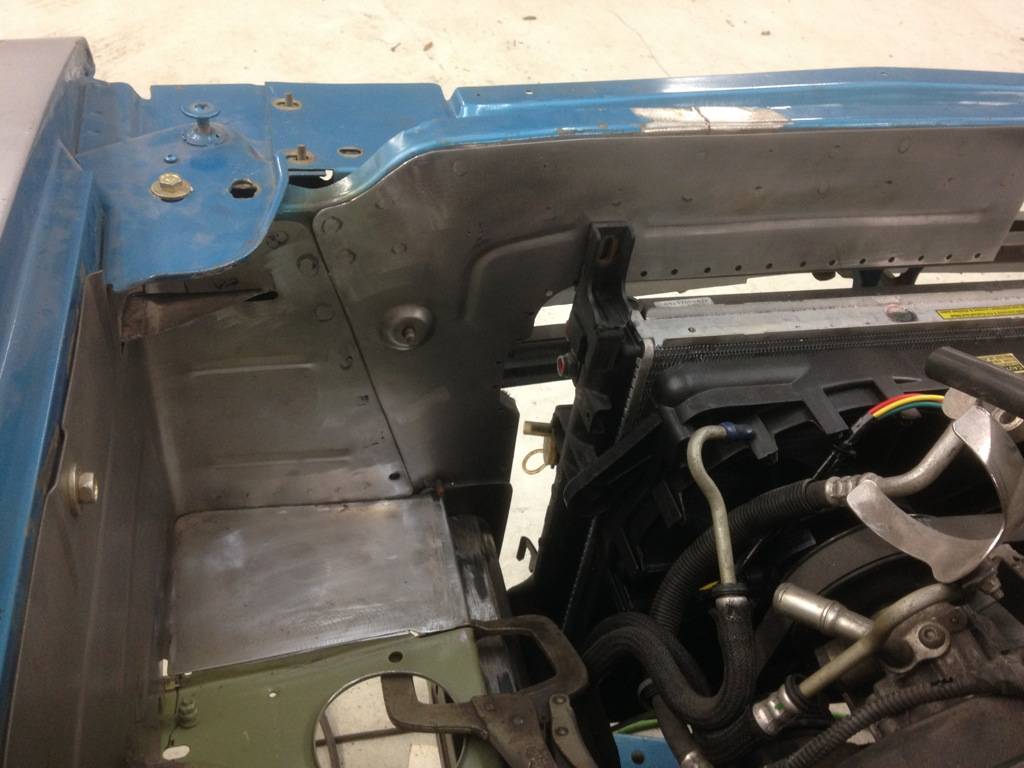

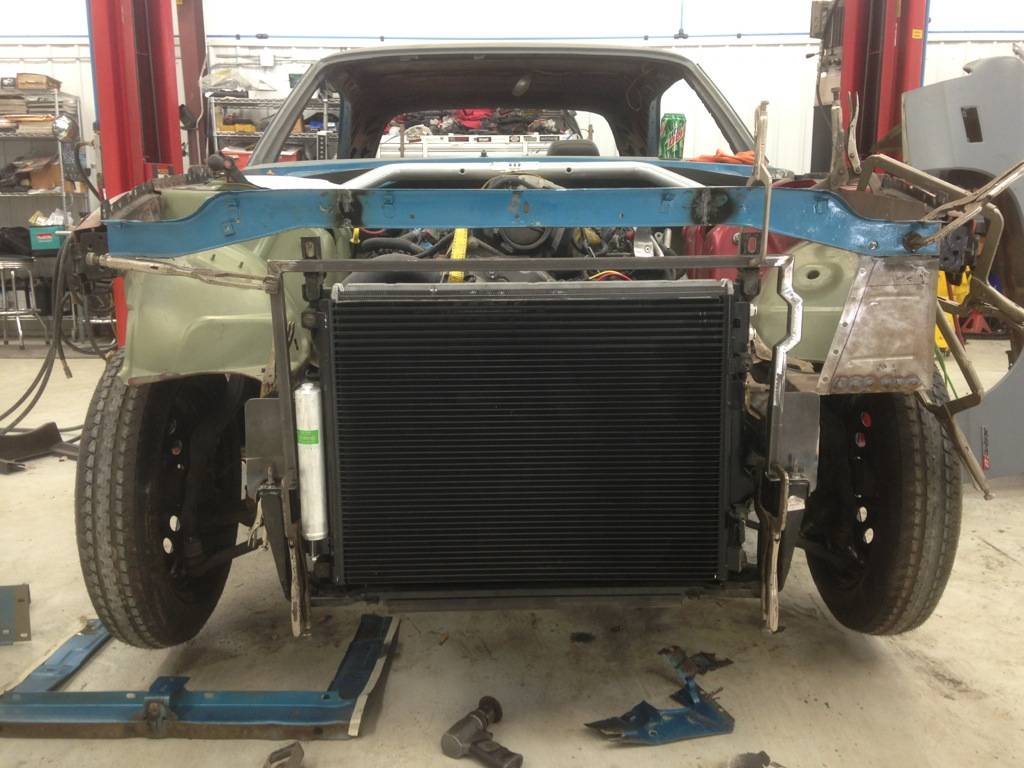

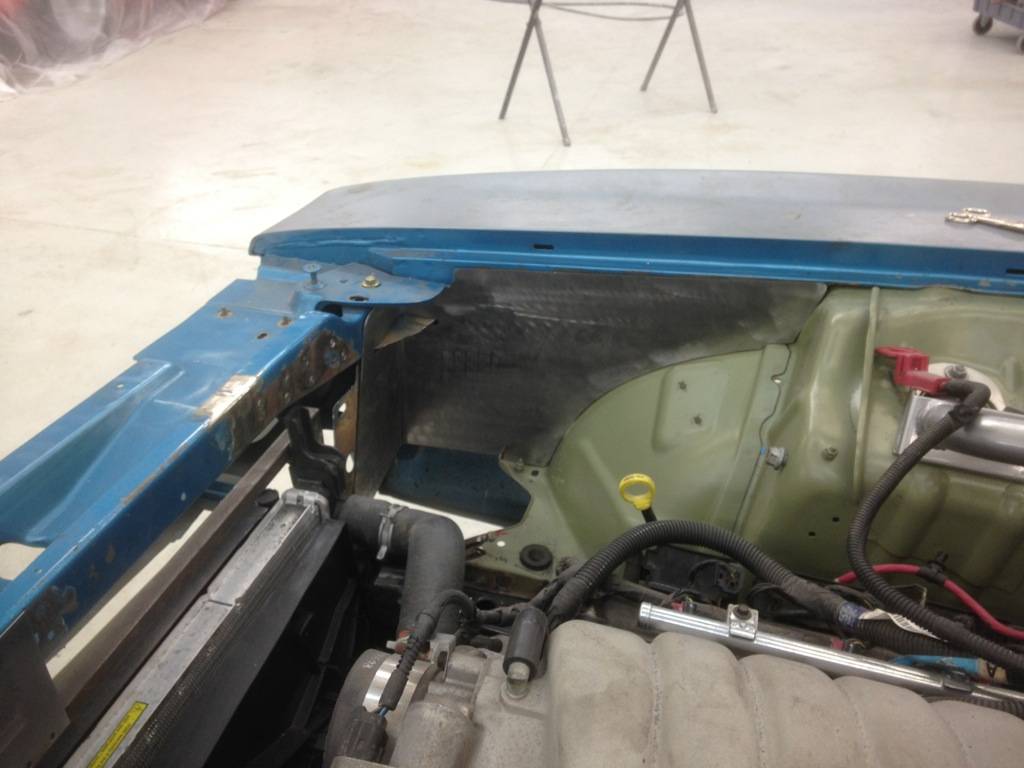

        A few mods to the grille header:

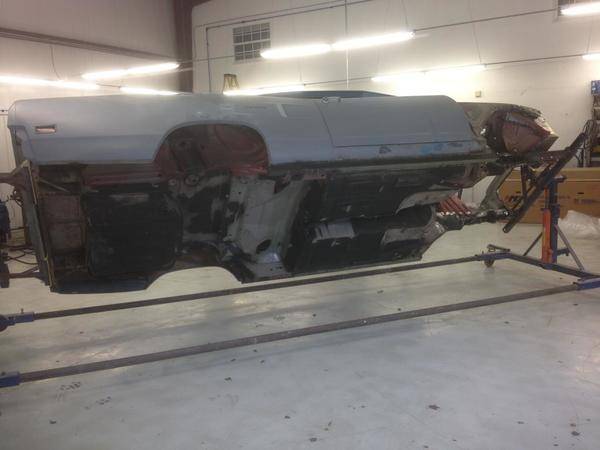

        IMG_1955_zps98b04092.jpg Cradles back out and on the rotisserie:

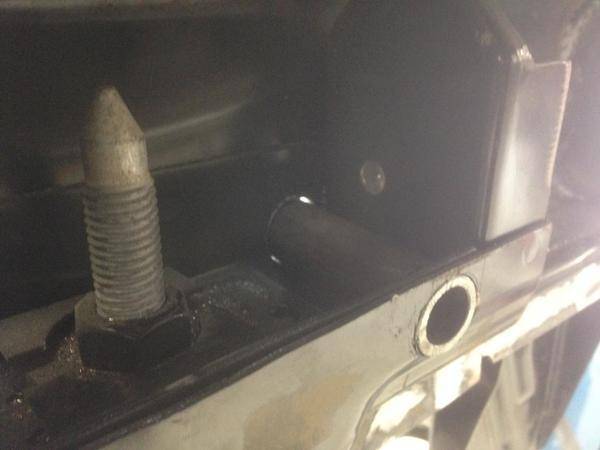

        SRT wire pass throughs for door:

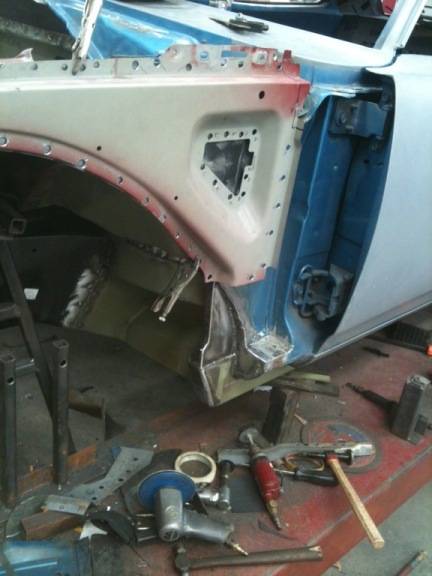

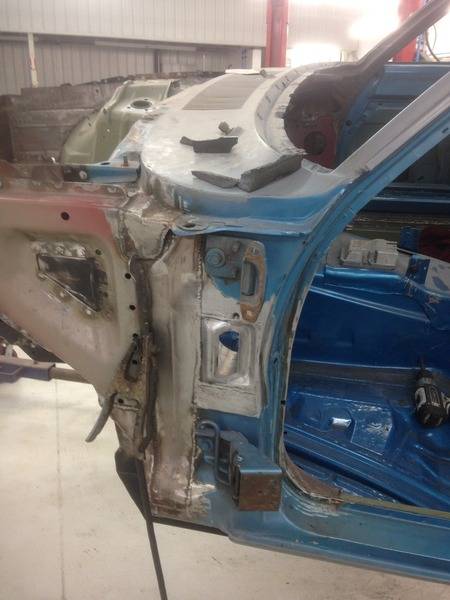

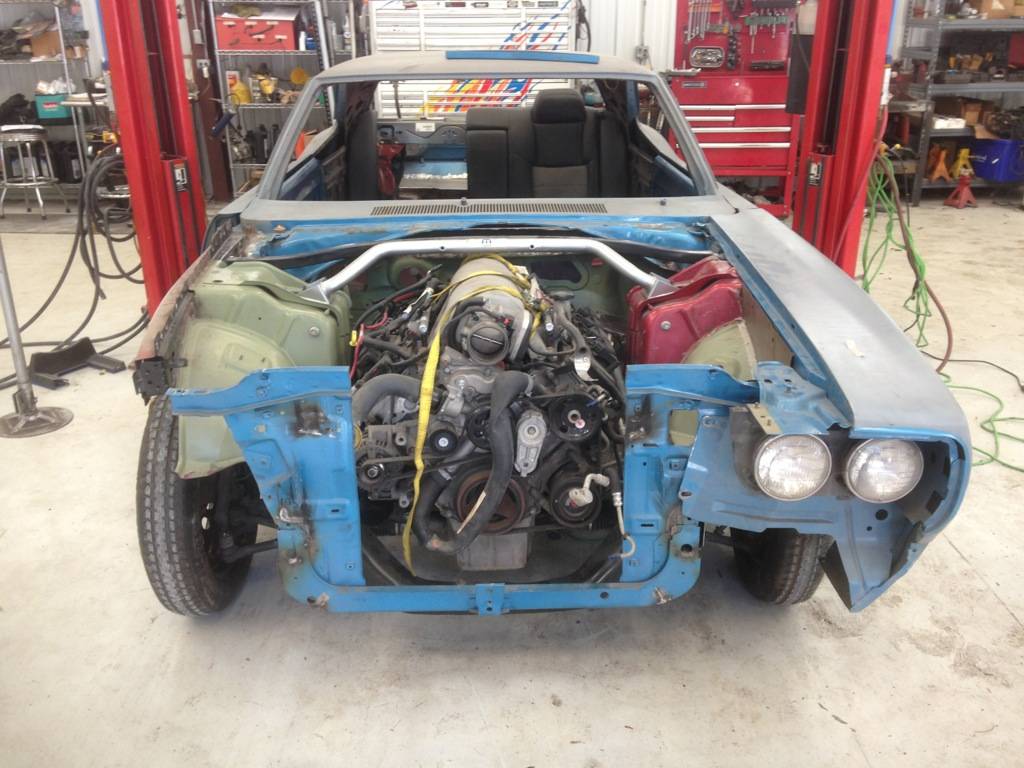

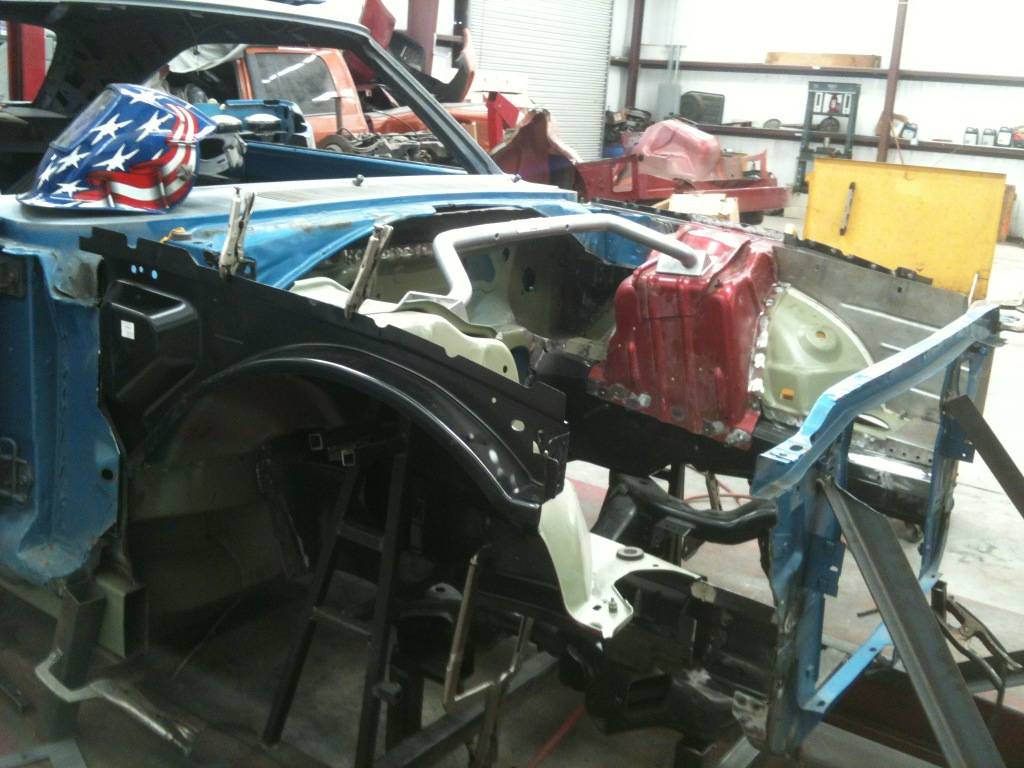

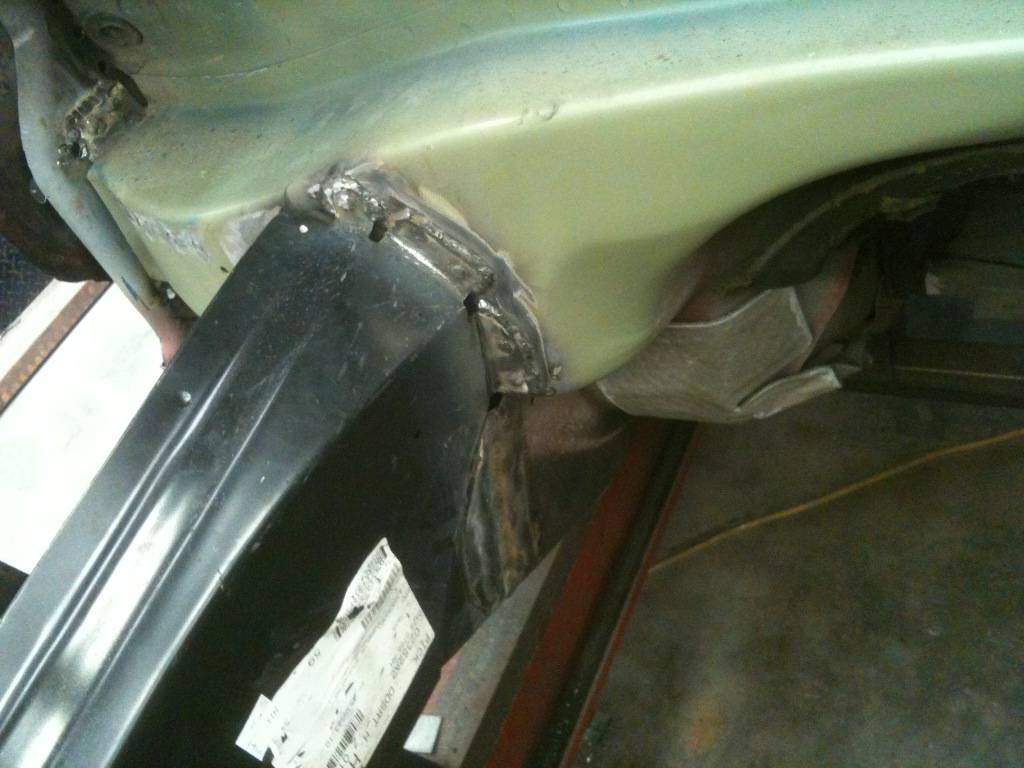

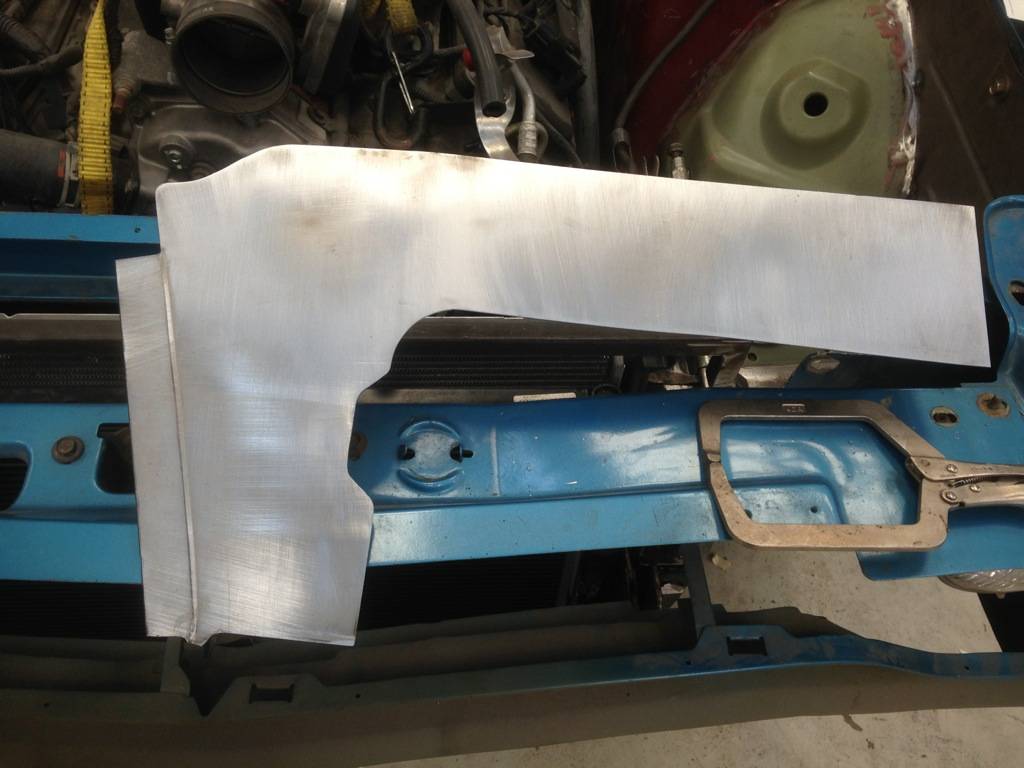

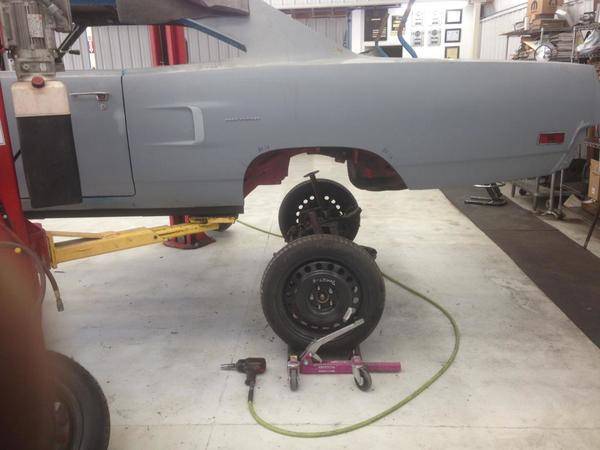

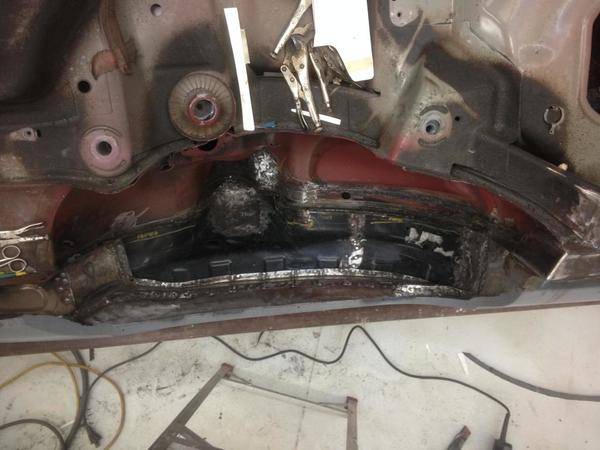

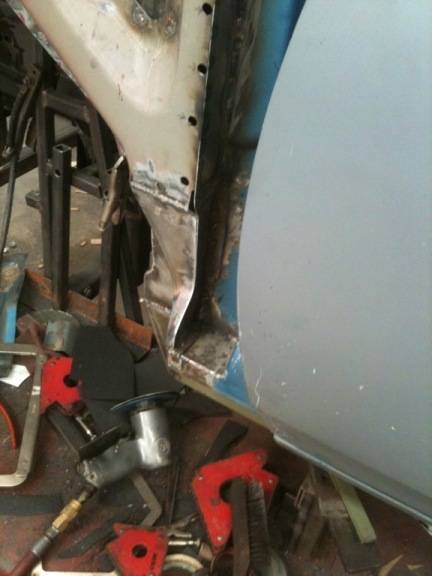

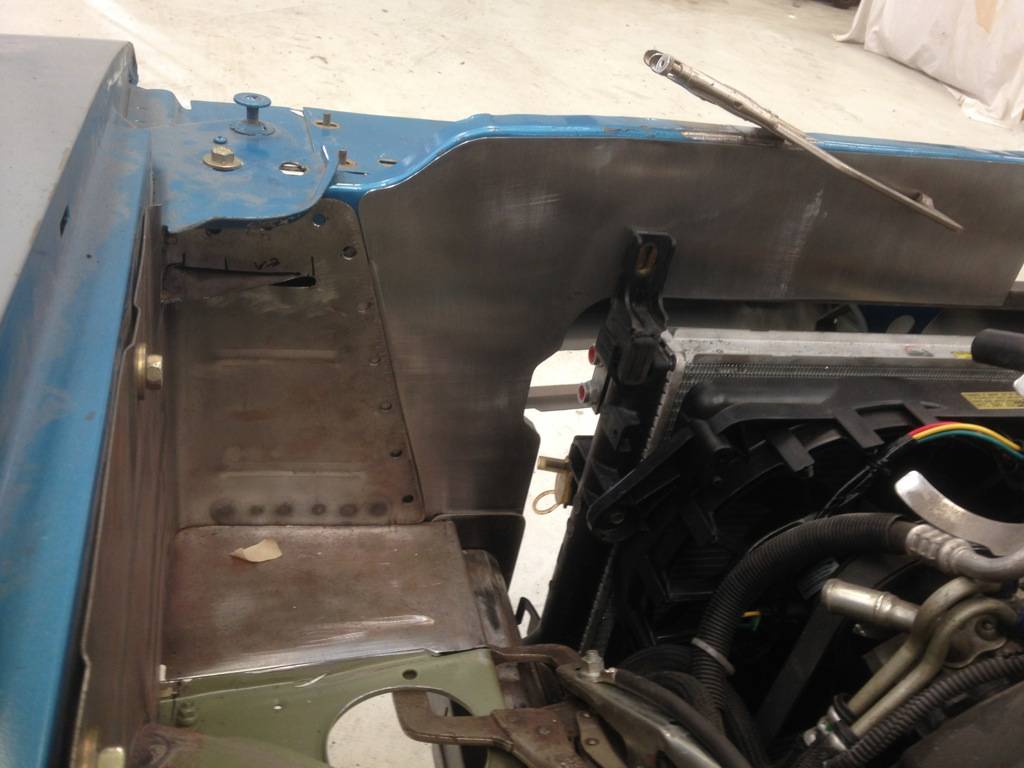

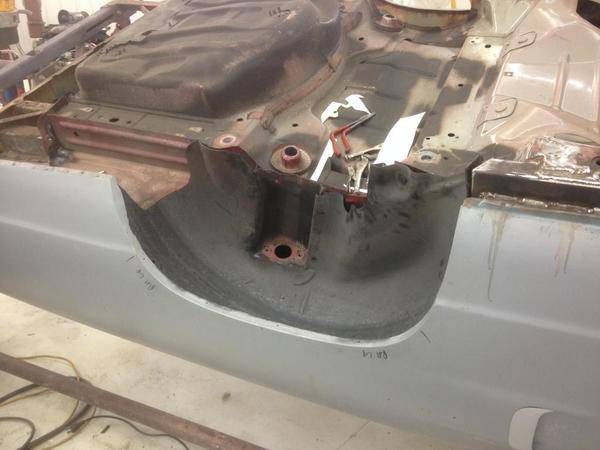

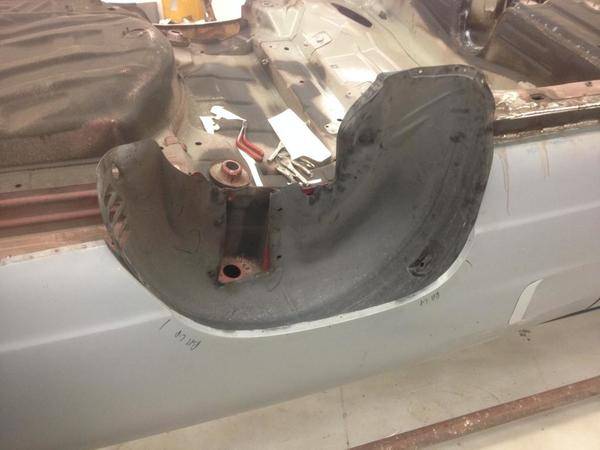

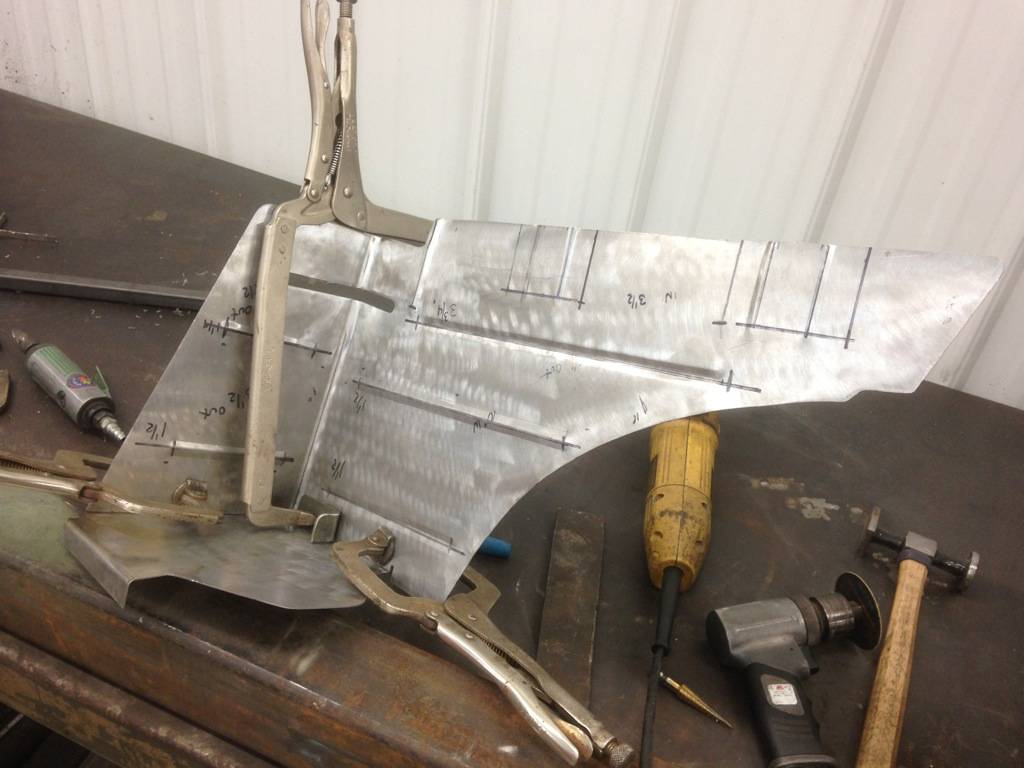

        Cut down the stock RR outer wheel house and tie into the LX outer wheel house (purge canister and wheel speed sensor wiring lives her):

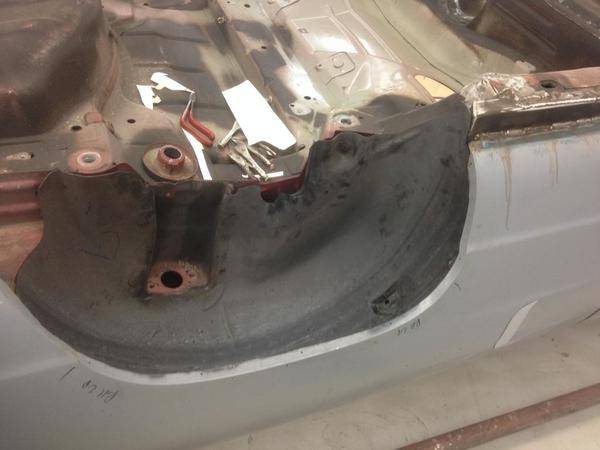

        Stock wheel liner cut down to fit:

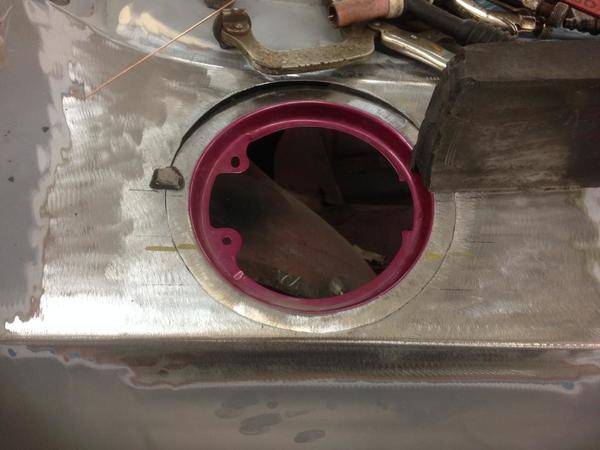

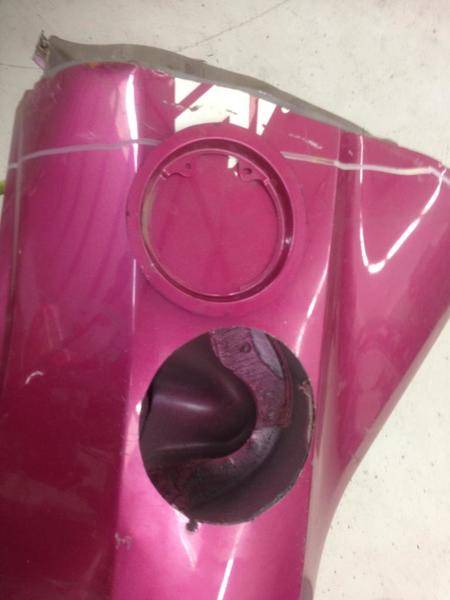

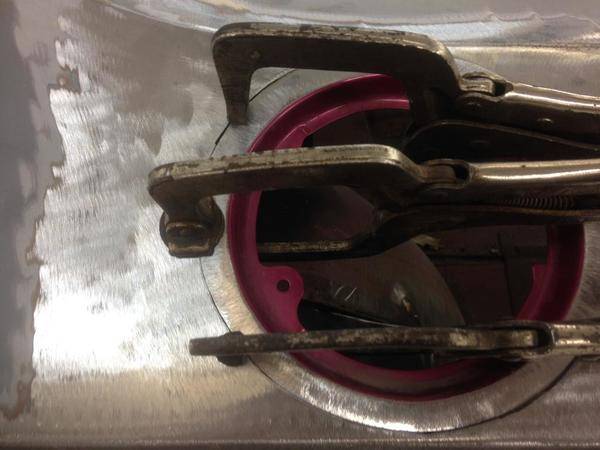

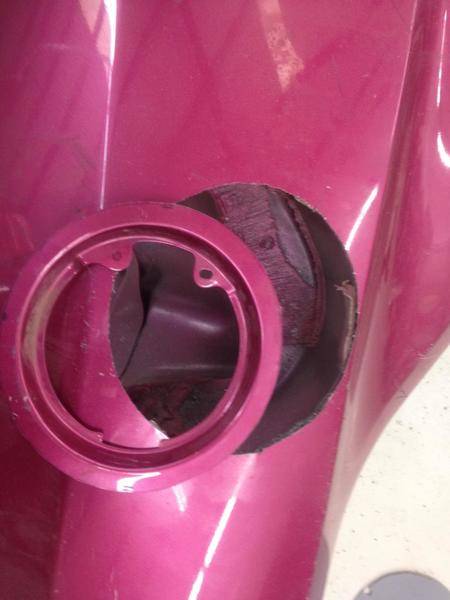

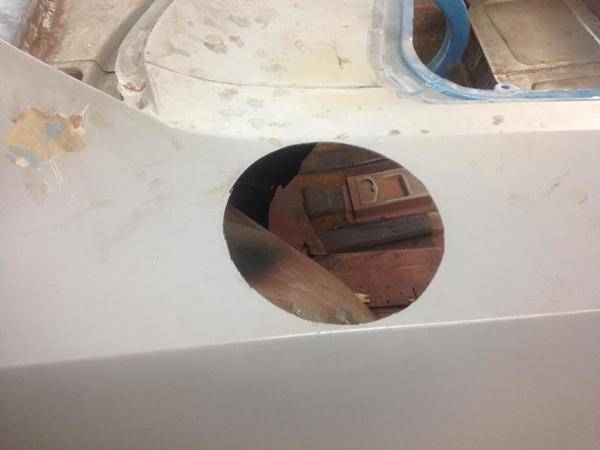

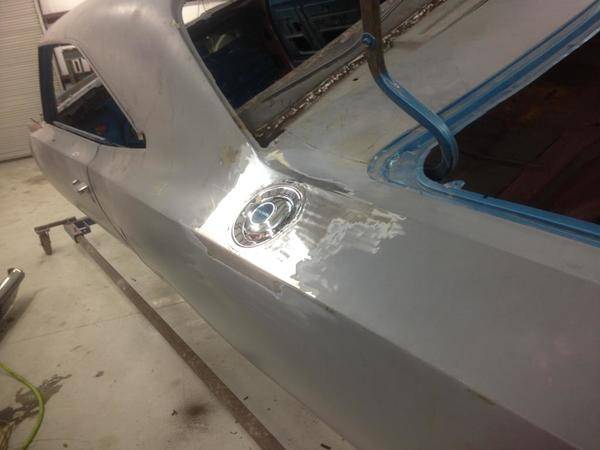

        Fuel fill on the SRT is on the left quarter. Tank is under the back seat and trying to route the filler to the bumper didn't seem like the best option. 2011 Challenger fuel cap will work, ala Charger inspired:

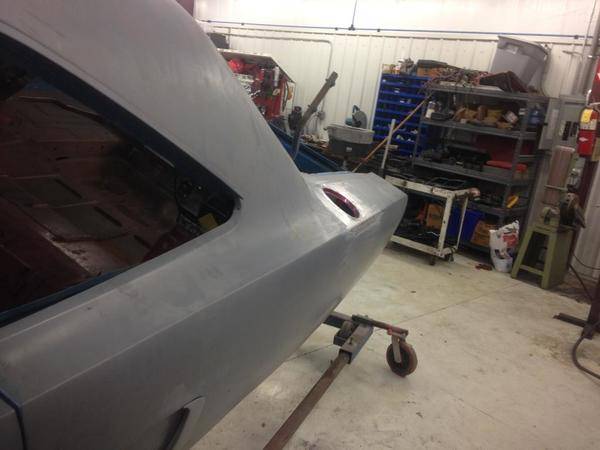

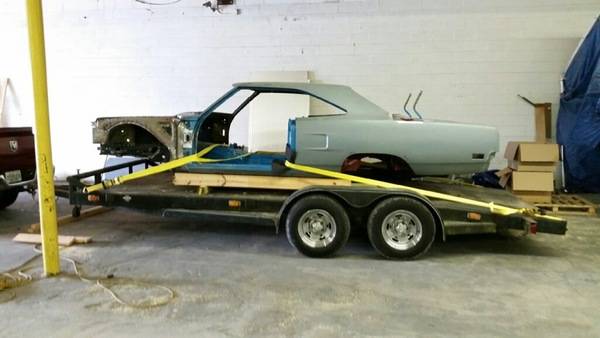

        Loaded up and off to media blast and epoxy powder coat:

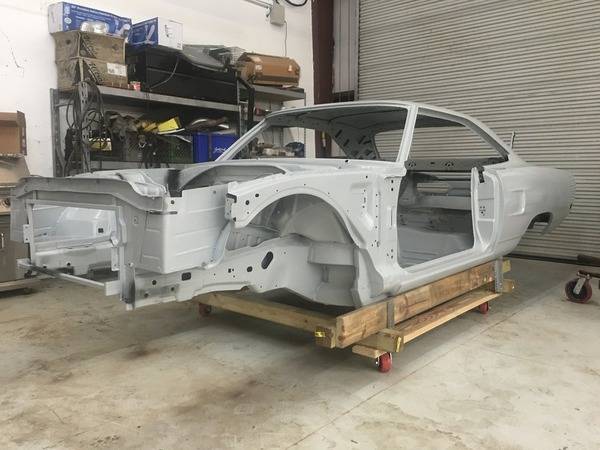

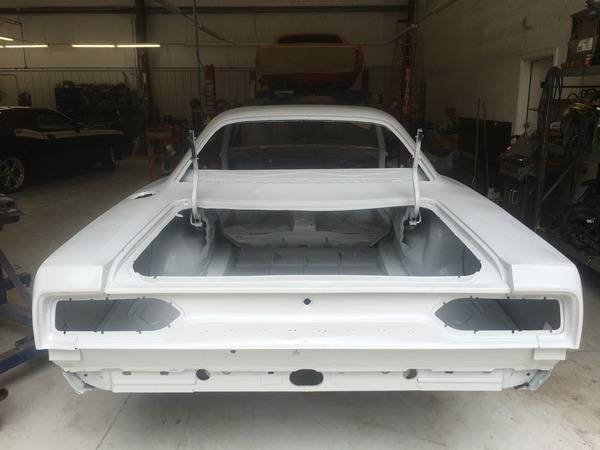

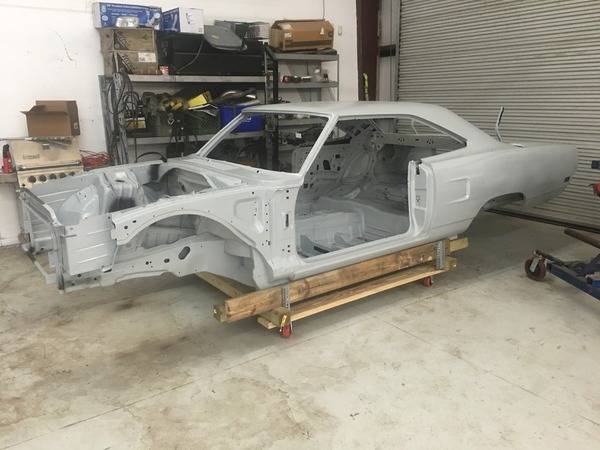

        And just got it back:
