Transmission to Bell Housing Fitment

General Mopar Tech Discussions

  1. 1964 b body

    1964 b body FBBO Gold Member FBBO Gold Member

    Messages:
    93
    Likes Received:
    66
    Joined:
    Jul 25, 2014
    Location:
    Arizona
    Local Time:
    2:14 PM
    Ok I am currently converting my Hemi Savoy from Automatic to 833 4-timer. My bell housing hole for the tranny is extremely tight. I was told that it is not a good idea to try to pull the transmission in using the attachment bolts as you may strip the threads. Does it need to be that tight or can I have a machine shop cut the hole slightly for a easier slip into the bell housing? Thanks in advance.

  2. zyzzyx

    zyzzyx FBBO Gold Member FBBO Gold Member

    Messages:
    1,933
    Likes Received:
    2207
    Joined:
    Aug 5, 2011
    Location:
    Lisle, Illinois
    Local Time:
    3:14 PM
    You first need to measure the two diameters. Is the bore in the bell housing concentric with the
    crankshaft? If it's tight, you could use this opportunity to dial it in!

    • Agree Agree x 2
    • AR67GTX

      AR67GTX Well-Known Member

      Messages:
      1,645
      Likes Received:
      820
      Joined:
      Jan 28, 2012
      Location:
      Arkansas
      Local Time:
      3:14 PM
      Good thought. He's describing bellhousing runout. You need to get a dial indicator and magnetic base to mount on the crank end or installed flywheel and measure the runout on the bellhousing register (hole) at 90 degree points. You are hoping is will come in under .006" variance from the crank centerline, if using an A833. Some of the newer transmissions require it even closer because they run other than a roller bearing up front on the transmission.

      • Agree Agree x 1
      • 4406bbl

        4406bbl Well-Known Member

        Messages:
        323
        Likes Received:
        307
        Joined:
        Feb 8, 2015
        Location:
        nebraska
        Local Time:
        3:14 PM
        It should fall right on the bellhousing if everything is clean. Draw in problems are almost always clutch disc misalignment, pilot bearing tight, or crank not drilled deep enough. I would pull everything and check it all out to be safe. Dialing in the housing is a good idea too.

      • R413

        R413 Well-Known Member

        Messages:
        1,613
        Likes Received:
        3344
        Joined:
        Feb 4, 2019
        Location:
        NW USA
        Local Time:
        1:14 PM
        Test fit the trans to bellhousing fit first. It needs to be snug, no slop, not tight either.

        yes clutch can add to the problem.

        You can break a bellhousing or the ear off the trans pulling with bolts.

        • Agree Agree x 3
        • 1964 b body

          1964 b body FBBO Gold Member FBBO Gold Member

          Messages:
          93
          Likes Received:
          66
          Joined:
          Jul 25, 2014
          Location:
          Arizona
          Local Time:
          2:14 PM
          All good ideas, at the moment I am working with both the Tranny and bell housing on the bench this is the first thing I checked and like I said its real tight. I think I will start with Emory cloth once I can get it close I will then install the flywheel and check the other things mentioned. Looks like it needs to be snug but right mine is REAL snug.

          • Thanks! Thanks! x 1
          • Dipstick

            Dipstick Well-Known Member

            Messages:
            913
            Likes Received:
            874
            Joined:
            Oct 26, 2018
            Location:
            Out West
            Local Time:
            1:14 PM
            If you need machine work to make it fit, do it to the bearing retainer instead of the bell housing. Easier and cheaper to replace.

          • Kern Dog

            Kern Dog FBBO Gold Member FBBO Gold Member

            Messages:
            20,999
            Likes Received:
            54609
            Joined:
            Apr 13, 2012
            Location:
            Granite Bay CA
            Local Time:
            1:14 PM
            No. False.
            I have minimal experience with manual transmissions but I have seen sloppy fit, close fit and interference fit.

          • 4406bbl

            4406bbl Well-Known Member

            Messages:
            323
            Likes Received:
            307
            Joined:
            Feb 8, 2015
            Location:
            nebraska
            Local Time:
            3:14 PM
            Not wrong, it should at worst wiggle on by hand, or with the bell sitting on the floor the trans should fall/ wiggle right on. If it needs to be pulled on with bolts it is tighter than it has to be. Pilot bushings should have .0005 to .003 clearance, never tight. You had better have real good bellhousing alignment to run that .0005 is all I will say

          • Fran Blacker

            Fran Blacker FBBO Gold Member FBBO Gold Member

            Messages:
            9,491
            Likes Received:
            9102
            Joined:
            Sep 23, 2016
            Location:
            Connecticut
            Local Time:
            4:14 PM

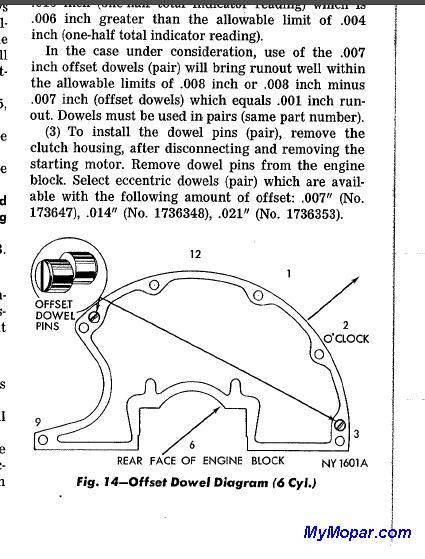

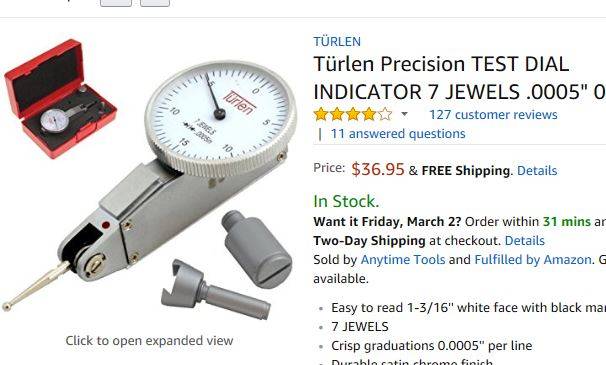

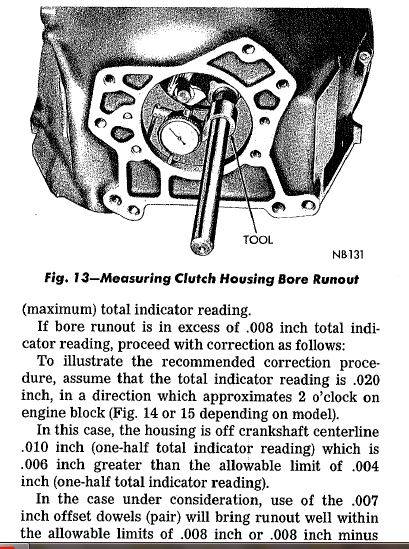

            Did you do this? This type of dial indicator works best.

            ba.JPG ba1.JPG dail.JPG

          • Bill76

            Bill76 Well-Known Member

            Messages:
            388
            Likes Received:
            403
            Joined:
            Mar 23, 2019
            Location:
            milwaukee
            Local Time:
            3:14 PM
            Is the bell housing off the engine , if it is it should it should fit , may have to wiggle it a bit.
            Did you paint the bellhousing ? If you got paint on the inside of the big hole a snug fitting bell may became to tight to fit.
            Check for burs on the bell housing and tranny bearing retainer

          • Kern Dog

            Kern Dog FBBO Gold Member FBBO Gold Member

            Messages:
            20,999
            Likes Received:
            54609
            Joined:
            Apr 13, 2012
            Location:
            Granite Bay CA
            Local Time:
            1:14 PM
            I agree. Small burrs can be just enough to cause trouble.
            When I was doing the mock up for my Tremec 5 speed swap, the bell was a tight fit even off of the car. THEN add in the clutch splines and pilot bearing and it is even more difficult. If the clutch is off center a few thousands to the left and the bellhousing bore or bearing collar has a nick or burr in it, it will fight you. In my opinion, it should not be an interference fit and it should not be loose. Mine felt tighter that I thought that it should have been.

            • Agree Agree x 1
            • Fran Blacker

              Fran Blacker FBBO Gold Member FBBO Gold Member

              Messages:
              9,491
              Likes Received:
              9102
              Joined:
              Sep 23, 2016
              Location:
              Connecticut
              Local Time:
              4:14 PM
              There was an auto trans so bellhousing didn't come with engine. Unless it's a switch back, manual to auto back to manual.

            • 1964 b body

              1964 b body FBBO Gold Member FBBO Gold Member

              Messages:
              93
              Likes Received:
              66
              Joined:
              Jul 25, 2014
              Location:
              Arizona
              Local Time:
              2:14 PM
              Thanks to everybody for the helpful hints D-Day starts tomorrow with the removal of the 727 I will update as the job moves forward.
