    I had fastbackjon at the charger registry have a go at the punchcard for my 67 belvedere.
    He is thorough and has his shit together regarding blurred punchcards.

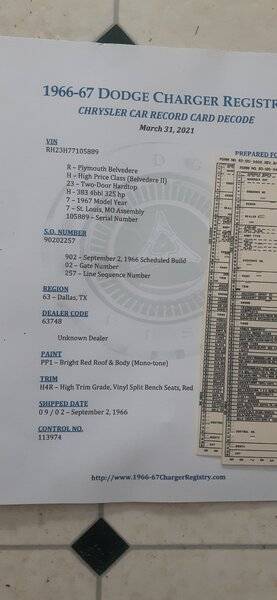

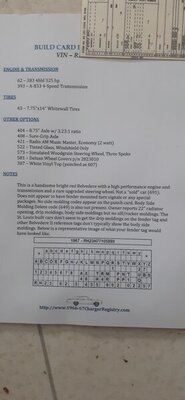

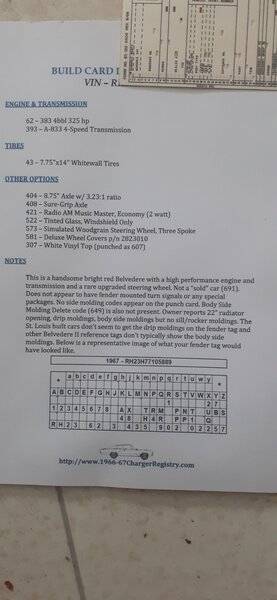

    When he had it done he mailed me 2 paper copies of the punchcard, and a nice write up on my car.

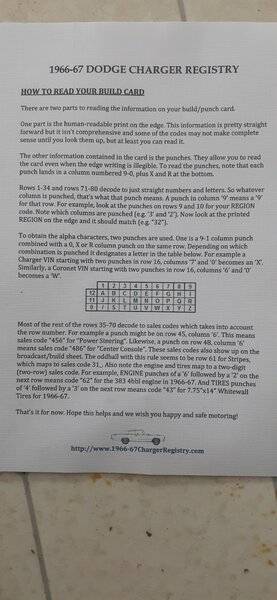

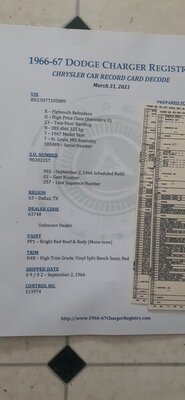

    Also he included a paper explaining how to decode a punchcard.
    I'm presently waiting on Chrysler historical for a punchcard for my 67 coronet.
    I could probably figure it out myself but fuck it, I'll send it to fastbackjon. That way I have a independent 3rd party view that I know will be exact.

    • Agree Agree x 1
    • khryslerkid

      khryslerkid FBBO Gold Member FBBO Gold Member

      Messages:
      25,735
      Likes Received:
      41124
      Joined:
      Mar 10, 2010
      Location:
      Hanover, Pennslyvania
      Local Time:
      10:18 AM
      Does he have a fee for doing this?

    • Rd 92 west

      Rd 92 west Active Member

      Messages:
      31
      Likes Received:
      9
      Joined:
      Dec 29, 2020
      Location:
      Up north
      Local Time:
      9:18 AM
      Obviously he dont do it for free.
      I paid him via PayPal and dont have a invoice handy.
      Something tells me it was like $110 ,or $120
      Money well spent.
      My car was missing the fender tag.
      Jon gave me a contact info for a couple of places that make tags.
      After some frustration with these tag makers I contacted Dave Wise.

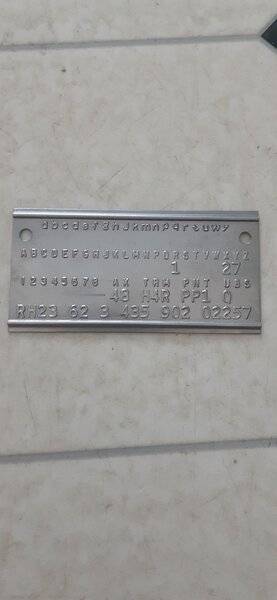

      Dave was confident that my car was legit and supplied me with a exact fender tag.
      I need to add that Dave's interpretation of my punchcard differed slightly from fastbackjon's. I politely asked Dave's office to double check a couple of things.
      Upon rechecking they agreed with Jon's decoding.
      So I highly recommend fastbackjon. And also recommend Dave Wise for fender tags. Cost a little more but quality is worth extra

      16425331820895194821677864467568.jpg 16425332357424850601574740074599.jpg 16425333129146056723254878983883.jpg

      • Like Like x 1
      • Durandal25

        Durandal25 FBBO Gold Member FBBO Gold Member

        Messages:
        3,108
        Likes Received:
        3201
        Joined:
        Aug 29, 2011
        Location:
        Texas
        Local Time:
        9:18 AM

        ....awesome.....totally awesome.

        When I get mine......I'm going to hit him up

        • Like Like x 1
        • Rd 92 west

          Rd 92 west Active Member

          Messages:
          31
          Likes Received:
          9
          Joined:
          Dec 29, 2020
          Location:
          Up north
          Local Time:
          9:18 AM
          I tip my hat to Chrysler Historical for giving me the means to get a proper fender tag.


          • Like Like x 1
          • Durandal25

            Durandal25 FBBO Gold Member FBBO Gold Member

            Messages:
            3,108
            Likes Received:
            3201
            Joined:
            Aug 29, 2011
            Location:
            Texas
            Local Time:
            9:18 AM
            Its wonderful. Gives the ride its soul and heart back.

            • Like Like x 1
            • matthon

              matthon Well-Known Member

              Messages:
              1,054
              Likes Received:
              758
              Joined:
              Mar 3, 2018
              Location:
              New York
              Local Time:
              10:18 AM
              John makes awesome build cards, I actually had the opportunity to provide some additional details to improve them and he sent me 2 updated cards for free.

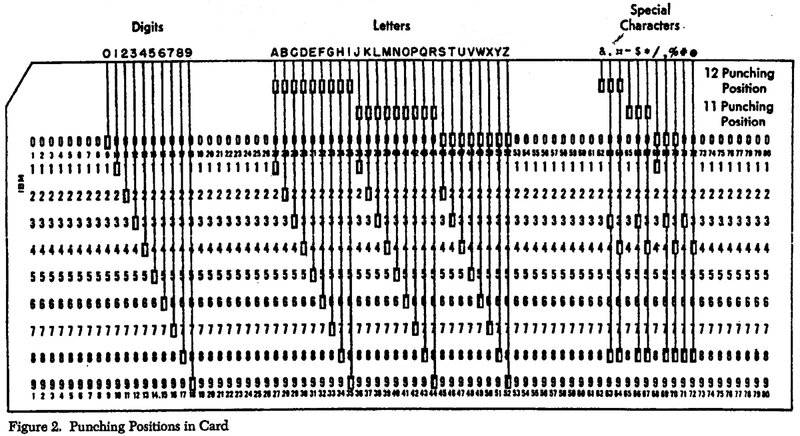

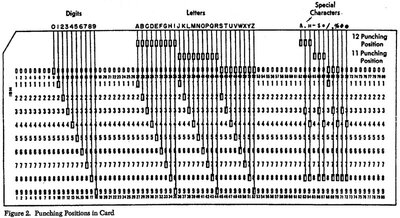

              Pic of how the IBM punch card 'punches' the various characters. Keep in mind, these cards were used by many different companies.

              On the Chrysler IBM card, the first 2 rows above 0 are R and X.
              These are used for letters.

              The 3 divisions of letters are 1-9, but there are only 26 letters, therefore the 3rd division begins at 2 so they all end at 9.
              I imagine the thought process was probably to start each section with 9 and count backwards, so you always 'end' with 9 and never get to zero.

              To see where all the punches fall, it's best to make a copy and draw vertical lines for R, X, and 0-9.

              For example, my paint code is GG1, so for each G there is a punch in 'row' 7 and another in 'row' R.
              The punches in row R are actually right at the top where the text DEALER CODE is listed.
              GG1 corresponds to the numbers 29/30/31 on the bottom edge.

              I've spent a lot of time on buildcards.


              • Like Like x 1
              • Thanks! Thanks! x 1
              • matthon

                matthon Well-Known Member

                Messages:
                1,054
                Likes Received:
                758
                Joined:
                Mar 3, 2018
                Location:
                New York
                Local Time:
                10:18 AM

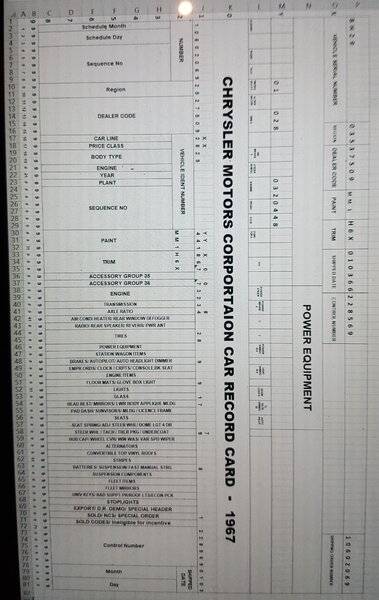

                67 card I recreated in excel. Other years are similar.


                • Like Like x 1
                • Thanks! Thanks! x 1
                • khryslerkid

                  khryslerkid FBBO Gold Member FBBO Gold Member

                  Messages:
                  25,735
                  Likes Received:
                  41124
                  Joined:
                  Mar 10, 2010
                  Location:
                  Hanover, Pennslyvania
                  Local Time:
                  10:18 AM
                  And you have to remember that each Plant had some differences in their codes. Did the cards differ between Plants?

                • MCODECUDA

                  MCODECUDA Well-Known Member

                  Messages:
                  599
                  Likes Received:
                  375
                  Joined:
                  Jul 22, 2008
                  Location:
                  Sherrills Ford, NC
                  Local Time:
                  9:18 AM

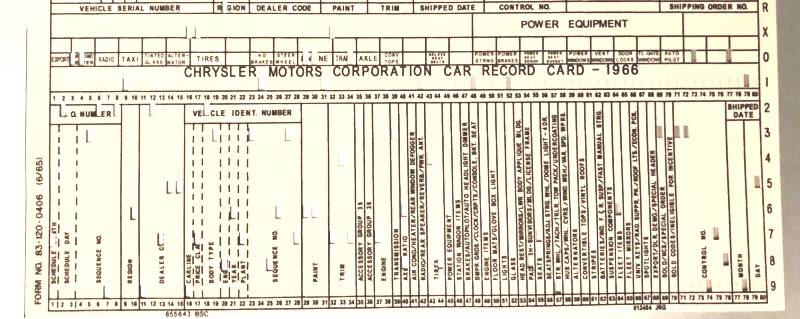

                  I have a picture of a blank card.


                  • Like Like x 1
                  • Thanks! Thanks! x 1
                  • 440 4 speed

                    440 4 speed Well-Known Member

                    Messages:
                    1,920
                    Likes Received:
                    988
                    Joined:
                    Oct 20, 2019
                    Location:
                    Saskatoon Saskatchewan Canada
                    Local Time:
                    8:18 AM
                    Jon’s work is EXCELLENT!!
                    Unfortunately Chrysler Historical cannot help with Canadian ordered cars. They are ones with 6 under the top row W.

                  • MCODECUDA

                    MCODECUDA Well-Known Member

                    Messages:
                    599
                    Likes Received:
                    375
                    Joined:
                    Jul 22, 2008
                    Location:
                    Sherrills Ford, NC
                    Local Time:
                    9:18 AM
                    I’ve reached out to Jon a few times without any response. There’s great info in this thread. There’s a 64 Fury that I have known about for over 20 years. The body is as solid as my Belvedere (California car) is. The only thing that was holding me back was the missing fender tag.

                  • Durandal25

                    Durandal25 FBBO Gold Member FBBO Gold Member

                    Messages:
                    3,108
                    Likes Received:
                    3201
                    Joined:
                    Aug 29, 2011
                    Location:
                    Texas
                    Local Time:
                    9:18 AM

                    Looks like the registry under the website 1966-67charegersregistry.com is gone.

                  • 440 4 speed

                    440 4 speed Well-Known Member

                    Messages:
                    1,920
                    Likes Received:
                    988
                    Joined:
                    Oct 20, 2019
                    Location:
                    Saskatoon Saskatchewan Canada
                    Local Time:
                    8:18 AM
                    Don’t know if Jon was doing earlier cars.

                  • matthon

                    matthon Well-Known Member

                    Messages:
                    1,054
                    Likes Received:
                    758
                    Joined:
                    Mar 3, 2018
                    Location:
                    New York
                    Local Time:
                    10:18 AM
                    Differences in cards between plants, I'd have to look into that.
                    I've seen slight differences between years, obviously.

                    I have viewed a number of them, but by no means do I believe there were no differences. I started a thread on fabo for the 67-69 Barracuda, kind of a registry stepping off point, really dug into it, got a lot of emails and pics of buildcards, buildsheets, etc.
                    Then I suddenly became the primary care giver to a family member and I fell off the face of the internet for an extended period of time.
                    Recently got a few pms though and helped out, I'm no expert but I know a few things.

                    • Like Like x 1
                    • matthon

                      matthon Well-Known Member

                      Messages:
                      1,054
                      Likes Received:
                      758
                      Joined:
                      Mar 3, 2018
                      Location:
                      New York
                      Local Time:
                      10:18 AM
                      As most of you know, the buildsheet and fender tag were produced after the buildcard.
                      I've heard a few stories of a buildcard found in a car, but only saw one example online that looked legit, and iirc it was an early car.

                      Imagine my surprise, then disappointment, when I pulled the rear seat of my Fury wagon to find this:


                    • 64BEL

                      64BEL Well-Known Member

                      Messages:
                      4,629
                      Likes Received:
                      6005
                      Joined:
                      Feb 25, 2010
                      Location:
                      Wisconsin
                      Local Time:
                      9:18 AM
                      Jon does great work and was great to work with. We exchanged several emails and speculated back and forth on the fact that my dealer code doesn't correspond to any known dealership and how that may fit into no dealership being listed on my window sticker. His fee was very reasonable for what I received.

                      I sent Jon an email checking on his status. I'll update if I hear anything back.

                      • Thanks! Thanks! x 1
                      • Durandal25

                        Durandal25 FBBO Gold Member FBBO Gold Member

                        Messages:
                        3,108
                        Likes Received:
                        3201
                        Joined:
                        Aug 29, 2011
                        Location:
                        Texas
                        Local Time:
                        9:18 AM
                        i hope he’s doing well

                        • Agree Agree x 1
                        • rarefish

                          rarefish Well-Known Member

                          Messages:
                          446
                          Likes Received:
                          234
                          Joined:
                          Jul 9, 2013
                          Location:
                          NY
                          Local Time:
                          10:18 AM

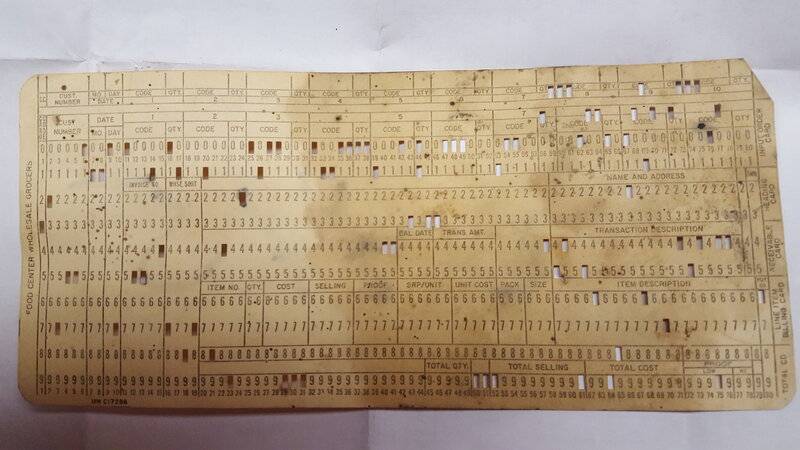

                          A IBM card for a Grocery Getter

                        • 440 4 speed

                          440 4 speed Well-Known Member

                          Messages:
                          1,920
                          Likes Received:
                          988
                          Joined:
                          Oct 20, 2019
                          Location:
                          Saskatoon Saskatchewan Canada
                          Local Time:
                          8:18 AM
                          Jon is fine, he has to set up another site.
