HEI like I'm 5

Electrical & Ignition

  1. BeatersRus

    BeatersRus Well-Known Member

    Messages:
    2,321
    Likes Received:
    2804
    Joined:
    May 31, 2015
    Location:
    western ny on the hill
    Local Time:
    4:59 AM
    ikr i totally didnt see that 1 coming...regardless,
    i still pmed him and told him how he could jump the dis and fire the car up to at least check the dis. and timing setup.
    silly me.......lol

    • Like Like x 4
    • eldubb440

      eldubb440 FBBO Gold Member FBBO Gold Member

      Messages:
      5,184
      Likes Received:
      9309
      Joined:
      Jul 17, 2008
      Location:
      South Jersey USA
      Local Time:
      4:59 AM
      next you'll be labeled a stalker :fool:

      and who knew the dick of the day post would end up being appropriate..... strange times

      • Agree Agree x 2
      • Like Like x 1
      • 1972GY8SE

        1972GY8SE Well-Known Member

        Messages:
        455
        Likes Received:
        606
        Joined:
        Jun 25, 2016
        Location:
        Rancho Cucamonga, CA.
        Local Time:
        1:59 AM
        What happened? do you not have spark?
        Can you post pictures of the connection I recommended.
        Also, can you post up the steps necessary to install the distributor.
        Thanks.

      • 1972GY8SE

        1972GY8SE Well-Known Member

        Messages:
        455
        Likes Received:
        606
        Joined:
        Jun 25, 2016
        Location:
        Rancho Cucamonga, CA.
        Local Time:
        1:59 AM
        Yes, GM HEI is a good system.
        Thanks.

        Last edited: Jun 16, 2019
      • 3rdgenCharger

        3rdgenCharger Member

        Messages:
        11
        Likes Received:
        1
        Joined:
        Jun 15, 2019
        Location:
        Rogers ar
        Local Time:
        3:59 AM
        I marked where the old dizzy's rotor was pointing as a guide, as well as the base of the dizzy to keep it close, i will be retiming it though.
        Removed the old dizzy, stabbed the new, got all the marks lined up and rotor facing the same direction.

        I've got the correct pigtail for the HEI, wired red wire from pigtail (battery side) to the blue wire from the ballast resistor, test light shows it's hot when ignition is on (testing on the new connector)

        Got no spark.. Rewired it exactly the same with the + from the now removed coil, which shows to have power into the party.
        So at this point ive got + coil wire and blue (run wire?) From ballast resistor into the new pigtail that plugs into the battery side of the dizzy.
        No spark.. I'm limited to a test light right now..
        My multimeter is at work in somebody else's tool (never lend tools, I'll never learn my lesson) box that is locked this weekend.

        I'm wondering if the + coil wire is set up to reduce to 6 volts for the old set up?

        I'll get pictures of how I hooked it up momentarily, playing mr.mom this morning.


        Thanks for the help so far guys!
        I apologize for being a prick to BeatersRus.. I was skimming the page real quick and misunderstood what he had said.. 100% my fault, I should have been paying better attention.

      • Carcinogen

        Carcinogen Active Member

        Messages:
        31
        Likes Received:
        18
        Joined:
        Nov 23, 2014
        Location:
        Oregon
        Local Time:
        1:59 AM
        I used Mopar electronic distributor and wired in HEI module.

        Two things I had problems with.

        I did not have 12 volts after going through car's old wiring (no ballast resistor). Had enough voltage to start and rev in neutral, but under load engine would backfire thru carb. Used relay to feed coil direct from Battery.

        Had to install separate switch for the starting motor as the ignition switch cuts power to separate circuit that used to by-pass ballast resistor. I turn key on then use push button switch to start motor.

        I did cause a problem though-Between replacing the stock Mopar starter with a mini, and going HEI; it does not sound like an Old Mopar trying to start. Slight pump of gas wait a second and it fires right up, Idles better and throttle response is improved.

        • Like Like x 1
        • Agree Agree x 1
        • 1972GY8SE

          1972GY8SE Well-Known Member

          Messages:
          455
          Likes Received:
          606
          Joined:
          Jun 25, 2016
          Location:
          Rancho Cucamonga, CA.
          Local Time:
          1:59 AM
          Okay, you do not want the ballast connected.
          Connect the blue wire before the ballast.
          The blue wire should burn your (incandescent) test lamp bright.
          If you have the correct voltage to the BATT terminal of the dist (the distributor spins) and still no spark.......the issue is internal to the dist.

          Last edited: Jun 16, 2019
        • Carcinogen

          Carcinogen Active Member

          Messages:
          31
          Likes Received:
          18
          Joined:
          Nov 23, 2014
          Location:
          Oregon
          Local Time:
          1:59 AM
          I had voltage problems using the stock wiring, was not enough voltage even with no ballast resistor, the HEI current draw is probably more stock wiring can handle. Wiring in a relay ensured Batt voltage to coil.

          No ballast needed for HEI, you want full 12 volts.

          Also good to remove old components and wiring connections and tape them up in case they are shorting something out.

          I have also used relays for the headlight and re-wired the ammeter to reduce voltage loss. https://www.forbbodiesonly.com/moparforum/threads/ammeter-bypass.164703/

          • Agree Agree x 1
          • beanhead

            beanhead Well-Known Member

            Messages:
            4,824
            Likes Received:
            7811
            Joined:
            May 18, 2014
            Location:
            Wackyfornia
            Local Time:
            1:59 AM
            Also! You need to connect your 'start' wire (the brown that gets 12v when cranking) to the 'run' wire when you take them off the ballast resistor. Otherwise you will have voltage in run, but not when key's in the cranking position..or am I missing something(entirely possible!)

            • Agree Agree x 3
            • Bobby Sixkiller

              Bobby Sixkiller Well-Known Member

              Messages:
              219
              Likes Received:
              158
              Joined:
              Mar 17, 2019
              Location:
              Northwest Oklahoma
              Local Time:
              3:59 AM
              Try running a wire straight from the positive side of the battery to the distributor. If you have no fire it’s the coil or module. If you are still working on

              • Like Like x 1
              • RJRENTON

                RJRENTON FBBO Gold Member FBBO Gold Member

                Messages:
                666
                Likes Received:
                519
                Joined:
                Jul 1, 2015
                Location:
                South Shores area of Decatur, Illinois
                Local Time:
                3:59 AM
                Gentlemen,
                I'm somewhat confused as to why the change to GMs HEI ignition. Just to be different? A conversation starter at car cruises? Why not Fords DuraSpark IV system? And the ever popular favorite MSD. Hopefully, your decision is not based on your next door's neighnor's brother-in-law's cousin's best buddy whose opinion on just about everything is reverently considered gospel (and probably drives Toyota Camry).
                Seriously, once the spark plug ignites the fuel charge, its no longer needed until the next power stroke. If the fuel charge cannot be ignited, the problem may be due to stratification of the mixture, which may relate a lean condition, too much valve overlap from the cam, and lean mixtures burn slow requiring more spark advance, several other factors.
                My question is out of quriosity not critism. My RS23V0A***** GTX still uses the origional Prestolite dual point distributor and it looks like it belongs, unlike the pix of the HEI which looks like a sore thumb. I like to retain the original appearance yet l can still buzz the engine up to 6000RPM, without miss or stumble at idle. My opinion of course.
                Bob Renton

                • Agree Agree x 1
                • Frank Mopar

                  Frank Mopar Well-Known Member

                  Messages:
                  642
                  Likes Received:
                  923
                  Joined:
                  May 7, 2015
                  Location:
                  Buffalo, NY
                  Local Time:
                  4:59 AM
                  Nobody is switching to be different. They are switching because its a better system.

                  http://www.slantsix.org/forum/viewtopic.php?t=15779

                  http://www.designed2drive.com/

                • RJRENTON

                  RJRENTON FBBO Gold Member FBBO Gold Member

                  Messages:
                  666
                  Likes Received:
                  519
                  Joined:
                  Jul 1, 2015
                  Location:
                  South Shores area of Decatur, Illinois
                  Local Time:
                  3:59 AM
                  Frank,
                  Better than......?? Points?....Mopar's orange box...?? But why GMs HEI? If your looking for higher spark voltages, the secret is the coil not in the switching mechanism. Also, the HEI has its short coming also. Just curious.
                  Bob Renton

                  • Agree Agree x 1
                  • Frank Mopar

                    Frank Mopar Well-Known Member

                    Messages:
                    642
                    Likes Received:
                    923
                    Joined:
                    May 7, 2015
                    Location:
                    Buffalo, NY
                    Local Time:
                    4:59 AM
                    I switched my car over. Im a believer. You can play the anti GM all you want but in the end its a better ignition system. Read the links.

                    • Like Like x 1
                    • Agree Agree x 1
                    • Bobby Sixkiller

                      Bobby Sixkiller Well-Known Member

                      Messages:
                      219
                      Likes Received:
                      158
                      Joined:
                      Mar 17, 2019
                      Location:
                      Northwest Oklahoma
                      Local Time:
                      3:59 AM
                      I’m die hard mopar all the way. I bleed pentastar blue. But I used a gm module, not a complete distributor on my electronic ignition. Not that it’s better but simple wiring, does away with the ballast so one less part to go wrong and I’ve been to part stores that didn’t stock Chrysler ignition box or the ballast. They always keep the gm module. I used an e type coil and keep a spare in the trunk. Keep a spare module in the glove box. One more benefit is if I burnt the fusible link for some reason it’s easy to run a jumper wire straight to the module/coil on the side of the road. I do think points are just as simple. Even less wires but they require maintenance more often. Also in wet weather they drown out pretty easily. Hei might give a better spark. Idk. It’s really a simple setup and it works. I bought a hei distributor for grins but haven’t used it yet. They are ugly though. I’ve seen the module hid inside of an old Chrysler box but that makes it harder to replace and I would think it keeps heat in. I’ve seen kits to mount on the distributor but looks like it would be harder to replace there too. Basically it works. It’s easy to find parts. And if mounted on the firewall it’s easy to replace.

                      • Agree Agree x 1
                      • Bobby Sixkiller

                        Bobby Sixkiller Well-Known Member

                        Messages:
                        219
                        Likes Received:
                        158
                        Joined:
                        Mar 17, 2019
                        Location:
                        Northwest Oklahoma
                        Local Time:
                        3:59 AM
                        I’ve converted fords too. Not mine. I don’t have a single fomoco. Unless you count the plord. But that’s a different story.

                      • Frank Mopar

                        Frank Mopar Well-Known Member

                        Messages:
                        642
                        Likes Received:
                        923
                        Joined:
                        May 7, 2015
                        Location:
                        Buffalo, NY
                        Local Time:
                        4:59 AM

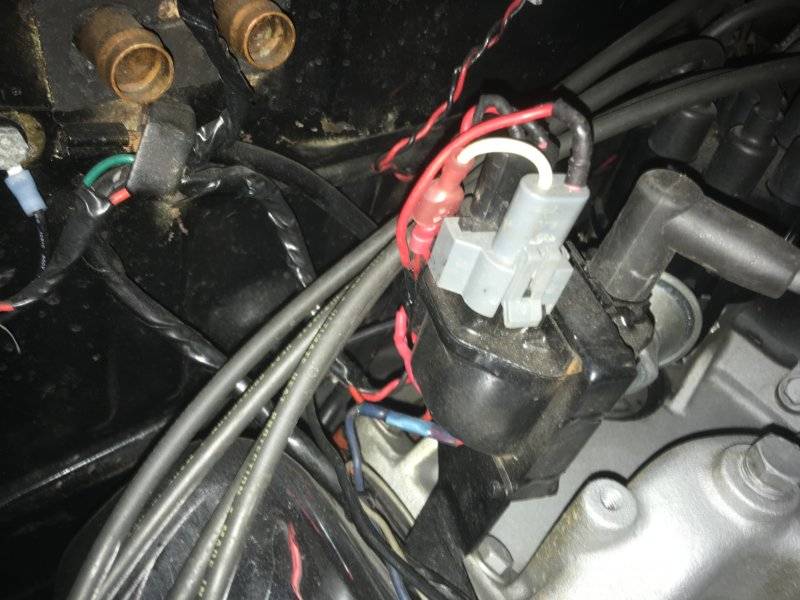

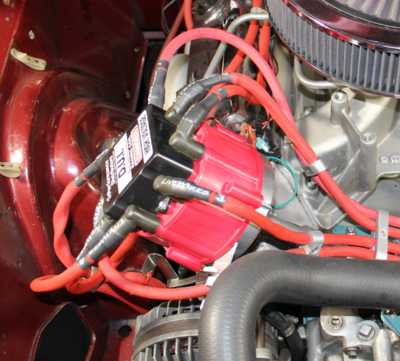

                        Can you spot my HEI? Even the ballast resistor is still there(the resistor removed) HEI but not “coil in the cap”. With the air cleaner on its basically invisible. People that look under the hood have no clue.

                        3ECB52D5-5238-4F2E-B47F-3FB1EA6A55F8.jpeg 85E2926A-1C58-4E05-A26D-9F07DC018D54.jpeg A4C08B64-35ED-4031-B008-C191DC40D440.jpeg

                        • Like Like x 1
                        • HALIFAXHOPS

                          HALIFAXHOPS hops farmer and MOPAR only distributor rebuilder! FBBO Gold Member

                          Messages:
                          2,228
                          Likes Received:
                          872
                          Joined:
                          May 5, 2016
                          Location:
                          Halifax, PA USA
                          Local Time:
                          4:59 AM
                          Nice!

                        • RJRENTON

                          RJRENTON FBBO Gold Member FBBO Gold Member

                          Messages:
                          666
                          Likes Received:
                          519
                          Joined:
                          Jul 1, 2015
                          Location:
                          South Shores area of Decatur, Illinois
                          Local Time:
                          3:59 AM
                          Gentlemen,
                          Checking the links does not convince me into changing. The GM HEI module's Achilles heel is heat unless the module can be adequately cooled, it will fail. Later, improvements utilized IGBT (Insulated gate bi-polar transistor) current switching circuitry, reducing the current the module must handle. The GM coil design used higher primary resistance for lower current draw and more secondary windings for higher secondary plug voltage. The spark plugs then used a significantly larger gap to give the leaner fuel charge the best chance of being ignited. This was all due to catalytic converter's inability to handle unburned fuel.
                          My origional question was one of curiosity not ctitism and what was the underlying reason for the change.
                          Bob Renton

                          • Agree Agree x 1
                          • Frank Mopar

                            Frank Mopar Well-Known Member

                            Messages:
                            642
                            Likes Received:
                            923
                            Joined:
                            May 7, 2015
                            Location:
                            Buffalo, NY
                            Local Time:
                            4:59 AM
                            The HEI should be mounted on a heat sink, the same reason a ballast resistor is mounted in ceramics. By virtue of what they do they get hot.
