Need advice on differential removal on my 67 RT

[khryslerkid]

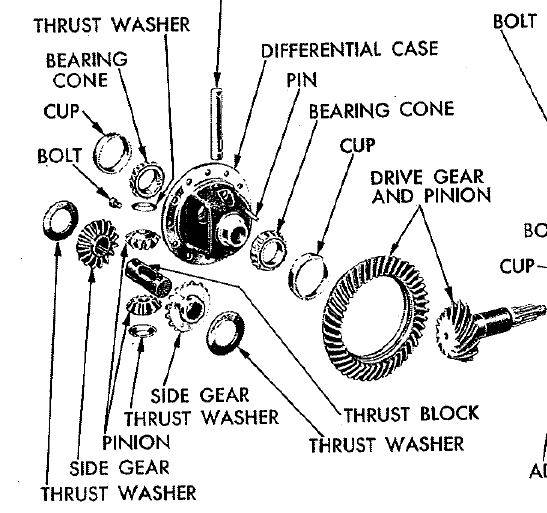

Thought they did something else?View attachment 788492

The pics I posted were from my '62, 8 3/4 open rear.



[Fran Blacker]

View attachment 788495 The pics I posted were from my '62, 8 3/4 open rear.

Agree I didn't know that 62 used that. Posted out of a 66 SM. Would think an R/T would be a S/G? My hemi Satellite no S/G. originai owner didn't order it.



[khryslerkid]

Agree I didn't know that 62 used that. Posted out of a 66 SM. Would think an R/T would be a S/G? My hemi Satellite no S/G. originai owner didn't order it.

I F'd up big time Fran!

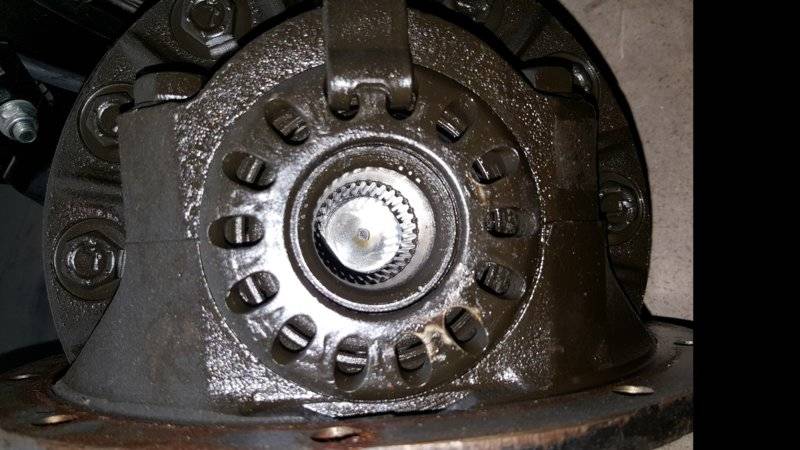

Those pics were of my Sure Grip. The open rear only has the piece of square tubing in it that the taypered axels butt against for adjustment. The Sure Grip uses the thrust buttons.

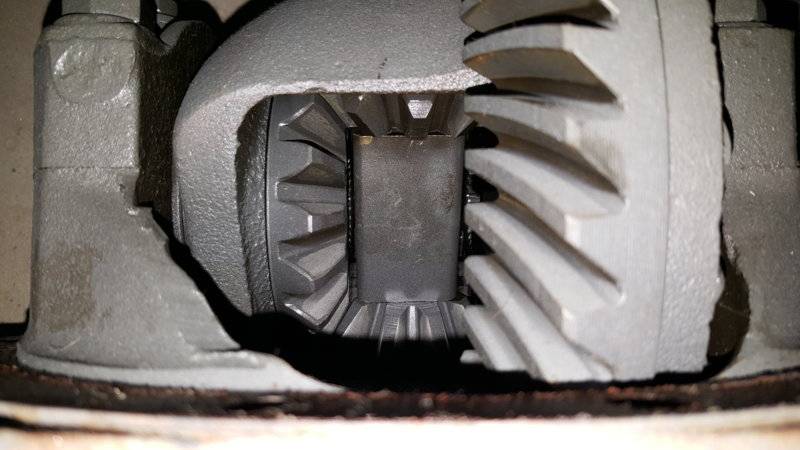

My open rear...

Looking through the openings...



[AR67GTX]

Surprised to see self adjusters there. My 67 GTX has manual adjustment 11" police package brakes all around which I thought was standard. Or does it have front disc brakes and then they used 10" rear brakes with self adjusters?
