MT drag radial wear pattern

Racers Hangout

  1. 440beep

    440beep FBBO Gold Member FBBO Gold Member

    My Photo Garage
    Messages:
    1,025
    Likes Received:
    349
    Joined:
    Aug 6, 2012
    Location:
    NW Indiana
    Local Time:
    11:44 AM

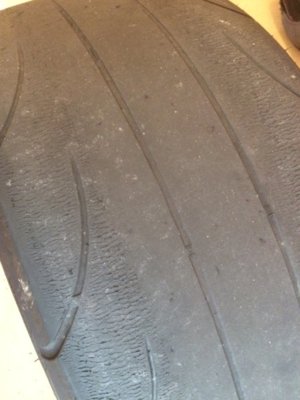

    Attached are some pics of my MT ET street drag radials that I use on the street. The tires see frequent burn outs. What are the thoughts on the wear pattern. The middle of the tire is worn nicely, while the outsides are kinda chewed up. Are the tires overflated so only the tire centers are making good pavement contact? It's a 295 tire on a 10" wheel and the sidewalls are not bulged. I'm running about 15-20psi on the street which is on the high side, so thinking maybe only the tire center is making good contact while the outsides are iffy.

    Appreciate any thoughts.

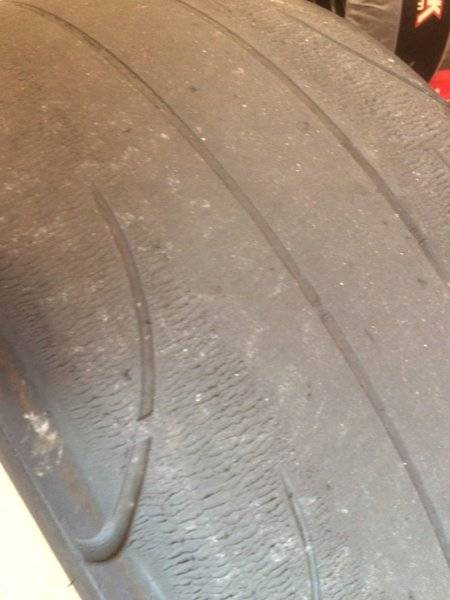

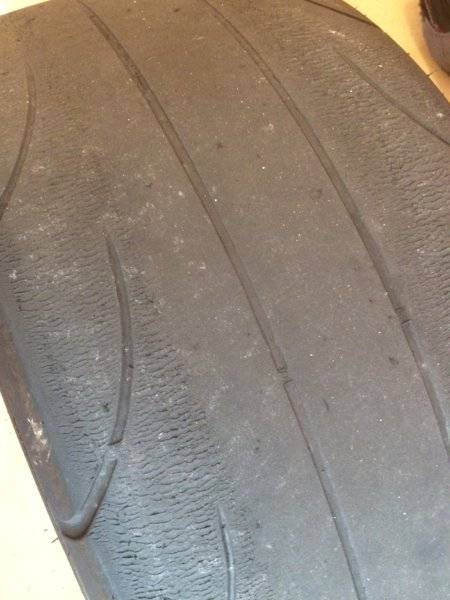

    IMG_0936.JPG IMG_0937.JPG

    • Thanks! Thanks! x 1
    • biomedtechguy

      biomedtechguy FBBO Gold Member FBBO Gold Member

      Messages:
      9,738
      Likes Received:
      13552
      Joined:
      Mar 28, 2014
      Location:
      South Louisiana
      Local Time:
      11:44 AM
      The sides look "scrubbed" like my motorcycle tires look from "spirited" cornering. I'm thinking maybe that scrubbed appearance is from low pressure and taking curves or turns.
      Just guessing.
      The other possibility is inner fender wheelwell rubbing. My 70 Roadrunner has curved inner fenders and if the tires rubbed I could see a pattern like that happen. Maybe check your wheelwells for signs of tire rubbing.

      Last edited: Aug 10, 2018
      • Thanks! Thanks! x 1
      • moparcrazy

        moparcrazy Well-Known Member

        Messages:
        1,849
        Likes Received:
        1141
        Joined:
        Dec 27, 2009
        Location:
        california
        Local Time:
        11:44 AM
        looks like Low tire pressure too Me, I use a similar tire with 30 psi on the street & 14 psi when Racing never had a issue, BTW low tire pressure will cause the center of the tire to concave, too much air would cause them to bubble only making contact on the center.

        • Agree Agree x 4
        • Thanks! Thanks! x 1
        • moparcrazy

          moparcrazy Well-Known Member

          Messages:
          1,849
          Likes Received:
          1141
          Joined:
          Dec 27, 2009
          Location:
          california
          Local Time:
          11:44 AM

          • Thanks! Thanks! x 1
          • 440beep

            440beep FBBO Gold Member FBBO Gold Member

            My Photo Garage
            Messages:
            1,025
            Likes Received:
            349
            Joined:
            Aug 6, 2012
            Location:
            NW Indiana
            Local Time:
            11:44 AM
            I'm definitely not doing spirited cornering in the Super Bee. Never thought of the fender well rubbing, but that's a great tip. Will check it out because the 295s are stuffed in there. I do know the inside sidewall has some rubbing at times, but need to check the outside.


            • Thanks! Thanks! x 1
            • 69 GTX

              69 GTX FBBO Gold Member FBBO Gold Member

              My Photo Garage
              Messages:
              5,221
              Likes Received:
              4188
              Joined:
              Apr 6, 2013
              Location:
              Milo, Iowa
              Local Time:
              11:44 AM
              I agree with underinflated, try adding 5-10 psi. Center is cupping.

              • Agree Agree x 2
              • Thanks! Thanks! x 1
              • 68 HEMI GTS

                68 HEMI GTS Well-Known Member

                Messages:
                1,483
                Likes Received:
                1925
                Joined:
                Oct 12, 2011
                Location:
                michigan
                Local Time:
                12:44 PM
                Mine look funny like that every once in a while. I run 20-25 #. Looks to me like it was spinning, hence the chewed up look. Then you drove it around normal for a while and it cleaned the scrub marks off the center. Long as they are evenly wearing I wouldn’t sweat it too much. If you go out and hammer it then look, I would expect the whole surface to look chewed up.

                • Agree Agree x 2
                • Thanks! Thanks! x 1
                • rlem1977

                  rlem1977 FBBO Gold Member FBBO Gold Member

                  Messages:
                  792
                  Likes Received:
                  783
                  Joined:
                  Feb 12, 2018
                  Location:
                  Texas
                  Local Time:
                  11:44 AM
                  From M/T:

                  ET STREET™ R (RADIAL) AND ET STREET™ S/S
                  On the racetrack DO NOT use starting pressures below 13 psi.
                  Recommend pressures: 14-18 psi
                  For suggested highway use inflation pressure in Mickey Thompson ET Street Radial tires, contact the Mickey Thompson Tires tech department at (800) 222-9092 (Option 4).

                  • Thanks! Thanks! x 1
                  • 33 IMP

                    33 IMP Well-Known Member

                    Messages:
                    667
                    Likes Received:
                    661
                    Joined:
                    Dec 21, 2017
                    Location:
                    taxifornia,soon 2b Arizona.
                    Local Time:
                    9:44 AM
                    Set tire pressure to 15lbs and find some virgin pavement, maybe far edge of a big parking lot, and do a stab and steer( not a burnout) and look at tire mark pattern. I'll bet you have four outside edge marks. Then try other pressures till you get a good all-the-way-across pattern. Street driving, I bet it will like 25+lbs.

                    • Like Like x 1
                    • Thanks! Thanks! x 1
