No oil through passenger rocker arms

Engine, Trans & Driveline

  1. 69Bee

    69Bee FBBO Gold Member FBBO Gold Member

    Messages:
    1,848
    Likes Received:
    1377
    Joined:
    Nov 17, 2009
    Location:
    Whetstone, AZ
    Local Time:
    8:17 PM
    The shaft oil hole will be towards the valve in relation the shaft hold down bolts. If there are notches on the end of the shaft, the driver side shaft will be to the front of the engine, and to the rear of the passenger side.

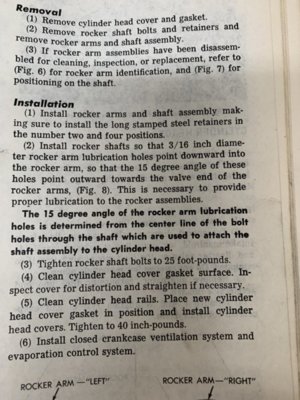

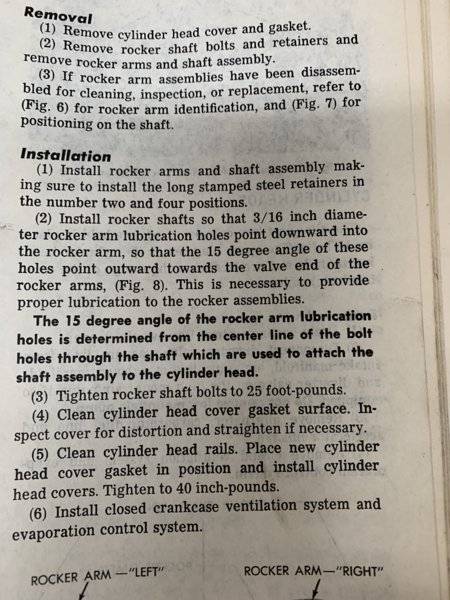

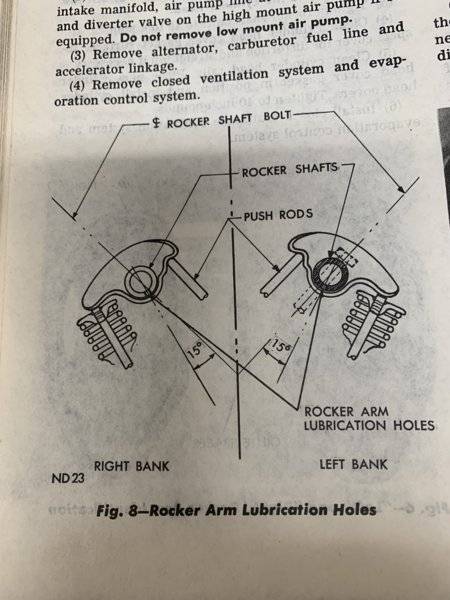

    IMG_3847.jpg IMG_3848.jpg

    • Like Like x 1
    • oldbee

      oldbee FBBO Gold Member FBBO Gold Member

      Messages:
      8,265
      Likes Received:
      8103
      Joined:
      Oct 15, 2011
      Location:
      NE Ohio
      Local Time:
      11:17 PM
      Like miller says, straighten a coat hanger; lay it between the pushrods and pedestals. That'll keep the pushrods halfway lined up when you put rockers/shaft back on.

      • Like Like x 1
      • Thanks! Thanks! x 1
      • Agree Agree x 1
      • 1968rt

        1968rt Well-Known Member

        Messages:
        162
        Likes Received:
        141
        Joined:
        Jul 28, 2010
        Location:
        New York
        Local Time:
        11:17 PM
        If its bone dry it could be the cam bearing. Either installed wrong or it spun!

        • Agree Agree x 1
        • wyrmrider

          wyrmrider Well-Known Member

          Messages:
          2,324
          Likes Received:
          902
          Joined:
          Aug 26, 2014
          Location:
          los angeles
          Local Time:
          8:17 PM
          a BTW
          rotating the engine while priming will also load up the lifters if they were dry or bleed them down if they were loaded with oil (which can bend things)

        • 69Bee

          69Bee FBBO Gold Member FBBO Gold Member

          Messages:
          1,848
          Likes Received:
          1377
          Joined:
          Nov 17, 2009
          Location:
          Whetstone, AZ
          Local Time:
          8:17 PM
          Trick I learned and it might have been in the service manual, use the oil dipstick.

          • Like Like x 2
          • Agree Agree x 1
          • dadsbee

            dadsbee FBBO Gold Member FBBO Gold Member

            Messages:
            5,486
            Likes Received:
            11694
            Joined:
            Jan 29, 2018
            Location:
            Ontario, Canada
            Local Time:
            11:17 PM
            Length of .063 TIG filler wire works perfect.

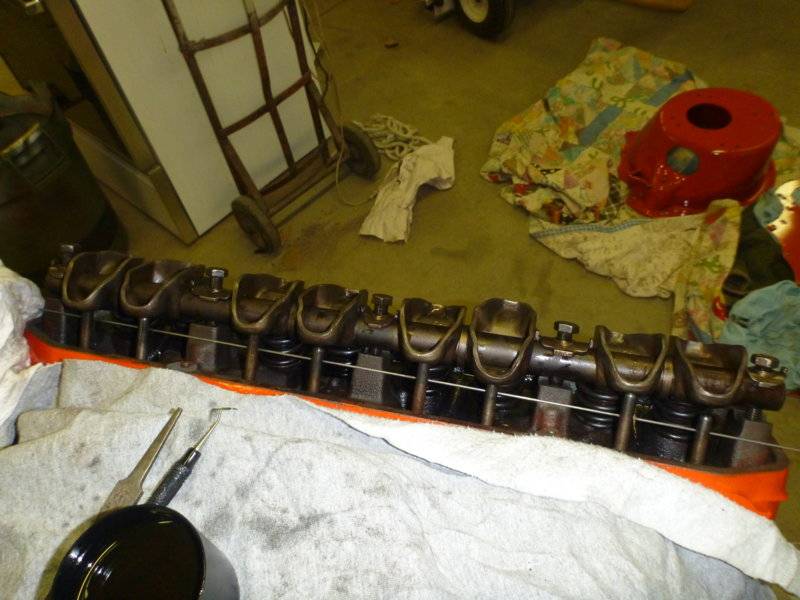

            beerestoration2017 054.JPG

            • Like Like x 3
            • Thanks! Thanks! x 2
            • Yeahrightgreer

              Yeahrightgreer Well-Known Member

              Messages:
              73
              Likes Received:
              55
              Joined:
              Jan 12, 2020
              Location:
              Camp Lejeune, NC
              Local Time:
              11:17 PM
              Plugs are indeed on each end of the shaft

              Yes, and only driver side head would Oil once per revolution

            • Yeahrightgreer

              Yeahrightgreer Well-Known Member

              Messages:
              73
              Likes Received:
              55
              Joined:
              Jan 12, 2020
              Location:
              Camp Lejeune, NC
              Local Time:
              11:17 PM

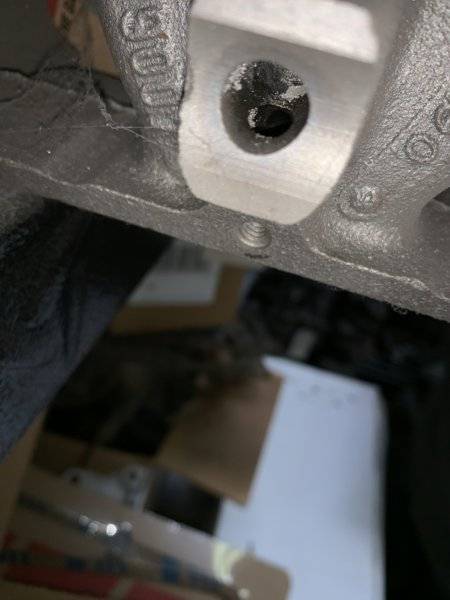

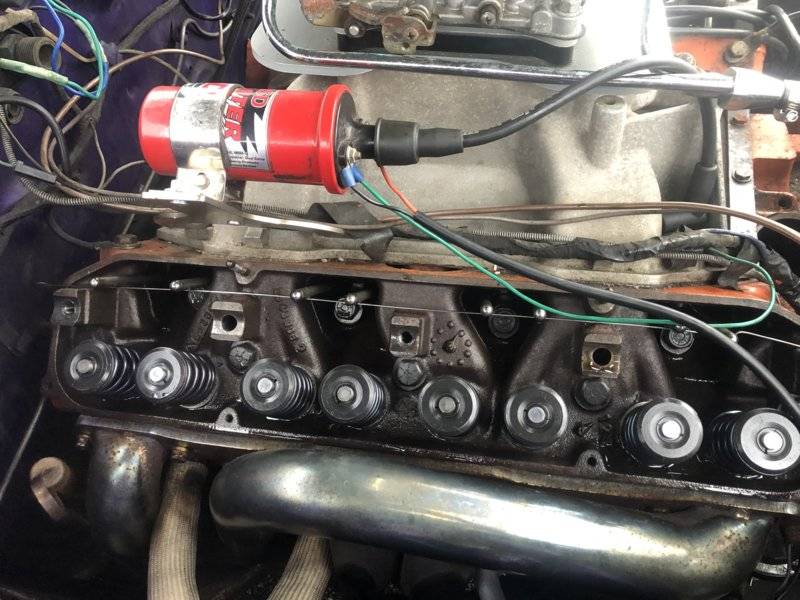

              I got a chance to quickly look the car after work but the sun is down and I got rained out so limited

              I started by just double checking I didn’t miss the hole while priming, so I slowly turned the crankshaft while priming. 3 full revolutions for the camshaft, driver side oiled every time and nothing on the passenger. I then removed the shaft assembly and did it again and still nothing out the passenger side.

              I didn’t have a pipe brush small enough to fit down the oil gallery so will have to try tomorrow or use a small wire to see if there’s debris etc in the way. I’m hoping it’s that and not a cam bearing.


              • Like Like x 2
              • Agree Agree x 1
              • 69L48Z27

                69L48Z27 Well-Known Member

                Messages:
                2,682
                Likes Received:
                2784
                Joined:
                Nov 19, 2015
                Location:
                York, Pa
                Local Time:
                11:17 PM
                When you poke the wire down through have someone turn the engine over. If the filler rod never finds the hole in the cam you’ll know what the problem is. If you find the hole on the cam then it’s a head scratcher.

                • Agree Agree x 3
                • 69Bee

                  69Bee FBBO Gold Member FBBO Gold Member

                  Messages:
                  1,848
                  Likes Received:
                  1377
                  Joined:
                  Nov 17, 2009
                  Location:
                  Whetstone, AZ
                  Local Time:
                  8:17 PM
                  1) Head gasket is symmetrical, so can not be an issue
                  2) Crap in the passage is possible.
                  3) Spun or misaligned cam bearing is also a possibility.

                  One thing to think about is the heads are drilled on both ends so that the heads can go on either bank, as well as the gasket. A head that was together for many years can build up a gross grey sludge from years of the OLD oil. The sludge forms because the head gasket blocks the hole at the head level, and oil yurns to sludge over time in this blind hole. When I clean these heads, and blow out the rocker bolt holes, the grey sludge comes out thick as tar. Push a rid in the passage, and if it is covered in a grey sludge, that might be your issue. Carb cleaner and an air gun can clean it up. The carb cleaner straw does a good job of conforming to a shaft the is not straight. Wear eye protection, trust me and don't ask how I know.

                  • Agree Agree x 2
                  • Like Like x 1
                  • Thanks! Thanks! x 1
                  • miller

                    miller Well-Known Member

                    Messages:
                    4,083
                    Likes Received:
                    2005
                    Joined:
                    Jan 5, 2014
                    Location:
                    Tom Bean,Texas
                    Local Time:
                    10:17 PM
                    Sounds like you've found your problem. A good thing, since running it like that would have gotten bad.
                    Okay, find out why?
                    When the cam bearings are installed, there's two holes in #4 bearing. IF the bearing is right, the bearing holes will be lined up with the two block ports. Yeah, run a stiff length of wire through that hole, to see if any junk comes back out with it. A little harder, push the wire in 'til it bottoms...turn the engine by hand, to see if you can feel the wire end, moving along the cam journal.

                    Bottom line...if the cam bearing is NOT right, cam needs to be pulled, and cam bearings re-done.
                    Toss a handful of common sense at it all, and go from there. Good find, before things went south!

                    • Agree Agree x 2
                    • Thanks! Thanks! x 1
                    • Yeahrightgreer

                      Yeahrightgreer Well-Known Member

                      Messages:
                      73
                      Likes Received:
                      55
                      Joined:
                      Jan 12, 2020
                      Location:
                      Camp Lejeune, NC
                      Local Time:
                      11:17 PM
                      There is supposed to be a shaft that the oil passes through correct? So in other words this specific hole on the second to last bolt hole should be deeper than the other 4?


                      Feeding a wire through feels as if its not even protruding down and that it’s hitting something solid. Intuitively it doesn’t feel deep enough to be the cam or bearings. Maybe halfway down the cylinder head. I measured and it has the same depth as the other holes. Am I missing something?


                      • Like Like x 1
                      • khryslerkid

                        khryslerkid FBBO Gold Member FBBO Gold Member

                        Messages:
                        20,387
                        Likes Received:
                        29780
                        Joined:
                        Mar 10, 2010
                        Location:
                        Hanover, Pennslyvania
                        Local Time:
                        11:17 PM
                        Can you look in that bolt hole with a good flashlight? A stiff straight wire should go down to the cam bearing.

                        • Agree Agree x 1
                        • Fran Blacker

                          Fran Blacker FBBO Gold Member FBBO Gold Member

                          Messages:
                          7,565
                          Likes Received:
                          7142
                          Joined:
                          Sep 23, 2016
                          Location:
                          Connecticut
                          Local Time:
                          11:17 PM
                          Haven't done wedges but does the oil hole enter the at an slight angle not straight down, just asking.

                          Last edited: Jan 14, 2020
                          • Agree Agree x 3
                          • Like Like x 1
                          • Thanks! Thanks! x 1
                          • MarPar

                            MarPar If it weighs, it pays FBBO Gold Member

                            Messages:
                            12,839
                            Likes Received:
                            21436
                            Joined:
                            Nov 21, 2008
                            Location:
                            In GTXtacy Illinois
                            Local Time:
                            10:17 PM
                            Greer buddy! Welcome to the madness that is FBBO!

                            I hope you get yer oiling situation all figured out.

                            • Like Like x 2
                            • Agree Agree x 2
                            • 69Bee

                              69Bee FBBO Gold Member FBBO Gold Member

                              Messages:
                              1,848
                              Likes Received:
                              1377
                              Joined:
                              Nov 17, 2009
                              Location:
                              Whetstone, AZ
                              Local Time:
                              8:17 PM
                              Rocker bolt goes straight down, and the oil passage angles towards the intake side of the hole.


                              • Like Like x 5
                              • Agree Agree x 3
                              • wyrmrider

                                wyrmrider Well-Known Member

                                Messages:
                                2,324
                                Likes Received:
                                902
                                Joined:
                                Aug 26, 2014
                                Location:
                                los angeles
                                Local Time:
                                8:17 PM
                                old fuzzy here but the oil passage is off the bolt hole not straight down
                                borescope?
                                you pulled the bolt from the back of the engine or the front

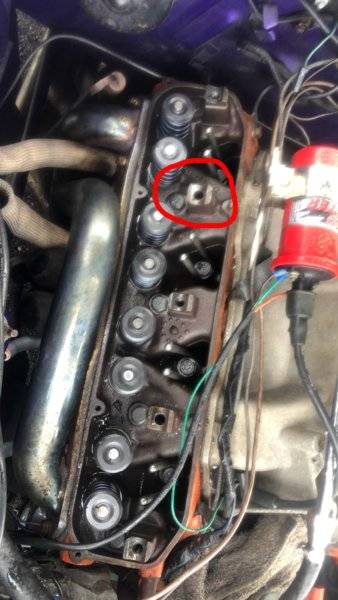

                                that pic on the previous page looks wrong- maybe BBM
                                //sbm pump is at the rear

                              • Fran Blacker

                                Fran Blacker FBBO Gold Member FBBO Gold Member

                                Messages:
                                7,565
                                Likes Received:
                                7142
                                Joined:
                                Sep 23, 2016
                                Location:
                                Connecticut
                                Local Time:
                                11:17 PM
                                Think intake ports facing down in picture. So hole is hard to with heads on in engine compartment.

                              • HALIFAXHOPS

                                HALIFAXHOPS hops farmer and MOPAR only distributor rebuilder! FBBO Gold Member

                                Messages:
                                2,512
                                Likes Received:
                                1002
                                Joined:
                                May 5, 2016
                                Location:
                                Halifax, PA USA
                                Local Time:
                                11:17 PM
                                @MoparMitch had a good one the oil passage in the on one side of the cam was blocked same issue. Look at how the oil goes through the cam, it will make sense just something to check.

                                • Thanks! Thanks! x 1
                                • khryslerkid

                                  khryslerkid FBBO Gold Member FBBO Gold Member

                                  Messages:
                                  20,387
                                  Likes Received:
                                  29780
                                  Joined:
                                  Mar 10, 2010
                                  Location:
                                  Hanover, Pennslyvania
                                  Local Time:
                                  11:17 PM
                                  I thought I had read that on another website.

                                  If the cam bearing had spun, you wouldn't think that one side was still getting oil. It should block off both sides unless you were lucky enough for one of the two holes to stop just right.

                                  Upon my initial oil priming with a drill (fresh rebuild) I couldn't get oil on the passenger side. So I pulled that rocker shaft bolt and tried again, same result. So I used a stiff wire and sent it down the passage. (I don't remember going at an angle, thought it went straight, but I'm old too!) When I pulled it out I had break in lube on it. Turned the priming drill again and had oil. So I'm guessing it doesn't take much to block the small cam bearing hole.

                                  • Thanks! Thanks! x 1
                                  • Agree Agree x 1
