I am going through the 440 in my car....

Re-Rebuilding the 440-493 in a 1970 Charger

One issue that I just noticed is the tech sheet that came with the new valve springs I bought.
I have the Edelbrock Performer RPM aluminum heads so I bought replacement springs for them.
Check out the specs they list:

178 R.jpg


179 R.jpg


180 R.jpg

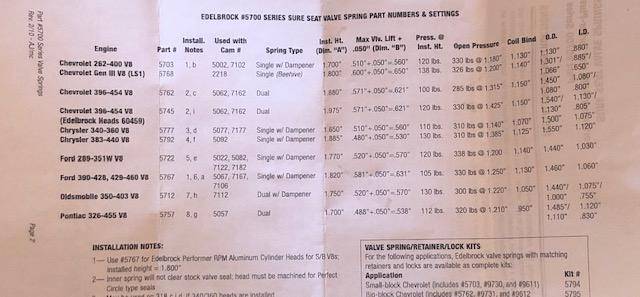

Check out the highlighted part:

181 R.jpg


Max valve lift is .480 + .050 = .530 ? This is odd. I've had these similar springs in place with the Lunati and this Mopar Performance cam, both with a LOT more lift than that. I'm at .564 with the '528 cam and .576/.600 lift with the Lunati. How is this possible?


INTMD8

Well-Known Member
Local time
11:28 AM
Joined
Apr 17, 2017
Messages
427
Reaction score
417
Location
Lake Villa IL
If you measure everything (everything), you can run within .060 of coil bind.

Those springs coil bind at 1.125

Hard to see but they recommend installed height at 1.885?

1.885 minus 1.125 is .760 minus .060 is .700

Unless you had over .700 lift at the valve, you would not approach coil bind.

Not sure how they are arriving at max valve lift unless it's because they don't want you to exceed 310 over the nose.

For example 1.885 minus .500 to achieve 1.385 equals 360lb/in rate.

If you set them up at 1.885 you would of course have 130 on the seat

Now if you ran it with .600 lift you have an extra .100 lift.

360lb/in x .100 = 36

310+36, now it's 346lbs over the nose.

Not really familiar with flat tappets to know if that would really matter but I thought people run that and more?


You didn't ask but just throwing it out there. I wouldn't personally run a 1.550 od spring.

Lots of variables but basically the more weight you have in the valve/spring/locks/retainer the more pressure you need to control everything. If you can lighten all that up you can run less spring pressure which ends up being easier on the lifter/cam interface. (or same pressure results in more rpm potential and less likely to loft/bounce/damage)

Even on my solid roller setup I'm using only a 1.4" diameter spring.

If I were you I would look for the smallest diameter spring that meets your requirements. If you're trying to keep it on the inexpensive side, team that up with tool steel retainers.

JMO


451Mopar

Well-Known Member
Local time
10:28 AM
Joined
Oct 25, 2011
Messages
3,167
Reaction score
2,469
Location
Aurora, CO
I think they mean max valve lift of their cams the spring is recommended for, and that is being used to get the open spring pressure?


66Satellite47

FBBO Gold Member
FBBO Gold Member
Local time
10:28 AM
Joined
Jan 15, 2015
Messages
6,542
Reaction score
5,568
Location
St Paul MN
My Satellite came with EDE RPM's with a Comp solid FT .502/509. I believe the springs were the EDE 1.550 single springs. It was all done by 5200-5400 RPM. I switched to Comp 930 1.550 double springs. I think that helped the RPM's by at least a few hundred. Then I also replaced the fuel pump, filter and fuel lines to be sure that wasn't part of the poor RPM.


mopar 3 B

Well-Known Member
Local time
11:28 AM
Joined
Aug 25, 2014
Messages
11,186
Reaction score
8,383
Location
Kingsville, MO
If you measure everything (everything), you can run within .060 of coil bind.

Those springs coil bind at 1.125

Hard to see but they recommend installed height at 1.885?

1.885 minus 1.125 is .760 minus .060 is .700

Unless you had over .700 lift at the valve, you would not approach coil bind.

Not sure how they are arriving at max valve lift unless it's because they don't want you to exceed 310 over the nose.

For example 1.885 minus .500 to achieve 1.385 equals 360lb/in rate.

If you set them up at 1.885 you would of course have 130 on the seat

Now if you ran it with .600 lift you have an extra .100 lift.

360lb/in x .100 = 36

310+36, now it's 346lbs over the nose.

Not really familiar with flat tappets to know if that would really matter but I thought people run that and more?


You didn't ask but just throwing it out there. I wouldn't personally run a 1.550 od spring.

Lots of variables but basically the more weight you have in the valve/spring/locks/retainer the more pressure you need to control everything. If you can lighten all that up you can run less spring pressure which ends up being easier on the lifter/cam interface. (or same pressure results in more rpm potential and less likely to loft/bounce/damage)

Even on my solid roller setup I'm using only a 1.4" diameter spring.

If I were you I would look for the smallest diameter spring that meets your requirements. If you're trying to keep it on the inexpensive side, team that up with tool steel retainers.

JMO
Does the smaller diameter spring require a different valve seal type? Or will factory style seals still work?


INTMD8

Well-Known Member
Local time
11:28 AM
Joined
Apr 17, 2017
Messages
427
Reaction score
417
Location
Lake Villa IL
Does the smaller diameter spring require a different valve seal type? Or will factory style seals still work?

Depends on what parts you're using exactly. I used comp 519-16 seals on mine and a valve guide OD cutter with a hand drill. (but I'm using dual springs).

You may be able to find a conical spring or single spring with smaller diameter that will still fit a stock type valve seal.


Dodge Bros

Well-Known Member
Local time
11:28 AM
Joined
Mar 23, 2020
Messages
90
Reaction score
76
Location
Nebraska
The chart shown appears to be a cam and spring chart. Some of the data on there is only relevant to the cams on the list. It is kinda of an odd chart.

FWIW…A dual valve spring has quite a bit better harmonics than a single with a dampener. A dual has better valve control with less spring rate. Single with a dampener is common on our mopars. We usually knock the spring rate back 10-15% moving to a dual to single, more or less leaves the seat pressure the same with less pressure at max lift, easier on parts. The only benefit to a single spring set up is it is cheap.
