    Who's got what as far as headlight upgrades. Mine suck, almost shaved a deer last night. I don't do much night driving.... but when I do, Its scarry ....

    Any recommendations for conversation kits, etc?

  2. Bob Sawyer

    Bob Sawyer FBBO Gold Member FBBO Gold Member

    Messages:
    337
    Likes Received:
    551
    Joined:
    May 18, 2016
    Location:
    Chesapeake, VA
    Local Time:
    10:35 AM
    Check out @Crackedback. He is a member on this site and he sells a very good kit.

    • Agree Agree x 5
    • 505droptop

      505droptop Member

      Messages:
      15
      Likes Received:
      8
      Joined:
      Apr 28, 2018
      Location:
      Michigan
      Local Time:
      10:35 AM

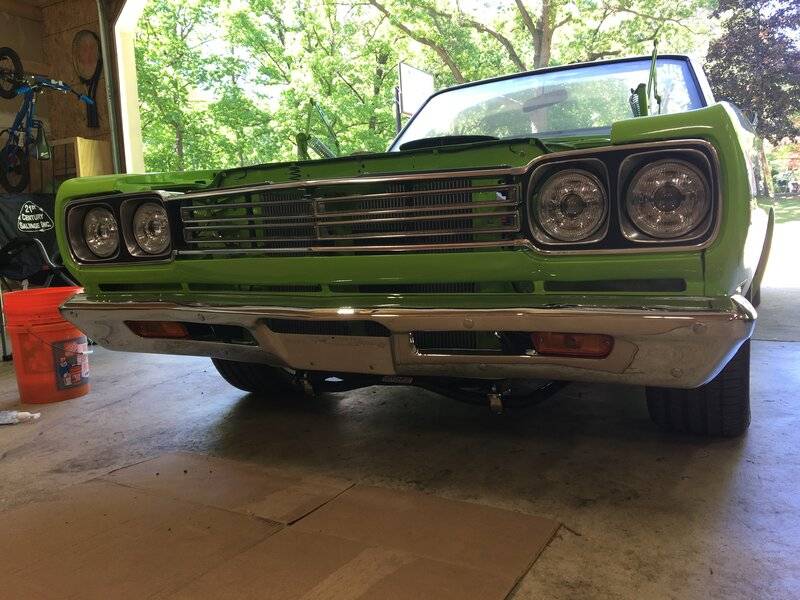

      I went with leds from dapper lighting. They work great but had to modify the buckets 49D6E992-D924-4A35-8629-E84DCDBEC845.jpeg

      • Like Like x 2
      • 493 Mike

        493 Mike FBBO Gold Member FBBO Gold Member

        Messages:
        2,363
        Likes Received:
        2509
        Joined:
        Dec 25, 2011
        Location:
        White Cloud, MI
        Local Time:
        10:35 AM
        We just went through this topic recently. Did you search the site?
        Mike

        • Agree Agree x 2
        • Hubbarocks

          Hubbarocks Member

          Messages:
          18
          Likes Received:
          18
          Joined:
          Jun 25, 2020
          Location:
          sconsin'
          Local Time:
          9:35 AM
          I searched briefly last week, I'll have to look more diligently

        • Nacho-RT74

          Nacho-RT74 Well-Known Member

          Messages:
          3,742
          Likes Received:
          1224
          Joined:
          Oct 8, 2012
          Location:
          Caracas, Venezuela
          Local Time:
          10:35 AM
          Honestly, halogens are quite enough for me... couple of relays installed into the kick panel. No need to be on engine bay, will be invisible and don't need to cut a wire making them correctly, so will be protected from grease, water dust and heat and done. No other mods needed. Relays are just to keep the headlight switch safe from the added load these suck

          H5006 for low/highs and H5001 for highs. $6-9 rate each

          Last edited: Jul 3, 2020
          • Like Like x 1
          • 493 Mike

            493 Mike FBBO Gold Member FBBO Gold Member

            Messages:
            2,363
            Likes Received:
            2509
            Joined:
            Dec 25, 2011
            Location:
            White Cloud, MI
            Local Time:
            10:35 AM
            • Like Like x 1
            • Nacho-RT74

              Nacho-RT74 Well-Known Member

              Messages:
              3,742
              Likes Received:
              1224
              Joined:
              Oct 8, 2012
              Location:
              Caracas, Venezuela
              Local Time:
              10:35 AM
              Relays must be sourced from alternator side not from batt side if you are still using the ammeter

              • Like Like x 1
              • 493 Mike

                493 Mike FBBO Gold Member FBBO Gold Member

                Messages:
                2,363
                Likes Received:
                2509
                Joined:
                Dec 25, 2011
                Location:
                White Cloud, MI
                Local Time:
                10:35 AM
                I feel it is foolish to rely on the OEM ammeter given all the problems they seem to cause as they age. I have connected my alternator to the starter relay stud and jumpered the screw connections (1965) at the bulkhead connector to render the ammeter to power distribution service only. Volt meters are the way to go.
                Mike

                • Agree Agree x 2
                • Billccm

                  Billccm FBBO Gold Member FBBO Gold Member

                  Messages:
                  2,269
                  Likes Received:
                  1803
                  Joined:
                  Aug 3, 2016
                  Location:
                  Tucson
                  Local Time:
                  7:35 AM
                  I'll second the crackedback relay kit. It's plug and play. I've got basic Sylvania headlights and with the relay they are as bright as my grand marquis headlights.

                  • Agree Agree x 1
                  • Ruby67

                    Ruby67 Active Member

                    Messages:
                    32
                    Likes Received:
                    68
                    Joined:
                    Sep 8, 2015
                    Location:
                    Kelowna, BC
                    Local Time:
                    7:35 AM
                    With my quad headlights, I changed them so 2 are hi beam only and 2 are lo only, using Euro standard lense housings with replaceable bulbs sourced from Slantsixdan (Daniel Stern). Made a huge difference for night driving. For me it was well worth the effort. Dan was a great source of info. I installed relays as others have recommended and I also increased the wire gauge to the lights and confirmed I had good grounds.

                  • rrTor-Red

                    rrTor-Red FBBO Gold Member FBBO Gold Member

                    Messages:
                    1,990
                    Likes Received:
                    688
                    Joined:
                    Sep 1, 2010
                    Location:
                    USA
                    Local Time:
                    9:35 AM
                    I second Crackedback

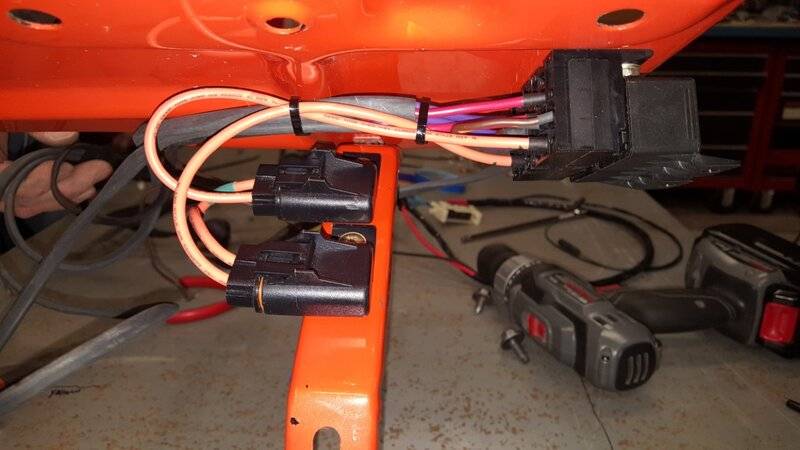

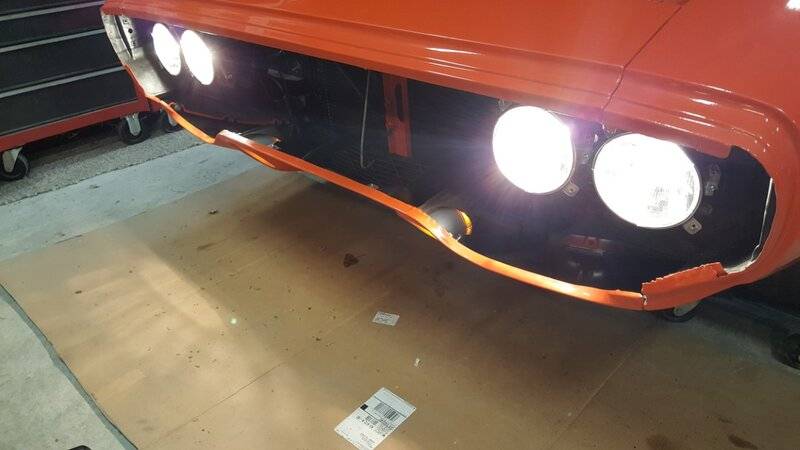

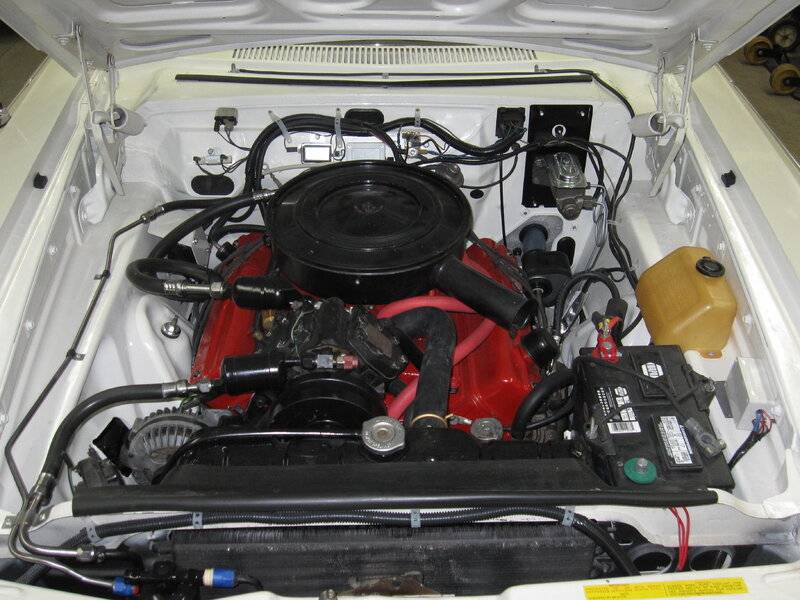

                    Installed relays under my battery tray from the kit of Crackedback. The result is bright lights JUST on battery power

                    Headlights.jpg thumbnail_20170204_161837.jpg

                    • Like Like x 2
                    • Agree Agree x 1
                    • Hubbarocks

                      Hubbarocks Member

                      Messages:
                      18
                      Likes Received:
                      18
                      Joined:
                      Jun 25, 2020
                      Location:
                      sconsin'
                      Local Time:
                      9:35 AM
                      Firstly ; thanks everyone for their feedback.

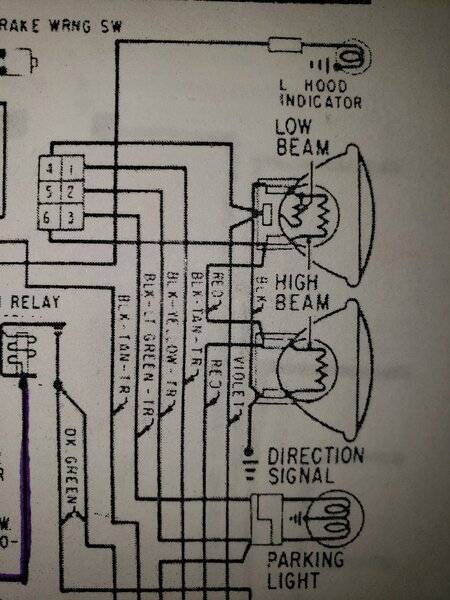

                      As soon as the relay kit was mentioned. i remembered i actually made one years ago, but never actually installed it. So i dug through my boxes of parts and found it. yippi.

                      my question now lies within the install of said relay(s). When i made it i thought i'd use 1 relay for low beams and 1 for high beams. (photo below) and i would install close to battery try and splice into the plug connector behind the battery and get the full battery power. i broke out my elec drawing to see what was what.

                      i did check around for some "install guides" but didn't find anything. Anyone has a link to another post, i'll gladly read it. Can someone clearly tell me best place to wire the relay?

                      i'm at a loss of how to wire these in. i don't think I'm grasping how these headlights function.
                      the RED wire is power on low beams (10v or so) car not running and i get 10v at the violet wire with low beams, when i turn the HI beams on, i lose power on the violet wire?

                      then examine the actual plugs and it looks like its jumped from LOw beam to high beam? so does 12v supposed go thru the low beam to the high beam when both are on , in series? so all 4 head lights are getting fed from the same 12v source ? relay.jpg elec lights.jpg

                    • Crackedback

                      Crackedback Well-Known Member

                      Messages:
                      299
                      Likes Received:
                      259
                      Joined:
                      Aug 12, 2008
                      Location:
                      Southern California
                      Local Time:
                      7:35 AM
                      Yes, all 4 headlights draw on the same source when in high beam. Depending on relay used, you may have to do up to 3 bridges for high beam. You can see in the wiring diagram, low beam has 2 filaments.

                      • Thanks! Thanks! x 1
                      • Kern Dog

                        Kern Dog FBBO Gold Member FBBO Gold Member

                        Messages:
                        16,707
                        Likes Received:
                        38802
                        Joined:
                        Apr 13, 2012
                        Location:
                        Granite Bay CA
                        Local Time:
                        7:35 AM
                        Uhhh, you forget that some are not as adept at understanding electrical jargon as a seasoned guru....

                      • Don Frelier

                        Don Frelier FBBO Gold Member FBBO Gold Member

                        Messages:
                        2,372
                        Likes Received:
                        2479
                        Joined:
                        Oct 11, 2016
                        Location:
                        Ionia, NY
                        Local Time:
                        10:35 AM

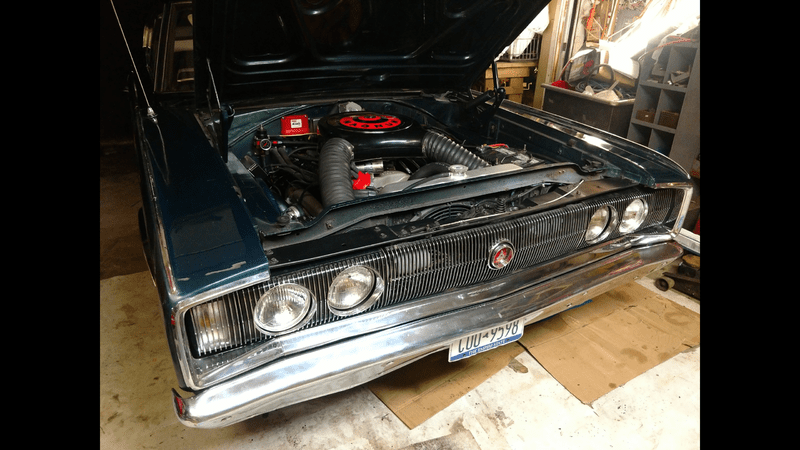

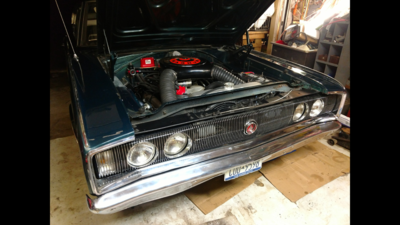

                        I just changed the headlights in the charger. I used the Hella conversion. It accepts a H4 bulb. I had put halogens in it over 30 years ago!
                        I disconnected the inside high beams. They aren't needed and just add more draw on the charging system.


                        • Like Like x 1
                        • Hubbarocks

                          Hubbarocks Member

                          Messages:
                          18
                          Likes Received:
                          18
                          Joined:
                          Jun 25, 2020
                          Location:
                          sconsin'
                          Local Time:
                          9:35 AM
                          Thanks Don - do happen to have a link for the hella lights? i'm interested. Did the kit come with a relay or did you wire in your own.

                        • Hubbarocks

                          Hubbarocks Member

                          Messages:
                          18
                          Likes Received:
                          18
                          Joined:
                          Jun 25, 2020
                          Location:
                          sconsin'
                          Local Time:
                          9:35 AM
                          thanks Crackback for you feedback!

                          Do you think it feasible to wire them in this location i noted in the elec drawing below? I traced the # 6 and # 4 back straight to the beam selector switch (dimmer) , i could wire in right after that too I'm thinking and put under the dash.

                          anyone's 2cents if this is acceptable?

                        • 451Mopar

                          451Mopar Well-Known Member

                          Messages:
                          2,011
                          Likes Received:
                          1376
                          Joined:
                          Oct 25, 2011
                          Location:
                          Aurora, CO
                          Local Time:
                          8:35 AM
                          Also, Check that the bulb socket grounds have good connection to the radiator core support, and the support is grounded to the battery.
                          When I re-wired my headlights (with relays, and new light socket connections), I added an additional ground wire that goes from the battery cable ground wire point to all the headlight ground terminals, in addition to (in parallel with) the normal ground wire that connects to the core support.
                          On the hot side, to reduce voltage drop (and take the current load off the bulkhead connector), mount the relays near the headlights.
                          I am using the sealed Bussman relay/fuse block (Eaton 15303-2-2-4). It holds 5, 35-amp mini-relays and 10 fuses. 5 of the fuses are used to fuse the relays. The box is mounted where the battery would have been (rear mounted the battery.) Only 2 of the 5 relays are used for headlights (high and low beam), the other relays are for radiator cooling fans (2), and the last relay can be used for different stuff like horn relay, driving lights, A/C clutch, ect.

                          Last edited: Jul 9, 2020
                        • 493 Mike

                          493 Mike FBBO Gold Member FBBO Gold Member

                          Messages:
                          2,363
                          Likes Received:
                          2509
                          Joined:
                          Dec 25, 2011
                          Location:
                          White Cloud, MI
                          Local Time:
                          10:35 AM
                          You can place the relays (2) under the dash and run the dimmer switch outputs to operate the relays. But, I recommend 12 ga. wire to the headlamps from the relays.
                          Mike
